ENW-9701

High Performance Boosts Network Traffic Speed and Flexible Distance Extension
PLANET ENW-9701 1000Base-X Fiber PCI-Express Ethernet adapter is ideal for high end servers to extend long distance network reliably and flexibly with up to 2000Mbps full-duplex bandwidth capacity. It is an optimal solution for Ethernet applications by providing strictly low-power budgets and small form factor.Flexible Distance Option
With the 1000Base-SX / LX SFP (Small-Form Factor Pluggable) interface supported by the ENW-9701, the fiber network deployment distance can be extended from 550 meters (via multi-mode fiber) up to above 10/20/30/40/50/70/120 kilometers (via single-mode fiber, respectively). Users can choose the most suitable SFP transceiver module depending on their needs. The ENW-9701 connects your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.More Bandwidth and Advanced Functions
The ENW-9701 is designed to address high-performance system requirements. With the innovative PCI Express Bus Architecture, the ENW-9701 provides better bandwidth and performance than the network cards which are based on 32/64bit PCI architecture. Moreover, the ENW-9701 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it offers further optimal throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.Seamless Integration
The ENW-9701 is completely harmonious with most of the servers’ operating systems, enabling simple integration into network designs. There is no need of any modification to the server’s operating system or any special software required for the ENW-9701 to be integrated into the system. The ENW-9701 can take the place of the Ethernet MAC of any conventional TCP connection and have the existing TCP/IP stack of server’s CPU still kept intact. It requires only a simple, standard PCIe driver to connect the ENW-9701 to the software.

NAS-7103

Need more reliable storage for your PC or laptop without implementing any hardware installation to your PC? PLANET NAS-7103 offers you the above benefit. With a SATA II HDD bay, the NAS-7103 helps you to expand data storage easily by using Plug and Play. Users can easily set up a system for all sorts of storage applications by using the user-friendly web-based interface.

As a compact, economical and easy-to-use network storage server, the NAS-7103 fits SOHO and Home user requirements of storage. It functions as a File and FTP server helping LAN users to easily back up data or share files through LAN and WAN. The embedded Bit-Torrent client feature brings you the most convenience to download shared resources from Internet. The FTP server is compatible with Unicode so the multilingual file names can be identified by this device.

Furthermore, the NAS-7103 supports advanced user management functions such as private HDD space and login account. It not only shares HDD space, but also performs as a management device to manage each user on the network. With the NAS-7103, you will get a simple yet effective way to expand data storage of your own, no matter for your network at home or office.

UMG-1000

PLANET UMG-1000 is a desktop total IT solution for the small and medium businesses (SMBs). It is integrated with commonly used office appliance features and provides Internet access, telephone, fax and data in one device. Via the built in 4-port FXO, the UMG-1000 allows SMBs to connect to various Internet and telephone carriers easily.

Branch-to-Branch secured network and call features of the UMG-1000 bring your remote offices together. The UMG-1000 facilitates sharing files safely among multiple office locations through secure channels. For VoIP operations, the users can call any extension from any remote location without paying local or long distance call charge. In the storage feature, the storage volumes in the UMG-1000 can be created for individual users and groups within the corporate. The UMG-1000 is also as the Web and E-mail servers that are able to be set up with one mouse click. It furthermore provides schedule automated snapshot and backup tasks to prevent data loss.

The UMG-1000 enables the administrator to easily complete the initial setup via the Smart Wizard and to efficiently manage user accounts with privilege and access control. Besides the above functions, the extensive features provided by the UMG-1000 include DMZ support, VoIP call control, Call Detail Record (CDR), Least Cost Routing (LCR), Busy Lamp Field (BLF), Bridged Line Appearance (BLA), configuration backup and restore, secure remote management capabilities, and many more.

POE-152

PLANET POE-152 is an IEEE 802.3af Power over Ethernet Injector, which provides DC 48V over Ethernet cables. The POE-152 IEEE 802.3af Power over Ethernet Injector inserts DC voltage into Cat.5 cable, allowing the cable between the Injector (POE-152) and Splitter (POE-152S-5V/12V) to transfer data and power simultaneously. The maximum distance between the Injector (POE-152) and Splitter (POE-152S-5V/12V) is 100 meters. With POE-152 being installed, it combines the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3af Power over Ethernet Injector. And the IEEE 802.3af Power over Ethernet splitter divides the digital data and the power into two outputs.

Unlike the existing Power over Ethernet Injector, the POE-152 also provides 1000Mbps Gigabit Ethernet connection capability, except the 10/100Mbps Fast Ethernet connection capability.

With IEEE 802.3af Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Besides, to connect through the POE-152 and POE-152S-5V/12V, you can also have the benefits of cost saving, ease of networking planning and higher reliability. Upon any IEEE 802.3af devices being installed, the POE-152 or together with POE-152S-5V/12V can make the connection while migrating or splitting the power and the Ethernet digital packets, such as connecting the POE-152 to an IEEE 802.3af complied device, AP or IP phone.

GSD-805

Optimal Solution for Gigabit High Performance Networking
Super high speed Ethernet Switch is expected to become the main stream in the market as the increasing popularity of Desktop and Laptop with built-in Gigabit Network Interface, and widely application of Share Database Device and Multimedia Center day by day.. PLANET GSD-805, the 8-Port 10/100/1000Mbps Gigabit Ethernet Switch is introduced to meet the market demand and especially designed with metal compact housing, internal power supply and fanless to bring an easy deployment of Gigabit networks for home, SOHO or SMBs.Energy Saving
In line with the energy-saving trend worldwide, the GSD-805 uses new engine that provides energy saving up to 40% less without reducing the performance. The GSD-805 incorporates two advanced Green Networking technologies:
■ Idle Mode Link Down power saving
■ Intelligent Scales Power based on cable length
The Idle mode Link Down power saving of the GSD-805 complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is not linked. With the Idle mode Link Down power savings technology, the GSD-805 will automatically adjusts power usage of the ports that are shutdown or not connected to network devices. The Intelligent Scales Power, is an intelligent algorithm that actively determines the appropriate power level based on cable length.
The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving.Full Range Internal Power Supply
With the compact metal housing design and equipped with a full range internal power supply, the GSD-805 is ideal to be installed for desktop or space-limited environment. Benefit from the convenient internal power, users can directly plug the device’s power cable in the outlet without additional cumbersome power adapter on the wall.EuP Complies Power Control
To comply with European Union’s Energy-using Products (EuP) Directive for further reduce the energy consumptions, the GSD-805 has a built-in power switch with off mode and standby mode selection at its rear panel. PLANET Green Networking Switch greatly helps to eliminate the power consumption at home, lower the business operation cost and fulfill the responsibility of a corporate citizen.

High Performance
Providing 16Gbps internal switching fabric, the GSD-805 can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The GSD-805 provides 8K MAC address table and 1Mbits buffer memory. It offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network upgrading to a Gigabit environment.

Plug & Play
All RJ-45 copper interfaces in the GSD-805 support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It supports standard Auto-MDI / MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

GSD-804

Optimal Solution for Energy Saving and Gigabit High Performance
PLANET Green Networking Switch-GSD-804 is an ideal solution in line with the energy-saving trend worldwide. The GSD-804 is an 8-port Gigabit Ethernet Switch, bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.Energy Saving
The GSD-804 uses new engine that provides power saving up to 40% less energy but maintains high performance efficiently. It incorporates two advanced Green Networking technologies:
• Hibernation Link Down power saving
• Intelligent scales power based on cable length
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-804 will automatically adjust power usage of the ports that are shut down or not connected to network device.
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-804 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-804 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-804 is designed with modern plastic compact housing and easy to deploy high speed Gigabit networking in home or SOHO applications. Providing 16Gbps internal switching fabric, the GSD-804 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-804 provides 8K MAC address table and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.Plug & Play
All RJ-45 copper interfaces of the GSD-804 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

GSD-504

Optimal Solution for Energy Saving and Gigabit High Performance
PLANET Green Networking Switch-GSD-504 is an ideal solution in line with the energy-saving trend worldwide. The GSD-504 is a 5-port Gigabit Ethernet Switch, bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.Energy Saving

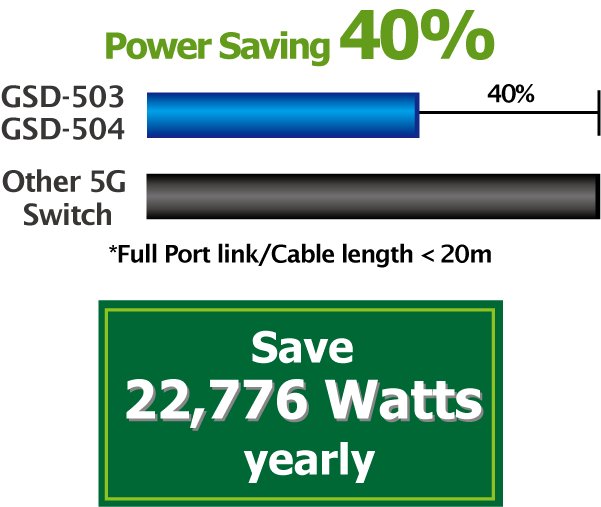

The GSD-504 uses new engine that provides power saving up to 40% less energy but maintains high performance efficiently. It incorporates two advanced Green Networking technologies:
• Hibernation Link Down power saving
• Intelligent scales power based on cable length
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-504 will automatically adjust power usage of the ports that are shut down or not connected to network device.

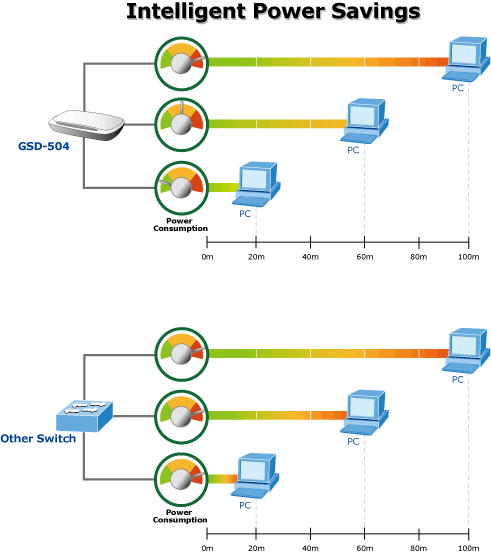

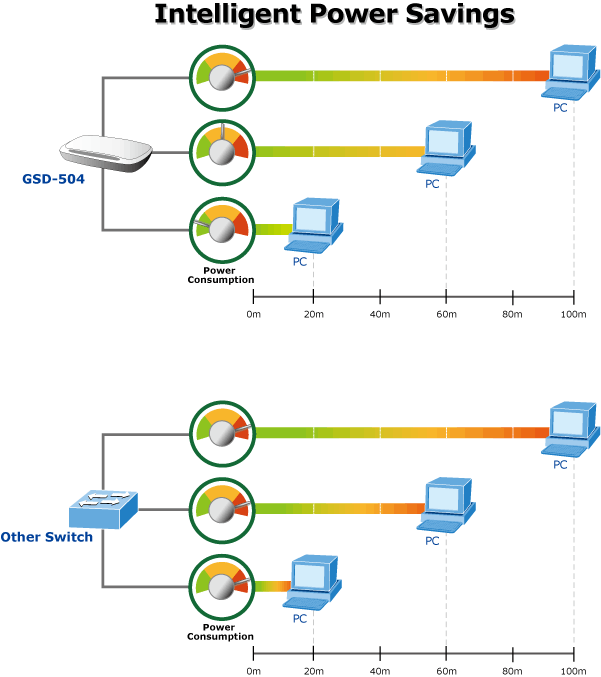

Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-504 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-504 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-504 is designed with modern plastic compact housing and easy to deploy high speed Gigabit networking in home or SOHO applications. Providing 10Gbps internal switching fabric, the GSD-504 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-504 provides 2K MAC address table, and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.Plug & Play
All RJ-45 copper interfaces of the GSD-504 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
