| Equipped with the parallel printing interfaces, the FPS-1101 makes your printer available to be shared in the most popular network environment.
With the embedded web server, the FPS-1101 is configurable through your network PC’s web browser. Moreover, PLANET also provides a utility of management for Microsoft Windows systems. With various network printing methods including Windows Peer-to-Peer printing, NetWare and Windows server based queues printing, LPR printing, Internet Printing Protocol (IPP) and AppleTalk for Macintosh, the FPS-1101 can be applied to any network easily. With auto-MDI/MDI-X function, users do not need to be concerned about the cable type while they connect to different LAN devices. It is capable to detect the signal and to change its transfer/receive order on the cable automatically. Moreover, the FPS-1101 LAN port can auto-sense and adjust the current network speed, thus eliminating the requirements for manually switching. |
Product Function: 10M/100M
FTP-802/FTP-802S15
| More than a Fiber Media Converter — a Power over Ethernet Injector as well The best data link and power sourcing solution for long reach network equipment PLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies: ■Media Conversion : 100Base-FX to 10/100Base-TX ■Power over Ethernet : Power Sourcing Equipment (PSE), PoE Injector Providing both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively.PoE Optimizes the Installation and Power Management of Network Devices The IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously.Fiber-optic Link Capability Extends the Range of Network Deployments The maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.Advantage of Combined PoE and Media Conversion With the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time. |
POE-E101
| Long Distance PoE and Data Extension Solution PLANET POE-E101 is a newly designed and simple device which extends both the reach of Ethernet Data and IEEE 802.3af Power over Ethernet over the standard 100m (328 ft.) CAT5e/6 UTP cable to 200m, 300m or longer distance.Currently, PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones have become the mainstream of network deployment because of the convenience of easy installation regardless of additional power supply. However, limited by the UTP cable specifications, only up to 100 meters (328 ft.) of cable could be applied for IP-based and PoE powered devices (PD) installation. Therefore, the POE-E101 is designed as the repeater to forward both Ethernet data and PoE power, thus extending the range of the PoE powered device installation. By just plug and play but with no additional power supply or setup required, one single POE-E101 can increase the PoE range to 200m. By daisy-chaining multiple PoE-E101s, it offers you great flexibility to extend the distance of PoE network to triple or quadruple. |
 |
| Providing PoE and Ethernet data extension ability, the POE-E101 is an ideal solution for service providers, campuses and public areas for networking application which requires PoE deployment of wireless access points, IP-based surveillance cameras or IP phones in any places. It enables you to centrally manage the power from one location easily, efficiently and cost-effectively.
The POE-E101 PoE Extender is quite easy to be installed by simple plug and play. It is used between a power sourcing equipment (PSE) and a powered device (PD); it injects power to the PD without affecting the data transmission performance. The POE-E101 offers a cost effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. There are 2 RJ-45 ports in a compact mini box of PoE Extender, of which the IN port functions as “PoE (Data and Power) input” and the other port on the other side functions as “PoE (Data and Power) output”. The “PoE OUT” port is also the power injectors which transmit DC voltage to the Cat5e/6 cable and transfer data and power simultaneously between the PSE and PD. |
FTP-802/FTP-802S15
| More than a Fiber Media Converter — a Power over Ethernet Injector as well The best data link and power sourcing solution for long reach network equipment PLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies: ■Media Conversion : 100Base-FX to 10/100Base-TX ■Power over Ethernet : Power Sourcing Equipment (PSE), PoE Injector Providing both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively.PoE Optimizes the Installation and Power Management of Network Devices The IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously.Fiber-optic Link Capability Extends the Range of Network Deployments The maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.Advantage of Combined PoE and Media Conversion With the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time. |
FT-1205A
| PLANET FT-1205A is a 3-port Redundant Media Converter which supports conversion between 10 / 100Base-TX and 100Base-FX network. The difference with the other one-port channel media converter is the Redundant Media Converter. It is designed for critical networks that require fibers or copper links to automatically recover less than 10ms, such as ISPs, telecoms, hospitals, banks and enterprises.
Via the built-in DIP switches, the converter can be configured as 3-port Ethernet switch or 2-port redundant media converter. With the 3-port switch mode, it can operate Store-and-Forward mechanism with high performance, and it can also prevent packet loss via IEEE 802.3x flow control (full-duplex) and back pressure (half-duplex). With the 2-port redundant mode, it provides less than 10ms redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recover function. If the destination port of a packet is link-down, it forwards the packet to the other port of the backup pair. The SFP slot supports single-mode, multi-mode and WDM small-form factory type transceiver modules for various applications. The FT-1205A is with high reliability and flexibility to extend the distance up to 2km, 20km or longer. It depends on the 100Base-FX SFP transceiver modules. The Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively. The converters can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis, MC-700, MC-1500, MC-1500R and MC-1500R48. As to the other PLANET media converters (FT series), they’re hot swappable in MC chassis. |
FT-80x Series
|
||||||||
FST-80x Series
|
||||||||
IFT-802T / IFT-802TS15 / IFT-805AT
| Distance Extension with High Performance and Steady Network Communication PLANET 10/100Base-TX to 100Base-FX Industrial Media Converter IFT-80xT series extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the IFT-802T, up to 15km with the IFT-802TS15 or up to 20km with the IFT-805AT (depending on SFP module). The IFT-80xT series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40 to 75 degrees C allows the IFT-80xT series to be placed in almost any difficult environment.Robust Media Converter Performance PLANET IFT-80xT 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The IFT-80xT series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.Easy Installation and Wide Range of Power Usages The IFT-80xT series is packaged in a compact IP-30 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs. |

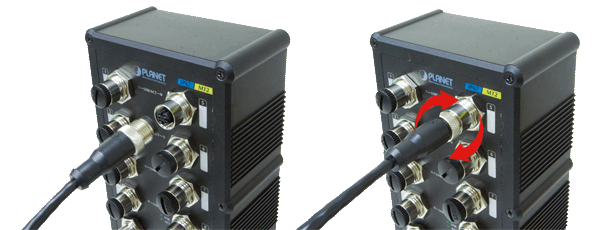

ISW-800T-M12
|
||||||||
ISW-511T/ISW-511TS15
| Highly Convenient and Feasible Industrial Robust Switch PLANET has upgraded two models named ISW-511T and ISW-511TS15 for use in environments with wide operating temperature. The capital ‘T’ (ISW-511T and ISW-511TS15) shown in the model names means that they can support and operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C. As we know the temperature in many places and countries of the world are lower than -10 degrees C, these two new models, ISW-511T and ISW-511TS15, will be the right products for Transportation, Manufacturing, Security and Surveillance network deployments in those harsh environments. The ISW-511T / ISW-511TS15 also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.Distance Extendable and Flexibility The ISW-511T and ISW-511TS15 each includes four 10/100Base-TX auto-negotiation ports and one 100Base-FX port. The ISW-511T is equipped with 100Base-FX multi-mode SC interfaces for transmission distance up to 2km and ISW-511TS15 is equipped with 100Base-FX single-mode SC interfaces for transmission distance up to 15km. Users can choose the suitable model for network deployment either for long distance (ISW-511TS15) or short distance (ISW-511T) transmission.Easy Installation and Wide Range of Power Usage The ISW-511T and ISW-511TS15 are designed with a compact case that allows either DIN rail or panel mounting for efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs. |
