Product Function: 15.4W Per Post

FTP-802/FTP-802S15

More than a Fiber Media Converter — a Power over Ethernet Injector as well
The best data link and power sourcing solution for long reach network equipment
PLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies:
■Media Conversion : 100Base-FX to 10/100Base-TX
■Power over Ethernet : Power Sourcing Equipment (PSE), PoE Injector
Providing both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively.PoE Optimizes the Installation and Power Management of Network Devices
The IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously.Fiber-optic Link Capability Extends the Range of Network Deployments
The maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.Advantage of Combined PoE and Media Conversion
With the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.

FTP-802/FTP-802S15

More than a Fiber Media Converter — a Power over Ethernet Injector as well
The best data link and power sourcing solution for long reach network equipment
PLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies:
■Media Conversion : 100Base-FX to 10/100Base-TX
■Power over Ethernet : Power Sourcing Equipment (PSE), PoE Injector
Providing both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively.PoE Optimizes the Installation and Power Management of Network Devices
The IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously.Fiber-optic Link Capability Extends the Range of Network Deployments
The maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.Advantage of Combined PoE and Media Conversion
With the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.

IGS-10020PT

Environmentally Hardened Design
PLANET Industrial 8-Port Gigabit 802.3af PoE Switch, IGS-10020PT, is equipped with a rugged IP30 metal case for stable operation in heavy Industrial demanding environments. Besides, the IGS-10020PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate in wide temperature range from -40 to 75 degrees C, the IGS-10020PT can be placed in almost any difficult environment. The IGS-10020PT, which takes up little space, can be mounted on a DIN rail or wall.
Redundant Ring Protocol Suitable for Surveillance System
As the IGS-10020PT supports redundant ring technology, it has the capability of rapid self-recovery to prevent interruptions and external intrusions. It incorporates advanced Redundant Ring technology, Spanning Tree Protocol (802.1w RSTP), and redundant power supply system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS-10020PT also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network is interrupted accidentally, the recovery time could be less than 50ms to quickly bring the network back to normal operation.
Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the IGS-10020PT features intelligent PoE management functions:
■ PD Alive Check
■ Scheduled Power Recycling
■ SMTP/SNMP Trap Event Alert
■ PoE ScheduleIntelligent Alive Check for Powered Device
The IGS-10020PT PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-10020PT will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability to ensure that the PoE port will reset the PD power, thus reducing administrator’s management burden.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-10020PT can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.
Digital Input and Digital Output for External Alarm
The IGS-10020PT supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-10020PT port shows link-down, link-up or power failure.
Layer 3 IPv4/IPv6 Software VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the IGS-10020 series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and simpler networking application.Robust Layer 2 Features
The IGS-10020PT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-10020PT provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-10020PT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 5 trunk groups with 8 ports per trunk group, and supports fail-over as well.Efficient Management
For efficient management, the IGS-10020PT Managed Ethernet Switch is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-10020PT offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-10020PT can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session.
Powerful Security
The IGS-10020PT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.Flexibility and Extension Solution
The two mini-GBIC slots built in the IGS-10020PT support dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.Perfect Integration Solution for Outdoor IP PoE Camera and NVR System
The IGS-10020PT provides 8 10/100/1000Mbps 802.3at PoE+ ports and can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the 2 100/1000BASE-X SFP interfaces, the IGS-10020PT can connect to core fiber switch and send video stream to NVR and monitoring center. Through the high-performance switch architecture, the IGS-10020PT facilitates the recorded video files from the 8 PoE IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. The IGS-10020PT undoubtedly brings an ideal secure surveillance system at a lower total cost.

IGS-10020PT

Environmentally Hardened Design
PLANET Industrial 8-Port Gigabit 802.3af PoE Switch, IGS-10020PT, is equipped with a rugged IP30 metal case for stable operation in heavy Industrial demanding environments. Besides, the IGS-10020PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate in wide temperature range from -40 to 75 degrees C, the IGS-10020PT can be placed in almost any difficult environment. The IGS-10020PT, which takes up little space, can be mounted on a DIN rail or wall.
Redundant Ring Protocol Suitable for Surveillance System
As the IGS-10020PT supports redundant ring technology, it has the capability of rapid self-recovery to prevent interruptions and external intrusions. It incorporates advanced Redundant Ring technology, Spanning Tree Protocol (802.1w RSTP), and redundant power supply system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS-10020PT also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network is interrupted accidentally, the recovery time could be less than 50ms to quickly bring the network back to normal operation.
Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the IGS-10020PT features intelligent PoE management functions:
■ PD Alive Check
■ Scheduled Power Recycling
■ SMTP/SNMP Trap Event Alert
■ PoE ScheduleIntelligent Alive Check for Powered Device
The IGS-10020PT PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-10020PT will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability to ensure that the PoE port will reset the PD power, thus reducing administrator’s management burden.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-10020PT can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.
Digital Input and Digital Output for External Alarm
The IGS-10020PT supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-10020PT port shows link-down, link-up or power failure.
Layer 3 IPv4/IPv6 Software VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the IGS-10020 series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and simpler networking application.Robust Layer 2 Features
The IGS-10020PT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-10020PT provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-10020PT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 5 trunk groups with 8 ports per trunk group, and supports fail-over as well.Efficient Management
For efficient management, the IGS-10020PT Managed Ethernet Switch is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-10020PT offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-10020PT can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session.
Powerful Security
The IGS-10020PT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.Flexibility and Extension Solution
The two mini-GBIC slots built in the IGS-10020PT support dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.Perfect Integration Solution for Outdoor IP PoE Camera and NVR System
The IGS-10020PT provides 8 10/100/1000Mbps 802.3at PoE+ ports and can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the 2 100/1000BASE-X SFP interfaces, the IGS-10020PT can connect to core fiber switch and send video stream to NVR and monitoring center. Through the high-performance switch architecture, the IGS-10020PT facilitates the recorded video files from the 8 PoE IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. The IGS-10020PT undoubtedly brings an ideal secure surveillance system at a lower total cost.

IGS-10020PT

Environmentally Hardened Design
PLANET Industrial 8-Port Gigabit 802.3af PoE Switch, IGS-10020PT, is equipped with a rugged IP30 metal case for stable operation in heavy Industrial demanding environments. Besides, the IGS-10020PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate in wide temperature range from -40 to 75 degrees C, the IGS-10020PT can be placed in almost any difficult environment. The IGS-10020PT, which takes up little space, can be mounted on a DIN rail or wall.
Redundant Ring Protocol Suitable for Surveillance System
As the IGS-10020PT supports redundant ring technology, it has the capability of rapid self-recovery to prevent interruptions and external intrusions. It incorporates advanced Redundant Ring technology, Spanning Tree Protocol (802.1w RSTP), and redundant power supply system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS-10020PT also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network is interrupted accidentally, the recovery time could be less than 50ms to quickly bring the network back to normal operation.
Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the IGS-10020PT features intelligent PoE management functions:
■ PD Alive Check
■ Scheduled Power Recycling
■ SMTP/SNMP Trap Event Alert
■ PoE ScheduleIntelligent Alive Check for Powered Device
The IGS-10020PT PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-10020PT will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability to ensure that the PoE port will reset the PD power, thus reducing administrator’s management burden.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-10020PT can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.
Digital Input and Digital Output for External Alarm
The IGS-10020PT supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-10020PT port shows link-down, link-up or power failure.
Layer 3 IPv4/IPv6 Software VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the IGS-10020 series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and simpler networking application.Robust Layer 2 Features
The IGS-10020PT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-10020PT provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-10020PT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 5 trunk groups with 8 ports per trunk group, and supports fail-over as well.Efficient Management
For efficient management, the IGS-10020PT Managed Ethernet Switch is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-10020PT offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-10020PT can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session.
Powerful Security
The IGS-10020PT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.Flexibility and Extension Solution
The two mini-GBIC slots built in the IGS-10020PT support dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.Perfect Integration Solution for Outdoor IP PoE Camera and NVR System
The IGS-10020PT provides 8 10/100/1000Mbps 802.3at PoE+ ports and can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the 2 100/1000BASE-X SFP interfaces, the IGS-10020PT can connect to core fiber switch and send video stream to NVR and monitoring center. Through the high-performance switch architecture, the IGS-10020PT facilitates the recorded video files from the 8 PoE IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. The IGS-10020PT undoubtedly brings an ideal secure surveillance system at a lower total cost.

FTP-802 / FTP-802S15

More than a Fiber Media Converter — a Power over Ethernet Injector as well
The best data link and power sourcing solution for long reach network equipment
PLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies:
■Media Conversion : 100Base-FX to 10/100Base-TX
■Power over Ethernet : Power Sourcing Equipment (PSE), PoE Injector
Providing both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively.PoE Optimizes the Installation and Power Management of Network Devices
The IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously.Fiber-optic Link Capability Extends the Range of Network Deployments
The maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.Advantage of Combined PoE and Media Conversion
With the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.

POE-400

PLANET POE-400 is a 4-port IEEE 802.3af Power over Ethernet injector hub which complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af standards. Equipped with 4 10/100Base-TX Fast Ethernet ports, the POE-400 supports full 48V DC power for any remote IEEE 802.3af powered device (PD) like wireless LAN access points, IP phones, and LAN cameras. Supporting power supply of 70 watts, the POE-400 provides sufficient power to the 4 remote devices.

There are 8 RJ-45 STP ports on the POE-400. Half of the ports on the right panel function as “Data” and the other half on the left panel function as “Data and Power”. Each of the “Data and Power” port is an injector which inserts DC voltage into the CAT 5 cable to allow the cable between the Injector and Splitter to transfer data and power simultaneously.

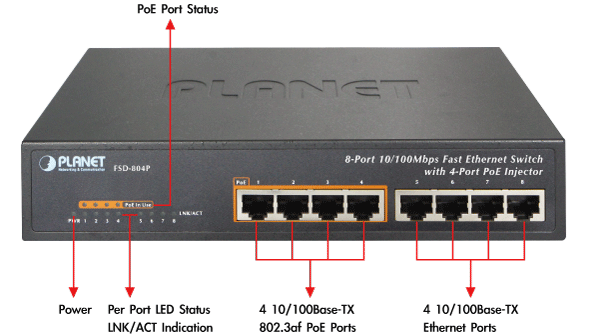

FSD-804P

Cost-effective Centralized Power Distribution
For cost saving and flexible use of PoE power provision, half of the 10/100Mbps TP ports of the FSD-804P provide PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices. For SOHO or department network, the Switch also provides a simple, cost-effective and highly reliable network connection for data as well as power. Furthermore, it is the ideal device for bridging Ethernet and Fast Ethernet workgroups or networks.Easy Cabling Installation
With data and power over Ethernet, the FSD-804P can reduce cables and eliminate the need for electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. The key feature of the FSD-804P is energy saving. With more efficient switching power supply, the efficiency of the FSD-804P would be much better than four linear power adapters in the long run.Providing 4 PoE interfaces, the FSD-804P is ideal for small businesses and workgroups requiring to deploy the PoE for the wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost- effectively.

FGSD-910P

Centralized Power Distribution for Ethernet Networking
The FGSD-910P, a new member in PLANET 802.3af PoE Fast Ethernet Switch family, is an 8-Port 10/100Mbps 802.3af Power over Ethernet + 1-Gigabit Port Switch with a total of 120 watts of PoE budget, which is an ideal solution to fulfilling the demand of sufficient PoE power for network applications with Fast Ethernet speed transmission. The eight 802.3af PoE ports provide PoE power injector function which is able to drive 8 IEEE 802.3af compliant powered devices. The FGSD-910P also provides a simple, cost-effective and non-blocking wire-speed performance. It comes with a 12-inch metal compact housing, suitable for desktop deployment in SOHO office or department network application.Ideal Solution for Securing IP Surveillance Infrastructure
Particularly designed for the growing popular IP Surveillance applications, the FGSD-910P 802.3af PoE Switch is positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding. The FGSD-910P provides 802.3af PoE functions along with 8 10/100Base-TX ports featuring 15.4-watt 802.3af PoE in RJ-45 copper interfaces and 1 extra Gigabit TP interface supporting high speed transmission of surveillance images and videos.
Perfectly Integrated Solution for PoE IP Camera and NVR System
Different from the general IT industrial PoE Switch which usually comes with 12 or 24 PoE ports, the FGSD-910P provides eight 802.3af PoE ports for catering to small scale of IP Surveillance networks at a lower total cost. The FGSD-910P comes with high performance switch architecture and 120-watt PoE power budget. The recorded video files from 8 PoE IP Cameras can be powered by the FGSD-910P and saved in the 8-channel NVR system or surveillance software to perform comprehensive security monitoring. For instance, one FGSD-910P can be combined with one 8-Channel NVR and 8 PoE IP cameras as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.
Stable and High Performance Switch Architecture
The FGSD-910P has a 4K MAC address table, featuring high performance switch architecture capable of providing the non-blocking 3.6Gbps switch fabric and wire-speed throughput as high as 2.67Mpps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the 802.3x Full-Duplex flow control function of the FGSD-910P enables PD devices and servers to be directly connected to the switch for wire-speed packet transfer performance without the risk of packet loss.
The FGSD-910P RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation at port 1 to port 8 and 10/100/1000Mbps Auto-Negotiation at port 9 for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It also supports standard Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.Easy Cable Connection
With data and power over Ethernet from one unit, the FGSD-910P reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. Providing 8 PoE interfaces, the FGSD-910P is ideal for small businesses and workgroups requiring deploying the PoE for the wireless access points, IP-based surveillance camera or IP phones in any places easily, efficiently and cost-effectively.

FNSW-1600P

Centralized Power Distribution for Ethernet Networking
To fulfill the demand of sufficient PoE power for network applications with 10/100Mbps wire speed transmission, PLANET introduces a new member in the 802.3af PoE Fast Ethernet Switch family – FNSW-1600P, the 16-Port 10/100Mbps 802.3af Power over Ethernet Switch with 125-watts PoE budget. The 16 Fast Ethernet ports integrated with 802.3af PoE injector function are able to drive at least 9 x IEEE 802.3af 12.95-watt Class 3 compliant powered devices. The FNSW-1600P also provides a simple, cost-effective, and non-blocking wire-speed performance with 19-inch metal shape for deployment in compact housing, SOHO office or department network application.Great Ethernet Traffic Transmission Ability
The FNSW-1600P features high performance switch architecture capable of providing the non-blocking 3.2Gbps switch fabric and wire-speed throughput as high as 2.38Mpps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the 802.3x full-duplex flow control function of the FNSW-1600P enables PD devices and servers directly connect to the Switch for wire-speed packet transfer performance without risk of packet loss.Easy and Cost-effective Network Deployment
With data and power over Ethernet from one unit, the FNSW-1600P is able to reduce the need of cables and dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. With 125-watts Power Budget, the FNSW-1600P is ideal for small business and workgroups deploying the PoE for the wireless access points, IP surveillance cameras and IP phones in any places easily and efficiently.
