WL-LTNA

PLANET WL-LTNA Lightning Arrester is a gas discharge tube featuring wide-band wireless operation up to 6GHz. The WL-LTNA has a built-in N-male (Plug) to N-female (Jack) connector for convenient deployment.

Due to its low-cost and superior RF (Radio Frequency) performance, the WL-LTNA is ideal for IEEE 802.11a/b/g/n wireless LAN applications. This arrester will pass DC; therefore, it is suitable for applications where DC is carried through the coaxiable cable such as remote amplifiers and LNA (Low Noise Amplifier).

The WL-LTNA can be deployed for a wide range of applications with its replaceable gas tube element, multi-strike capability and fast response time features. A ground lug and terminal is also provided directly on the lightning protector housing to provide superior grounding and protection.

ANT-OM5D-KIT

Full 360° Coverage with Greater Penetration
PLANET ANT-OM5D-KIT is a 2.4/5GHz Dual Band Antenna equipped with N-type male connector. The antenna provides a 360-degree horizontal and wider vertical coverage which is quite suitable for outdoor short-range application, especially to provide the wireless access for laptops and smartphones.With its N-type male connector, it can be directly attached to the antenna connectors of the WNAP-6350, WNAP-7350 and WDAP-8350 without any cumbrous cabling, thus reducing the deployment cost and installer’s effort.

ANT-OM9

Full 360° coverage with greater penetration

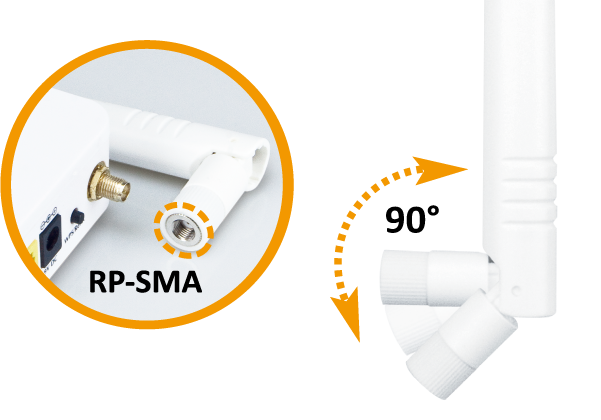

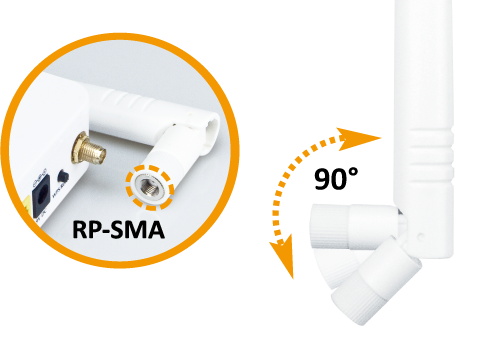

To effectively eliminate Wi-Fi dead spots, PLANET provides 9dBi high gain omni-directional antenna, the ANT-OM9, for the users who desire to expand the wireless coverage in large indoor space. The ANT-OM9 is a 2.4GHz High Gain Desktop Antenna with adjustable angle, high-quality textures and stylish design. It effectively enhances the performance and extends the radius distance of 360-degree horizontal coverage range of 802.11n equipment including not only AP / router device but also wireless USB / PCI adapter with built-in easy-to-attach RP-SMA connector.

ANT-FP9

PLANET ANT-FP9 is a 2.4GHz 9dBi flat panel directional antenna equipped with an N-type female connector. The antenna increases wireless signal coverage, and improves signal strength and quality for the current wireless environment. With mini-sized outlook and effectively enhancing the performance and coverage range of 802.11b/g equipment, the ANT-FP9 is quite suitable for outdoor WLAN application and indoor long distance wireless application such as point to point connection in the warehouse.

ANT-FP14D

PLANET ANT-FP14D is a 2.4GHz 14dBi Flat Panel Dual Polarization Directional Antenna equipped with two N-Type Female connectors. The ANT-FP14D can increase wireless signal coverage and improve signal strength and quality for the current wireless environment. As the ANT-FP14D can effectively enhance the performance and coverage of the 802.11b/g/n 2.4GHz facilities, it is quite suitable for outdoor wireless LAN applications such as point-to-point connection between the warehouses.

The ANT-FP14D Dual Polarization Directional Antenna can operate in both vertical and horizontal polarization. The dual-polarized antennas are perfectly helpful for 802.11n devices in multithreaded communications. This enables the wireless device to transmit data on one polarization and receive data on the other polarization simultaneously. Obviously, all the networking equipment in the wireless network must be multithreading complaint. It thus brings users the advantage that multithreaded communications can be achieved with use of only one antenna instead of two independent (and opposite polarized) antennas.

WNAP-6315

Cost-effective and Flexible Wireless Solution
PLANET WNAP-6315 is compatible with IEEE 802.11b/g/n standard and supports a data rate of up to 150Mbps in 802.11n mode. The WNAP-6315 not only has a built-in 12dBi panel antenna but also reserves one RP-SMA type antenna connector to allow versatile antenna installations including omnidirectional, yagi, sector, flat-panel and grid antennas. Furthermore, the WNAP-6315 can directly communicate with the wireless IP cameras by using the popular 2.4GHz frequency band, thus turning the surveillance services into a wireless environment.

Multiple Operation Modes Designed for Various Applications
The WNAP-6315 supports as many as 8 wireless operation modes including AP Bridge, AP Router, Client Bridge, Client Router (WISP), WDS PtP, WDS PtMP, Repeater and Universal Repeater, thus meeting users’ various application requirements.

Advanced Security and Rigorous Authentication
The WNAP-6315 supports WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism, and 802.1X RADIUS authentication, which can effectively prevent eavesdropping from unauthorized users or stop an unauthenticated wireless access to bandwidth. Users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. In addition, with the multiple-SSID feature, you can set up different wireless networks. The WNAP-6315 can therefore serve as a virtual access point for segmented networks tailored to any industrial need.

Rugged Architecture Provides Reliable Outdoor Connection
The WNAP-6315 is equipped with a sturdy and durable housing, meeting the IP55 rating for outdoor usage, which is definitely suitable for harsh environments. Besides, with its UV-resistant feature, the surface of the WNAP-6315’s lightweight plastic housing does not yield to brittle fracture easily. Thus, it is as reliable as the metal case but more economical. With the proprietary Power over Ethernet (PoE) design, the WNAP-6315 can be easily installed in the areas where power outlets are not available. Additionally, the reset button on the PoE injector brings convenience to the administrator who can remotely recover the system’s original setting and the self-healing (schedule reboot) capability to keep connection alive all the time.

Easy Deployment and Management
With user-friendly Web UI and step-by-step setup wizard, the WNAP-6315 is easy to install, even for users who never experience in setting up a wireless network. Moreover, with the Planet Smart Discovery Utility and Planet Dynamic DNS service, the WNAP-6315 is convenient to be managed and configured remotely.

WNAP-6350

High Power Outdoor Wireless Coverage
PLANET has come out with the latest high power outdoor wireless LAN solution – the WNAP-6350 300Mbps PoE wireless outdoor AP. It provides higher transmit power, better performance, wider coverage and more stable connection than standard wireless outdoor AP. As an IEEE 802.11b/g/n compliant wireless device, the WNAP-6350 is able to give stable and efficient wireless performance for long distance application. Adopting IEEE 802.11n standard and 2T2R MIMO technology, the WNAP-6350 is possible to deliver six times faster data rate up to 300Mbps than the normal 802.11g wireless device. It also features adjustable output power up to 500mW to extend broader coverage in outdoor long range application.

Multiple Operating and Wireless Modes
The WNAP-6350 supports multiple types of wireless communication connectivity (AP, Client CPE, WDS PtP, WDS PtMP, Repeater) allowing to meet various application requirements and thus it gives users more comprehensive experience when accessing through Wireless LAN. It helps users to easily build a wireless network and extend the wireless range of the existing wireless network.The WNAP-6350 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network.

Advanced Security and Management
In terms of security, besides 64/128- bit WEP encryption, the WNAP-6350 is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. To meet the demand for enterprise and various applications, the WNAP-6350 enhances security and management features such as multiple SSIDs support.

Perfect Solution for Outdoor Environment
The WNAP-6350 is perfectly suitable for outdoor environments and exposed locations. With IP67 and aluminum rugged housing, the WNAP-6350 can perform normally under rigorous weather conditions including heavy rain, wind and snow. Moreover, the WNAP-6350 is rated to operate at the temperature from -30 to 75 degrees C and thus it can operate more stably than general outdoor equipment. It is the best way to use the WNAP-6350 to build outdoor wireless access applications between buildings on campuses, business communities, rural areas and more.

Flexible Deployment with PoE Feature
Compliant with IEEE 802.3af/at Power over Ethernet standard, the WNAP-6350 can be powered by PSE (Power Sourcing Equipment) via a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place that is difficult to reach. Furthermore, the WNAP-6350 is also suitable to be integrated with PoE Solar Power System to offer farther wireless service in remote areas. It enables the wireless LAN deployment to become more flexible and frees you from worry about power locations.

Easy Installation & Management
With user-friendly Web UI and step by step Setup Wizard, the WNAP-6350 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with SNMP-based management interface, the WNAP-6350 is convenient to be managed and configured remotely.

WNAP-6335

Faster Speed and Longer Distance
Adopting IEEE 802.11n advanced MIMO technology, it provides high speed, reliable wireless network coverage, and incredible improvement in the wireless performance. As an IEEE 802.11b/g/n compliant wireless device, the WNAP-6335 is able to give stable and efficient wireless performance for long distance application, and with IEEE 802.11n standard and 2T2R MIMO technology, the WNAP-6335 can deliver data rate up to 300Mbps, six times faster than that of the normal 802.11g wireless device. With its adjustable output power up to 500mW and RP-SMA antenna connectors, it can directly connect with various high gain antennas to extend higher coverage for outdoor long-ranging application.

Designed for Various Requirements of Wireless LAN
The WNAP-6335 supports multiple wireless communication connectivities, including AP/Router, WDS PtP, WDS PtMP and WISP modes, that meet various application requirements to enable users to gain more comprehensive experience. It also helps users to easily build wireless network and extend the wireless range of the existing wireless network.

Advanced Security and Rigorous Authentication
In aspect of security, besides 64/128-bit WEP encryption, the WNAP-6335 is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control are to consolidate the wireless network security and prevent unauthorized wireless connection.

Flexible and Reliable Outdoor Characteristics
The WNAP-6335 is definitely suitable for such applications as IP surveillance, backhaul link of building to building and backbone of public service. Additionally, the self-healing and schedule reboot capability keeps connection alive all the time. Meeting the IP55 rating for outdoor UV resistant enclosure, the WNAP-6335 can perform normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor environments. With the proprietary Power over Ethernet (PoE) design, the WNAP-6335 can be easily installed in the areas where power outlets are not available.

Easy Deployment and Management
With user-friendly Web UI and the Planet Smart Discovery Utility, the WNAP-6335 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with the PLANET Dynamic DNS service and SNMP-based management interface, the WNAP-6335 is convenient to be managed and configured remotely.

WNAP-6325

Cost-effective Wireless Solution with Superior Performance
The WNAP-6325 is designed to provide a highly-stable, better performance and cost-effective wireless solution in outdoor wireless deployment. With the same transmission power, it offers better significant range and excellent throughput than those of the traditional 802.11g wireless device. Via the embedded 12dBi dual-polarization (vertical and horizontal) directional antenna, it provides good diversity coverage and better noise immunity effect, thus heightening the performance of a long-distance, outdoor connectivity even though the environment is flooded with many 2.4GHz wireless equipment.

Designed for Various Requirements
The WNAP-6325 is dedicatedly designed for WISP solution that provides CPE users with Internet access via the WISP provider in rural areas. Besides, it caters to various wireless communication connectivities (AP / Client / WDS PtP / WDS PtMP / Repeater), thus meeting users’ application requirements.

Advanced Security and Rigorous Authentication
The WNAP-6325 supports WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the Wireless LAN network based on the ACL (Access Control List) that the administrator pre-established.Flexible and Reliable Outdoor Characteristics
The WNAP-6325 is definitely suitable for such applications as IP surveillance, backhaul link of building to building and backbone of public service. Additionally, the self-healing/schedule reboot capability keeps connection alive all the time. Meeting the IP55 rating for outdoor UV resistant enclosure, the WNAP-6325 can perform normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor environments. With the proprietary Power over Ethernet (PoE) design, the WNAP-6325 can be easily installed in the areas where power outlets are not available.Easy Deployment and Management
With user-friendly Web UI and step-by-step setup wizard, the WNAP-6325 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with the Planet Smart Discovery Utility and SNMP-based management interface, the WNAP-6325 is convenient to be managed and configured remotely.
