ISW-501T

Slim Type with more Practicability and Convenience
PLANET ISW-501T, an Industrial 5-port Fast Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 5-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.Energy Saving with Lower Power Consumption
The ISW-501T, adopting the advanced green networking technology, provides the IEEE 802.3az protocol based power saving. This feature makes the ISW-501T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.Stable Performance under Difficult Environments
The ISW-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-501T can be placed in almost any difficult environment. The ISW-501T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.

Robust Switch Performance
Built in a high-performance switch architecture, the ISW-501T comes with five 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps, and the 1K MAC address. Thus, the ISW-501T can transfer wire-speed packets without the risk of packet loss. The flow control function enables the ISW-501T to provide fast and reliable data transfer.All of the RJ45 copper interfaces in the ISW-501T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

ISW-801T

Slim Type with more Practicability and Convenience
PLANET ISW-801T, an Industrial 8-port Fast Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.Energy Saving with Lower Power Consumption
The ISW-801T, adopting the advanced green networking technology, provides the IEEE 802.3az protocol based power saving. This feature makes the ISW-801T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.Stable Performance under Difficult Environments
The ISW-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-801T can be placed in almost any difficult environment. The ISW-801T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.

Robust Switch Performance
Built in a high-performance switch architecture, the ISW-801T comes with eight 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps, and the 1K MAC address. Thus, the ISW-801T can transfer wire-speed packets without the risk of packet loss. The flow control function enables the ISW-801T to provide fast and reliable data transfer.All of the RJ45 copper interfaces in the ISW-801T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

GSD-1603

Cost-effective Gigabit Solution for SOHO and Department Networking
PLANET GSD-1603 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the suitable transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSD-1603 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

Energy Saving

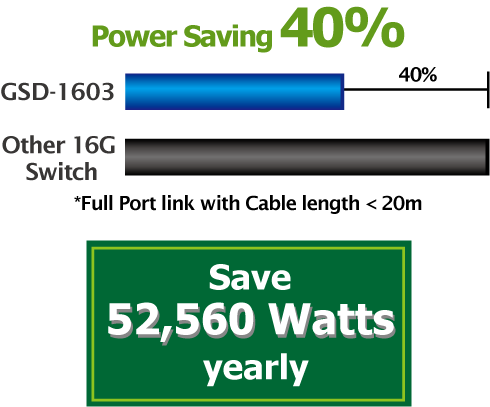

The GSD-1603 incorporates two advanced green networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.
(1) Hibernation Link Down power saving
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power consumption for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-1603 will automatically adjust power usage of the ports that are shut down or not connected to network device.
(2) Intelligent scales power based on cable length
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-1603 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-1603 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Stable and High Performance Switch Architecture
The GSD-1603 has an 8K MAC address table, featuring high performance switch architecture capable of providing the non-blocking 32Gbps switch fabric and wire-speed throughput as high as 23.8Mpps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the 802.3x full-duplex flow control function of the GSD-1603 enables routers and servers to be directly connected to the switch for wire-speed packet transfer performance without the risk of packet loss.Flexible Desktop Size and Fanless Design
The GSD-1603 is the standard metal model to fit into a space-limited environment. Designed with compact size, fanless and noiseless features, the GSD-1603 is able to operate stably and quietly in any environment without affecting its performance.Plug & Play

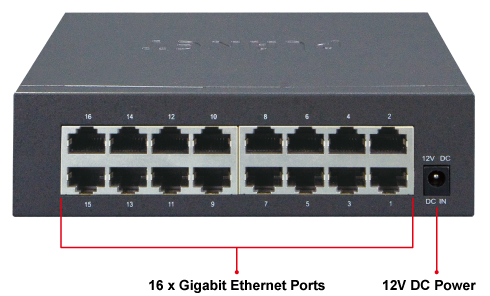

All RJ45 copper interfaces of the GSD-1603 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
