VDL-2420M

Perfectly Designed for FTTx Last Mile Applications
PLANET VDL-2420M is a telecom-level, high-performance VDSL2 IP DSLAM (Digital Subscriber Line Access Multiplexer) with 24 VDSL2 ports, 2 Gigabit TP/SFP combo interfaces and robust Layer 2+ switching features. The VDL-2420M is fully compliant with the ITU-T G.993.2 standard and supports VDSL2 30a profiles to offer a maximum download or upload line rate of up to 100/100Mbps on the existing twisted-pair lines. The VDL-2420M helps service providers to easily provide high bandwidth demanded by triple play services such as IPTV, HDTV, Video Phone and Internet Gaming over the same copper line and they can be uplinked to the core/metro Ethernet network through the two Gigabit fiber-optic interfaces. It is an ideal CO solution for FTTx Last Mile applications of broadband access by ISPs, telecoms and campuses.Comprehensive and Advanced VDSL2 Configuration
For the bandwidth and distance of broadband access, the VDL-2420M VDSL2 IP DSLAM supports multiple selective VDSL2 profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a). To help provide the ISPs with internet access service in different physical line installation environments, the VDL-2420M supports configurable DPBO (Downstream Power Back-Off) and UPBO (Upstream Power Back-Off) to adjust the downstream and upstream transmit power levels for service providers to reduce the interference by nearby wires. Furthermore, it can be configured on a per link basis for transmission mode, rate limitation and SNR (signal-to-noise) margin. These advanced VDSL2 functionalities help service providers to adjust the line performance to ensure the VDSL2 service cannot be impacted by other xDSL services in the same binder group and build a stable and reliable IP DSLAM solution.

Delivering Highly-demanding Connectivity for ISPs/Triple Play Devices
As the demand for home broadband connections increases, the VDSL2 technology is the next media to support the integration of home services and provides a significant transmission speed faster than that of the current cable modem and ADSL technology. The VDL-2420M applies the EoVDSL (Ethernet over VDSL) to providing up to 100Mbps download capability and makes the following multi-media services more efficient on the local network:
■ IPTV/HDTV
■ VoD (Video on Demand)
■ Voice over IP
■ Video Conferencing/Video Phone
■ On-line Gaming
■ Internet Radio/On-line Music
■ Long-distance EducationThe VDL-2420M offers an excellent bandwidth to meet the requirements of the triple play devices for home entertainment and communications.

QoS Features Provided to Ensure Best Performance
The VDSL2 DSLAM contains robust QoS features such as port-based, 802.1p priority and IP ToS/DSCP to ensure the best performance of its VoIP and video stream transmission, thus empowering the enterprises to take full advantage of the limited network resources.Selectable VDSL2 Data Rate for Service Differentiation
Through the management interface, the administrator can control the data transmission speed of each VDSL2 interface. Telecoms and ISPs can immediately and remotely upgrade/downgrade bandwidth service upon different demands.Efficient Management
To further expand the current network, PLANET VDL-2420M provides console and Telnet command line interfaces, and advanced Web and SNMP management interfaces. With its built-in Web-based management interface, the VDSL2 DSLAM offers an easy-to-use, platform-independent management and configuration facility. The VDSL2 DSLAM supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. For text-based management, the VDSL2 DSLAM can also be accessed via Telnet and the console port. The features above provide an efficient way to manage the devices from the internet environment with no need to add an extra secure system either by means of hardware or software.

Robust Layer 2 Features
For efficient management, via Web interface, the VDL-2420M can be programmed for basic switch management functions, such as port speed configuration, port link aggregation, IEEE 802.1Q VLAN and Q-in-Q VLAN, port mirroring, Rapid Spanning Tree, and ACL security. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control to enhance bandwidth utilization.Advanced Security
The VDSL2 DSLAM offers comprehensive Layer 2, Layer 3 and Layer 4 Access Control List (ACL) to filter out unwanted traffic. Its protection mechanisms comprise RADIUS and port-based 802.1X user and device authentication. Moreover, the VDSL2 IP DSLAM provides MAC filter, static MAC, IP/MAC binding and Port Security for enforcing security policies to the edge. The administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

VC-820M

High Performance VDSL2 Data Rate over Existing Phone Lines
PLANET VC-820M is an 8-Port VDSL2 Managed CO (Central Office) Switch with 2 Gigabit TP/SFP combo interfaces. The VDSL2 CO Switch is perfectly designed for the networking applications of communities, network service providers, SIs, IP surveillance providers, etc. It is based on two core networking technologies, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). Worked with PLANET VC-23x series of VDSL2 CPE (Customer Premises Equipment), the VC-820M offers the absolutely fastest data transmission speeds over the existing copper telephone lines providing an ideal solution to the last-mile connectivity.Each VDSL2 interface of the VC-820M provides two copper phone ports, one for VDSL2 connection and the other one for POTS (Plain Old Telephone Service) connection. To share the existing phone line with POTS, the VC-820M has a built-in POTS splitter that helps the voice over telephone and network data to transmit over the same wire without being interrupted.

Delivering Highly-demanding Connectivity for ISPs/Triple Play Devices
As the demand for home broadband connections increases, the VDSL2 technology is the next media to support the integration of home services and provides a significant transmission speed faster than that of the current cable modem and ADSL technology. The VC-820M applies the EoVDSL (Ethernet over VDSL) to providing up to 100Mbps download capability and makes the following multi-media services more efficient on the local network:
■ IPTV/HDTV
■ VoD (Video on Demand)
■ Voice over IP
■ Video Conferencing/Video Phone
■ On-line Gaming
■ Internet Radio/On-line Music
■ Long-distance EducationThe VC-820M offers an excellent bandwidth to meet the requirements of the triple play devices for home entertainment and communications.

QoS Features to Ensure Best Performance
The VDSL2 Switch contains robust QoS features such as port-based, 802.1p priority and IP ToS/DSCP to ensure the best performance of its VoIP and video stream transmission, thus empowering the enterprises to take full advantage of the limited network resources.Selectable VDSL2 Data Rate for Service Differentiation
Through the management interface, the administrator can control the data transmission speed of each VDSL2 interface. Telecoms and ISPs can immediately and remotely upgrade/downgrade bandwidth service upon different demands.Efficient Management
To further expand the current network, PLANET VC-820M provides console and Telnet command line interfaces, and advanced Web and SNMP management interfaces. With its built-in Web-based management interface, the VDSL2 switch offers an easy-to-use, platform-independent management and configuration facility. The VDSL2 switch supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. For text-based management, the VDSL2 switch can also be accessed via Telnet and the console port. Moreover, the VDSL2 switch offers secure, remote management by supporting Secure Socket Layer (SSL) connection, which encrypts the packet content at each session. The features above provide an efficient way to manage the devices from the internet environment with no need to add extra secure system either by means of hardware or software.

Robust Layer 2 Features
For efficient management, via Web interface, the VC-820M can be programmed for basic switch management functions, such as port speed configuration, port link aggregation, IEEE 802.1Q VLAN and Q-in-Q VLAN, port mirroring, Rapid Spanning Tree, and ACL security. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control to enhance bandwidth utilization.Advanced Security
The VDSL2 switch offers comprehensive Layer 2, Layer 3 and Layer 4 Access Control List (ACL) to filter out unwanted traffic. Its protection mechanisms comprise RADIUS and port-based 802.1X user and device authentication. Moreover, the VDSL2 switch provides MAC filter, static MAC, IP/MAC binding and Port Security for enforcing security policies to the edge. The administrators can now construct highly-secured corporate networks with considerably less time and effort than before.

IDL-4802 Series

PLANET IDL-4802 is a 48-Port ADSL/ADSL2/ADSL2+ mini IP DSLAM which equips with combo electrical (RJ-45) and fiber optical (SFP) uplink interfaces offering scalable and easy deployment for the network with small ADSL environment. With the built-in POTS splitter subscriber ports, the IDL-4802 has developed a cost-effective solution for network service providers to offer multiple subscribers excellent services.

Moreover, the IDL-4802 supports local and remote managed capabilities of CLI, SNMP, and Telnet via RS-232 console port and Web GUI management interface. Via user-friendly Web GUI, the IDL-4802 can be managed by workstations running standard web browsers that provide the easy-to-use operation and convenient maintenance.

To enhance the network security, PLANET IDL-4802 also provides features such as QoS, VLAN, Multicast, Bandwidth Management, Traffic Prioritization, and Access Control List. With the advanced QoS features, the IDL-4802 is an ideal solution for next generation broadband network to deliver rich video contents, DSL, POTS, and VoIP service over ADSL2+ connection.

IDL-2402

PLANET IDL-2402 is a 24-Port ADSL2/ADSL2+ mini IP DSLAM with one 1000Base-T uplink Interface offering scalable and easy deployment for the network with small ADSL environment. With the built-in POTS splitter subscriber ports, the IDL-2402 has developed a cost-effective solution for network service providers to offer multiple subscribers excellent services.

Moreover, the IDL-2402 supports local and remote managed capabilities of CLI, SNMP, Telnet via RS-232 Console Port and Web GUI management interface. Via the user-friendly Web GUI, the IDL-2402 can be managed by workstations running standard web browsers that provide the easy-to-use operation and convenient maintenance.

To enhance the network security, PLANET IDL-2402 also provides features such as QoS, VLAN, Multicast, Bandwidth Management, Traffic Prioritization, and Access Control List. With the advanced QoS features, the IDL-2402 is an ideal solution for next generation broadband network to deliver rich video contents, DSL, POTS, and VoIP service over ADSL2+ connection.

EPN-402NV

Delivering High-Demand Service Connectivity for ISP / Triple Play Devices
PLANET EPN-402NV is a GEPON Wi-Fi ONU (Optical Network Unit) equipped with one GEPON port, four 10/100Mbps RJ-45 LAN ports and two FXS RJ-11 interfaces. It is also a high-end line with IEEE 802.11b/g/n standard multi-terminal product. It provides residential and office users with the ideal solution for sharing an ultra high-speed fiber optical broadband connection. When functioning with PLANET GEPON Optical Network Terminal (OLT) EPL-2000, the EPN-402NV provides highly-effective GEPON solutions for FTTH network. With friendly-centralized GUI management, it is easy for installation and maintenance of GEPON deployment.

Perfectly Designed for Fiber to the Home Applications
PLANET EPN-402NV is a fiber to the home (FTTH) broadband access equipment type. With built-in 1.25Gbps GEPON fiber interface, the EPN-402NV supports different optic types for WAN and the distance can be up to 20km through the fiber connection. It can handle multiple high-throughput services such as IPTV, on-line gaming, VoIP and Internet access, and keep the bandwidth usage smoothly via its QoS features. Thus, with the advantages of high reliability and scalability, the EPN-402NV can further be applied in the network of SOHO (small office or home office) or small businesses that provide high-performance access services.

High-Speed 802.11n Wireless
With built-in IEEE 802.11b/g and 802.11n wireless network capabilities, the EPN-402NV allows any computer and wireless-enabled network device to connect to it without additional cabling. 802.11n wireless capability brings users the speed of wireless data transmission rate to as high as 300Mbps. The radio coverage is also doubled to offer strong wireless connection even in widely spacious offices or houses.

Standard Compliance with FXS Port
The EPN-402NV provides two FXS ports that can easily integrate with general voice over IP system. The EPN-402NV makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps you to save money on long-distance calls; for example, the remote users can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur.IPv6/IPv4 Dual Stack Capability
With fully supporting both IPv4 and IPv6 protocols, the EPN-402NV can work with the original IPv4 network structure and also support the new IPv6 network structure now and in the future. As more network devices are growing and the need for larger addressing and higher security becomes critical, the EPN-402NV is the best choice for ISPs to build the IPv6 FTTx edge service to connect with the IPv6 network.Superior Management Functions
The EPN-402NV provides user-friendly management interface to be managed easily through standard web browsers. For networking management features, the EPN-402NV not only provides basic router functions such as DHCP server, virtual server, DMZ, QoS, and UPnP, but also firewall functions including Network Address Translation (NAT), URL/Port/MAC filtering and DoS protection. Furthermore, the EPN-402NV serves as an Internet firewall to protect your network from being accessed by unauthorized users.Robust ONU Management
The EPN-402NV is designed to work with PLANET OLT EPL-2000 to provide robust FTTx applications. With the Element Management System (EMS) built in the EPL-2000, the administrators can manage and configure the facilities such as adding or removing PLANET OLTs and ONUs to or from the network architecture easily and economically. The EMS also supports many operating and monitoring functions for efficient ONU management including ONU auto-detection, auto-registration, testing link connection, binding MAC address, loopback test and filtration, bandwidth control, flow control, and multicast stream control.

TR-069 Remote Management
To reduce the service provider’s manpower needed for on-site maintenance, the EPN-402NV supports TR-069 (WAN Management Protocol) standard that allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device remotely.

EPN-110

Perfectly Designed for FTTx Applications
PLANET EPN-110 is a GEPON Optical Network Unit (ONU) equipped with one GEPON port and one Gigabit Ethernet RJ45 interface. When functioning with PLANET GEPON Optical Network Terminal (OLT), the EPN-110 provides highly-effective GEPON solutions for FTTx network. With the friendly-centralized GUI management, it is easy for the installation and maintenance of GEPON deployment.

Cost-effective Passive Optical Network Connection Solution
With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand of broadband communication has grown quickly. Passive Optical Network (PON) is the most promising NGN (Next Generation Networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, Passive Optical Network (PON) technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of up to 20km long distance between equipment nodes, and most importantly, offer of much greater bandwidth.

Robust ONUs Management
The EPN-110 is designed to work with PLANET OLT to provide robust FTTx applications. With the Element Management System (EMS) built in the PLANET OLT, the administrators can manage and configure the facilities such as adding or removing PLANET OLTs and ONUs to or from the network architecture easily and economically. The EMS also supports many operating and monitoring functions for efficient ONUs management including ONU auto-detection, auto-registration, testing of link connection, binding of MAC address and filtration, bandwidth control, flow control, and multicast stream control.

EPN-103

Perfectly Designed for FTTx Applications
PLANET EPN-103 is a GEPON Optical Network Unit (ONU) equipped with one GEPON port, one Gigabit and one Fast Ethernet RJ-45 interface. When functioning with PLANET GEPON Optical Network Terminal (OLT) EPL-2000, the EPN-103 provides highly effective GEPON solutions for FTTx network. With friendly centralized GUI management, it is easy for installation and maintenance of GEPON deployment.

Cost-effective Passive Optical Network Connection Solution
With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and Multimedia broadband applications, the demand of broadband communication has grown quickly. Passive Optical Network (PON) is the most promising NGN (Next Generation Networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, Passive Optical Network (PON) technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of up to 20km long distance between equipment nodes, and most importantly, offer of much greater bandwidth.

Robust ONUs Management
The EPN-103 is designed to work with PLANET 2-Port OLT EPL-2000 to provide robust FTTx applications. With the Element Management System (EMS) built in the EPL-2000, the administrators can manage and configure the facilities such as adding or removing PLANET OLTs and ONUs to or from the network architecture easily and economically. The EMS also supports many operating and monitoring functions for efficient ONUs management including ONU auto-detection, auto-registration, testing link connection, binding MAC address, loopback test and filtration, bandwidth control, flow control, and multicast stream control.

SGSW-24040HP

Centralized Power Management for Gigabit Ethernet Networking
To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, PLANET SGSW-24040HP is the 24-Port Gigabit High Power over Ethernet Managed Switch which features high performance Gigabit IEEE 802.3af PoE (Up to 15.4W) and IEEE 802.3at High-Power PoE (Up to 30.8W) on all ports. By supporting reliable stacking technology and advanced networking features, the SGSW-24040HP also provides high scalability for current and future network infrastructure as it can flexibly work with PLANET SGSW series Gigabit Switch to meet the various networking requirements and simplify the network deployment and management.30-watt Power over Ethernet
A maximum of 30.8 watts is available on the Gigabit ports of the SGSW-24040HP for powering PDs (Powered Devices), with a maximum PoE delivery of 360 watts for all ports to per device in order to satisfy the increasing needs of power consumption by powered devices. Providing Gigabit throughput and high power supply, the SGSW-24040HP optimizes the installation and power management of network devices such as 11n wireless access points (AP) with Gigabit PoE LAN port, security PTZ (Speed Dome) network video cameras, large screen PoE video phones, thin-clients and more.

E-Mail / SNMP Trap Alarm
The SGSW-24040HP provides built-in SMTP and SNMP Trap alarm function that can send instant alarm to the administrators by email when errors happen. The errors like when the connected PD devices such as IP cameras or wireless access point were changed or when the Ethernet cable was broken or loosened, the SGSW-24040HP would detect it and spontaneously send the error alarm to the assigned receiver or network management center. It also records when the error and the recovery status happen.

PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environment protection on the Earth, the SGSW-24040HP can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

IPv6 Management
The SGSW-24040HP works with original network structure (IPv4) and also supports the new network structure (IPv6) in the future. With easy and friendly management interfaces and plenty of management functions included, the SGSW-24040HP is the best choice for System Integrators to build the large wireless service and for SMBs to connect with the IPv6 network.Flexible Stacking Capability for Growing Networking
The SGSW-24040HP provides 2 dedicated high-speed HDMI-like interfaces for stacking management. By applying the SGSW-24040HP, up to 16 units of stacking, 384 Gigabit PoE ports can be managed by a stacking group and additional ports and functionality can be added as needed. The 2 built-in stacking ports provide 5Gbps bandwidth and up to 20Gbps bi-directional speed. It can handle an extremely large amount of data in a secure topology linking for backbone or high capacity network server with 68Gbps switching fabric per unit. The stacking technology also enables the chassis-based switches to be integrated into SGSW-24040 series Managed Switch at an inexpensive cost.Robust Layer 2 Features
The SGSW-24040HP can be programmed for advanced switch management functions such as dynamic Port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP Snooping. The SGSW-24040HP provides 802.1Q Tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the SGSW-24040HP allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of up to 12 groups of 16 ports for port link aggregation and supports fail-over as well.Efficient and Secure Management
For efficient management, the SGSW-24040HP is equipped with console, WEB and SNMP management interfaces. With the built-in Web-based management interface, the SGSW-24040HP offers an easy-to-use, platform-independent management and configuration facility. The SGSW-24040HP supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGSW-24040HP can be accessed via Telnet and the console port. Moreover, the SGSW-24040HP offers secure remote management by supporting SSH, SSL and SNMPv3 connection which encrypt the packet content at each session.Enhanced Security
The SGSW-24040HP offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communications between edge ports can be protected to ensure user privacy. The SGSW-24040HP Net Security also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Flexibility and Extension Solution
The four mini-GBIC slots built in the SGSW-24040HP support dual-speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required. The distance can be extended from 550 meters (Multi-Mode fiber) up to above 10/50/70/120 kilometers (Single-Mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Easy Deployment
High power and high speed data switching are integrated into one unit and delivered over a single cable. The Gigabit PoE Switch also lowers the need for dedicated electrical outlets on the wall, ceiling or any unreachable place and eliminates costs and time for additional AC wiring.

VC-820M

Delivering Highly-demanding Connectivity for ISPs/Triple Play Devices
As the demand for home broadband connections increases, the VDSL2 technology is the next media to support the integration of home services and provides a significant transmission speed faster than that of the current cable modem and ADSL technology. The VC-820M applies the EoVDSL (Ethernet over VDSL) to providing up to 100Mbps download capability and makes the following multi-media services more efficient on the local network:
■ IPTV/HDTV
■ VoD (Video on Demand)
■ Voice over IP
■ Video Conferencing/Video Phone
■ On-line Gaming
■ Internet Radio/On-line Music
■ Long-distance EducationThe VC-820M offers an excellent bandwidth to meet the requirements of the triple play devices for home entertainment and communications.

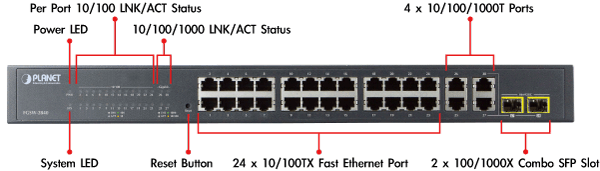

FGSW-2840

Full-Functioned Layer 2 / Layer 4 Managed Switch for Enterprise and Campus Networking
PLANET FGSW-2840 is a 24-port 10/100Mbps Fast Ethernet Switch with 4 Gigabit ports and 2 combo 100/1000X SFP interfaces. It comes with a high-performance switch architecture, capable of providing non-blocking 12.8Gbps switch fabric and wire-speed throughput at 9.5Mpps. Its four built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the core switch or servers. The powerful features of QoS and network security offered by the FGSW-2840 enable the switch to perform effective data traffic control for ISP and enterprise VoIP, video streaming and multicast applications. It is ideal for the remote access layer of campus or enterprise networks and the aggregation layer of IP metropolitan networks.

Robust Layer 2 Feature
The FGSW-2840 can be programmed for advanced switch management functions such as port mirror, port security, port isolation and loopback detection. It also features the dynamic port link aggregation (Static Trunk and LACP), 802.1Q VLAN, Spanning Tree protocol (STP), Rapid Spanning Tree protocol (RSTP) and Multiple Spanning Tree protocol (MSTP), static/dynamic MAC address filtering, IGMP snooping, multicast IP, multicast filtering and DHCP filtering. Via aggregation of supporting ports, the FGSW-2840 allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of up to 6 groups of 4 ports for trunk and supports fail-over as well.Enhanced Security
The FGSW-2840 offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address.Efficient Traffic Control
The FGSW-2840 is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast / unicast storm control, per port bandwidth control, 802.1p / CoS / IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and video stream transmission, and empowers the enterprises to take full advantages of the limited network resources.Enhanced and Secure Management
For efficient management, the FGSW-2840 is equipped with Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the FGSW-2840 offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard Simple Network Management Protocol (SNMP), the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the FGSW-2840 offers secure remote management by supporting HTTPS and SNMPv3 connections which encrypt the packet content at each session.Flexible Extension Solution
The two mini-GBIC slots built in the FGSW-2840 are compatible with the 100Base-FX / 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to the backbone switch and monitoring center in long distance. The distance can be extended from 550 meters and 2 kilometers (multi-mode fiber) to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
