PL-702

High-speed Ethernet Connection via HomePlug Powerline
With advanced HomePlug AV technology, PLANET PL-702 Nano Powerline Adapter extends a high speed up to 500Mbps in-house Ethernet connection to any power outlet. With hassle-free plug and play installation, it enables users to plug a pair of powerline adapters into the house power outlets, and then can easily enjoy high definition video streaming and network transmission. No more tripping over tangled, messy wires running through your house, the PL-702 is an ideal solution to creating a wall-to-wall home network.

Data Transfer Rate up to 500Mbps and Distance up to 300-meter Wiring
The PL-702 provides users with stable, high-speed data transfer rates up to 500Mbps on electric powerline length up to 300 meters with HomePlug AV technology. Therefore, the PL-702 can transmit multiple HD streams and even Full HD movies to every room, making it a great choice for easily building a multimedia entertainment network.

Securing Network Connection Just with the Touch of a Button
Simply by pushing the security button on the PL-702, users can easily set up a hassle-free secure Powerline network within minutes. It provides 128-bit AES encryption for network security and data protection.

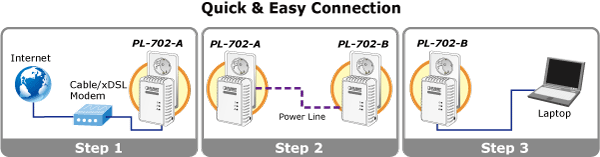

Getting started is as easy as 1-2-3
1. Connect one Powerline Ethernet bridge to your ADSL or cable modem’s Ethernet port and plug it into the nearest power socket.
2. Plug in the second Powerline Ethernet Bridge in your room or office.
3. Connect the PC via the network cable to the Powerline Ethernet Bridge.
Then users can enjoy home broadband network right away.

Compact Nano-design Matches Nicely with any Surrounding

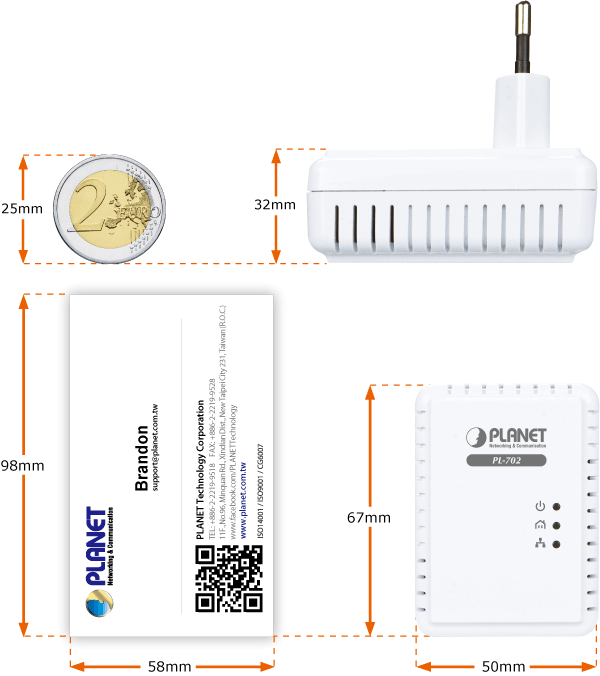

With dimensions of 67 (W) x 50 (D) x 32 (H) mm only, the PL-702 features a super compact and sleek design that blends in nicely with any surrounding at home or office.

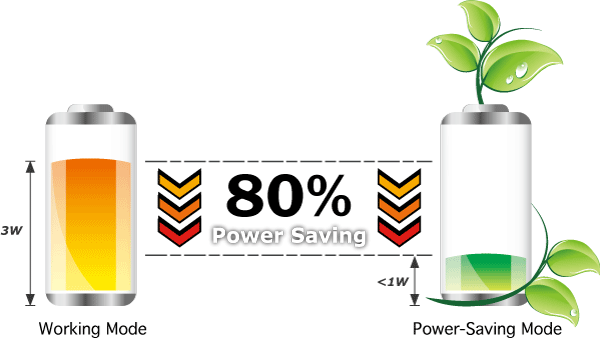

Reducing Power Consumption up to 80%
With green technology applied, the PL-702 consumes less power when comparing to the existing Powerline Ethernet Adapters. Moreover, when there is no Ethernet link, the PL-702 will automatically switch to the “Power-saving” mode that would reduce energy wasting for over 80%* when compared to the adapters without this feature.
*Actual data will vary depending on the network conditions and environmental factors.

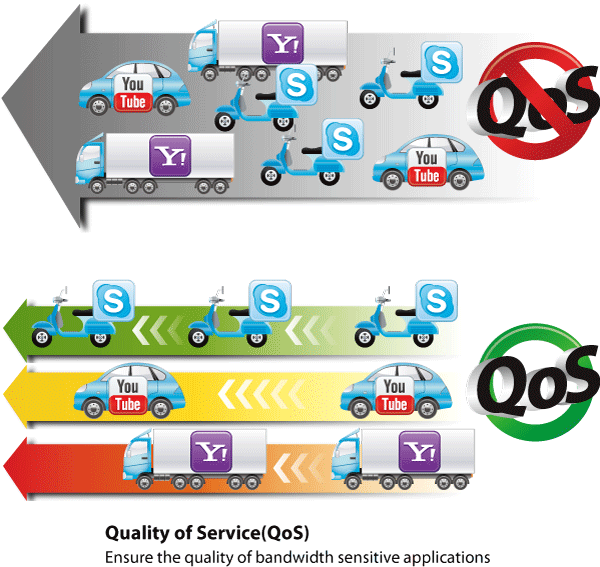

Efficient Bandwidth Management by QoS
Quality of Service (QoS) is provided by the PL-702 to guarantee the priorities of data traffic’s bandwidth even with other bandwidth intensive applications such as VoIP, IPTV, video streaming or online gaming running on the same network, thus improving its network efficiency.

PL-510W

High Speed Wireless Extension via Home’s Powerline
With HomePlug AV technology, PLANET PL-510W Powerline Wireless N Extender efficiently share up to 200/300Mbps high speed Internet connection to any power outlet at home. With hassle-free plug and play installation, it enables users to plug a pair of powerline adapters into the house power outlets, and then immediately enjoy high definition video streaming and network transmission. No more tripping over tangled, messy wires running through your house, the PL-510W is an ideal solution to creating a wall-to-wall home network and extending the connection wirelessly.Faster Wireless Speed, Wider Operational Range
The PL-510W features IEEE 802.11n radio with 2T2R antenna technology compliant with 802.11b/g/n standards. With the 300Mbps high speed transmission rates, the PL-510W can easily integrates the wireless devices with existing wired network. To secure the wireless communication, the PL-510W supports most up-to-date encryptions including WEP / WPA / WPA2-PSK with TKIP/AES.

Data Transfer Rate up to 200Mbps and Distance up to 300 Meters over Electrical Wiring
With advanced HomePlug AV technology, the PL-510W provides users with stable, high speed data transfer rates up to 200Mbps on electric powerline length up to 300 meters. Therefore, the PL-510W can transmit multiple HD streams and even Full HD movies to every room, making it a great choice for easily building a multimedia entertainment network.

Securing the Network Connection with the Pair button, no need to remember passwords
Simply by pushing the button on the PL-510W, users can easily set up a hassle-free secure Powerline network within minutes. It provides 128-bit AES encryption for network security and data protection.

Quick Wireless Connection via WPS Button
The PL-501W supports users to immediately get access to high speed wireless sharing via easy WPS setup:
Step 1: Mouse-click the WPS button in the PC / Laptop
Step 2: Press the WPS button on the PL-510W
Step 3: Wireless connection is done

Efficient Bandwidth Management by QoS (Quality of Service)
Quality of Service (QoS) is provided by the PL-510W enabling a network to provide better service to selected network traffic over various technologies. The PL-510W provides 5 priorities of QoS for quick setup such as internet, online game, IPTV, video and VoIP.

PL-802

High-speed Data Transfer Rate
With advanced HomePlug AV2 technology, PLANET PL-802 Powerline Ethernet Bridge provides users with a stable, high-speed data transfer rate of up to 600Mbps over a powerline length of up to 300 meters. Therefore, the PL-802 can transmit multiple HD streams and even Full HD movies to every room, making it a great choice for easily building a multimedia entertainment network.

High Throughput Performance for Multi-stream Networking
PLANET continues to innovate on the success of powerline AV to deliver even better performance at higher speeds. The PL-802 compliant with Homeplug AV2 specification was released for next-generation powerline networking. It’s now faster than ever to handle the most demanding online services and applications. The convergence of voice, video and data within a variety of multi-function devices and new applications, merged with Smart Home applications or the Internet of Things (IoT), is driving the need for increased high throughput connectivity throughout the home while assuring a high level of reliability and sustained performance.

Full interoperability with other Powerline Ethernet Bridges
The AV2 powerline maintains full interoperability with other PLANET connected home technologies in order to facilitate a simple migration to next-generation powerline certified products. This is a key benefit, as the PL-802 enables users to connect with the HomePlug certified consumer electronics or networking products for internet access in homes without hassle.

Securing Network Connection with the Touch of a Button
Simply by pressing the button on the PL-802, users can easily set up a hassle-free, secure Powerline network within minutes. It provides 128-bit AES encryption for network security and data protection.

Getting Started is as Easy as 1-2-3

Connect one Powerline Ethernet Bridge to your xDSL or cable modem’s Ethernet port and plug it into the nearest power socket.
Plug in the second Powerline Ethernet Bridge in your room or office.
Connect the PC/Laptop to the Powerline Ethernet Bridge via the network cable.

Users immediately have access to the Internet through the PC or laptop.

Reducing Power Consumption
The PL-802 consumes less power when compared with the existing Powerline Ethernet Adapters. Moreover, when there is no Ethernet link, the PL-802 will automatically switch to the “Power-saving” mode that would reduce energy wasting by over 80%* when compared with the adapters without this feature.
*Actual data will vary depending on the network conditions and environmental factors.

Efficient Bandwidth Management by QoS (Quality of Service)
Quality of Service (QoS) is provided by the PL-802 enabling a network to provide better service to selected network traffic over various technologies.
