WNAP-W2201A

All-in-One Manageable Wi-Fi Solution for Hospitality Industry
PLANET WNAP-W2201A enables hospitality industry to build a high-speed wireless network with a maximum data rate of 11n 300Mbps via PLANET AP controller. Furthermore, it conforms to standard 86-type electrical junction box and IEEE 802.3af/at PoE, suitable for in-wall installation. The WNAP-W2201A has also a built-in RJ11 port for phone pass-through and 100BASE-TX RJ45 port for Ethernet connection to such device as IPTV or laptop, enabling to integrate a hotel network with its all-in-one interface. This definitely helps guests gain good user experience.

Ease of Deployment with PLANET AP Controller
To expand the capability of in-wall AP, PLANET WNAP-W2201A comes with centralized management, enabling the hospitality industry to deploy multiple APs with a single interface of AP controller and reducing repetitive tasks including AP provisioning, AP status monitoring and AP maintenance. In addition, by connecting with PLANET WAPC AP controller series, the WNAP-W2201A comes with PoE alive check and PoE schedule features, which help hoteliers optimize their wireless network within minutes.

Suitable for Any Room Installation without Breaking Interior Design
Featuring attractive in-wall design, the WNAP-W2201A can be firmly installed into the wall via the standard 86 x 86 mm or 75 x 75 mm European outlet box, which makes electrical wiring invisible and convenient for room installation without affecting the original interior design. It is ideal for hotels, residences, hospitals and more to establish wireless network.

Comprehensive Wireless Operation Mode
The WNAP-W2201A supports multiple wireless communication connectivities such as AP (Multi-SSIDs), Client, Repeater/Universal Repeater, WDS Point-to-Point (PtP) and WDS Point-to-Multipoint (PtMP), allowing users to comprehensively experience various applications.

Easy to Install and Manage
Integrated with RJ11 phone pass-through, RJ45 Ethernet connection and IEEE 802.3af/at PoE PD scheme, the WNAP-W2201A is easy to be installed to any room’s existing 86-type or 75-type junction box with only 6 steps. The setup wizard and on-line help can simplify the configuration even for a user who has never experienced in setting up a wireless network. In aspect of centralized management, besides the SNMP, multiple devices can be configured and monitored by PLANET AP controller. The WNAP-W2201A helps the system administrator overcome the difficulties of wireless deployment.

WNAP-C3220A

PLANET WNAP-C3220A, a 300Mbps 802.11n Wireless Range Extender, offers multiple operation modes and complies with 802.3af Power over Ethernet standard. Particularly, it supports AP Controller features that can increase wireless coverage and can easily be centrally managed within a network. Sleek styling housing and ceiling-mountable design makes the WNAP-C3220A blend unobtrusively into any ceiling or wall for various environments. This unique product also creates a secure, cost-effective and highly scalable wireless LAN infrastructure. It is ideal for enterprises, hotels, hospitals and home users to extend wireless network coverage.

Ease of Deployment with PLANET AP Controller
To simplify the wireless deployment, the WNAP-C3220A supports AP controller, which can be switched to the “managed AP” mode and thus can be centrally managed by PLANET Wireless AP Controller. It will certainly benefit the system integrators when the scale of the wireless network gets bigger. With visible LED lighting, the administrator can quickly pinpoint the localization of each ceiling-mount AP. Furthermore, the user-friendly, graphical configuration setup wizard and PLANET Smart Discovery tool can make the WNAP-C3220A convenient to be managed and configured remotely in a small business wireless network.

Comprehensive Wireless Operation Mode
The WNAP-C3220A supports multiple types of wireless connectivity such as AP (Multi-SSIDs), Client, Repeater/Universal Repeater, WDS Point-to-Point (PtP) and WDS Point-to-Multipoint (PtMP), allowing users to comprehensively experience various applications. It also helps users to easily build wireless network and extend the wireless range of the existing wireless network.

Universal Wireless Range Extender
To extend the coverage and eliminate the dead spot of wireless network in every place, the WNAP-C3220A supports not only WDS bridging, but also Universal Repeater mode which can solve the incompatibility between brands and provides a high-speed, wide coverage. The built-in intelligent antennas offer 360 degrees of coverage with excellent performance.

Advanced, Secure Wireless Connection
In aspect of security, besides 64-/128-bit WEP encryption, the WNAP-C3220A integrates WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. To simplify security settings for home and SOHO network, the WNAP-C3220A supports Wi-Fi Protected Setup (WPS). By just pressing the WPS button or keying in the PIN code, the secure connection between the WNAP-C3220A and wireless clients will be built immediately even the user has never experienced to create a secure wireless network. In addition, the WNAP-C3220A provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection.Elegant, Unique & Ceiling-mountable Design
Featuring an attractive flying saucer appearance and ceiling-mountable design, the WNAP-C3220A can be firmly absorbed on the ceiling or the wall, which makes the client-side installation easy and convenient. Its streamlined body without protruding antennas gives effects of embellishment on the surroundings and also provides greater wireless coverage.

Flexible Deployment with PoE Feature
Compliant with IEEE 802.3af Power over Ethernet standard, the WNAP-C3220A can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place which is difficult to reach. The wireless AP deployment becomes more flexible and worry-free from the power outlet locations.

WAPC-2864HP

Wireless Management Solution in All Aspects
PLANET WAPC-2864HP, a brand-new Wireless Access Point Controller, features smart AP control, L2+/L4 IP management and intelligent PoE capability to enable service providers and IT managers to control all wireless APs at the same time in small and medium wireless network environments, such as hotels, villas, resorts and any public area. The WAPC-2864HP provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with 24 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+, 4 shared Gigabit SFP slots and 4 10G SFP+ uplink slots. Its simplified deployment and management ease the integration of devices into the existing wired and wireless networks.

Centralized Remote Control of Managed APs
PLANET Wireless AP Controller features centralized remote control of managed APs without needing to manually configure each AP for the wireless SSID, radio band and security settings. With one click of the mouse for the one-time configuration of the WAPC-2864HP’s wireless parameters, wireless settings of multiple APs can be simultaneously established to minimize deploying time, effort and cost.

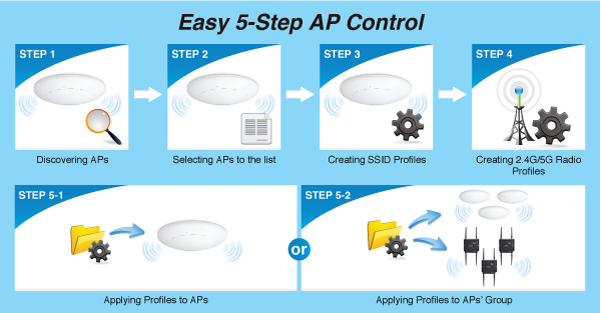

Optimizing Wireless Network within Minutes
The WAPC-2864HP offers a user-friendly Web GUI for easy configuration. It enables wireless IT managers to complete a five-step configuration process of multiple APs. Through this Web interface, the wireless IT managers can discover manageable APs on the networks first, edit AP profiles and then apply the profiles to selected AP or AP group. Following these steps, configurations for multiple APs can be done in just a few minutes.

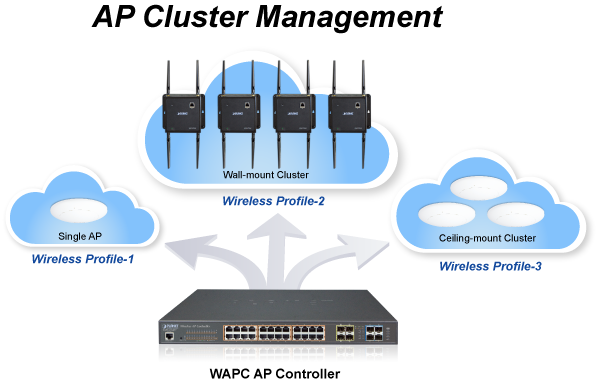

Wireless AP Cluster Management
The WAPC-2864HP supports wireless AP cluster management, which enables the central management of a group of wireless APs at one time. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group in the future.

Centralized Power Management for Wireless AP Networking
The 24 Gigabit PoE ports of the WAPC-2864HP can be used to provide power directly to APs that connect to the AP controller. Each of the 24 Gigabit ports provides 30 watts of power, which means a total power budget of up to 440 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to Access Points for small businesses and enterprises.Built-in Unique PoE Functions for AP Power Control
As a managed PoE Switch for stable and reliable wireless AP operation, the WAPC-2864HP features special PoE Management functions:
■ AP Alive Check
■ Scheduled AP Power Recycling
■ PoE Schedule

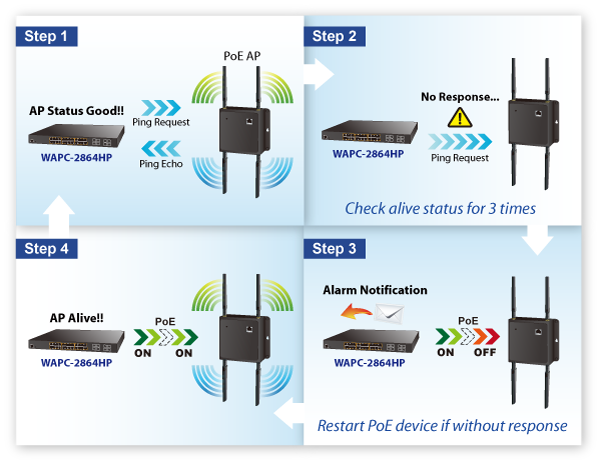

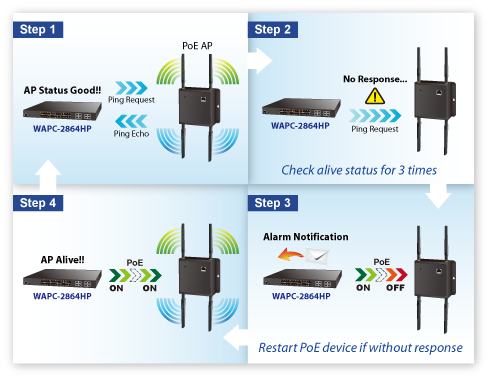

■ SMTP/SNMP Trap Event AlertIntelligent PoE AP Alive Check
The WAPC-2864HP can be configured to monitor connected AP status in real time via ping action. Once the AP stops working and responding, the WAPC-2864HP will recycle the PoE port power and bring the AP back to work. It will greatly enhance the network reliability through the PoE port resetting the AP’s power source and reduce administrator management burden.

PoE Schedule for Energy Saving
The “PoE schedule” function enables wireless IT managers to activate or inactivate PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and money.Cost-effective 10Gbps Uplink Capacity
10G Ethernet is a big leap in the evolution of Ethernet. The four 10G SFP+ slots of the WAPC-2864HP support Dual-speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Robust Layer2 Features
The WAPC-2864HP can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop protection, IGMP/MLD snooping, Layer 2/4 QoS, and bandwidth control. The WAPC-2864HP allows the operation of a high-speed trunk with multiple ports and supports connection fail-over as well.Powerful Security
The WAPC-2864HP offers comprehensive layer 2 to layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based users and device authentication.

Enhanced Security and Traffic Control
The WAPC-2864HP also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.User-friendly Secure Management
For efficient management, the WAPC-2864HP is equipped with console, Web and SNMP management interfaces. With the built-in web-based management interface, the WAPC-2864HP offers an easy-to-use, platform independent management and configuration facility. Moreover, the WAPC-2864HP offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can have the packet content encrypted at each session.
