| To give more flexibility, functionalities, and calling capacity in VoIP deployment, PLANET VIP-2100/2400 E1/T1 trunk gateways present an easy, cost-effective solution to amplifying the power of voice over IP (VoIP). The VIP-2000 trunk gateway series supports the packet telephony-based voice interfaces and signaling protocols on the market. They are capable of SIP/H.323 traffic conversion, feature-rich telephony supplementary service, call routing, and IP QoS support in one solution.
PLANET VIP-2100/2400 is not only a VoIP trunk gateway but also a universal VoIP gateway. The VIP-2100 processes the incoming calls in between H.323, SIP and PSTN, with intelligent call routing mechanism. The VIP-2100/2400 is able to route calls between the PBX, the PSTN and the VoIP network to achieve the best combination of cost and quality. PLANET VIP-2000 series can be implemented in the complicated, inhomogeneous telephony service environment, such as SIP + H.323, SIP+H.323 and PSTN enabled network. More than these, the VIP-2100/2400 supports PSTN and VoIP (H.323/SIP) side prepaid and postpaid service. This provides a built-in practical internal AAA service for small deployment and also an external RADIUS interface for ITSP installation. PLANET VIP-2000 series not only increases more revenues, but also protects the investment in the VoIP service. |
Product Function: Caller ID
VIP-2100
|
||||
VGW-804
| Cost-effective, High-performance VoIP Communication To build high-performance VoIP communications at a low cost, PLANET now introduces the latest member of its gateway family, the VGW-804 enterprise-class 8-port SIP VoIP Gateway. The VGW-804 provides added flexibility during migration to Unified Communications by supporting the traditional analog devices, which include analog phones, fax machines, modems, voicemail systems, and speakerphones. It helps the enterprises to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VGW-804 also allows call to be transferred to anyone at any location within the voice system, which enables the enterprises to communicate more effectively and is helpful to streamline business processes. |
 |
| SIP Standard Compliance The VGW-804 supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VGW-804 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services. |
 |
| Enhanced, Full-Featured Business Gateway The VGW-804 is a full-featured enhanced business SIP Gateway that addresses the communication needs of the enterprises. It provides 4-line FXO plus 4-line FXS interface which allows connection with 4 analog PSTN telephone lines and with 4-line analog telephone set to make or receive VoIP call over Internet or VPN network. This device is suitable for office PABX to enable to have VoIP call without changing cabling, dial plan and extension number. |
| The VGW-804 supports all kinds of SIP-based gateway features and multiple contact filter functions, such as 24 SIP trunk accounts, both IPv6 and IPv4 protocols, flexible dial plan and route plan features, and switch of analog and VoIP signal to help both protocols to communicate efficiently. |
 |
| Secure, High-Quality VoIP Communication The VGW-804 can effortlessly deliver secure toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality. |
 |
| Supporting Caller ID Both the FXS and FXO ports of the VGW-804 support caller ID function, helping users identify calling number and verify number easily. It also helps to block anonymous call by filtering strange calls. The FXS port transmits Caller ID, while the FXO port receives Caller ID. The Caller ID interoperates with analog phones, public switched telephone networks (PSTN) and private branch exchanges (PBXs). |
 |
VGW-800FS
| Cost-effective, High-performance PoE VoIP Phone To build high-performance VoIP communications at a low cost, PLANET now introduces the latest member of its gateway family, the VGW-800FS enterprise-class 8-port SIP VoIP Gateway. The VGW-800FS provides added flexibility during migration to Unified Communications by supporting the traditional analog devices. These devices include analog phones, fax machines, modems, voicemail systems, and speakerphones. It helps the enterprises to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VGW-800FS also allows call to be transferred to anyone at any location within the voice system, which enables the enterprises to communicate more effectively and is helpful to streamline business processes. |
 |

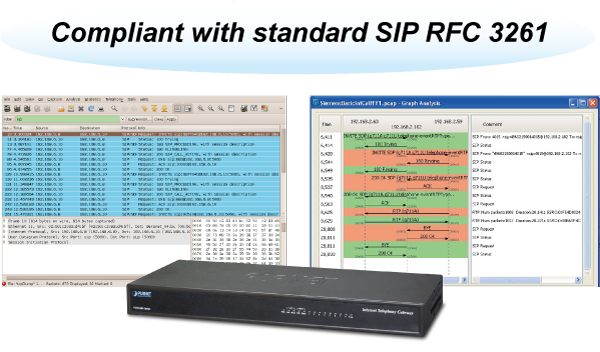

| SIP Standard Compliance The VGW-800FS supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VGW-800FS is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services. |
 |
| Enhanced, Full-Featured Business Gateway The VGW-800FS is a full-featured enhanced business SIP Gateway that addresses the communication needs of the enterprises. It provides 8-line FXS interface which allows connection with 8-line analog telephone set to make or receive VoIP call over Internet or VPN network. This device is suitable for office PABX to enable to have VoIP call without changing cabling, dial plan and extension number. |
| The VGW-800FS supports all kinds of SIP-based gateway features and multiple contact filter functions, such as 24 SIP trunk accounts, both IPv6 and IPv4 protocols, flexible dial plan and route plan features, and switch of analog and VoIP signal to help both protocols to communicate efficiently. |
 |
| Secure, High-Quality VoIP Communication The VGW-800FS can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality. |
 |

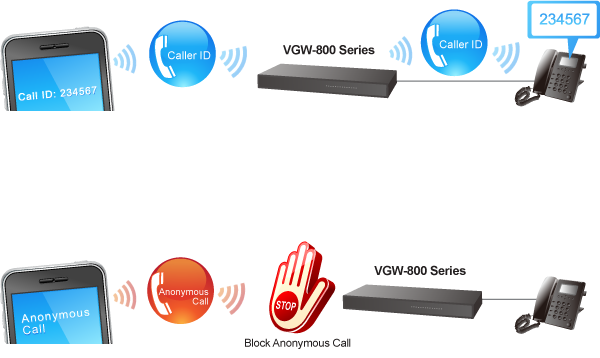

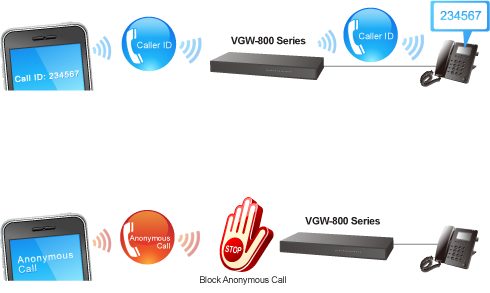

| Supporting Caller ID The VGW-800FS supports caller ID function, helping users to identify calling number easily and verify number. It also helps to block anonymous call by filtering strange calls. In the figure below, the VGW-800 series includes the VGW-800FS and VGW-800FO. The FXS port of the VGW-800FS transmits Caller ID, while the FXO port of the VGW-800FO receives Caller ID. The Caller ID interoperates with analog phones, public switched telephone networks (PSTN) and private branch exchanges (PBXs). |
 |
VGW-800FO
|
||||||||||||||||||||||||
VGW-402
| Cost-effective, High-performance VoIP Communication To build high-performance VoIP communications at a low cost, PLANET now introduces the latest member of its gateway family, the VGW-402 enterprise-class 4-port SIP VoIP Gateway. The VGW-402 gateway provides added flexibility during migration to Unified Communications by supporting the traditional analog devices, which include analog phones, fax machines, modems, voicemail systems, and speakerphones. It helps the company to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VGW-402 also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes. |
 |
| Standard Compliance The VGW-402 supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VGW-402 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services. |
 |
| Enhanced, Full-Featured Business Gateway The VGW-402 is a full-featured enhanced business SIP Gateway that addresses the communication needs of the enterprises. It provides the 2-line FXO plus 2-line FXS gateway with SIP protocol IP device which allows connection with 2 analog PSTN telephone lines and with 2-line analog telephone set to make or receive VoIP call over Internet or VPN network. This device is suitable for office PABX to enable to have VoIP call without changing cabling, dial plan and extension number.The VGW-402 supports all kinds of SIP-based gateway features and multiple contact filter functions, such as 4 SIP trunk accounts, both IPv6 and IPv4 protocols, flexible dial plan and route plan features, and switch analog and VoIP signal to help both protocols to communicate. |
 |

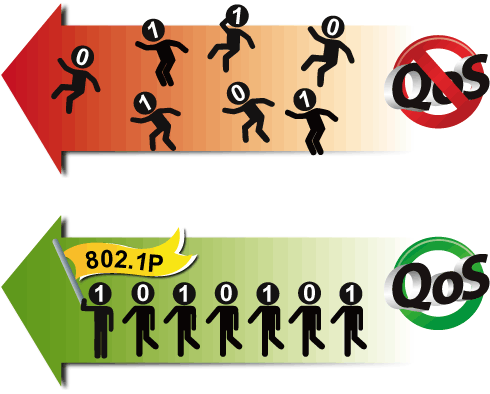

| Secure, High-Quality VoIP Communication It can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality. |
 |
| Supporting Caller ID Both the FXS and FXO ports of the VGW-402 support caller ID function, helping users identify calling number and verify number easily. It also helps to block anonymous call by filtering strange calls. The FXS port transmits Caller ID, while the FXO port receives Caller ID. The Caller ID interoperates with analog phones, public switched telephone networks (PSTN) and private branch exchanges (PBXs). |
 |
VGW-400FS

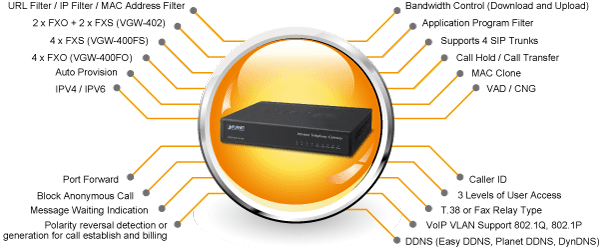

| Cost-effective, High-performance VoIP Communication To build high-performance VoIP communications at a low cost, PLANET now introduces the latest member of its gateway family, the VGW-400FS enterprise-class 4-port SIP VoIP Gateway. The VGW-400FS gateway provides added flexibility during migration to Unified Communications by supporting the traditional analog devices, which include analog phones, fax machines, modems, voicemail systems, and speakerphones. It helps the company to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VGW-400FS also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes. |
 |

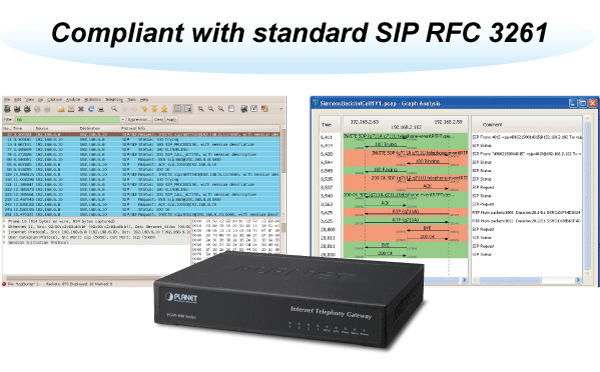

| Standard Compliance The VGW-400FS supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VGW-400FS is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services. |
 |
| Enhanced, Full-Featured Business Gateway The VGW-400FS is a full-featured enhanced business SIP Gateway that addresses the communication needs of the enterprises. It provides the 4-line FXS gateway with SIP protocol IP device which allows connection with 4-line analog telephone set to make or receive VoIP call over Internet or VPN network. This device is suitable for office PABX to enable to have VoIP call without changing cabling, dial plan and extension number.The VGW-400FS supports all kinds of SIP-based gateway features and multiple contact filter functions, such as 4 SIP trunk accounts, both IPv6 and IPv4 protocols, flexible dial plan and route plan features, and switch analog and VoIP signal to help both protocols to communicate. |
 |
| Secure, High-Quality VoIP Communication It can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality. |
 |

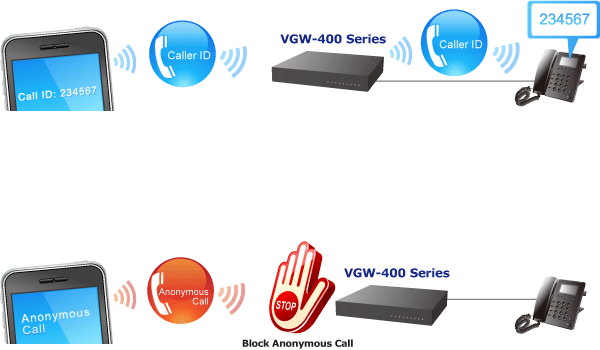

| Supporting Caller ID Both the FXS and FXO ports of the VGW-400 series support caller ID function, helping users identify calling number and verify number easily. It also helps to block anonymous call by filtering strange calls. The FXS port transmits Caller ID, while the FXO port receives Caller ID. The Caller ID interoperates with analog phones, public switched telephone networks (PSTN) and private branch exchanges (PBXs). |
 |
VGW-400FO
|
||||||||||||||||||||||
VIP-1010PT
|
||||||||||||||||||
IPX-2500
| Intuitive, Ease-of-Use IP PBX Machine Management PLANET IPX-2500 IP PBX telephony system is SIP-based for optimizing communications among the small and medium businesses. The IPX-2500 is able to accept 500 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages.
|
||||||||||||||||||||||||||||||
| Off-net Calling Capability, Call Restriction, Call Access Control The IPX-2500 integrates up to 8 calls via the IPX-21FO (4 FXO) and IPX-21GS (4 GSM) modules to form a feature-rich PBX system that supports seamless communications between the existing PSTN calls, analog, IP phones and SIP-based endpoints. |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
| Replacing Old PBX Easily without New Wiring Cost-effective, easy-to-install and simple-to-use, the IPX-2500 converts standard telephones to IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.With the IPX-2500, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-2500 can be the bridge between traditional analog systems and IP network with an extremely affordable investment. |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
| Distributed VoIP Network Infrastructure For the new-generation communication age, the IPX-2500 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-2500 also helps users to apply and remember the login information easier. Moreover, its multiple language feature helps user to quickly and friendly manage the system. The IPX-2500 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server. |
||||||||||||||||||||||||||||||
| Standard Compliance Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-2500 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services. |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
| Green IP Office Virtual fax functionality on IPX-2500 system allows faxes to be sent and received without requiring a fax machine. This useful feature will allow businesses to demonstrate their green credentials while at the same time reduce fax related costs across the enterprise. Inbound faxes can be automatically received and converted to TIF files and saved in the IPX-2500 system. It is also possible to configure the IPX-2500 system to send the TIF files to a user’s email box. Sending outbound faxes is as easy as uploading a file from the extension user web portal, thus creating a paperless or green office. |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
| Full Security with VPN Support The IPX-2500 VPN securely and cost-effectively connects geographically disparate offices of an organization, creating one cohesive virtual network. The IPX-2500 VPN technology is also used by ordinary Internet users to connect to proxy servers for the purpose of protecting one’s identity. It includes VPN server and client function that can support users’ full security login. |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
