Cost-effective Centralized Power Distribution with Remote Management
For cost saving and the flexibility of using PoE power provision, half of the 10/100Mbps TP ports of the FSD-804PS provide PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices.For SOHO or department network, the switch also provides a simple, cost-effective, and highly reliable network connection for data as well as power. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks.

Easy Cabling installation
With data and power over Ethernet, the FSD-804PS is able to reduce cable installation and eliminate the need for electrical outlets on the wall, ceiling or any unreachable place. Energy saving is the key feature of the use of PoE in the deployment. With more efficient switching power supply, the efficiency of the FSD-804PS would be much better than four linear power adapters in the long run.Providing 4 PoE interfaces, the FSD-804PS is ideal for small businesses and workgroups requiring to utilize PoE for the deployment of wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost-effectively.Friendly / Simple Web Management Interface
The Web smart functions make it easy to survey and control the PoE power provision to the devices by the Web interface. Basic switching functions such as VLAN, Bandwidth Control, Storm Control and QoS are available for network management.

Power-saving, High-performance Ethernet Networking
PLANET Green Networking Switch- FGSW-2620 is an ideal solution in line with the energy-saving trend worldwide. The FGSW-2620 is a 24-port 10/100BASE-TX and 2-port Gigabit Ethernet Switch upgraded from earlier version and brings both benefits of energy saving and high performance.Energy Saving
The FGSW-2620 incorporates advanced Green Networking technology:
• Intelligent scales power based on cable length

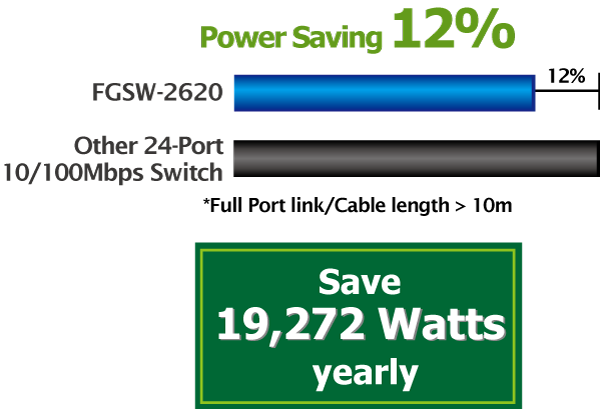

The intelligent scales power is an intelligent algorithm that actively determines the appropriate power level based on cable length. The FGSW-2620 can automatically detect the Ethernet cable length and adjust power usage accordingly. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving. The FGSW-2620 uses new engine that provides power saving up to 12% less energy but maintains high performance efficiently.

High Performance / Plug and Play
The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, 148,800pps in 100Mbps and 1,488,000pps in 1000Mbps) and dynamic shared memory buffer function helps the FGSW-2620 boost bandwidth. The FGSW-2620 also provides auto-negotiation capability and MDI / MDIX auto-detection for plug and play connection regardless of the cabling type being straight-through or crossover.
