ICS-102/ICS-102S15/ICS-105A

Cost-effective Solution for RS-232 / RS-422 / RS-485 to Ethernet Application
PLANET ICS-10x series Media Converter / Device Server can convert Serial RS-232 / RS-422 / RS-485 communication interface over Fast Ethernet networking. There are SC type and LC type connectors, and single-mode/multi-mode media for customers needs. Ethernet signal allows the two types of segments to connect easily, efficiently and inexpensively. The ICS-10x converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700 and MC-1500). It greatly saves time and expense for users and SIs without the need of replacing the existing serial equipment and software system.

Extending Distance
The ICS-10x extends the distance of deploying serial equipment and hosts. The selectable fiber-optic wires on the basis of distance are provided. Therefore, this product will perfectly satisfy the diverse demands while providing reliable and efficient network solutions based on the distance and budgets of installation.

Remote Manageable
The ICS-10x enables the serial equipment to be connected via IP-based transmission. It also makes them able to connect to a TCP / IP networking immediately. The ICS-10x Web Smart media converter provides management through Web Interface. It supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps the network administrators to reduce the amount of valuable time spending on detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. For large networking environment, multiple connection options are available with the ICS-10x as well.

ICS-100

Cost-effective Solution for RS-232 / RS-422 / RS-485 to Ethernet Application
PLANET ICS-100 Media Converter / Device Server provides to convert Serial RS-232 / RS-422 / RS-485 communication interface over Fast Ethernet networking. Ethernet signal allows two types of segments to connect easily, efficiently and inexpensively. This converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700 / MC-1500/ MC-1500R / MC-1500R48). It is time, saving expense for users and SIs, and there is no need to replace the existing serial equipment and software system.Remote Manageable
The ICS-100 makes connected serial equipment become the IP-based type. That also makes them able to connect to a TCP / IP networking immediately. Each Web-Smart converter is able to manage Web interface. The powerful Web-Smart Media Converter supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps reduce the amount of valuable time that a network administrator spends detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. Multiple connection options for large networking environment are available as well.

POE-151

PLANET POE-151 is an IEEE 802.3af Power over Ethernet Injector that provides DC 48V over Ethernet cables. The POE-151 IEEE 802.3af Power over Ethernet Injector inserts DC voltage into Cat.5 cable, allowing the cable between the Injector (POE-151) and Splitter (POE-151S-5V/9V/12V) to transfer data and power simultaneously. The maximum distance between the Injector (POE-151) and Splitter (POE-151S-5V/9V/12V) is 100 meters. With POE-151 being installed, it combines the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3af Power over Ethernet Injector. And the IEEE 802.3af Power over Ethernet splitter will split the digital data and the power into two outputs.

With IEEE 802.3af Power over Ethernet devices being installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Besides, when used with the POE-151S-5V/9V/12V, the POE-151 can offer the benefits of cost saving, easy networking planning and higher reliability. What’s more, upon any IEEE 802.3af devices being installed, the POE-151 or together with POE-151S-5V/9V/12V can make the connection while migrating or splitting the power and the Ethernet digital packets, such as connecting the POE-151 to an IEEE 802.3af complied device, AP or IP phone.

ICS-102/ICS-102S15/ICS-105A

ICS-100

POE-152S

With cost saving and power management feature, PLANET POE-152S is a 10/100/1000Mbps Power over Ethernet splitter ideal for quick PoE environment deployment. The POE-152S can split the 48V DC over the Ethernet cable into 5V/12V DC power output. Working with the IEEE 802.3af power source equipment (PSE), the POE-152S frees the device deployment from restrictions of power outlet locations, which eliminates the costs for additional AC wiring and the installation time.

In the PSE and POE splitter installation, when the PSE inserts DC Voltage into the CAT 5 cable, it allows the cable between the PSE and POE-152S to transfer data and power simultaneously. The PSE combines the Ethernet digital data with power over the twisted pair cables as an injector, and the POE-152S, the splitter, divides the digital data and the power into two outputs. The maximum distance between the PSE and POE-152 is 100 meters.

With IEEE 802.3af Power over Ethernet network being installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. The POE-152S brings the benefits of cost saving as well as ease of networking planning and higher reliability. Furthermore, upon any IEEE 802.3af networking, the POE-152S can make the connection while migrating or splitting the power and the Ethernet digital packets. The POE-152S provides two kinds of PoE power output options through DIP switch, including 5V / 2A and 12V / 1A DC for PoE power output in one unit.

POE-151

POE-152

PLANET POE-152 is an IEEE 802.3af Power over Ethernet Injector, which provides DC 48V over Ethernet cables. The POE-152 IEEE 802.3af Power over Ethernet Injector inserts DC voltage into Cat.5 cable, allowing the cable between the Injector (POE-152) and Splitter (POE-152S-5V/12V) to transfer data and power simultaneously. The maximum distance between the Injector (POE-152) and Splitter (POE-152S-5V/12V) is 100 meters. With POE-152 being installed, it combines the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3af Power over Ethernet Injector. And the IEEE 802.3af Power over Ethernet splitter divides the digital data and the power into two outputs.

Unlike the existing Power over Ethernet Injector, the POE-152 also provides 1000Mbps Gigabit Ethernet connection capability, except the 10/100Mbps Fast Ethernet connection capability.

With IEEE 802.3af Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Besides, to connect through the POE-152 and POE-152S-5V/12V, you can also have the benefits of cost saving, ease of networking planning and higher reliability. Upon any IEEE 802.3af devices being installed, the POE-152 or together with POE-152S-5V/12V can make the connection while migrating or splitting the power and the Ethernet digital packets, such as connecting the POE-152 to an IEEE 802.3af complied device, AP or IP phone.

POE-400

PLANET POE-400 is a 4-port IEEE 802.3af Power over Ethernet injector hub which complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af standards. Equipped with 4 10/100Base-TX Fast Ethernet ports, the POE-400 supports full 48V DC power for any remote IEEE 802.3af powered device (PD) like wireless LAN access points, IP phones, and LAN cameras. Supporting power supply of 70 watts, the POE-400 provides sufficient power to the 4 remote devices.

There are 8 RJ-45 STP ports on the POE-400. Half of the ports on the right panel function as “Data” and the other half on the left panel function as “Data and Power”. Each of the “Data and Power” port is an injector which inserts DC voltage into the CAT 5 cable to allow the cable between the Injector and Splitter to transfer data and power simultaneously.

FSD-803

High-speed 10/100Mbps Workgroup Switch
PLANET Fast Ethernet Switch FSD-803 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal case design and just right for the network of 10 to 50 users.

Stable Fast Ethernet Switch Performance
The FSD-803 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and 448K bit packet buffer help the FSD-803 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-803 could recognize up to a 1K different MAC address and provide 1.6Gbps switching capacity, which makes the FSD-803 offer wire-speed packets transfer performance without risk of packet loss.

Flexible Desktop Size Design
The FSD-803 is the fancy-shaped standard metal model to fit into space-limited environment. With concepts of “Easy to install and use”, “Compact sized design”, and “Simple troubleshooting”, the FSD-803 provides cost-conscious business and home users with the foundation from an integrated system of small-office / home-office networking.

Power Energy Saving

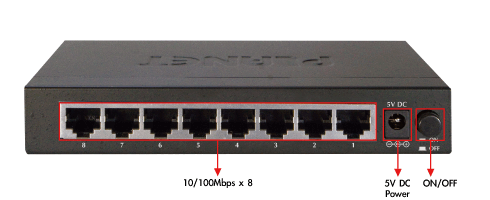

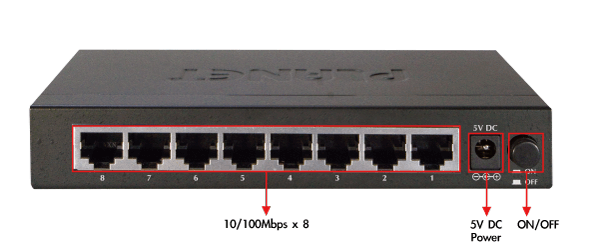

With one power ON/OFF button designed on the rear panel of the FSD-803, it can help users to reduce unnecessary power energy loss while the FSD-803 operation is OFF.

Plug & Play and Easy Installation
All RJ-45 copper interfaces in the FSD-803 support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5/5e cables. Supporting standard for auto-MDI/MDI-X can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The Flow Control function allows the FSD-803 to support routers and servers for direct connection to this switch with fast and reliable data transfer.
