VPA-100

New Audio Control System

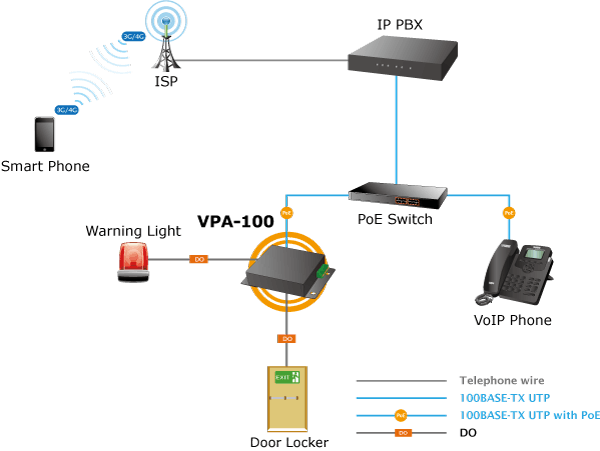

PLANET VPA-100 audio control system comes with the existing IP PBX to provide unidirectional and bidirectional audio for broadcasting. An announcement can be made via the VPA-100, simply by making a call from an IP phone in the handset, headset, or hands-free mode. Its efficient 3.5-watt amplifier provides loud speaker coverage for the entire room or floor space.

User-friendly Control
The VPA-100 provides four programmable output ports to control power on or power off. It usually controls them via web. When an IP phone is dialed to the VPA-100, the user can also control these ports via keypad of the IP phone. It allows the user to control these devices anytime, anywhere.

Standard Compliance

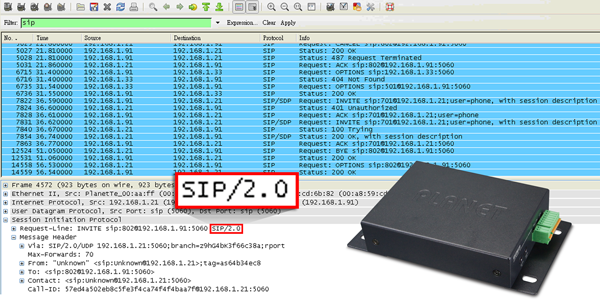

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the VPA-100 is able to function with PLANET or any third-party SIP 2.0 compliant VoIP products.

Adjustable to Suit User’s Application
The VPA-100 can be powered via a power adapter or power over Ethernet cable, meaning the user can select either of the available power sources for his convenience. The volume of output, speaker input and handset input via web UI can be adjusted to make the announcement in the environment just right. It can be set up in all facilities, such as rooms, hallways, office floors, and more.

Full VoIP Communication

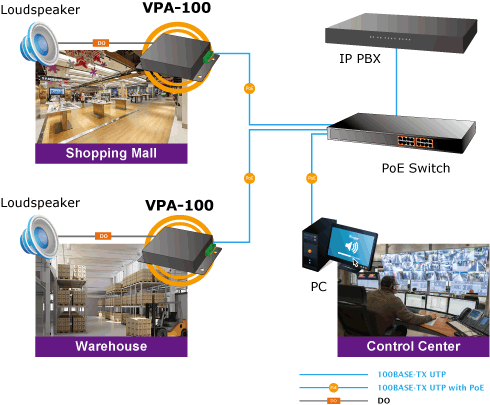

Several VPA-100 units can be connected to each other over a 100-meter cabling via a PoE switch. They can also be optionally installed on walls or ceilings. If the IP PBX supports paging and intercom, one IP phone can make calls to many VPA-100 units at the same time.

VIP-1010PT

Cost-effective, High-performance PoE VoIP Phone
To build high-performance VoIP communications at a low cost, PLANET has integrated high-definition voice into a cost-effective SIP phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-1010PT makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps the company to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VIP-1010PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

High-quality HD VoIP Voice
The VIP-1010PT delivers HD voice which is the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony and even close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50 Hz to 7 kHz or higher over telephone lines, resulting in higher quality voice and clearer communication.

Standard Compliance

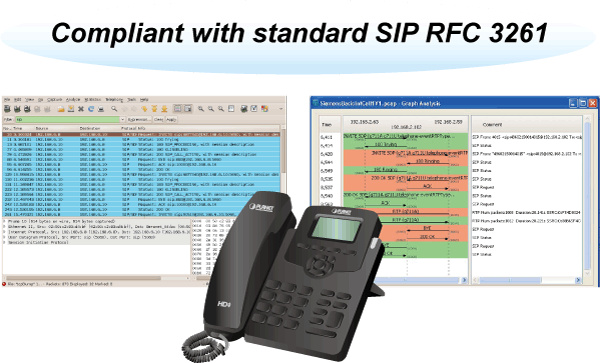

The VIP-1010PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-1010PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Enhanced, Full-Featured Business IP Phone

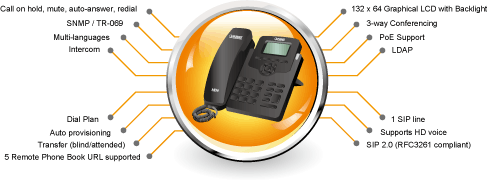

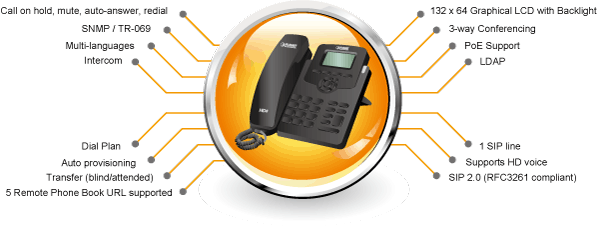

The VIP-1010PT is a full-featured, enhanced business IP phone that addresses the communication needs of the enterprises. It provides one voice line and dual 10/100Mbps Ethernet. Furthermore, the VIP-1010PT delivers user-friendly design containing a 132×64 graphic LCD with white backlight.The VIP-1010PT supports all kinds of SIP-based phone features including LDAP, Call Waiting, Auto Answer, Music on Hold, Caller ID 3-way Conferencing, Call on Hold, Call Forwarding, Black List, DTMF Relay, In-Band, Out-of-Band (RFC 2833) and SIP Info, among others. Besides office use, the VIP-1010PT is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).
