VF-10x-KIT

Long Distance Analog Surveillance Transmission System
The analog cameras and DVRs are still applied mostly in traditional surveillance systems while the main stream turns to IP-based surveillance gradually. To help the analog camera deployment in long distances to provide high video transmission quality and reliable signal, PLANET develops the Video over Fiber media converter which successfully integrates the video signal and fiber optic transmission into a compact size mini box. The Video over Fiber media converter enables the videos to be delivered in high quality up to 20km long distance by the intelligent encoding / decoding technology. It is ideal for extending the distance and signal conversion by transmitting the video and data over the fiber-optic cable.Fiber Optic Communication for Video and Serial Data
This Video over Fiber Converter kit consists of a Video Transmitter and a Video Receiver:• VF-10x-T: 1-channel Video over Fiber Transmitter
• VF-10x-R: 1-channel Video over Fiber ReceiverIt is a digital fiber-optic transmission system which brings customer a cost-effective solution for transmission of 1 channel uncompressed digital video and 1 reverse RS-485 a sync-data over one single fiber cable. It is an adjustable free device providing high quality and real-time video transmission. The system can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.

Easy Installation
The VF-10x-KIT media conversion installation is quite easy by simply plug and play. They can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700, MC-1500 and MC-1500R). When working with the media converter chassis, the media converter chassis provides DC power to VF-10x-T or VF-10x-R to maintain the video over fiber-optic transmission system at the central location.

ICS-102/ICS-102S15/ICS-105A

Cost-effective Solution for RS-232 / RS-422 / RS-485 to Ethernet Application
PLANET ICS-10x series Media Converter / Device Server can convert Serial RS-232 / RS-422 / RS-485 communication interface over Fast Ethernet networking. There are SC type and LC type connectors, and single-mode/multi-mode media for customers needs. Ethernet signal allows the two types of segments to connect easily, efficiently and inexpensively. The ICS-10x converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700 and MC-1500). It greatly saves time and expense for users and SIs without the need of replacing the existing serial equipment and software system.

Extending Distance
The ICS-10x extends the distance of deploying serial equipment and hosts. The selectable fiber-optic wires on the basis of distance are provided. Therefore, this product will perfectly satisfy the diverse demands while providing reliable and efficient network solutions based on the distance and budgets of installation.

Remote Manageable
The ICS-10x enables the serial equipment to be connected via IP-based transmission. It also makes them able to connect to a TCP / IP networking immediately. The ICS-10x Web Smart media converter provides management through Web Interface. It supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps the network administrators to reduce the amount of valuable time spending on detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. For large networking environment, multiple connection options are available with the ICS-10x as well.

ICS-100

Cost-effective Solution for RS-232 / RS-422 / RS-485 to Ethernet Application
PLANET ICS-100 Media Converter / Device Server provides to convert Serial RS-232 / RS-422 / RS-485 communication interface over Fast Ethernet networking. Ethernet signal allows two types of segments to connect easily, efficiently and inexpensively. This converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700 / MC-1500/ MC-1500R / MC-1500R48). It is time, saving expense for users and SIs, and there is no need to replace the existing serial equipment and software system.Remote Manageable
The ICS-100 makes connected serial equipment become the IP-based type. That also makes them able to connect to a TCP / IP networking immediately. Each Web-Smart converter is able to manage Web interface. The powerful Web-Smart Media Converter supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps reduce the amount of valuable time that a network administrator spends detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. Multiple connection options for large networking environment are available as well.

VF-402-KIT

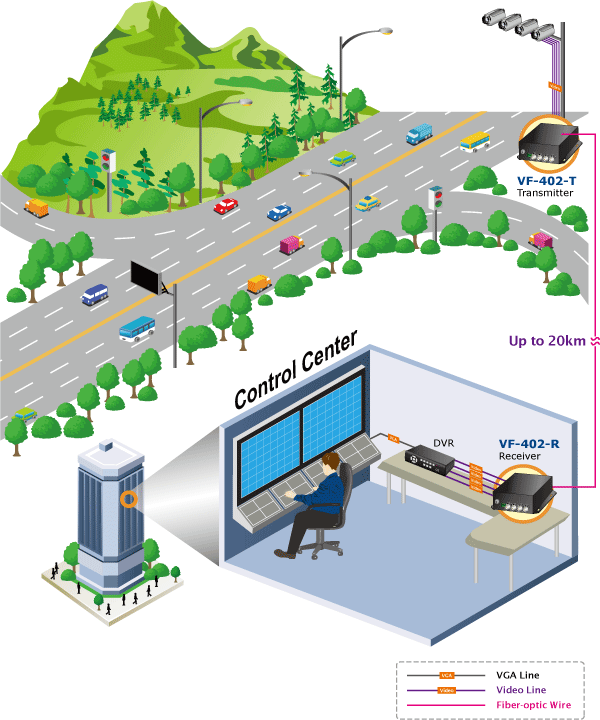

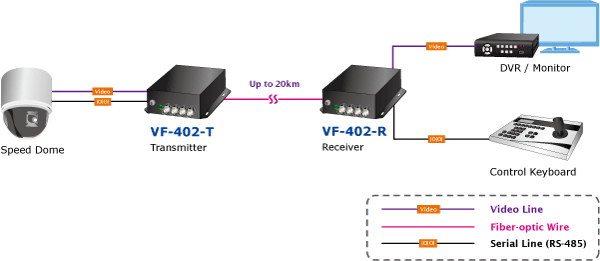

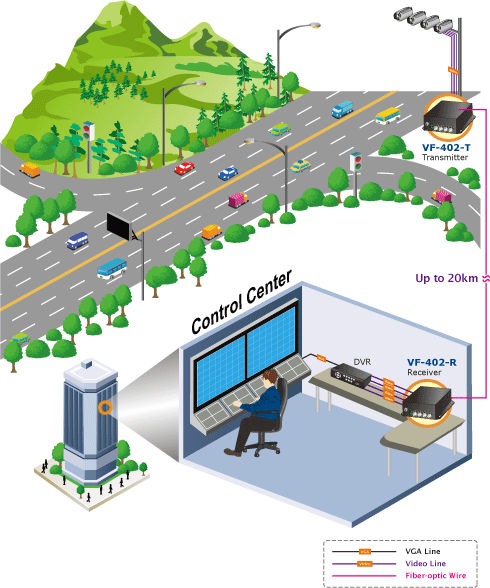

Reliable Long Distance Solution for Analog Surveillance System
To help current analog camera deployment in long distances efficiently and provide high video quality and reliable signal, PLANET has developed the video over fiber media converter kit, VF-402-KIT, which is ideal for extending the distance and signal conversion by transmitting the video and data over the fiber-optic cable. Applying the intelligent encoding / decoding technology and with the compact box, the VF-402-KIT CCTV over fiber media converter enables the videos to be delivered in high quality up to 20km long in distance.

Fiber Optic Communication for Video and Serial Data
The VF-402-KIT consists of a Video Transmitter and a Video Receiver:• VF-402-T: 4-Channel Video over Fiber Transmitter
• VF-402-R: 4-Channel Video over Fiber ReceiverIt is a digital fiber-optic transmission system to bring users a cost-effective solution for transmission of 4-channel uncompressed digital video and one reverse RS-485 async-data over one single fiber cable. The VF-402-KIT is an adjustable free device, providing high quality and real-time video transmission. It can be widely used in intelligent transportation systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts, etc.

Industrial Level Monitoring Systems
The VF-402-KIT can be applied to Industrial level operation under a wide temperature range of -25 to 75 degrees C. It performs zero distortion of high quality video transmission and clear graphics in long distance by adopting advanced international uncompressed full digital error correction and gigabit fiber optical transmission technology. This series of optical transceiver supports hot plug and can be deployed independently or in rack-mounted structure. It is simple to operate without requiring field adjustment. Therefore, the VF-402-KIT is very applicable to different working environments.

VF-10x-KIT

ICS-102/ICS-102S15/ICS-105A

ICS-100

GTP-80x Series

The Best Data Link and Power Sourcing Solution
As more and more PoE PD devices need higher power input and long-distance transmission, PLANET has released a new Power over Ethernet Media Converter, GTP-80x series. With the brand-new IEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following key features:
■ IEEE 802.3at / IEEE 802.3af PoE standard compliance
■ Supports a maximum of 30 watts output power
■ 10/100/1000Mbps duplex mode supports on 1000BASE-T port
■ 1000Mbps Fiber-Optic supportThe GTP-80x series is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The GTP-80x High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ45 Port interface without the need for installing extra power outlets and electrical cabling.

Fiber-Optic Link Capability Extends the Range of Network Deployment
The maximum distance between the PoE PSE and PD is 100 meters. To extend the network device deployment range, the GTP-80x is integrated with Fiber interface. The GTP-80x PoE+ Media Converter is used to convert optical Ethernet signal to electrical Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively. It can convert 10/100/1000BASE-T signal to 1000BASE-X one and provide the diverse options of fiber connecting types to meet different network applications.
The GTP-80x series and its fiber connecting type includes:
■ GTP-802:SC Fiber Interface with Multi-mode, Distance up to 220m and 550m
■ GTP-802S:SC Fiber Interface with Single-mode, Distance up to 10km
■ GTP-805A:LC Fiber Interface, supports Multi / Single Mode SFP module, Distance up to 120km max. (Varting on SFP module)
With the long Fiber distance support, it still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and the LFP (Link Fault Pass through function) (LLCF/LLR) with the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.Quick and Easy High Power PoE Network Deployment
The GTP-80x series provides 52V DC power over Ethernet cables — just insert DC voltage into Cat.5/5e/6 cable, allowing the cable between the PoE splitters (POE-151S / POE-152S / POE-162S) to transfer data and power simultaneously for up to 100 meters. Then it will spilt the digital data and the power into two kinds of selectable DC outputs (5V DC / 12V DC) or (12V DC / 24V DC).Thus, it reduces cables and the dedicated electrical outlets on the wall, ceiling or any unreachable place. Most of all, it also eliminates the time for installation. The high Power over Ethernet solution frees the security IP camera and wireless AP deployment from restrictions of power outlet locations.

IGTP-80xT Series

PLANET IGTP-80xT Industrial Gigabit Media Converter series combines Ethernet media conversion (from 1000Base-X to 10/100/1000Base-T) with 802.3at High Power over Ethernet (PoE) injector delivered in an IP30 rugged strong case. Particularly designed for network equipment requiring sufficient and reliable power input, the IGTP-80xT series supports up to 30 watts of power output and data transmission both delivered to remote powered devices over a single Ethernet cable. Its 1000Base-X fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network. The special and convenient power system of the IGTP-80xT series supports 24/48V DC power inputs for power redundancy and operational flexibility. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-80xT series can be placed in almost any difficult environment.

Fiber-Optic Link Capability Extends the Range of Network Deployment
The maximum distance between the PoE PSE (Power Sourcing Equipment) and PD (Powered Device) via Ethernet cable is 100 meters. To extend the PoE deployment range, the IGTP-80xT series is integrated with fiber interface for farther distance applications. The IGTP-80xT series and its respective fiber connecting type include:
■ IGTP-802T: SC type multi-mode Fiber Interface, transmission distance up to 220m and 550m
■ IGTP-802TS: SC type single mode fiber interface, transmission distance up to 10km
■ IGTP-805AT: SFP slot supporting 100Base-FX / 1000Base-X Multi / Single Mode SFP module, transmission distance up to 120km (Varying on SFP module)

With the long fiber distance support, the IGTP-80xT series still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control and the LFP (Link Fault Pass-through function) function in the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.

Plug and Play High Power Sourcing Solution
Complying with the brand-new IEEE 802.3at High Power over Ethernet technology, the IGTP-80xT series provides up to 30 watts of output power that doubles PoE power, more than the conventional 802.3af PoE currently. It is also backward compatible with 802.3af PoE standards to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With data and Power over Ethernet from one unit, the IGTP-80xT series can reduce cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Convenient and Reliable Power System
To facilitate the 802.3at High Power PoE usage with commonly used 24V DC or 48V DC power input for transportation and industrial-level applications, the IGTP-80xT series adapts 24/48V to 52V power boost technology to solving power source issue without the need for special power supplies. The IGTP-80xT series provides an integrated power supply with a wide range of voltages (24V / 48V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 24V / 48V DC power supply inputs for high availability applications.

Environmentally Hardened Design for Industrial PoE Networks
The IGTP-80xT series is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. The IGTP-80xT series is packaged in a compact, IP30 rugged strong case that allows either DIN-Rail or wall mounting to have the efficient use of cabinet space. With IP30 rugged strong case protection and PoE design, the IGTP-80xT series is ideal for service providers, campuses and public area to deploy the PoE wireless access points, IP cameras or IP phones in any places easily and efficiently with cost-effectiveness. It can also operate in wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location.

GT-80x Series

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ-45 port and highly stable Gigabit fiber performance, PLANET GT-802, GT-802S, GT-805A and GT-806A/B media converters support conversion between 10/100/1000Base-T and 1000Base-LX/SX network. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.

Distance Extension with High Performance and Steady Network Communications
PLANET GT-80x gigabit media converter series extends communications distance with highly Gigabit performance via fiber optic cable. The GT-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM, 15/60km) for various fiber optic applications.

Enhanced Smart Management Features
The GT-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass through function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. The DIP switch can disable or enable the LFP function. The LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission. The LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net.

Moreover, Even the web UI is not available on GT-80x, the network manager still can remotely control and monitor GT-80X by OAM TS-1000 terminal function such as remote failure indication, loop back test, port status, performance monitoring and troubleshooting. PLANET GT-90x and IGT-90xT models provide TS-1000/802.3ah OAM protocol (operations, administration, and maintenance) that helps the remote GT-80x device to manage and monitor.

Easy Installation
The GT-80x series allows two types of the segment to connect easily. The GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R / MC-1500R48). These media chassis can assist in producing the power for the GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the Gigabit media conversion installation is quite quick and easy with its plug and play feature. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packet loss.
