BSP-360

Industry-leading Integration of PoE Technology and Renewable Power System
PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Managed Ethernet Switch, BSP-360, is designed for deploying a surveillance or wireless network and remotely monitoring and managing the IP-based devices. Based on its green technology, the BSP-360 can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs, especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways.

Zero-Carbon and Stable Power Supply
The BSP-360 utilizes the solar power sourcing and co-works with the common nickel-cadmium battery or lead-acid battery to form an independent solar power supply system for outdoor network system. The BSP-360 delivers zero-carbon and uninterruptible PoE power supply for continuous outdoor wireless and IP surveillance applications without the need of any cabling. It can power the client devices and can be charged at the same time during the day to enable to continue the operation at night.

Built-in Unique Power Functions for Battery Management
As it is the power managed for battery and power consumption, the BSP-360 features the following special power management functions:

Battery current usage and status
Battery capacity statistics
Low voltage cut-off protection

Battery Current Usage status and Statistics
The administrator can remotely access the BSP-360 to know the power status of the battery and renewable energy, and the estimated time of power consumption.

Low Voltage Cut-Off Protection
If the power is too low to empower the system and IP devices, the system will automatically power off the device with low priority to make sure the system works normally, and an alert is then sent to the administrator at the same time.

Built-in Unique PoE Functions for Powered Devices Management
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the BSP-360 features the following special PoE management functions:

PD alive check
Scheduled power recycling
PoE schedule
PoE usage monitoring

Intelligent Powered Device Alive Check
The BSP-360 can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the BSP-360 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Scheduled Power Recycling
The BSP-360 allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the BSP-360 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitoring and Intelligent LED Indicator for Real-time PoE Usage
Via the power usage chart in the web management interface, the BSP-360 enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the BSP-360 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the BSP-360 has three LED indicators of different power usages.

BSP-300

Industry-leading Integration of PoE Technology and Solar Power System
For the increasing demand of network installation anywhere, the PLANET BSP-300 Industrial Solar Power PoE Switch now provides the ideal solution. Powered by Zero-Carbon emission source — the sunlight, the BSP-300 incorporates Pulse Width Modulated (PWM) charge controllers to effectively force the solar panels to operate at the same voltage as the battery bank during charging. The BSP-300 can empower the high power PoE network devices anywhere without any obstacles of geographical barrier.With the integration of the IEEE 802.3at PoE technology and solar power system, the BSP-300 provides hassle-free and maintenance-free solution for those in need for fast connectivity that requires great flexibility and reliability, such as remote monitoring and long distance wireless communication. The BSP-300 makes the network deployment easier and more reliably.

Plug and Play High Power PoE Network Deployment
Through its two IEEE 802.3at Gigabit High Power PoE interface delivering power to wireless access points and IP cameras, the BSP-300 makes it easy to realize far-reaching data transmission and IP surveillance in remote areas. Just simply Plug and Play, the 802.3at / 802.3af PoE wireless LAN and IP surveillance system can be constructed easily without additional wiring.

Zero-Carbon and Stable Power Supply
The BSP-300 utilizes the solar power sourcing and co-works with the common nickel-cadmium battery or lead-acid battery to form an independent solar power supply system for outdoor network system. The BSP-300 delivers zero-carbon and uninterruptible power supply for continuous outdoor wireless and IP surveillance applications without the need of any cabling. This system saves 100% power loss for users. It can power the client devices and charging at the same time during the day and continuing the operation in the night with the co-working battery.

Application Sites
• Forest / National Park Monitoring
• Public Surveillance / Public Wireless LAN System
• Telecom / ISP Wireless Extension
• Hospital / Remote Health Care
• Village / Resort
• Harbor / Oil Rig / Mine Industry
• Instant Network Infrastructure for Critical Mission

BSP-360

Built-in Unique Power Functions for Battery Management
As it is the power managed for battery and power consumption, the BSP-360 features the following special power management functions:

Battery current usage and status
Battery capacity statistics
Low voltage cut-off protection

PD alive check
Scheduled power recycling
PoE schedule
PoE usage monitoring

BSP-300

GSD-804

Optimal Solution for Energy Saving and Gigabit High Performance
PLANET Green Networking Switch-GSD-804 is an ideal solution in line with the energy-saving trend worldwide. The GSD-804 is an 8-port Gigabit Ethernet Switch, bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.Energy Saving
The GSD-804 uses new engine that provides power saving up to 40% less energy but maintains high performance efficiently. It incorporates two advanced Green Networking technologies:
• Hibernation Link Down power saving
• Intelligent scales power based on cable length
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-804 will automatically adjust power usage of the ports that are shut down or not connected to network device.
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-804 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-804 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-804 is designed with modern plastic compact housing and easy to deploy high speed Gigabit networking in home or SOHO applications. Providing 16Gbps internal switching fabric, the GSD-804 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-804 provides 8K MAC address table and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.Plug & Play
All RJ-45 copper interfaces of the GSD-804 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

GSD-803

Optimal Solution for Energy Saving and Gigabit High Performance
PLANET Green Networking Switch-GSD-803 is an ideal solution in line with the energy-saving trend worldwide. The GSD-803 is an 8-port Gigabit Ethernet Switch bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.Energy Saving

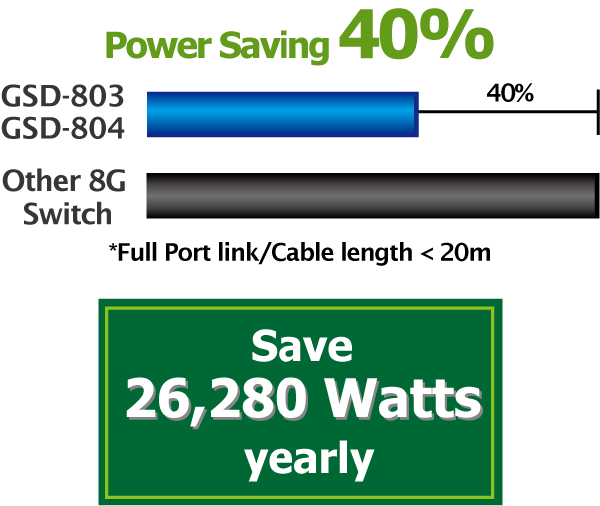

The GSD-803 incorporates two advanced Green Networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.
(1) Hibernation Link Down power saving
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-803 will automatically adjust power usage of the ports that are shut down or not connected to network device.
(2) Intelligent scales power based on cable length

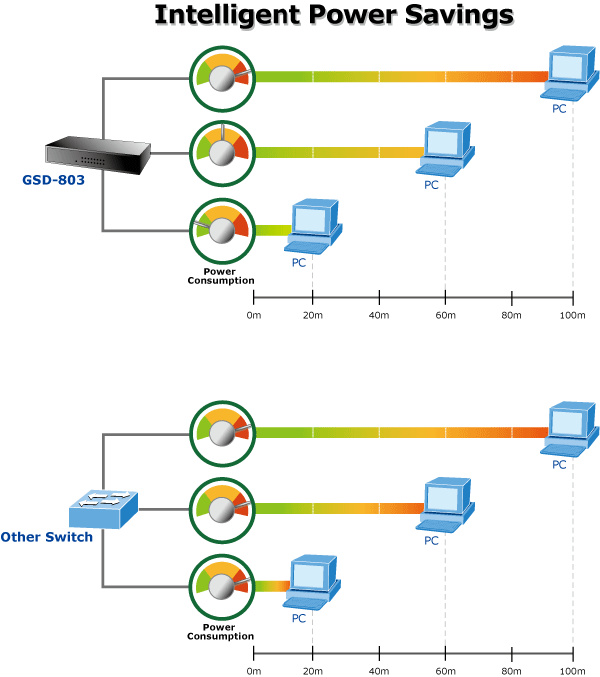

Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-803 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-803 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-803 is designed with modern metal compact housing and easy for deployment of high speed Gigabit networking in home or SOHO applications. Providing 16Gbps internal switching fabric, the GSD-803 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-803 provides 8K MAC address table, and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
Plug & Play
All RJ-45 copper interfaces of the GSD-803 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

GSD-504

Optimal Solution for Energy Saving and Gigabit High Performance
PLANET Green Networking Switch-GSD-504 is an ideal solution in line with the energy-saving trend worldwide. The GSD-504 is a 5-port Gigabit Ethernet Switch, bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.Energy Saving

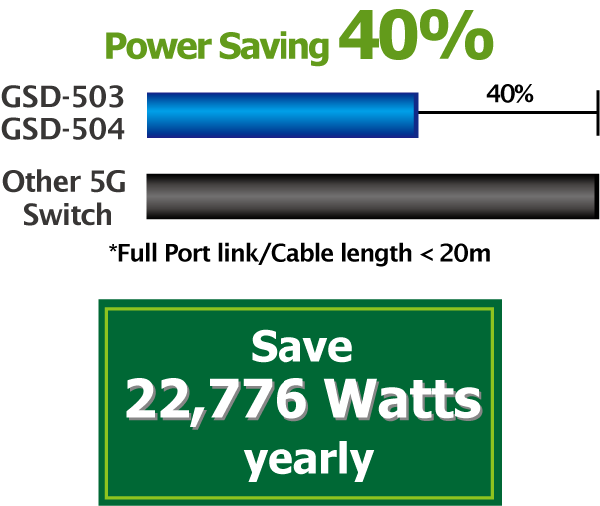

The GSD-504 uses new engine that provides power saving up to 40% less energy but maintains high performance efficiently. It incorporates two advanced Green Networking technologies:
• Hibernation Link Down power saving
• Intelligent scales power based on cable length
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-504 will automatically adjust power usage of the ports that are shut down or not connected to network device.
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-504 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-504 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-504 is designed with modern plastic compact housing and easy to deploy high speed Gigabit networking in home or SOHO applications. Providing 10Gbps internal switching fabric, the GSD-504 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-504 provides 2K MAC address table, and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.Plug & Play
All RJ-45 copper interfaces of the GSD-504 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

GSD-503

Optimal Solution for Energy Saving and Gigabit High Performance
PLANET Green Networking Switch – GSD-503 is an ideal solution in line with the energy-saving trend worldwide. The GSD-503 is a 5-port Gigabit Ethernet Switch bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.Energy Saving

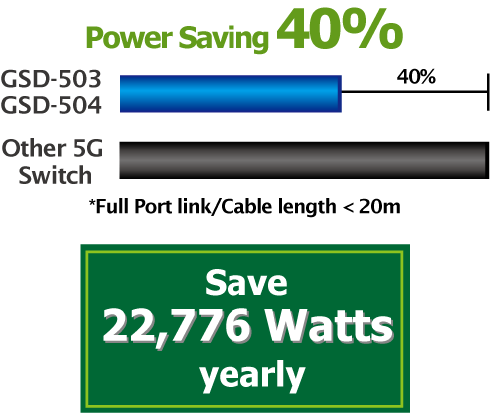

The GSD-503 incorporates two advanced Green Networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.
(1) Hibernation Link Down power saving
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-503 will automatically adjust power usage of the ports that are shut down or not connected to network device.
(2) Intelligent scales power based on cable length

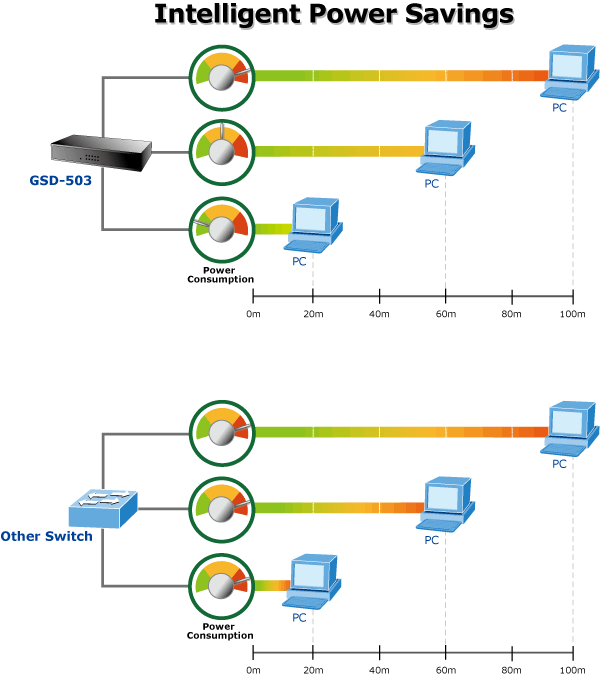

Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-503 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-503 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-503 is designed with modern metal compact housing and easy for deployment of high speed Gigabit networking in home or SOHO applications. Providing 10Gbps internal switching fabric, the GSD-503 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-503 provides 2K MAC address table, and offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.Plug & Play
All RJ-45 copper interfaces of the GSD-503 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

FGSW-2620

Power-saving, High-performance Ethernet Networking
PLANET Green Networking Switch- FGSW-2620 is an ideal solution in line with the energy-saving trend worldwide. The FGSW-2620 is a 24-port 10/100BASE-TX and 2-port Gigabit Ethernet Switch upgraded from earlier version and brings both benefits of energy saving and high performance.Energy Saving
The FGSW-2620 incorporates advanced Green Networking technology:
• Intelligent scales power based on cable length
The intelligent scales power is an intelligent algorithm that actively determines the appropriate power level based on cable length. The FGSW-2620 can automatically detect the Ethernet cable length and adjust power usage accordingly. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving. The FGSW-2620 uses new engine that provides power saving up to 12% less energy but maintains high performance efficiently.

High Performance / Plug and Play
The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, 148,800pps in 100Mbps and 1,488,000pps in 1000Mbps) and dynamic shared memory buffer function helps the FGSW-2620 boost bandwidth. The FGSW-2620 also provides auto-negotiation capability and MDI / MDIX auto-detection for plug and play connection regardless of the cabling type being straight-through or crossover.

FNSW-2401

Power-Saving, High Performance Ethernet Networking
In line with the energy-saving trend worldwide, PLANET delivers the new generation Green Networking Switch- FNSW-2401. The FNSW-2401 is a 24-port 10/100Base-TX Fast Ethernet Switch upgraded from earlier version and brings both benefits of energy saving and high performance. It is specially designed for SOHO, SMB and Workgroup users. The FNSW-2401 uses new engine that provides power saving up to 12% less energy but maintains high performance efficiently.Energy Saving
The FNSW-2401 incorporates advanced Green Networking technologies:
• Intelligent scales power based on cable lengthThe intelligent scales power is an intelligent algorithm that actively determines the appropriate power level based on cable length. When connecting to the FNSW-2401 with Ethernet cable longer than 10m, a device can obtain maximum power saving because the FNSW-2401 would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving.High Performance
The high performance throughput (filtering/forwarding rate: 14,880 packets per second in 10Mbps, 148,800pps in 100Mbps) and dynamic shared memory buffer help the FNSW-2401 boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. The FNSW-2401 is the ideal choice to alleviate bottlenecks in client / server and peer-to-peer environments in a cost effective way.Plug and Play
The FNSW-2401provides users with high speed network connections. With its auto-negotiation capability, all the RJ-45/STP ports of the FNSW-2401 can be configured to speeds of 10/20Mbps or 100/200Mbps automatically. What’s more the MDI/ MDIX auto-detection is for easy, plug and play connection, regardless of the cabling type, straight through or crossover.
