IHD-210PT

Make Advertising Effective and Easy
PLANET IHD-210 HDMI Extender over IP with PoE delivers a great Full-HD video distribution solution such as bringing an efficient and effective advertising deployment. The IHD-210 series is the combination of the transmitter, IHD-210PT, and the receiver, IHD-210PR. They can distribute HD digital content from multiple sources to practically any number of remote displays on a LAN and deliver ultra high-quality 1080p HDMI video broadcast over IP network. It not only offers vivid 1080p full motion video, but also ensures the sharp images and text give the viewers the maximum visual effect and ease of reading. By cascading multiple Ethernet switches as the backbone of the IHD-210 series, it allows displays to be distributed far away from the source devices while sustaining consistent 1080p video and audio quality. The video sources can be rack centralized, decentralized or even a mixture of both. It thus increases the flexibility, scope and scalability of audio and video distribution via the Ethernet networks.

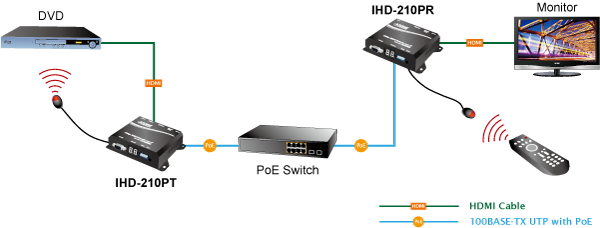

IR Extension for Controlling Video Source
The IHD-210 series is a perfect solution for audio and video signal extension via the existing LAN. Designed with IR transmitter and receiver interface, it allows users to control the video source at the terminal destination. The IHD-210 series also features bi-directional IR extension and RS232 pass-through allows the user to cascade the system enabling them to extend the transmission distance without signal loss or delay. Its numerical LED indication enables users to recognize immediately the current group ID. It also supports HDMI Local Output function for checking video source conveniently. Besides, with PoE function, there is no additional power supply needed, and the IHD-210 series thus reduces the complexity of cable installation.

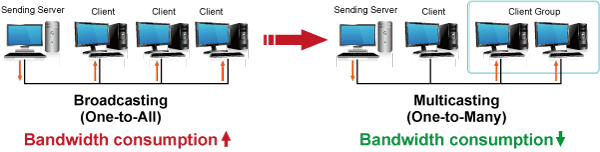

Exclusive Video Transmission by IGMP Snooping Technology
One IHD-210PT in local site can drive multiple IHD-210PRs in remote sites without consuming extra network loading. Integrated with PoE switch built-in with IGMP snooping function, there are 64 channels selectable via the IHD-210 series, so video and audio can be transmitted simultaneously. IGMP snooping is an integral part of IP multicast and a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP snooping can be used for one-to-many/many-to-many networking applications such as online streaming video and gaming, and allows exclusive transmission and more efficient use of resources.

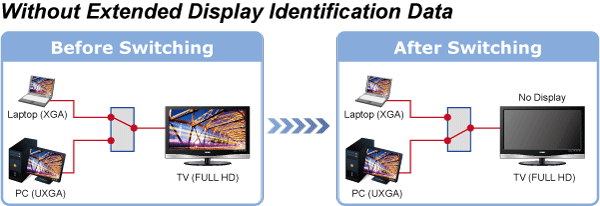

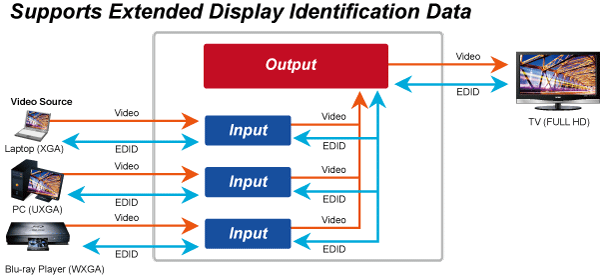

Extended Display Identification Data (EDID) Support
The IHD-210 series adopts Automatic EDID (Extended Display Identification Data) Copy function to make smooth video distribution over different types of display units. EDID is greatly important as it contains information about resources’ manufacturer names, serial numbers, product types, maximum image sizes, color characteristics, factory pre-set timings, frequency range limits, etc. In some cases, display problems may occur due to incorrect EDID communication between the display monitor and the transmitting unit or inappropriate EDID data programmed by display manufacturers. Therefore, with Automatic EDID Copy function, the IHD-210 series allows the system to copy EDID information from EDID compliant displays and assures accurate display performance.

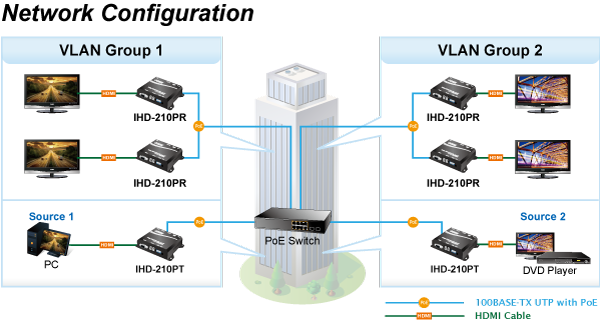

Video Channel Setting Matches Well through Network Configuration
The IHD-210 series network can be configured by a central computer over the same LAN within a certain distance. Fully leveraging the mature Ethernet switches with 802.1Q VLAN function, multi-casting can be performed to allow more video sources/senders in the network and be remotely managed. Just adjust and match video channel setting with the simple DIP switch in both the IHD-210PT and IHD-210PR. The video distribution is easily deployed through Plug and Play.

High-quality Output and Performance
The IHD-210 series supports Full HD 1080p, HDCP and blu-ray quality, which have been commonly used for applications that require real-time high video resolution and transmission in long distance. It also includes security and noise immunity as well as HDMI with 2-ch uncompressed audio function to offer the superior video distribution.

IHD-210PR

IHD-200PT

Make Advertising Effective and Easy
PLANET IHD-200 HDMI / Video Wall over IP with PoE delivers a great HD video distribution solution such as bringing an efficient and effective advertising deployment. The IHD-200 PoE series is the combination of the transmitter, IHD-200PT, and the receiver, IHD-200PR. They allow you to simultaneously send out a HDMI signal to one or more HDMI displays over a single Cat5/5e cable (or above) in the Ethernet infrastructure. Besides, by supporting PoE function, meaning there is no additional power supply needed, the IHD-200 PoE series thus reduces the complexity of cable installation.

The IHD-200 PoE series can distribute HD digital content from multiple sources to practically any number of remote displays on a LAN and deliver ultra high quality 1080p HDMI video broadcast over IP network. It not only offers smooth vivid 1080p full motion video with audio quality as CD, but also ensures the sharp images and text giving the viewers the maximum visual effect and ease of reading. By cascading multiple Ethernet switches as the backbone of the IHD-200 PoE series, it allows displays to be distributed far away from the source devices while sustaining consistent 1080p video and audio quality. The video sources can be rack centralized, decentralized or even a mixture of both. It thus increases the flexibility, scope and scalability of audio and video distribution via the Ethernet networks.

High-speed Video Distribution via Gigabit LAN
The IHD-200 PoE series is a perfect solution for audio and video signal extension via the existing LAN. Designed with Gigabit LAN interface, it supports super high speed transmission, which makes it ideal for live presentations, public broadcasting, education training, boardrooms, etc.

Exclusive Video Transmission by IGMP Multicast Technology
One IHD-200PT in local site can drive multiple IHD-200PRs in remote sites without consuming extra network loading. Integrated with Gigabit switch built-in with IGMP multicast functions, there are 16 channels selectable via the IHD-200 PoE series and up to 4 channels can be transmitted simultaneously. IGMP is an integral part of IP multicast and a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP can be used for one-to-many networking applications such as online streaming video and gaming, and allows exclusive transmission and more efficient use of resources.

Extended Display Identification Data (EDID) Support
The IHD-200 PoE series adopts EDID (Extended Display Identification Data) COPY function to make smooth video distribution over different types of display units. EDID is greatly important as it contains information about resources’ manufacturer names, serial numbers, product types, maximum image sizes, color characteristics, factory pre-set timings, frequency range limits, etc. In some cases, display problems may occur due to incorrect EDID communication between the display monitor and the transmitting unit or inappropriate EDID data programmed by display manufacturers. Therefore, with EDID COPY function, the IHD-200 PoE series allows the system to copy EDID information from EDID compliant displays and assures accurate display performance.

Easy Video Channel Matching through Network Configuration
The IHD-200 PoE series network can be configured by a central computer over the same LAN within a certain distance. Fully leveraging the mature Gigabit Ethernet with 802.1Q VLAN function, multi-casting can be performed to allow more video sources/senders in the network and be remotely managed. Just adjust and match video channel setting with the simple DIP switch in both the IHD-200PT and IHD-200PR. The video distribution is easily deployed through Plug and Play.

High-quality Output and Performance
The IHD-200 PoE series supports Full HD 1080p, HDCP and blu-ray quality, which have been commonly used for applications that require real-time high video resolution and transmission in long distance. It also contains security and noise immunity as well as HDMI with 2-ch. audio (dts.) functions to offer the superior video distribution.

IHD-200PR

Make Advertising Effective and Easy
PLANET IHD-200 HDMI / Video Wall over IP with PoE delivers a great HD video distribution solution such as bringing an efficient and effective advertising deployment. The IHD-200 PoE series is the combination of the transmitter, IHD-200PT, and the receiver, IHD-200PR. They allow you to simultaneously send out a HDMI signal to one or more HDMI displays over a single Cat5/5e cable (or above) Ethernet infrastructure. Besides, by supporting PoE function, meaning there is no additional power supply needed, the IHD-200 PoE series thus reduces the complexity of cable.

The IHD-200 PoE series can distribute HD digital content from multiple sources to practically any number of remote displays on a LAN and deliver ultra high quality 1080p HDMI video broadcast over IP network. It not only offers smooth vivid 1080p full motion video with audio quality as CD, but also ensures the sharp images and texts giving the viewers the maximum visual effect and ease of reading. By cascading multiple Ethernet switches as the backbone of the IHD-200 PoE series, it allows displays to be distributed far away from the source devices while sustaining consistent 1080p video and audio quality. The video sources can be rack centralized, decentralized or even a mixture of both. It thus increases the flexibility, scope and scalability of audio and video distribution via the Ethernet Networks.

Exclusive Video Transmission by IGMP Multicast Technology
One IHD-200PT in local site can drive multiple IHD-200PR in remote sites without consuming extra network loading. Integrated with Gigabit switch built-in with IGMP multicast functions, there are 16 channels selectable via the IHD-200 PoE series and up to 4 channels can be transmitted simultaneously. IGMP is an integral part of IP multicast and a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP can be used for one-to-many networking applications such as online streaming video and gaming, and allows exclusive transmission and more efficient use of resources.

Easy Video Channel Matching through Network Configuration
The IHD-200 PoE series network can be configured by a central computer over the same LAN within a certain distance. Fully leveraging the mature Gigabit Ethernet with 802.1Q VLAN function, multi-casting can be performed to allow more video sources/senders in the network and be remotely managed. Just adjust and match video channel setting by the simple DIP switch in both the IHD-200PT and IHD-200PR. The video distribution is easily deployed through Plug and Play.

High-quality Output and Performance
The IHD-200 PoE series supports Full HD 1080p, HDCP and blu-ray quality, which have been commonly used for applications that require real-time high video resolution and transmission in long distance. It also contains security and noise immunity as well as HDMI with 2ch. audio (dts.) functions to offer the superior video distribution.

FRT-415N

With built-in 100BASE-FX fiber interface, PLANET FRT-415N supports different optic types for WAN and the distance can be up to 15~60 km through the fiber connection. The FRT-415N is an ideal solution for FTTH (Fiber-to-the-home) applications in the IPv6 environment. It can handle multiple high-throughput services such as IPTV, on-line gaming, VoIP and Internet access, and keep the bandwidth usage smooth. The FRT-415N also incorporates a 4-port 10/100BASE-TX switching hub, which makes it easy to create or extend your LAN, and prevents DoS attacks.

High-speed 802.11n Wireless
With built-in IEEE 802.11b/g and 802.11n wireless network capability, the FRT-415N allows any computer and wireless-enabled network device to connect to it without additional cabling. 802.11n wireless capability brings users the highest speed of wireless experience ever; the data transmission rate can be as high as 300Mbps. The radio coverage is also doubled to offer high-speed wireless connection even in widely spacious offices or houses.

Secure Wireless Access Control
To secure wireless communication, the FRT-415N supports up-to-date encryptions including WEP, WPA-PSK and WPA2-PSK. Moreover, the FRT-415N supports WPS configuration with PBC/PIN type for users to easily connect to a secure wireless network.Providing Superior Function
The FRT-415N provides user-friendly management interface to be managed easily through standard web browsers. For networking management features, the FRT-415N not only provides basic router functions such as DHCP server, virtual server, DMZ, QoS and UPnP, but also provides full firewall functions including Network Address Translation (NAT), IP/Port/MAC filtering and content filtering. Furthermore, the FRT-415N serves as an Internet firewall to protect your network from being accessed by unauthorized users.

XDL-2420R

Perfectly Designed for FTTx Last Mile Applications
PLANET XDL-2420R is a telecom-level, high-performance IP-DSLAM (Digital Subscriber Line Access Multiplexer) with 24-port VDSL2 / ADSL2+ and 2-port Gigabit TP / SFP combo interfaces, and AC plus DC Redundant Power System. The XDL-2420R is fully compliant with ITU-T G.993.2 VDSL2 standard band plan up to profile 30a. It offers maximum download and upload line rate up to 100/100Mbps on the existing twisted pair lines. For ADSL connectivity, the XDL-2420R supports high interoperability and backward compatibility with ATU-R, and ADSL2 / ADSL2+ line mode. It is an ideal CO solution for FTTx last mile applications of broadband access by ISPs and Telecoms.

Delivering High-demand Service Connectivity for ISP/Triple Play Devices
The XDL-2420R provides excellent bandwidth to meet the requirement of the triple play devices for home entertainment and communications. With the capability of 100/100Mbps symmetric data transmission, the XDL-2420R enables many multi-media services to work on the Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.ADSL2+ Fallback
For those ISPs that still provide ADSL broadband service, the XDL-2420R supports transmission rates up to 24Mbps downstream and 3.5Mbps upstream with ADSL 2+ technology. The XDL-2420R supports PPPoE relay to establish connection with ISP, and it is switched over to VDSL2 after the network upgrade.Comprehensive and Advanced VDSL2/ADSL2+ Configuration
For the bandwidth and distance of broadband access, the XDL-2420R IP-DSLAM supports multiple selective VDSL2 profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a), 997/998 band plan and ADSL/ADSL2/ADSL2+ ITU-T G.993.1, ITU-T G.992.3, ITU-T G.992.5, Annex A/B/L/M transmit modes to each subscriber line. Furthermore, it can be configured on a per-link basis for transmission mode, rate limitation, INP (impulse noise protection) and SNR (signal-to-noise) margin. These advanced xDSL functionalities help service providers to adjust the line performance and build a stable and reliable IP-DSLAM solution.Extremely-reliable Design to Ensure Continuous Operation
The XDL-2420R supports the SELT (Single-end Loop Testing) and dual power inputs system for continuous network operation. SELT simplifies the testing of a DSL loop from one end to the line to be completed easily from the central office (CO) without having to require a technician or any equipment to be employed at the subscriber site. SELT makes line maintenance easily and reduces device shutdown time. The XDL-2420R is also equipped with one 90~240V AC unit and one DC -48V power supply unit for power redundancy. The Redundant Power System offers more reliability and reduces the possibility of device shutdown. The -48V DC power supply implemented makes the XDL-2420R IP-DSLAM as a telecom level device that can be located at the electronic room.

FRT-415N

EPN-402NV

Delivering High-Demand Service Connectivity for ISP / Triple Play Devices
PLANET EPN-402NV is a GEPON Wi-Fi ONU (Optical Network Unit) equipped with one GEPON port, four 10/100Mbps RJ-45 LAN ports and two FXS RJ-11 interfaces. It is also a high-end line with IEEE 802.11b/g/n standard multi-terminal product. It provides residential and office users with the ideal solution for sharing an ultra high-speed fiber optical broadband connection. When functioning with PLANET GEPON Optical Network Terminal (OLT) EPL-2000, the EPN-402NV provides highly-effective GEPON solutions for FTTH network. With friendly-centralized GUI management, it is easy for installation and maintenance of GEPON deployment.

Perfectly Designed for Fiber to the Home Applications
PLANET EPN-402NV is a fiber to the home (FTTH) broadband access equipment type. With built-in 1.25Gbps GEPON fiber interface, the EPN-402NV supports different optic types for WAN and the distance can be up to 20km through the fiber connection. It can handle multiple high-throughput services such as IPTV, on-line gaming, VoIP and Internet access, and keep the bandwidth usage smoothly via its QoS features. Thus, with the advantages of high reliability and scalability, the EPN-402NV can further be applied in the network of SOHO (small office or home office) or small businesses that provide high-performance access services.

High-Speed 802.11n Wireless
With built-in IEEE 802.11b/g and 802.11n wireless network capabilities, the EPN-402NV allows any computer and wireless-enabled network device to connect to it without additional cabling. 802.11n wireless capability brings users the speed of wireless data transmission rate to as high as 300Mbps. The radio coverage is also doubled to offer strong wireless connection even in widely spacious offices or houses.

Standard Compliance with FXS Port
The EPN-402NV provides two FXS ports that can easily integrate with general voice over IP system. The EPN-402NV makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps you to save money on long-distance calls; for example, the remote users can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur.IPv6/IPv4 Dual Stack Capability
With fully supporting both IPv4 and IPv6 protocols, the EPN-402NV can work with the original IPv4 network structure and also support the new IPv6 network structure now and in the future. As more network devices are growing and the need for larger addressing and higher security becomes critical, the EPN-402NV is the best choice for ISPs to build the IPv6 FTTx edge service to connect with the IPv6 network.Superior Management Functions
The EPN-402NV provides user-friendly management interface to be managed easily through standard web browsers. For networking management features, the EPN-402NV not only provides basic router functions such as DHCP server, virtual server, DMZ, QoS, and UPnP, but also firewall functions including Network Address Translation (NAT), URL/Port/MAC filtering and DoS protection. Furthermore, the EPN-402NV serves as an Internet firewall to protect your network from being accessed by unauthorized users.Robust ONU Management
The EPN-402NV is designed to work with PLANET OLT EPL-2000 to provide robust FTTx applications. With the Element Management System (EMS) built in the EPL-2000, the administrators can manage and configure the facilities such as adding or removing PLANET OLTs and ONUs to or from the network architecture easily and economically. The EMS also supports many operating and monitoring functions for efficient ONU management including ONU auto-detection, auto-registration, testing link connection, binding MAC address, loopback test and filtration, bandwidth control, flow control, and multicast stream control.

TR-069 Remote Management
To reduce the service provider’s manpower needed for on-site maintenance, the EPN-402NV supports TR-069 (WAN Management Protocol) standard that allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device remotely.

EPN-110

Perfectly Designed for FTTx Applications
PLANET EPN-110 is a GEPON Optical Network Unit (ONU) equipped with one GEPON port and one Gigabit Ethernet RJ45 interface. When functioning with PLANET GEPON Optical Network Terminal (OLT), the EPN-110 provides highly-effective GEPON solutions for FTTx network. With the friendly-centralized GUI management, it is easy for the installation and maintenance of GEPON deployment.

Cost-effective Passive Optical Network Connection Solution
With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand of broadband communication has grown quickly. Passive Optical Network (PON) is the most promising NGN (Next Generation Networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, Passive Optical Network (PON) technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of up to 20km long distance between equipment nodes, and most importantly, offer of much greater bandwidth.

Robust ONUs Management
The EPN-110 is designed to work with PLANET OLT to provide robust FTTx applications. With the Element Management System (EMS) built in the PLANET OLT, the administrators can manage and configure the facilities such as adding or removing PLANET OLTs and ONUs to or from the network architecture easily and economically. The EMS also supports many operating and monitoring functions for efficient ONUs management including ONU auto-detection, auto-registration, testing of link connection, binding of MAC address and filtration, bandwidth control, flow control, and multicast stream control.

EPN-103

Perfectly Designed for FTTx Applications
PLANET EPN-103 is a GEPON Optical Network Unit (ONU) equipped with one GEPON port, one Gigabit and one Fast Ethernet RJ-45 interface. When functioning with PLANET GEPON Optical Network Terminal (OLT) EPL-2000, the EPN-103 provides highly effective GEPON solutions for FTTx network. With friendly centralized GUI management, it is easy for installation and maintenance of GEPON deployment.

Cost-effective Passive Optical Network Connection Solution
With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and Multimedia broadband applications, the demand of broadband communication has grown quickly. Passive Optical Network (PON) is the most promising NGN (Next Generation Networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, Passive Optical Network (PON) technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of up to 20km long distance between equipment nodes, and most importantly, offer of much greater bandwidth.

Robust ONUs Management
The EPN-103 is designed to work with PLANET 2-Port OLT EPL-2000 to provide robust FTTx applications. With the Element Management System (EMS) built in the EPL-2000, the administrators can manage and configure the facilities such as adding or removing PLANET OLTs and ONUs to or from the network architecture easily and economically. The EMS also supports many operating and monitoring functions for efficient ONUs management including ONU auto-detection, auto-registration, testing link connection, binding MAC address, loopback test and filtration, bandwidth control, flow control, and multicast stream control.
