| Providing Better Lens for Clearer and Sharper Surveillance Image PLANET provides various camera solutions for users to solve different security issues. Working with PLANET Digital Video Recorders or Internet Video Servers, the CAM-IR138 helps people easily create a secure protection system for their daily lives. |
| The new CAM-IR138 provides you with better lens, processor, and resolution, when compared with the last version. It produces pictures reaching 700TV Lines (TVL) of horizontal resolution when integrated with the highly sensitive color Sony DSP 1/3″ interline transfer Charge Coupled Device (CCD) image sensor. Its auto-iris lens will then adjust the amount of light that passes through the lens automatically to help form a sharp and clear image. |
| TV Lines are a measure of horizontal resolution that must be measured using a specialized chart like the one shown below. It helps to detect the number of TV Lines that a camera produces because the human eyes cannot detect them. |
 |
 |
| Dedicated Monitoring with Highly Sensitive DSP The CAM-IR138 adopts Sony Enhanced Effio-E Digital Signal Processor (DSP) chip-set to provide clearer pictures with higher sensitivity compared to conventional CCTV cameras. The “Effio” stands for Enhanced Features and Fine Image Processor and realizes a horizontal resolution of maximum 700 TVL in combination with Sony’s newly developed 960H CCD image sensor. With Digital Signal Processor (DSP) chip-set, it can make the camera process speedier and more efficient, and save more electricity. |
 |
| High Tech, High Quality, High Protection The CAM-IR138 applies Adaptive Tone Reproduction (ATR) technology to improving the visibility of the entire picture by providing the optimum gradation compensation for the image in one field based on the luminance information. Furthermore, the CAM-IR138 provides high quality images under all lighting conditions. Adopting the 2-DNR (Digital Noise Reduction) technology, the CAM-IR138 automatically reduces noises in low light environment and brings an extremely clear and exquisite picture quality even under any challenging lighting conditions. |
 |
 |
| Full Surveillance during Day & Night Functionality For a clear surveillance image both in the day and night, the CAM-IR138 built-in 48 IR LEDs can offer a long IR distance of up to 15~30 meters. The 700TV Lines performance makes the image clear even at night. The CAM-IR138 is also equipped with ICR 3.6mm / F2.0, and its auto-iris function can automatically adjust the amount of light that passes through the lens. Thus, the CAM-IR138 is able to maintain clear images 24 hours a day. |
 |

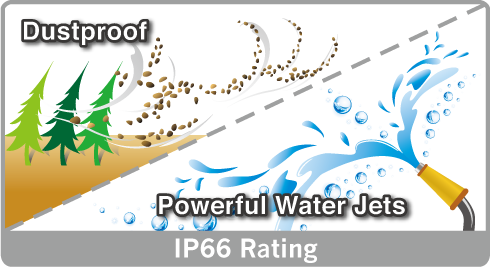

| IP66-rated Housing for Indoor and Outdoor In order to fit different security issues, the CAM-IR138 is the better product of surveillance system to meet the demands from worldwide market. By providing IP66 weatherproof certified protection, 700 TVL high-quality images and long IR distance Infrared LED solutions, the CAM-IR138 definitely is the perfect choice for your indoor and outdoor surveillance system. |
 |
Product Function: IP66
CAM-AHD325

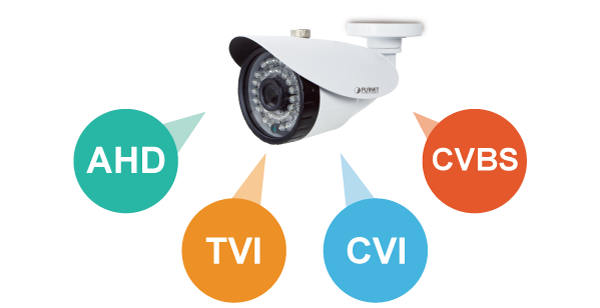

| 1080p HD Analog Camera PLANET CAM-AHD325 camera is a high-resolution analog camera and able to work with AHD DVR for different applications. Users can easily upgrade their surveillance system in the existing coaxial infrastructure without having to overhaul it. Besides, the camera supports TVI/CVI/CVBS mode and the camera can comply with different DVRs like TVI or CVI DVR. Through the OSD control button, user is able to set up AHD/TVI/CVI/CVBS mode easily. |
 |
| With Sony CMOS sensor and IR illuminators, the camera provides high-quality image under all lighting conditions. Besides, the CAM-AHD325 provides some significant features such as OSD control button, long-distance transmission and image quality enhancement. With these features, the camera brings us more efficiency and flexibility. The weatherproof housing protects the camera body against rain and dust, and ensures operation under extreme weather conditions, which makes it an ideal solution for indoor or outdoor applications, e.g., chain stores, communities, campuses, parking areas, garages, roads and public transportations. |
 |

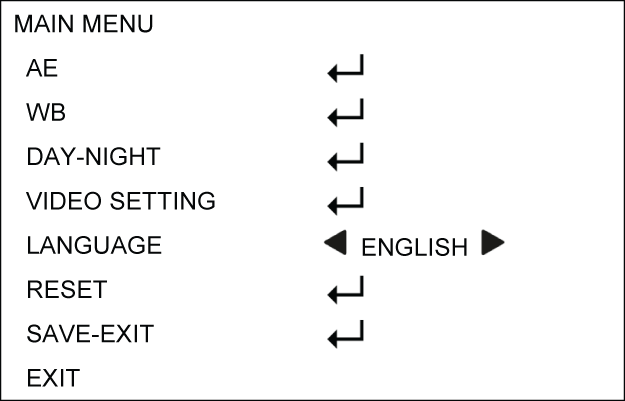

| Easy Adjustment via OSD The CAM-AHD325 is equipped with an OSD (on-screen display) control button. The OSD of the device is easily accessible via a simple control attached to the power and video cord. The benefits of an OSD are that it provides a simple, efficient, and easily understandable way to change the various settings of the camera. |
-Main%20menu_L.png) |
| Image Quality Enhancement Together with powerful image processing attributes like Wide Dynamic Range and Digital Noise Reduction technology, the camera is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions. |
 |
 |
| Day & Night Functionality To adapt to constantly changing lighting conditions, the CAM-AHD325 comes with a Sony sensor and 36 built-in IR illuminators, which enable the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The camera is able to maintain clear images 24 hours a day. |
 |

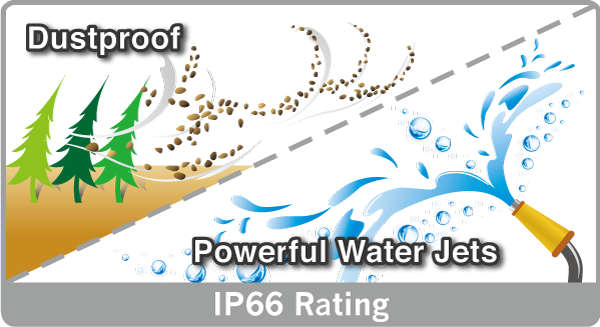

| IP66-rated Housing for Indoor and Outdoor Purposes With the IP66-rated housing, the CAM-AHD325 is suitable for use in all weather conditions, be it rainy or dusty. No matter how extreme the weather is, it is able to operate as stably as possible. The CAM-AHD325 is indisputably the top choice for reliable and high-performance surveillance. |
 |
| Long-distance Transmission Based on the AHD technology, the video data of the CAM-AHD325 can be transmitted via a coaxial cable at the distance of up to 500 meters without any latency and losses. |
ICA-8350
| PLANET ICA-8350 3 Mega-pixel Fish-Eye IP Camera supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in up to 1536 x 1536 pixels at 20 frames per second (fps). Incorporating the professional 3.4 MP-resolution sensor, the ICA-8350 provides high quality images and panorama function with quad view to enable images of monitoring and recording from four different angles to be displayed simultaneously. It offers 180° panoramic view by wall mount installation or 360° surround view in deployment of ceiling / floor / table mount. Therefore, users do not need to install multiple IP cameras and hence save tremendous installation and maintenance cost. Moreover, the IP66-rated vandalproof housing protects the ICA-8350 against rain and dust and ensures stable operation under extreme weather conditions. The ICA-8350 is an ideal solution for both indoor and outdoor surveillance applications such as buildings, hospitals, banks, hotel lobbies, garages, hallways, stores and offices, and more. |
 |
| Complete Monitoring by 360º Surround View The ICA-8350 is a fisheye camera with a 360 degree panoramic wide angle view without blind spot to allow monitoring all angles of a location using just one camera and thus save lots of traditional mechanical Pan/Tilt maintenance cost. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. With the ICA-8350 equipped with no software, you can watch live view and utilize functions such as motion detection and camera tampering through the Web interface via an IE browser. It also provides distortion correction function to fix the camera video so users can zoom in and zoom out the image, and pan across the camera’s video to survey a large area easily. |
 |
| Day & Night Functionality The ICA-8350 features an automatic, removable infrared-cut filter, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The camera is able to maintain clear images 24 hours a day. |
 |

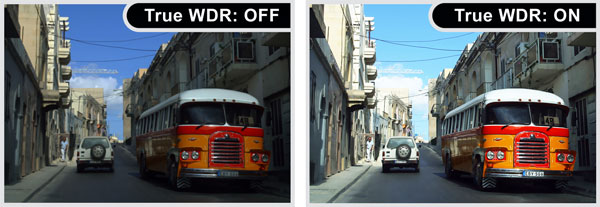

| Exceptional Image Quality Together with powerful image processing attributes like Wide Dynamic Range and 3D Digital Noise Reduction (3DNR) technology, the ICA-8350 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions. |
 |
| Camera Tampering and Audio Detection Provided with three individually configurable motion detection zones, the ICA-8350 can record video, trigger alarms or alerts when motion is detected in specified areas. Moreover, the camera’s built-in microphone enables you to hear voice from where out of the video surveillance range and to trigger the audio detection alarm when sounds like screams or glass breaking are detected. |
 |
| Advanced Event Management The ICA-8350 supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include AV out for two-way audio function, RS485 for connection of an optional pan/tilt enclosure which effectively adds pan/tilt functionality, and inputs/outputs interface for connecting to external devices such as door sensors and relays to activate light or close doors.Flexible Installation and Power Functionality The ICA-8350 incorporates IEEE 802.3af Power over Ethernet technology and can be powered from a PoE Switch via the network, which eliminates the need for power cables and reduces installation costs. With advanced features of the Gigabit Ethernet transmission, the ICA-8350 gives users the utmost in bandwidth flexibility and storage efficiency. Furthermore, the ICA-8350 is ONVIF-compliant and therefore interoperable with other brands in the market, greatly supporting users to integrate with their existing surveillance network. In addition, the ICA-8350 seamlessly integrates with the 64-CH central management software, providing advanced monitoring and video management features. The ICA-8350 is indisputably the top choice for reliable and high performance panoramic surveillance. |
ICA-HM136
| PLANET has announced the new ICA-HM136 H.264 2 mega-pixel outdoor infrared vandalproof Internet, which meets the next generation demands in the world market. The ICA_HM136 can simultaneously provide H.264, MPEG-4 and M-JPEG video streaming in small video size; therefore, it saves you lots of bandwidth usage. Through high performance 2 mega-pixel CMOS sensor, the ICA-HM136 delivers high quality image at maximum 1600×1200(UXGA) resolutions for color images. It is also equipped with 2.7mm to 9mm vari-focal auto iris lens allowing easy installation and camera angle adjustment for different installation sites.
With built-in 18 IR LED around the lens and the IR-cut filter, the ICA-HM136 can provide good video quality in both day and night surveillance up to 15 meters. The network and analog video output interfaces are also provided in the ICA-HM136 for flexible viewing and recording implementations. The ICA-HM136 complies with IEEE 802.3af PoE interface for flexible and easy installation on the ceiling without concerning the outlet / socket locations and thus it further eliminates the need of power cables and installation costs. In addition, the ICA-HM136 supports 2-way audio that enables audio communication between local and remote ICA-HM136 installed sites by using the external microphone and adding an external speaker. The ICA-HM136 is the perfect choice for outdoor surveillance system by providing IP-66 certified waterproof protection. It is designed with vandalproof and IP66 weatherproof case that can shield 400 pounds of impact. The vandalproof design with die-cast aluminum body prevents the intentional destruction. The water-resistant construction with weatherproof solid housing performs reliable operation in any environment. The ICA-HM136 can be managed by PLANET Cam Viewer 3, the professional IP surveillance management software that provides monitoring, recording and event management functions for multi-camera video surveillance applications. The Cam Viewer 3 enables you to set up a comprehensive and effective surveillance system quickly and easily to protect your property and life. |
ICA-5550V
|
||||||||||||||||||||||||||||
ICA-5260V
| High Frame Rate (60fps) for Real-time Surveillance Applications PLANET ICA-5260V PoE IP Camera with zero-lux illuminator provides high-resolution images for the round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 60 frames per second (fps). Incorporating the new Exmor RS™ CMOS image sensor, which is specially designed for surveillance applications, the ICA-5260V is also equipped with IP66-rated and IK10 vandalproof housing which protects the camera body against rain and dust, and ensures operation under extreme weather conditions, thus making it an ideal solution for outdoor applications, e.g., surveillance of buildings, roads, parking areas, garages, railway stations and airports. |
 |
| Day & Night Functionality To adapt to constantly changing lighting conditions during the day and night, the ICA-5260V comes with a removable IR-cut filter and built-in low IR illuminators (0.01 lux), which enable the camera to provide color video when there is sufficient light, and show color video in dark conditions (IR LED off). The camera is able to maintain clear images 24 hours a day. |
 |

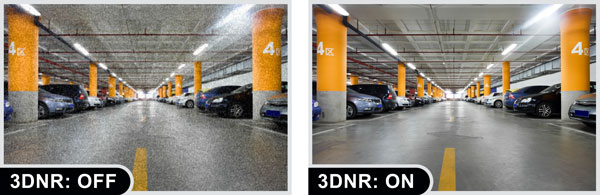

| Exceptional Image Quality Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3-Dimensional Noise Reduction (3DNR) technology, the ICA-5260V is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions. |
 |
 |
| Advanced Event Management The ICA-5260V also supports a number of advanced features that give the camera increased flexibility and capabilities, including auto-iris for improving the image quality to avoid over exposure, AV out for performing the two-way audio function and inputs/outputs for connecting external devices such as door sensors and relays to activate light or close doors. |
 |
| Flexible Installation and Power Functionality The ICA-5260V incorporates Power over Ethernet so that the camera can be powered via the Ethernet cable, eliminating the need for power cables and reducing installation costs. The ICA-5260V is ONVIF-compliant and therefore interoperable with other manufacturers’ products. It also includes 64-CH central management software. The ICA-5260V is indisputably the top choice for reliable and high performance surveillance. |
 |
| Face Detection and SD Card Face Detection detects face and ignores anything else, such as buildings, cars and bodies. When a suspect enters a targeted area, his face is caught in the camera, thereby triggering an alarm which will be sent to e-mail, FTP or Samba. All these files are then saved on SD card even though network connection is lost. |
 |
 |
ICA-5250V
| Superb Full HD Outdoor Professional Surveillance PLANET ICA-5250V PoE IP Camera with IR Illuminator provides high-resolution images for the round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second (fps). The ICA-5250V can change video frame from horizontal to vertical, i.e. from 16:9 to 9:16, which is great for corridors. The ICA-5250V is also equipped with IP66-rated and IK-10 vandalproof housing which protects the camera body against rain and dust, and ensures operation under extreme weather conditions, thus making it an ideal solution for outdoor applications, e.g., surveillance of buildings, roads, parking areas, garages, railway stations and airports. |
 |
| Day & Night Functionality To adapt to constantly changing lighting conditions during the day and night, the ICA-5250V comes with a removable IR-cut filter and built-in IR illuminators, which enable the camera to provide color video when there is sufficient light, and black/white video in dark conditions. It can also select color video in dark conditions. The camera is able to maintain clear images 24 hours a day. |
 |
| Exceptional Image Quality Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3-Dimensional Noise Reduction (3DNR) technology, the ICA-5250V is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions. |
 |
 |
| Advanced Event Management The ICA-5250V also supports a number of advanced features that give the camera increased flexibility and capabilities, including auto-iris for improving the image quality to avoid over exposure, AV out for performing the two-way audio function and inputs/outputs for connecting external devices such as door sensors and relays to activate light or close doors. |
 |
| Flexible Installation and Power Functionality The ICA-5250V incorporates Power over Ethernet so that the camera can be powered via the Ethernet cable, eliminating the need for power cables and reducing installation costs. The ICA-5250V is ONVIF-compliant and therefore interoperable with other manufacturers’ products. It also includes 64-CH central management software. The ICA-5250V is indisputably the top choice for reliable and high-performance surveillance. |
 |
| Vari-focal and Camera Tampering Detection Offers the Best Recording Flexibility The ICA-5250V incorporates the mega-pixel vari-focal lens, which has the options of selecting a high millimeter setting for narrow viewing fields or a low millimeter setting for wider viewing fields. The ICA-5250V provides three individually configurable motion detection zones. The camera can record video or trigger alarms or alerts when camera image is tampered. |
 |
 |
ICA-4250
|
||||||||||||||||||||||||||||
ICA-4150
| Compact and Cost-effective 720p HD Surveillance PLANET ICA-4150 PoE IP Camera provides high-resolution images for the round-the-clock surveillance over IP networks. It supports the H.264 compression format and delivers excellent picture quality in 720p HD resolutions at 30 frames per second (fps). Its outdoor and handy features enable you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, balconies, railway stations and hospitals. |
 |
| Day & Night Surveillance The ICA-4150 features an automatic, removable infrared-cut filter, which enables the camera to provide color video when there is sufficient light, and black and white video in dark conditions. The camera is able to maintain clear images 24 hours a day. |
 |
| Exceptional Image Quality Together with powerful image processing attributes like Wide Dynamic Range and Dimensional Noise Reduction technology, the ICA-4150 is able to filter the intense backlight surrounding a subject and remove noises from video signal. Thus, the ICA-4150 offers an extremely sharp and clear image quality even under any challenging lighting conditions. |
 |
 |
| Water-resistant and Dustproof Protection The IP66-rated housing of the ICA-4150 protects its body against rain and dust, and ensures smooth operation under all extreme weather conditions, which make it an ideal solution for outdoor applications, such as buildings, roads, parking areas, garages, railway stations and airports. |
 |
| Flexible Installation and Power Functionality The ICA-4150 incorporates IEEE 802.3af Power over Ethernet standard and able to be powered via the network cable from a PoE power sourcing equipment such as PoE Switch and PoE injector. It thus eliminates the need for extra power cables and reduces installation costs while increases the deployment flexibility. The ICA-4150 is ONVIF compliant and thus it is interoperable with other brands in the market. The ICA-4150 is indisputably the ideal choice for reliable and high-performance surveillance. |
 |
ICA-W3250V
| Superb Full HD Outdoor Surveillance PLANET ICA-W3250V IP Camera with IR Illuminator provides high-resolution images for the round-the-clock surveillance over IP networks. It supports H.264, and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second (fps). It is also equipped with a mounting bracket that conceals all cables within for easy management and waterproof purposes. The ICA-W3250V is an ideal solution for outdoor surveillance applications such as buildings, roads, parking areas, garages, railway stations and airports. |
 |
| Suitable for Various Applications To adapt to different environments, the ICA-W3250V comes with corridor mode, which enables the camera to change video frame from horizontal to vertical, i.e. from 16:9 to 9:16. Corridor mode will maximize video surveillance in narrow situations. It also creates a perfect, high-quality vertical video when the ICA-W3250V is installed at hotel, hospital, roads, tunnels, and many other applications. |
 |
| Exceptional Image Quality with Vari-focal Lens With 3-10.5mm vari-focal lens, the ICA-W3250V meets various demands of installation. For instance, traffic monitoring can be focused either on more than two lanes or just one specified lane, It brings an extremely clear and exquisite picture quality. |
 |
 |
| Advanced Event Management The ICA-W3250V supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include auto-iris for improving the image quality to avoid overexposure, audio in/out interface for two-way audio function, and digital input/output for connecting to external devices such as door sensors and relays to activate light or close doors. |
 |
| Flexible Installation with 11n Wireless Connectivity The ICA-W3250V adopts IEEE 802.11n wireless technology to communicate at up to 150Mbps wireless signal rate and ensures secure transmission with WEP and WPA encryptions. The wireless N functionality enables rapid integration into the wireless network and offers a flexible choice of the site.Furthermore, the IP66-rated housing protects the ICA-W3250V against rain and dust and ensures stable operation under extreme weather conditions. The ICA-W3250V is indisputably the top choice for reliable and high-performance surveillance. |
 |
