Cost-effective Centralized Power Distribution with Remote Management

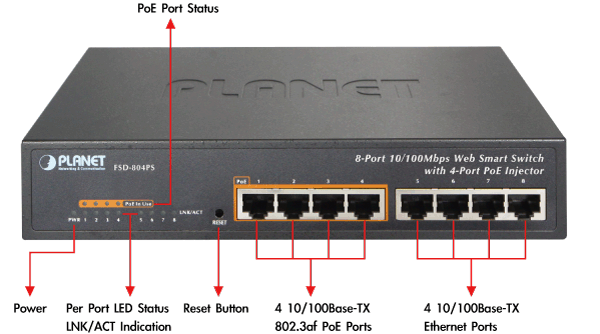

For cost saving and the flexibility of using PoE power provision, half of the 10/100Mbps TP ports of the FSD-804PS provide PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices.For SOHO or department network, the switch also provides a simple, cost-effective, and highly reliable network connection for data as well as power. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks.

Easy Cabling installation
With data and power over Ethernet, the FSD-804PS is able to reduce cable installation and eliminate the need for electrical outlets on the wall, ceiling or any unreachable place. Energy saving is the key feature of the use of PoE in the deployment. With more efficient switching power supply, the efficiency of the FSD-804PS would be much better than four linear power adapters in the long run.Providing 4 PoE interfaces, the FSD-804PS is ideal for small businesses and workgroups requiring to utilize PoE for the deployment of wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost-effectively.Friendly / Simple Web Management Interface
The Web smart functions make it easy to survey and control the PoE power provision to the devices by the Web interface. Basic switching functions such as VLAN, Bandwidth Control, Storm Control and QoS are available for network management.

For cost saving purpose and providing advanced management functions, PLANET has released the new version of the FNSW-1608PS, the layer 2 web smart switch with PoE injector function built in. The FNSW-1608PS features 16 10/100Mbps Fast Ethernet ports with 8 IEEE 802.3af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on Port 1 to Port 8 which is able to drive 8 IEEE 802.3af compliant powered devices. The PoE power feeding can be set disable / enable and the PoE power consumption can be monitored for effective power usage.

With its auto-negotiation capability, all the RJ-45 / STP ports of the FNSW-1608PS can be configured to speeds of 10/20Mbps / 100/200Mbps (Fast Ethernet) automatically. In addition, the FNSW-1608PS is equipped with the MDI/MDI-X auto detection for easy plug and play connection, regardless of cabling types in straight through or crossover. The FNSW-1608PS also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kinds of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.

The FNSW-1608PS features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increasing bandwidth demands. For efficient management, the FNSW-1608PS switch is equipped with remote Web interface and can be programmed for advanced switch management functions such as SNMP Alert Trap, port configuration, port-based / IEEE 802.1Q / MTU VLAN, port mirroring, port trunk, QoS, bandwidth control, broadcast storm control, MAC address / TCP & UDP filter and IGMP Snooping.
