Product Function: Metal Made
VC-234
| 100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution PLANET VC-234 is an Ethernet-over-VDSL2 Bridge with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-234 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 20/4Mbps for 1.4km long range connections.Implementing with Existing Telephone Copper Wires The VC-234 is also a Long Reach Ethernet (LRE) Bridge providing four RJ-45 Ethernet ports and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-234 has built-in POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-234 into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-234 is ideal to be used as an Ethernet extender to an existing Ethernet network.Delivering High-Demand Service Connectivity for ISP / Triple Play Devices The VC-234 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-234 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.Easy & Flexible Installation The Ethernet-over-VDSL2 Bridge comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-234 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-234 and a CO mode VC-234 must be setup as one pair of converters to perform the connection. Providing Superior Upstream and Downstream Transmission Performance
|
VC-231
| 100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution PLANET VC-231 is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-231 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4km long range connections.Implementing with Existing Telephone Copper Wires The VC-231 is also a Long Reach Ethernet (LRE) converter providing one RJ-45 Ethernet port and one RJ-11 phone jack that is for VDSL2 connection. By using the additional Splitter from package of VC-231, the splitter can provide POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-231 with additional splitter into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-231 is ideal to be used as an Ethernet extender to an existing Ethernet network.Delivering High-Demand Service Connectivity for ISP / Triple Play Devices The VC-231 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-231 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.Easy & Flexible Installation The Ethernet-over-VDSL2 Converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231 and a CO mode VC-231 must be setup as one pair of converters to perform the connection. Providing Superior Upstream and Downstream Transmission Performance
|
VC-201A
| High Performance Ethernet over VDSL Solution PLANET VC-201A is an Ethernet-over-VDSL2 media converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers the absolutely fastest data transmission speeds over existing copper telephone lines without the need of rewiring. The VC-201A supports ultra-high performance to the pervasive telephone line network with up to 100/55Mbps asymmetric data rate within 200m and 25/4Mbps for 1.6km long range connections.Implementing with Existing Telephone Copper Wires The VC-201A is also a Long Reach Ethernet (LRE) converter providing one RJ-45 Ethernet port and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-201A has a built-in POTS splitter to share the existing phone line with POTS, therefore it is no need of replacing the existing copper wiring. Just plug the VC-201A into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network.Delivering High-Demand Services Connectivity for ISP / Triple Play Devices The VC-201A provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/55Mbps symmetric data transmission, the VC-201A enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.Easy Installation The Converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. There are two selectable models of the VC-201A, one is used at client side (CPE) and the other one is at central side (CO). The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-201A and a CO mode VC-201A must be set up as one pair of converters to perform the connection. Providing Superior Upstream and Downstream Transmission |
VF-10x-KIT
| Long Distance Analog Surveillance Transmission System The analog cameras and DVRs are still applied mostly in traditional surveillance systems while the main stream turns to IP-based surveillance gradually. To help the analog camera deployment in long distances to provide high video transmission quality and reliable signal, PLANET develops the Video over Fiber media converter which successfully integrates the video signal and fiber optic transmission into a compact size mini box. The Video over Fiber media converter enables the videos to be delivered in high quality up to 20km long distance by the intelligent encoding / decoding technology. It is ideal for extending the distance and signal conversion by transmitting the video and data over the fiber-optic cable.Fiber Optic Communication for Video and Serial Data This Video over Fiber Converter kit consists of a Video Transmitter and a Video Receiver:• VF-10x-T: 1-channel Video over Fiber Transmitter • VF-10x-R: 1-channel Video over Fiber ReceiverIt is a digital fiber-optic transmission system which brings customer a cost-effective solution for transmission of 1 channel uncompressed digital video and 1 reverse RS-485 a sync-data over one single fiber cable. It is an adjustable free device providing high quality and real-time video transmission. The system can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on. Easy Installation |
VC-202A
| Ethernet Distance Extension via Coaxial PLANET VC-202A is a high-performance Ethernet-over-Coaxial extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the VC-202A uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the VC-202A utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 3km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage. |
 |
| Cost-effective / Quick Upgrade Legacy Devices to All IP Networks PLANET VC-202A Ethernet extender provides a quick replacement and smooth migration solution from existing analog system to full digital system. For example: • Upgrade analog camera to digital IP Camera • IP Digital Signage deployment • Cable TV to IPTVThe VC-202A is equipped with one RJ-45 and one BNC port to transmit the Ethernet data over the most widespread coaxial cable. Therefore, it is very suitable and costless for upgrading legacy devices to new digital devices of IP-based network because almost every house or block on the street could use the existing coaxial cable to transmit data to the Internet and the whole building could share the Internet line in the wide network area at a minimum cost. Reusing the existing cable instead of new wire can save extra wiring cost as the coaxial cable and Ethernet line are already available.Easy Installation There are two selectable models of the VC-202A, one is used for client side (CPE) and the other is for central side (CO). The VC-202A converter is a plug and play device without the need of configuring by software and is also compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of individual port and the whole system.Providing Superior Upstream and Downstream Transmission The VC-202A defines asymmetric (Plan 998) and symmetric mode for the transmission of upstream and downstream signals. The symmetric mode provides similar transmission rate on both downstream and upstream. On the other hand, the asymmetric mode performs higher transmission quality in short range for central side (CO). In all, when the VC-202A is in symmetric mode, it provides better upstream performance, and when it is in asymmetric mode, it gives better downstream performance.
|

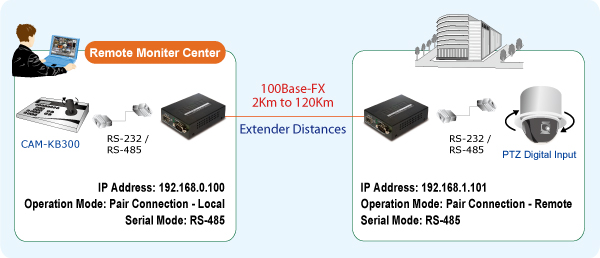

ICS-102/ICS-102S15/ICS-105A
|
||||||||||
ICS-100
| Cost-effective Solution for RS-232 / RS-422 / RS-485 to Ethernet Application PLANET ICS-100 Media Converter / Device Server provides to convert Serial RS-232 / RS-422 / RS-485 communication interface over Fast Ethernet networking. Ethernet signal allows two types of segments to connect easily, efficiently and inexpensively. This converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700 / MC-1500/ MC-1500R / MC-1500R48). It is time, saving expense for users and SIs, and there is no need to replace the existing serial equipment and software system.Remote Manageable The ICS-100 makes connected serial equipment become the IP-based type. That also makes them able to connect to a TCP / IP networking immediately. Each Web-Smart converter is able to manage Web interface. The powerful Web-Smart Media Converter supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps reduce the amount of valuable time that a network administrator spends detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. Multiple connection options for large networking environment are available as well. |
FTP-802/FTP-802S15
| More than a Fiber Media Converter — a Power over Ethernet Injector as well The best data link and power sourcing solution for long reach network equipment PLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies: ■Media Conversion : 100Base-FX to 10/100Base-TX ■Power over Ethernet : Power Sourcing Equipment (PSE), PoE Injector Providing both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively.PoE Optimizes the Installation and Power Management of Network Devices The IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously.Fiber-optic Link Capability Extends the Range of Network Deployments The maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.Advantage of Combined PoE and Media Conversion With the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time. |
POE-E101
| Long Distance PoE and Data Extension Solution PLANET POE-E101 is a newly designed and simple device which extends both the reach of Ethernet Data and IEEE 802.3af Power over Ethernet over the standard 100m (328 ft.) CAT5e/6 UTP cable to 200m, 300m or longer distance.Currently, PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones have become the mainstream of network deployment because of the convenience of easy installation regardless of additional power supply. However, limited by the UTP cable specifications, only up to 100 meters (328 ft.) of cable could be applied for IP-based and PoE powered devices (PD) installation. Therefore, the POE-E101 is designed as the repeater to forward both Ethernet data and PoE power, thus extending the range of the PoE powered device installation. By just plug and play but with no additional power supply or setup required, one single POE-E101 can increase the PoE range to 200m. By daisy-chaining multiple PoE-E101s, it offers you great flexibility to extend the distance of PoE network to triple or quadruple. |
 |
| Providing PoE and Ethernet data extension ability, the POE-E101 is an ideal solution for service providers, campuses and public areas for networking application which requires PoE deployment of wireless access points, IP-based surveillance cameras or IP phones in any places. It enables you to centrally manage the power from one location easily, efficiently and cost-effectively.
The POE-E101 PoE Extender is quite easy to be installed by simple plug and play. It is used between a power sourcing equipment (PSE) and a powered device (PD); it injects power to the PD without affecting the data transmission performance. The POE-E101 offers a cost effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. There are 2 RJ-45 ports in a compact mini box of PoE Extender, of which the IN port functions as “PoE (Data and Power) input” and the other port on the other side functions as “PoE (Data and Power) output”. The “PoE OUT” port is also the power injectors which transmit DC voltage to the Cat5e/6 cable and transfer data and power simultaneously between the PSE and PD. |
