Product Function: Planet/DDNS

VPA-100

New Audio Control System PLANET VPA-100 audio control system comes with the existing IP PBX to provide unidirectional and bidirectional audio for broadcasting. An announcement can be made via the VPA-100, simply by making a call from an IP phone in the handset, headset, or hands-free mode. Its efficient 3.5-watt amplifier provides loud speaker coverage for the entire room or floor space.

User-friendly Control The VPA-100 provides four programmable output ports to control power on or power off. It usually controls them via web. When an IP phone is dialed to the VPA-100, the user can also control these ports via keypad of the IP phone. It allows the user to control these devices anytime, anywhere.

Standard Compliance Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the VPA-100 is able to function with PLANET or any third-party SIP 2.0 compliant VoIP products.

Adjustable to Suit User’s Application The VPA-100 can be powered via a power adapter or power over Ethernet cable, meaning the user can select either of the available power sources for his convenience. The volume of output, speaker input and handset input via web UI can be adjusted to make the announcement in the environment just right. It can be set up in all facilities, such as rooms, hallways, office floors, and more.

Full VoIP Communication Several VPA-100 units can be connected to each other over a 100-meter cabling via a PoE switch. They can also be optionally installed on walls or ceilings. If the IP PBX supports paging and intercom, one IP phone can make calls to many VPA-100 units at the same time.

VGW-800FS

Cost-effective, High-performance PoE VoIP Phone To build high-performance VoIP communications at a low cost, PLANET now introduces the latest member of its gateway family, the VGW-800FS enterprise-class 8-port SIP VoIP Gateway. The VGW-800FS provides added flexibility during migration to Unified Communications by supporting the traditional analog devices. These devices include analog phones, fax machines, modems, voicemail systems, and speakerphones. It helps the enterprises to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VGW-800FS also allows call to be transferred to anyone at any location within the voice system, which enables the enterprises to communicate more effectively and is helpful to streamline business processes.

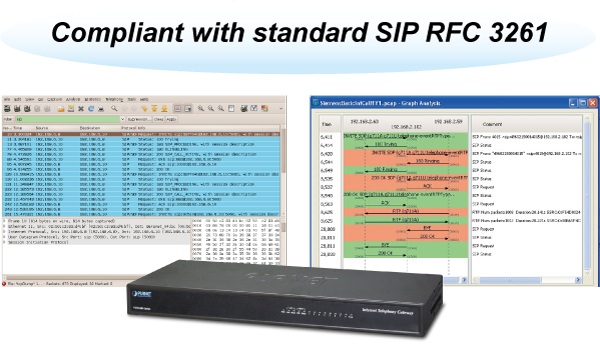

SIP Standard Compliance The VGW-800FS supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VGW-800FS is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Enhanced, Full-Featured Business Gateway The VGW-800FS is a full-featured enhanced business SIP Gateway that addresses the communication needs of the enterprises. It provides 8-line FXS interface which allows connection with 8-line analog telephone set to make or receive VoIP call over Internet or VPN network. This device is suitable for office PABX to enable to have VoIP call without changing cabling, dial plan and extension number.

The VGW-800FS supports all kinds of SIP-based gateway features and multiple contact filter functions, such as 24 SIP trunk accounts, both IPv6 and IPv4 protocols, flexible dial plan and route plan features, and switch of analog and VoIP signal to help both protocols to communicate efficiently.

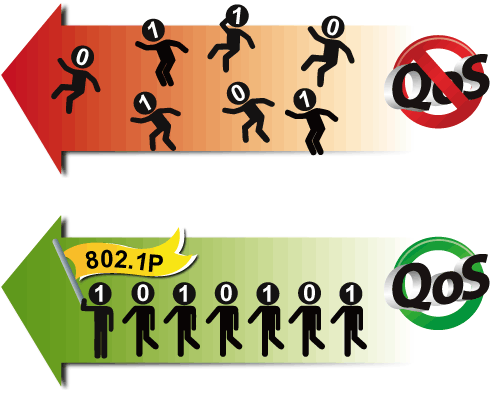

Secure, High-Quality VoIP Communication The VGW-800FS can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality.

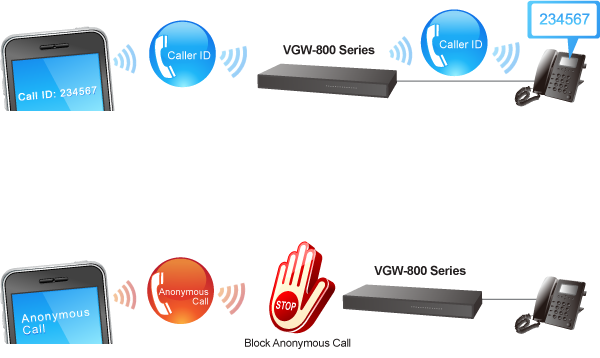

Supporting Caller ID The VGW-800FS supports caller ID function, helping users to identify calling number easily and verify number. It also helps to block anonymous call by filtering strange calls. In the figure below, the VGW-800 series includes the VGW-800FS and VGW-800FO. The FXS port of the VGW-800FS transmits Caller ID, while the FXO port of the VGW-800FO receives Caller ID. The Caller ID interoperates with analog phones, public switched telephone networks (PSTN) and private branch exchanges (PBXs).

VGW-400FS

Cost-effective, High-performance VoIP Communication To build high-performance VoIP communications at a low cost, PLANET now introduces the latest member of its gateway family, the VGW-400FS enterprise-class 4-port SIP VoIP Gateway. The VGW-400FS gateway provides added flexibility during migration to Unified Communications by supporting the traditional analog devices, which include analog phones, fax machines, modems, voicemail systems, and speakerphones. It helps the company to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VGW-400FS also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

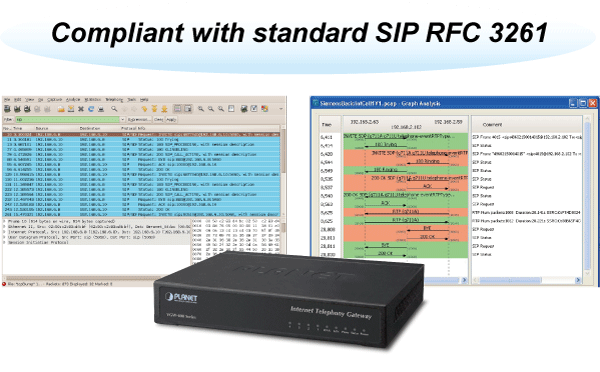

Standard Compliance The VGW-400FS supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VGW-400FS is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

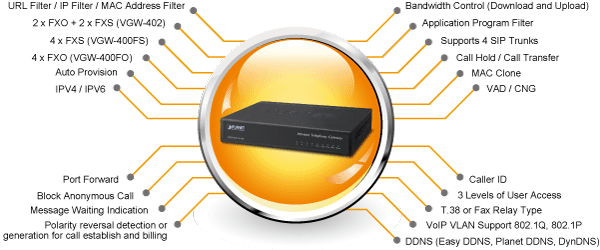

Enhanced, Full-Featured Business Gateway The VGW-400FS is a full-featured enhanced business SIP Gateway that addresses the communication needs of the enterprises. It provides the 4-line FXS gateway with SIP protocol IP device which allows connection with 4-line analog telephone set to make or receive VoIP call over Internet or VPN network. This device is suitable for office PABX to enable to have VoIP call without changing cabling, dial plan and extension number.The VGW-400FS supports all kinds of SIP-based gateway features and multiple contact filter functions, such as 4 SIP trunk accounts, both IPv6 and IPv4 protocols, flexible dial plan and route plan features, and switch analog and VoIP signal to help both protocols to communicate.

Secure, High-Quality VoIP Communication It can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality.

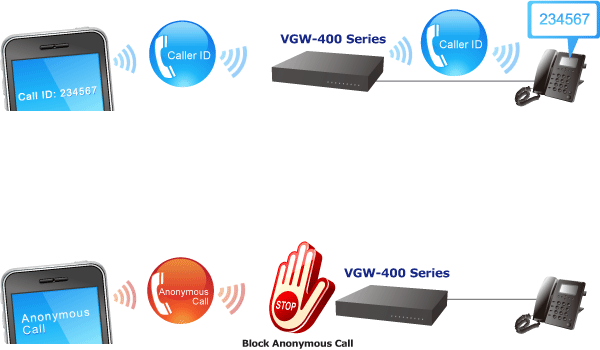

Supporting Caller ID Both the FXS and FXO ports of the VGW-400 series support caller ID function, helping users identify calling number and verify number easily. It also helps to block anonymous call by filtering strange calls. The FXS port transmits Caller ID, while the FXO port receives Caller ID. The Caller ID interoperates with analog phones, public switched telephone networks (PSTN) and private branch exchanges (PBXs).

VGW-400FO

Cost-effective, High-performance VoIP Communication To build high-performance VoIP communications at a low cost, PLANET now introduces the latest member of its gateway family, the VGW-400FO enterprise-class 4-port SIP VoIP Gateway. The VGW-400FO gateway provides added flexibility during migration to Unified Communications by supporting the traditional analog devices. For example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VGW-400FO also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes. Standard Compliance The VGW-400FO supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VGW-400FO is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services. Enhanced, Full-Featured Business Gateway The VGW-400FO is a full-featured enhanced business SIP Gateway that addresses the communication needs of the enterprises. It provides the 4-line FXO gateway with SIP protocol IP device which allows connection with 4 analog PSTN telephone lines set to make or receive VoIP call over Internet or VPN network. This device is suitable for office PABX to enable to have VoIP call without changing cabling, dial plan and extension number.The VGW-400FO supports all kinds of SIP-based gateway features and multiple contact filter functions, such as 4 SIP trunk accounts, both IPv6 and IPv4 protocols, flexible dial plan and route plan features, and switch analog and VoIP signal to help both protocols to communicate. Secure, High-Quality VoIP Communication It can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality. Supporting Caller ID Both the FXS and FXO ports of the VGW-400 series support caller ID function, helping users identify calling number and verify number easily. It also helps to block anonymous call by filtering strange calls. The FXS port transmits Caller ID, while the FXO port receives Caller ID. The Caller ID interoperates with analog phones, public switched telephone networks (PSTN) and private branch exchanges (PBXs).

VIP-2140PT

Intuitive Design Brings Quality Communication PLANET VIP-2140PT is a four-line SIP new enterprise phone with dual display that brings lifelike richness and voice quality to phone calls. The VIP-2140PT is a reliable communication device as it features ease of use, versatility, high-quality design and superb audio performance. Besides, its full duplex speakerphone system with HD voice can definitely make communication between two or more business parties crystal clear with no interference noise in the background as it supports the G.722 wideband codec. Multi-language IP Phone with Color Display As the VIP-2140PT is a high-performance IP phone, it allows you to make calls from any location easily as long as it is online. Its 2.8-inch (main) and 2.4-inch (DSS) key-mapping LCD monitors with multi-languages make interaction easy by way of the web-based UI. It provides 30 configurable and 6 multicolored LED keys, and offers a clear depiction of caller’s information. It complies with IEEE 802.3af/at PoE interface and dual 10/100/1000Mbps Ethernet for flexible deployment and supports superior audio quality delivered by the advanced speaker and microphone system, and the digital signal processor (DSP). Compliant with SIP 2.0 SIP phones continue to gain popularity among businesses as the preferred protocol for enhancing communication across IP networks. The VIP-2140PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-2140PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better voice over IP services. Affordable for All Businesses The VIP-2140PT is definitely affordable for all business establishments who want flexible deployment options and expansion. It can effortlessly deliver secure toll voice quality by utilizing the cutting-edge 802.1p QoS (Quality of Service) and IP ToS technologies. Professional Application The VIP-2140PT supports Busy Lamp Field (BLF) function that, via the lights on the phone, enables users to easily identify the status of other phones which are connected to the same IP PBX, such as busy, idle, ringing, etc. The connected IP PBX must also support the BLF feature. The BLF function is helpful for a receptionist on the front desk to route all incoming calls smoothly.

VIP-1000T

Cost-effective, High-definition VoIP Phone PLANET VIP-1000PT and VIP-1000T are high-definition but cost-effective IP Phones where the earlier model comes with the PoE technology and the latter is without PoE. Whatever, both models, through IP PBX, feature VoIP and traditional telephone communications, and converged data and voice networks which can be built from one location to another without considering distance, thus making communications convenient over a long distance.

In addition, the VIP-1000T has a 1-line business IP feature. VoIP communications can be extended when using PPTP VPN or L2TP VPN. The VIP-1000T also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

Standard Compliance Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the VIP-1000T is able to function with other PLANET and any third-party VoIP products.

Enhanced, Full-featured Business IP Phones The VIP-1000T is business IP phone that address the communication needs of the enterprises. They provide 1 voice line and 10/100Mbps Ethernet network. Furthermore, the VIP-1000T delivers 20 multi-functional keys with speed dial and shortcut key. The VIP-1000T supports all kinds of SIP-based phone features including call waiting, auto answer, music on hold, caller ID and call waiting ID, 3-way conferencing, call hold, call forwarding, black list, hotline, DTMF relay, in-band, out-of-band (RFC 2833) and SIP info method, among others. Besides office use, the VIP-1000T is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).

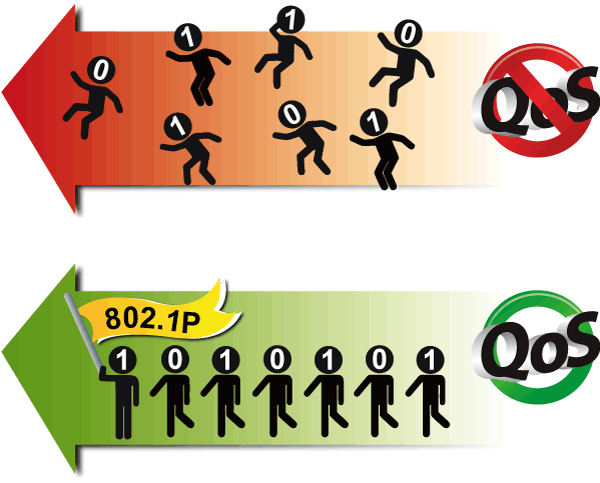

Secure, High-Quality VoIP Communication The VIP-1000T supports SIP v2 for easy integration with general voice over IP system. It can also effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service) and IP TOS technology. It also supports HD (High Definition) voice as G.722 to provide clear communications.

VIP-1000PT

Cost-effective, High-definition VoIP Phone PLANET VIP-1000PT and VIP-1000T are high-definition but cost-effective IP Phones where the earlier model comes with the PoE technology and the latter is without PoE. Whatever, both models, through IP PBX, feature VoIP and traditional telephone communications, and converged data and voice networks which can be built from one location to another without considering distance, thus making communications convenient over a long distance.

In addition, the VIP-1000PT has a 1-line business IP feature. VoIP communications can be extended when using PPTP VPN or L2TP VPN. The VIP-1000PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

Standard Compliance Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the VIP-1000PT is able to function with other PLANET and any third-party VoIP products.

Enhanced, Full-featured Business IP Phones The VIP-1000PT is business IP phone that address the communication needs of the enterprises. They provide 1 voice line and 10/100Mbps Ethernet network. Furthermore, the VIP-1000PT delivers 20 multi-functional keys with speed dial and shortcut key. The VIP-1000PT supports all kinds of SIP-based phone features including call waiting, auto answer, music on hold, caller ID and call waiting ID, 3-way conferencing, call hold, call forwarding, black list, hotline, DTMF relay, in-band, out-of-band (RFC 2833) and SIP info method, among others. Besides office use, the VIP-1000PT is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).

Secure, High-Quality VoIP Communication The VIP-1000PT supports SIP v2 for easy integration with general voice over IP system. It can also effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service) and IP TOS technology. It also supports HD (High Definition) voice as G.722 to provide clear communications.

HDVR-1630

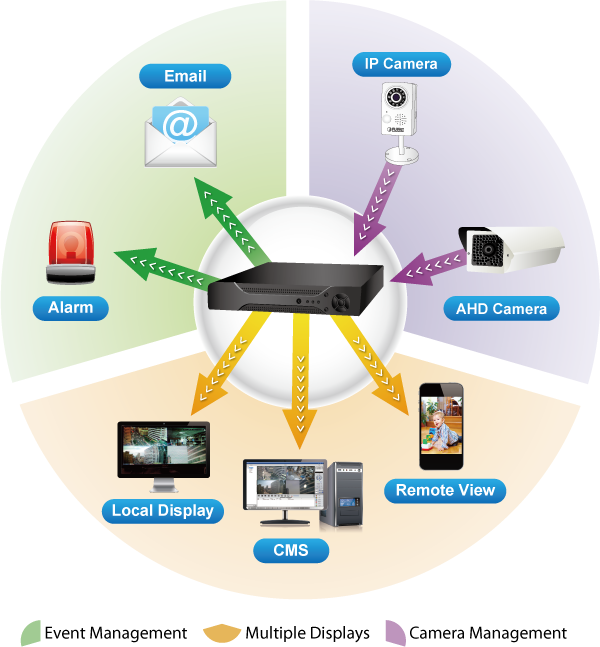

Efficient Solution for Combining IP and Analog Cameras PLANET HDVR-1630 is a hybrid DVR recorder which is able to record video and data from traditional analog, AHD (Analog High Definition) and network IP security cameras. The advantage of a hybrid DVR recorder is that it lets you use currently installed analog security equipment along with newer network IP technology. This enables you to upgrade your surveillance system to IP equipment at your own pace, according to your budget. The HDVR-1630 is the 16-channel, embedded system with HDMI local display and features recording, live view, playback and backup functions, etc. With easy-to-remember DDNS feature, the HDVR can be placed either in LAN or WAN for easy installation. Besides, designed for various surveillance applications via RS485 interface, the HDVR is capable of controlling most types of protocols. For the purpose of general monitoring, the HDVR-1630 offers app viewer, Web browser and CMS (Central Management Software) for multi-platform remote access, thus making it an ideal solution for various applications, such as retail stores, communities, SMBs, supermarkets, restaurants and schools.

Hybrid Integration The HDVR-1630 allows each of its 16 channels to be connected to either an analog camera or an IP camera. If you already have analog cameras and want to add on a few IP cameras, the HDVR-1630 is definitely your ideal choice. In addition, as the HDVR complies with ONVIF, it is interoperable with any third-party IP cameras, thus omitting compatibility issue and allowing you to add more cameras.

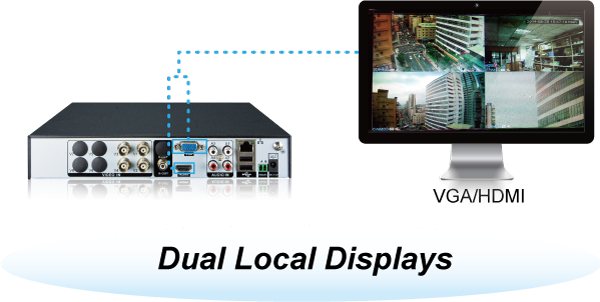

High Resolution Local Display The HDVR-1630 provides HDMI and VGA video output interfaces for dual local displays, which can be connected to HDMI monitor or VGA monitor for live view monitoring with video output of maximum 1920 x 1080 resolutions. Due to local display, it can eliminate the need for a separate PC to view video from the unit. Besides, it also can be operated with the USB mouse to configure and monitor all the system easily.

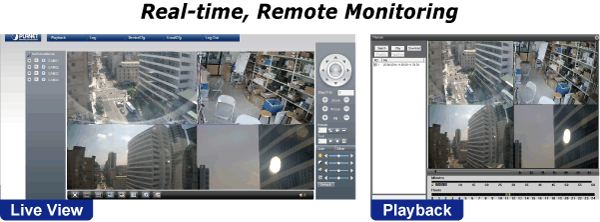

Real-time Remote Monitoring Video from the HDVR system can be accessed with Web browsers and mobile devices. With remote monitoring, you can view live and recorded video, allowing for easier monitoring of your video deployments, and the ability to react quickly to alarms and events.

Central Management System (CMS) Not just for small scale applications such as retail stores and SMBs, the HDVR system is expandable for multi-site management with the bundled CMS software. The CMS software is able to manage up to 256 channels of cameras simultaneously. With friendly graphic interface, users can control any cameras or HDVRs easily and make a quick response when event is triggered. With CMS support, users are able to make surveillance monitoring more efficient.

HDVR-830

Efficient Solution for Combining IP and Analog Cameras PLANET HDVR-830 is a hybrid DVR recorder which is able to record video and data from traditional analog, AHD (Analog High Definition) and network IP security cameras. The advantage of a hybrid DVR recorder is that it lets you use currently installed analog security equipment along with newer network IP technology. This enables you to upgrade your surveillance system to IP equipment at your own pace, according to your budget. The HDVR-830 is the 8-channel, embedded system with HDMI local display and features recording, live view, playback and backup functions, etc. With easy-to-remember DDNS feature, the HDVR can be placed either in LAN or WAN for easy installation. Besides, designed for various surveillance applications via RS485 interface, the HDVR is capable of controlling most types of protocols. For the purpose of general monitoring, the HDVR-830 offers app viewer, Web browser and CMS (Central Management Software) for multi-platform remote access, thus making it an ideal solution for various applications, such as retail stores, communities, SMBs, supermarkets, restaurants and schools.

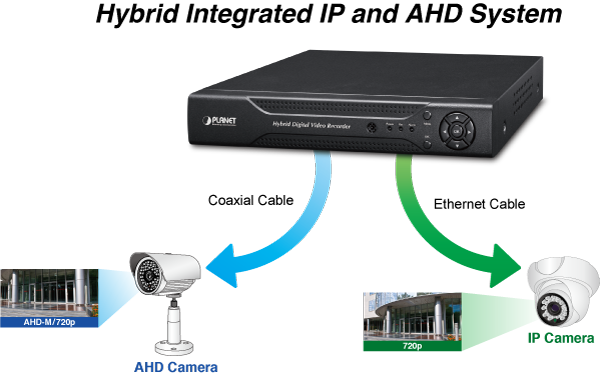

Hybrid Integration The HDVR-830 allows each of its 8 channels to be connected to either an AHD analog camera or an IP camera. If you already have analog cameras and want to add on a few IP cameras, the HDVR-830 is definitely your ideal choice. In addition, as the HDVR-830 complies with ONVIF, it is interoperable with any third-party IP cameras, thus omitting compatibility issue and allowing you to add more cameras.

High Resolution Local Display The HDVR-830 provides HDMI and VGA video output interfaces for dual local displays, which can be connected to HDMI monitor or VGA monitor for live view monitoring with video output of maximum 1280 x 720 resolutions. Due to local display, it can eliminate the need for a separate PC to view video from the unit. Besides, it also can be operated with the USB mouse to configure and monitor all the system easily.

Real-time Remote Monitoring Video from the HDVR system can be accessed with Web browsers and mobile devices. With remote monitoring, you can view live and recorded video, allowing for easier monitoring of your video deployments, and the ability to react quickly to alarms and events.

Central Management System (CMS) Not just for small scale applications such as retail stores and SMBs, the HDVR system is expandable for multi-site management with the bundled CMS software. The CMS software is able to manage up to 256 channels of cameras simultaneously. With friendly graphic interface, users can control any cameras or HDVRs easily and make a quick response when event is triggered. With CMS support, users are able to make surveillance more efficient.

HDVR-430

Efficient Solution for Combining IP and Analog Cameras PLANET HDVR-430 is a hybrid DVR recorder which is able to record video and data from both traditional analog and network IP security cameras. The advantage of a hybrid DVR recorder is that it lets you use currently installed analog security equipment along with newer network IP technology. This enables you to upgrade your surveillance system to IP equipment at your own pace, according to your budget. The HDVR-430 is the 4-channel embedded system with HDMI local display and features recording, live view, playback and backup functions, etc. With easy-to-remember DDNS feature, the HDVR can be placed either in LAN or WAN for easy installation. Besides, designed for various surveillance applications via RS485 interface, the HDVR is capable of controlling most types of protocols. For the purpose of general monitoring, the HDVR-430 offers app viewer, Web browser and CMS (Central Management Software) for multi-platform remote access, thus making it an ideal solution for various applications, such as retail stores, communities, SMBs, supermarkets, restaurants and schools.

Hybrid Integration The HDVR-430 allows each of its 4 channels to be connected to either an analog camera or an IP camera. If you already have analog cameras and want to add on a few IP cameras, the HDVR-430 is definitely your ideal choice. In addition, the HDVR complies with ONVIF and it can expand flexibility between third-party IP cameras and the HDVR. The ONVIF is the main integration method for the HDVR and allows you to add cameras and reduce compatibility issue.

High Resolution Local Display The HDVR-430 provides an HDMI and VGA video output interface for dual local display, which can be connected to HDMI monitor or VGA monitor for live view monitoring with video output of maximum 1280 x 720 resolutions. Due to local display, it can eliminate the need for a separate PC to view video from the unit. Besides, it also can be operated with the USB mouse to configure and monitor all the system easily.

Real-time Remote Monitoring Video from the HDVR systems can be accessed with Web browsers and Android mobile devices. With remote monitoring, you can view live and recorded video “on the go”, allowing for easier monitoring of your video deployments, and the ability to react quickly to alarms and events.

Managed via Central Management System (CMS) Not just for small scale applications such as retails stores and SMBs, the HDVR system is expandable for multi-site management with the bundled CMS software. The CMS software is able to manage up to 256 channels of cameras simultaneously. With friendly graphic interface, users can control any cameras or HDVRs easily and make a quick response when event is triggered. With CMS support, users are able to make surveillance more efficient.
