Product Function: Plug & Play

PL-104U

Turn your home or office powerline network into a 14Mbps Local Area Network by using PLANET PL-104U powerline communication product. Your power outlets are no longer regarded only as power receptacles of network connection point. Powerline is the most pervasive medium with multiple outlets in every room. Simply by plugging the USB interfaces of your computer into the PL-104U equipped power outlet, you are allowed to place a computer anywhere at home or small office with flawless and seamless high-speed network connection.

The PL-104U is a Powerline USB network adapter with an USB type B connector for directly connecting to computer’s USB port. It provides a power plug for directly connecting to wall outlet. Security of PLANET’s Powerline communication technology is ensured by using 56-bit DES encryption — the same system frequently used to protect banking systems all over the world, and is interference-free to avoid the problems of wireless systems.

PL-702

High-speed Ethernet Connection via HomePlug Powerline
With advanced HomePlug AV technology, PLANET PL-702 Nano Powerline Adapter extends a high speed up to 500Mbps in-house Ethernet connection to any power outlet. With hassle-free plug and play installation, it enables users to plug a pair of powerline adapters into the house power outlets, and then can easily enjoy high definition video streaming and network transmission. No more tripping over tangled, messy wires running through your house, the PL-702 is an ideal solution to creating a wall-to-wall home network.
Data Transfer Rate up to 500Mbps and Distance up to 300-meter Wiring
The PL-702 provides users with stable, high-speed data transfer rates up to 500Mbps on electric powerline length up to 300 meters with HomePlug AV technology. Therefore, the PL-702 can transmit multiple HD streams and even Full HD movies to every room, making it a great choice for easily building a multimedia entertainment network.
Securing Network Connection Just with the Touch of a Button
Simply by pushing the security button on the PL-702, users can easily set up a hassle-free secure Powerline network within minutes. It provides 128-bit AES encryption for network security and data protection.
Getting started is as easy as 1-2-3
1. Connect one Powerline Ethernet bridge to your ADSL or cable modem’s Ethernet port and plug it into the nearest power socket.
2. Plug in the second Powerline Ethernet Bridge in your room or office.
3. Connect the PC via the network cable to the Powerline Ethernet Bridge.
Then users can enjoy home broadband network right away.
Compact Nano-design Matches Nicely with any Surrounding
With dimensions of 67 (W) x 50 (D) x 32 (H) mm only, the PL-702 features a super compact and sleek design that blends in nicely with any surrounding at home or office.
Reducing Power Consumption up to 80%
With green technology applied, the PL-702 consumes less power when comparing to the existing Powerline Ethernet Adapters. Moreover, when there is no Ethernet link, the PL-702 will automatically switch to the “Power-saving” mode that would reduce energy wasting for over 80%* when compared to the adapters without this feature.
*Actual data will vary depending on the network conditions and environmental factors.
Efficient Bandwidth Management by QoS
Quality of Service (QoS) is provided by the PL-702 to guarantee the priorities of data traffic’s bandwidth even with other bandwidth intensive applications such as VoIP, IPTV, video streaming or online gaming running on the same network, thus improving its network efficiency.

PL-802

High-speed Data Transfer Rate
With advanced HomePlug AV2 technology, PLANET PL-802 Powerline Ethernet Bridge provides users with a stable, high-speed data transfer rate of up to 600Mbps over a powerline length of up to 300 meters. Therefore, the PL-802 can transmit multiple HD streams and even Full HD movies to every room, making it a great choice for easily building a multimedia entertainment network.
High Throughput Performance for Multi-stream Networking
PLANET continues to innovate on the success of powerline AV to deliver even better performance at higher speeds. The PL-802 compliant with Homeplug AV2 specification was released for next-generation powerline networking. It’s now faster than ever to handle the most demanding online services and applications. The convergence of voice, video and data within a variety of multi-function devices and new applications, merged with Smart Home applications or the Internet of Things (IoT), is driving the need for increased high throughput connectivity throughout the home while assuring a high level of reliability and sustained performance.
Full interoperability with other Powerline Ethernet Bridges
The AV2 powerline maintains full interoperability with other PLANET connected home technologies in order to facilitate a simple migration to next-generation powerline certified products. This is a key benefit, as the PL-802 enables users to connect with the HomePlug certified consumer electronics or networking products for internet access in homes without hassle.
Securing Network Connection with the Touch of a Button
Simply by pressing the button on the PL-802, users can easily set up a hassle-free, secure Powerline network within minutes. It provides 128-bit AES encryption for network security and data protection.
Getting Started is as Easy as 1-2-3

  1. Connect one Powerline Ethernet Bridge to your xDSL or cable modem’s Ethernet port and plug it into the nearest power socket.
  2. Plug in the second Powerline Ethernet Bridge in your room or office.
  3. Connect the PC/Laptop to the Powerline Ethernet Bridge via the network cable.

Users immediately have access to the Internet through the PC or laptop.
Reducing Power Consumption
The PL-802 consumes less power when compared with the existing Powerline Ethernet Adapters. Moreover, when there is no Ethernet link, the PL-802 will automatically switch to the “Power-saving” mode that would reduce energy wasting by over 80%* when compared with the adapters without this feature.
*Actual data will vary depending on the network conditions and environmental factors.
Efficient Bandwidth Management by QoS (Quality of Service)
Quality of Service (QoS) is provided by the PL-802 enabling a network to provide better service to selected network traffic over various technologies.

IHD-200PT

Make Advertising Effective and Easy
PLANET IHD-200 HDMI / Video Wall over IP with PoE delivers a great HD video distribution solution such as bringing an efficient and effective advertising deployment. The IHD-200 PoE series is the combination of the transmitter, IHD-200PT, and the receiver, IHD-200PR. They allow you to simultaneously send out a HDMI signal to one or more HDMI displays over a single Cat5/5e cable (or above) in the Ethernet infrastructure. Besides, by supporting PoE function, meaning there is no additional power supply needed, the IHD-200 PoE series thus reduces the complexity of cable installation.
The IHD-200 PoE series can distribute HD digital content from multiple sources to practically any number of remote displays on a LAN and deliver ultra high quality 1080p HDMI video broadcast over IP network. It not only offers smooth vivid 1080p full motion video with audio quality as CD, but also ensures the sharp images and text giving the viewers the maximum visual effect and ease of reading. By cascading multiple Ethernet switches as the backbone of the IHD-200 PoE series, it allows displays to be distributed far away from the source devices while sustaining consistent 1080p video and audio quality. The video sources can be rack centralized, decentralized or even a mixture of both. It thus increases the flexibility, scope and scalability of audio and video distribution via the Ethernet networks.

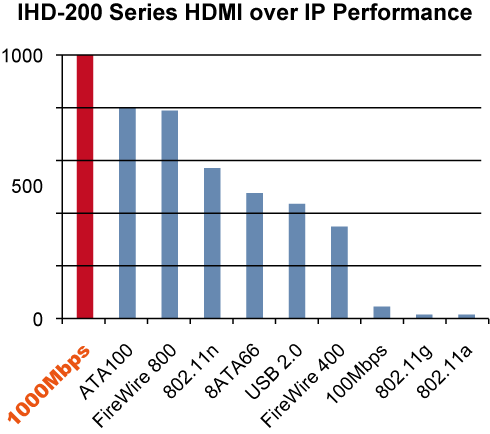

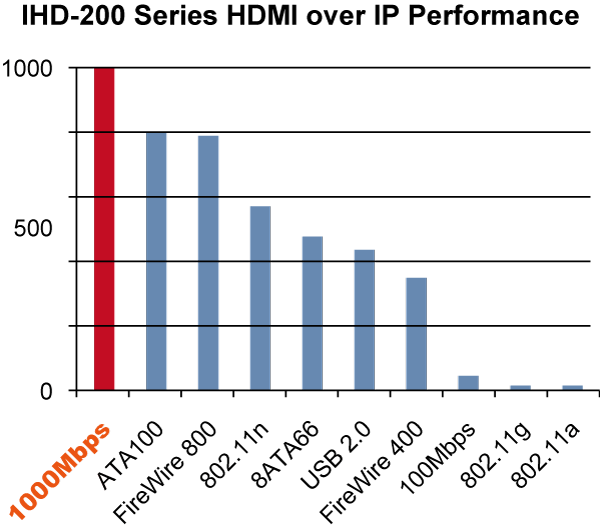

High-speed Video Distribution via Gigabit LAN
The IHD-200 PoE series is a perfect solution for audio and video signal extension via the existing LAN. Designed with Gigabit LAN interface, it supports super high speed transmission, which makes it ideal for live presentations, public broadcasting, education training, boardrooms, etc.

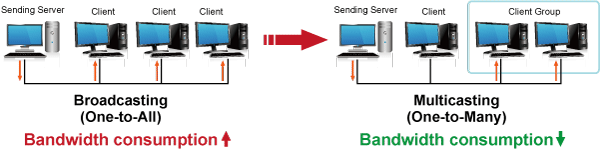

Exclusive Video Transmission by IGMP Multicast Technology
One IHD-200PT in local site can drive multiple IHD-200PRs in remote sites without consuming extra network loading. Integrated with Gigabit switch built-in with IGMP multicast functions, there are 16 channels selectable via the IHD-200 PoE series and up to 4 channels can be transmitted simultaneously. IGMP is an integral part of IP multicast and a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP can be used for one-to-many networking applications such as online streaming video and gaming, and allows exclusive transmission and more efficient use of resources.

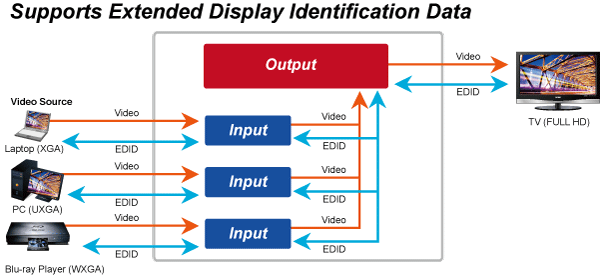

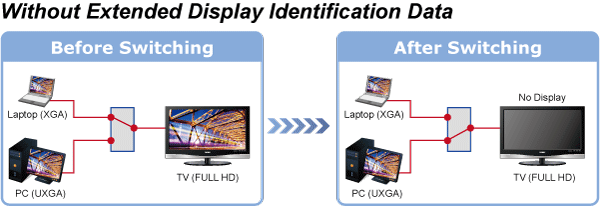

Extended Display Identification Data (EDID) Support
The IHD-200 PoE series adopts EDID (Extended Display Identification Data) COPY function to make smooth video distribution over different types of display units. EDID is greatly important as it contains information about resources’ manufacturer names, serial numbers, product types, maximum image sizes, color characteristics, factory pre-set timings, frequency range limits, etc. In some cases, display problems may occur due to incorrect EDID communication between the display monitor and the transmitting unit or inappropriate EDID data programmed by display manufacturers. Therefore, with EDID COPY function, the IHD-200 PoE series allows the system to copy EDID information from EDID compliant displays and assures accurate display performance.

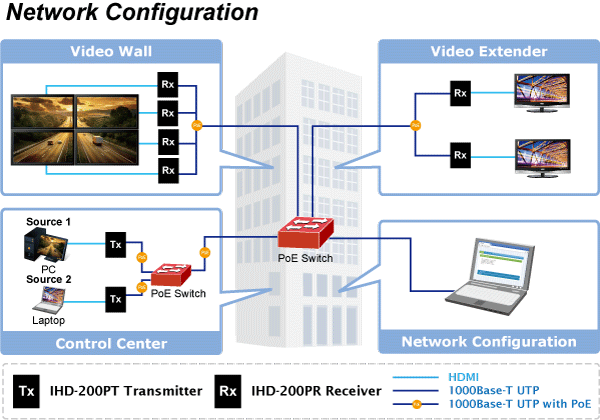

Easy Video Channel Matching through Network Configuration
The IHD-200 PoE series network can be configured by a central computer over the same LAN within a certain distance. Fully leveraging the mature Gigabit Ethernet with 802.1Q VLAN function, multi-casting can be performed to allow more video sources/senders in the network and be remotely managed. Just adjust and match video channel setting with the simple DIP switch in both the IHD-200PT and IHD-200PR. The video distribution is easily deployed through Plug and Play.
High-quality Output and Performance
The IHD-200 PoE series supports Full HD 1080p, HDCP and blu-ray quality, which have been commonly used for applications that require real-time high video resolution and transmission in long distance. It also contains security and noise immunity as well as HDMI with 2-ch. audio (dts.) functions to offer the superior video distribution.

IHD-200PR

Make Advertising Effective and Easy
PLANET IHD-200 HDMI / Video Wall over IP with PoE delivers a great HD video distribution solution such as bringing an efficient and effective advertising deployment. The IHD-200 PoE series is the combination of the transmitter, IHD-200PT, and the receiver, IHD-200PR. They allow you to simultaneously send out a HDMI signal to one or more HDMI displays over a single Cat5/5e cable (or above) Ethernet infrastructure. Besides, by supporting PoE function, meaning there is no additional power supply needed, the IHD-200 PoE series thus reduces the complexity of cable.
The IHD-200 PoE series can distribute HD digital content from multiple sources to practically any number of remote displays on a LAN and deliver ultra high quality 1080p HDMI video broadcast over IP network. It not only offers smooth vivid 1080p full motion video with audio quality as CD, but also ensures the sharp images and texts giving the viewers the maximum visual effect and ease of reading. By cascading multiple Ethernet switches as the backbone of the IHD-200 PoE series, it allows displays to be distributed far away from the source devices while sustaining consistent 1080p video and audio quality. The video sources can be rack centralized, decentralized or even a mixture of both. It thus increases the flexibility, scope and scalability of audio and video distribution via the Ethernet Networks.
High-speed Video Distribution via Gigabit LAN
The IHD-200 PoE series is a perfect solution for audio and video signal extension via the existing LAN. Designed with Gigabit LAN interface, it supports super high speed transmission, which makes it ideal for live presentations, public broadcasting, education training, boardrooms, etc.
Exclusive Video Transmission by IGMP Multicast Technology
One IHD-200PT in local site can drive multiple IHD-200PR in remote sites without consuming extra network loading. Integrated with Gigabit switch built-in with IGMP multicast functions, there are 16 channels selectable via the IHD-200 PoE series and up to 4 channels can be transmitted simultaneously. IGMP is an integral part of IP multicast and a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP can be used for one-to-many networking applications such as online streaming video and gaming, and allows exclusive transmission and more efficient use of resources.

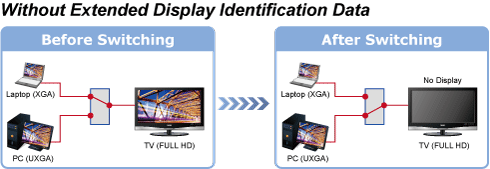

Extended Display Identification Data (EDID) Support
The IHD-200 PoE series adopts EDID (Extended Display Identification Data) COPY function to make smooth video distribution over different types of display units. EDID is greatly important as it contains information about resources’ manufacturer names, serial numbers, product types, maximum image sizes, color characteristics, factory pre-set timings, frequency range limits, etc. In some cases, display problems may occur due to incorrect EDID communication between the display monitor and the transmitting unit or inappropriate EDID data programmed by display manufacturers. Therefore, with EDID COPY function, the IHD-200 PoE series allows the system to copy EDID information from EDID compliant displays and assures accurate display performance.

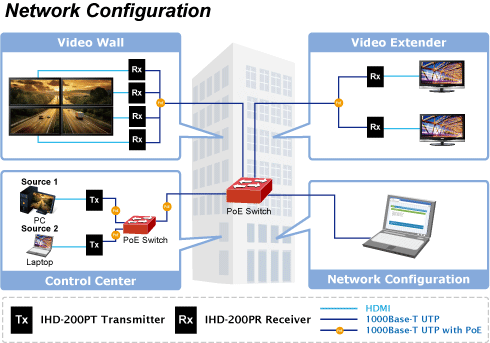

Easy Video Channel Matching through Network Configuration
The IHD-200 PoE series network can be configured by a central computer over the same LAN within a certain distance. Fully leveraging the mature Gigabit Ethernet with 802.1Q VLAN function, multi-casting can be performed to allow more video sources/senders in the network and be remotely managed. Just adjust and match video channel setting by the simple DIP switch in both the IHD-200PT and IHD-200PR. The video distribution is easily deployed through Plug and Play.
High-quality Output and Performance
The IHD-200 PoE series supports Full HD 1080p, HDCP and blu-ray quality, which have been commonly used for applications that require real-time high video resolution and transmission in long distance. It also contains security and noise immunity as well as HDMI with 2ch. audio (dts.) functions to offer the superior video distribution.

VC-202A

Ethernet Distance Extension via Coaxial
PLANET VC-202A is a high-performance Ethernet-over-Coaxial extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the VC-202A uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the VC-202A utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 3km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.
Cost-effective / Quick Upgrade Legacy Devices to All IP Networks
PLANET VC-202A Ethernet extender provides a quick replacement and smooth migration solution from existing analog system to full digital system. For example:
• Upgrade analog camera to digital IP Camera
• IP Digital Signage deployment
• Cable TV to IPTVThe VC-202A is equipped with one RJ-45 and one BNC port to transmit the Ethernet data over the most widespread coaxial cable. Therefore, it is very suitable and costless for upgrading legacy devices to new digital devices of IP-based network because almost every house or block on the street could use the existing coaxial cable to transmit data to the Internet and the whole building could share the Internet line in the wide network area at a minimum cost. Reusing the existing cable instead of new wire can save extra wiring cost as the coaxial cable and Ethernet line are already available.Easy Installation
There are two selectable models of the VC-202A, one is used for client side (CPE) and the other is for central side (CO). The VC-202A converter is a plug and play device without the need of configuring by software and is also compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of individual port and the whole system.Providing Superior Upstream and Downstream Transmission
The VC-202A defines asymmetric (Plan 998) and symmetric mode for the transmission of upstream and downstream signals. The symmetric mode provides similar transmission rate on both downstream and upstream. On the other hand, the asymmetric mode performs higher transmission quality in short range for central side (CO). In all, when the VC-202A is in symmetric mode, it provides better upstream performance, and when it is in asymmetric mode, it gives better downstream performance.

High Performance VDSL2 Solution

VC-234

100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution
PLANET VC-234 is an Ethernet-over-VDSL2 Bridge with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-234 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 20/4Mbps for 1.4km long range connections.Implementing with Existing Telephone Copper Wires
The VC-234 is also a Long Reach Ethernet (LRE) Bridge providing four RJ-45 Ethernet ports and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-234 has built-in POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-234 into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-234 is ideal to be used as an Ethernet extender to an existing Ethernet network.Delivering High-Demand Service Connectivity for ISP / Triple Play Devices
The VC-234 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-234 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.Easy & Flexible Installation
The Ethernet-over-VDSL2 Bridge comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-234 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-234 and a CO mode VC-234 must be setup as one pair of converters to perform the connection.

Providing Superior Upstream and Downstream Transmission Performance
The VC-234 also defines symmetric band plan for the transmission of upstream and downstream signals; the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VC-234 is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VC-234 is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.

High Performance VDSL2 Solution

VC-231

100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution
PLANET VC-231 is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-231 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4km long range connections.Implementing with Existing Telephone Copper Wires
The VC-231 is also a Long Reach Ethernet (LRE) converter providing one RJ-45 Ethernet port and one RJ-11 phone jack that is for VDSL2 connection. By using the additional Splitter from package of VC-231, the splitter can provide POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-231 with additional splitter into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-231 is ideal to be used as an Ethernet extender to an existing Ethernet network.Delivering High-Demand Service Connectivity for ISP / Triple Play Devices
The VC-231 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-231 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.Easy & Flexible Installation
The Ethernet-over-VDSL2 Converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231 and a CO mode VC-231 must be setup as one pair of converters to perform the connection.

Providing Superior Upstream and Downstream Transmission Performance
The VC-231 also defines symmetric band plan for the transmission of upstream and downstream signals, the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VC-231 is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VC-231 is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.

High Performance VDSL2 Solution

VC-201A

High Performance Ethernet over VDSL Solution
PLANET VC-201A is an Ethernet-over-VDSL2 media converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers the absolutely fastest data transmission speeds over existing copper telephone lines without the need of rewiring. The VC-201A supports ultra-high performance to the pervasive telephone line network with up to 100/55Mbps asymmetric data rate within 200m and 25/4Mbps for 1.6km long range connections.Implementing with Existing Telephone Copper Wires
The VC-201A is also a Long Reach Ethernet (LRE) converter providing one RJ-45 Ethernet port and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-201A has a built-in POTS splitter to share the existing phone line with POTS, therefore it is no need of replacing the existing copper wiring. Just plug the VC-201A into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network.Delivering High-Demand Services Connectivity for ISP / Triple Play Devices
The VC-201A provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/55Mbps symmetric data transmission, the VC-201A enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.Easy Installation
The Converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. There are two selectable models of the VC-201A, one is used at client side (CPE) and the other one is at central side (CO). The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-201A and a CO mode VC-201A must be set up as one pair of converters to perform the connection.

Providing Superior Upstream and Downstream Transmission
The VC-201A also defines asymmetric (Plan 998) and symmetric (Plan 997) band plans for the transmission of upstream and downstream signals. The featured band plan 997 provides the symmetric transmission on both downstream and upstream. On the other hand, the band plan 998 performs higher transmission quality in short range for central side (CO) in asymmetric mode. In all, when the VC-201A is in symmetric mode, it provides better upstream performance, and when the VC-201A is in asymmetric mode, it gives better downstream performance.

SKG-300

Planet VoIP Gateway SKG-300 offers the seamless integration of traditional and IP-based telephony, allowing any standard home phone to turn into a dual function PSTN and Skype handset. Just pick up the standard home phone and press the hot key to enable user to call anyone no matter the receiver is using PSTN or Skype.

The SKG-300 also provides Incoming Call Forwarding feature, that is, an easy configuration that allows user to forward the incoming calls to the specific Skype account or PSTN call. Without many technical details, consumers can enjoy the SKG-300’s unparalleled functionality such as three-way conference calling between PSTN and Skype callers and automatic switching between analog and digital sessions.

It has never been so easy to take advantage of VoIP benefits which provide consumers with the most straightforward mechanism for placing high-quality, and competitively-priced voice over IP calls. Just requiring a simple installation and configuration, Planet VoIP Gateway SKG-300 will be the ideal for both residential telephony and the mobile computing.
