| Wireless Management Solution in All Aspects PLANET WAPC-2864HP, a brand-new Wireless Access Point Controller, features smart AP control, L2+/L4 IP management and intelligent PoE capability to enable service providers and IT managers to control all wireless APs at the same time in small and medium wireless network environments, such as hotels, villas, resorts and any public area. The WAPC-2864HP provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with 24 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+, 4 shared Gigabit SFP slots and 4 10G SFP+ uplink slots. Its simplified deployment and management ease the integration of devices into the existing wired and wireless networks. |
 |
| Centralized Remote Control of Managed APs PLANET Wireless AP Controller features centralized remote control of managed APs without needing to manually configure each AP for the wireless SSID, radio band and security settings. With one click of the mouse for the one-time configuration of the WAPC-2864HP’s wireless parameters, wireless settings of multiple APs can be simultaneously established to minimize deploying time, effort and cost. |
 |
| Optimizing Wireless Network within Minutes The WAPC-2864HP offers a user-friendly Web GUI for easy configuration. It enables wireless IT managers to complete a five-step configuration process of multiple APs. Through this Web interface, the wireless IT managers can discover manageable APs on the networks first, edit AP profiles and then apply the profiles to selected AP or AP group. Following these steps, configurations for multiple APs can be done in just a few minutes. |
 |
| Wireless AP Cluster Management The WAPC-2864HP supports wireless AP cluster management, which enables the central management of a group of wireless APs at one time. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group in the future. |
 |
| Centralized Power Management for Wireless AP Networking The 24 Gigabit PoE ports of the WAPC-2864HP can be used to provide power directly to APs that connect to the AP controller. Each of the 24 Gigabit ports provides 30 watts of power, which means a total power budget of up to 440 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to Access Points for small businesses and enterprises.Built-in Unique PoE Functions for AP Power Control As a managed PoE Switch for stable and reliable wireless AP operation, the WAPC-2864HP features special PoE Management functions: ■ AP Alive Check ■ Scheduled AP Power Recycling ■ PoE Schedule ■ SMTP/SNMP Trap Event AlertIntelligent PoE AP Alive Check The WAPC-2864HP can be configured to monitor connected AP status in real time via ping action. Once the AP stops working and responding, the WAPC-2864HP will recycle the PoE port power and bring the AP back to work. It will greatly enhance the network reliability through the PoE port resetting the AP’s power source and reduce administrator management burden. |
 |
| PoE Schedule for Energy Saving The “PoE schedule” function enables wireless IT managers to activate or inactivate PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and money.Cost-effective 10Gbps Uplink Capacity 10G Ethernet is a big leap in the evolution of Ethernet. The four 10G SFP+ slots of the WAPC-2864HP support Dual-speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. |
 |
| Robust Layer2 Features The WAPC-2864HP can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop protection, IGMP/MLD snooping, Layer 2/4 QoS, and bandwidth control. The WAPC-2864HP allows the operation of a high-speed trunk with multiple ports and supports connection fail-over as well.Powerful Security The WAPC-2864HP offers comprehensive layer 2 to layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based users and device authentication. |
| Enhanced Security and Traffic Control The WAPC-2864HP also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.User-friendly Secure Management For efficient management, the WAPC-2864HP is equipped with console, Web and SNMP management interfaces. With the built-in web-based management interface, the WAPC-2864HP offers an easy-to-use, platform independent management and configuration facility. Moreover, the WAPC-2864HP offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can have the packet content encrypted at each session. |
Product Function: PoE Schedule
WAPC-1232HP
| Wireless Management Solution in All Aspects PLANET WAPC-1232HP, a brand-new Wireless Access Point Controller, features smart AP control, L2+/L4 IP management and intelligent PoE capability to enable service providers and IT managers to control all wireless APs at the same time in small and medium wireless network environments, such as hotels, villas, resorts and any public area deployment. The WAPC-1232HP provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with 8 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots. Its simplified deployment and management ease the integration of devices into the existing wired and wireless networks. |
 |

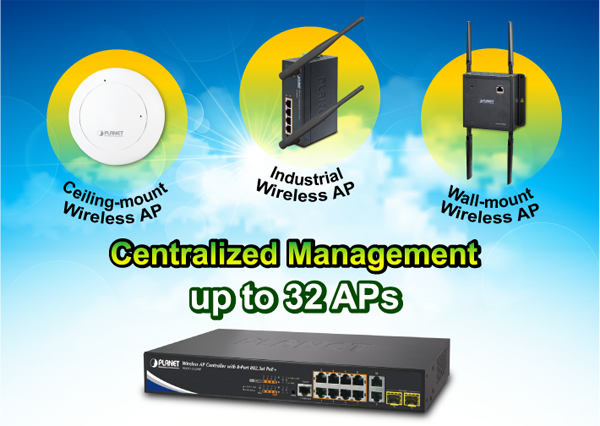

| Centralized Remote Control of Managed APs PLANET Wireless AP Controller features centralized remote control of managed APs without needing to manually configure each AP for the wireless SSID, radio band and security settings. With one click of the mouse for the one-time configuration of the WAPC-1232HP’s wireless parameters, wireless settings of multiple APs can be simultaneously established to minimize deploying time, effort and cost. |
 |

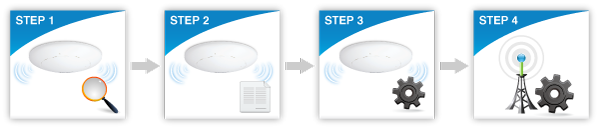

| Optimizing Wireless Network within Minutes The WAPC-1232HP offers a user-friendly Web GUI for easy configuration. It enables wireless IT managers to complete a four-step configuration process of multiple APs. Through this Web interface, the wireless IT managers can discover manageable APs on the networks first, edit AP profiles and then apply the profiles to selected AP or AP group. Following these steps, configurations for multiple APs can be done in just a few minutes. |
 |

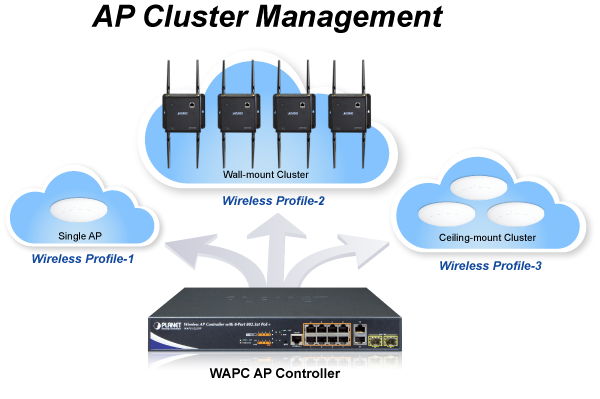

| Wireless AP Cluster Management The WAPC-1232HP supports wireless AP cluster management, which enables the central management of a group of wireless APs at one time. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group in the future. |
 |
| Centralized Power Management for Wireless AP Networking The eight Gigabit PoE ports of the WAPC-1232HP can be used to provide power directly to APs that connect to the AP controller. Each of the eight Gigabit ports provides 30 watts of power, which means a total power budget of up to 240 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to Access Points for small businesses and enterprises. |
 |

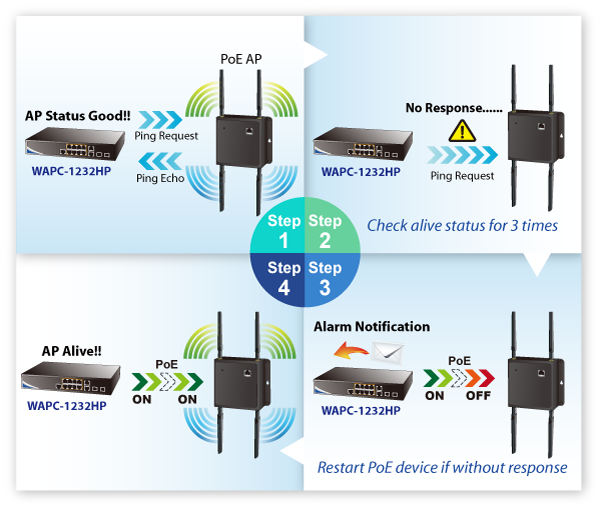

| Built-in Unique PoE Functions for AP Power Control As a managed PoE Switch for stable and reliable wireless AP operation, the WAPC-1232HP features special PoE Management functions: ■ AP Alive Check ■ Scheduled AP Power Recycling ■ PoE Schedule ■ SMTP/SNMP Trap Event AlertIntelligent PoE AP Alive Check The WAPC-1232HP can be configured to monitor connected AP status in real time via ping action. Once the AP stops working and responding, the WAPC-1232HP will recycle the PoE port power and bring the AP back to work. It will greatly enhance the network reliability through the PoE port resetting the AP’s power source and reduce administrator management burden. |
 |
| PoE Schedule for Energy Saving The “PoE schedule” function enables wireless IT managers to activate or inactivate PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and money.Robust Layer2 Features The WAPC-1232HP can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop protection, IGMP/MLD snooping, Layer 2/4 QoS, and bandwidth control. The WAPC-1232HP allows the operation of a high-speed trunk with multiple ports and supports connection fail-over as well. |
| Powerful Security The WAPC-1232HP offers comprehensive layer2 to layer4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based users and device authentication.Enhanced Security and Traffic Control The WAPC-1232HP also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before. |
| User-friendly Secure Management For efficient management, the WAPC-1232HP is equipped with console, Web and SNMP management interfaces. With the built-in web-based management interface, the WAPC-1232HP offers an easy-to-use, platform independent management and configuration facility. Moreover, the WAPC-1232HP offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can have the packet content encrypted at each session. |
BSP-360
| Industry-leading Integration of PoE Technology and Renewable Power System PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Managed Ethernet Switch, BSP-360, is designed for deploying a surveillance or wireless network and remotely monitoring and managing the IP-based devices. Based on its green technology, the BSP-360 can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs, especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways. |
 |
| Zero-Carbon and Stable Power Supply The BSP-360 utilizes the solar power sourcing and co-works with the common nickel-cadmium battery or lead-acid battery to form an independent solar power supply system for outdoor network system. The BSP-360 delivers zero-carbon and uninterruptible PoE power supply for continuous outdoor wireless and IP surveillance applications without the need of any cabling. It can power the client devices and can be charged at the same time during the day to enable to continue the operation at night. |
 |
| Built-in Unique Power Functions for Battery Management As it is the power managed for battery and power consumption, the BSP-360 features the following special power management functions:
|
| Battery Current Usage status and Statistics The administrator can remotely access the BSP-360 to know the power status of the battery and renewable energy, and the estimated time of power consumption. |
 |
| Low Voltage Cut-Off Protection If the power is too low to empower the system and IP devices, the system will automatically power off the device with low priority to make sure the system works normally, and an alert is then sent to the administrator at the same time. |
 |
| Built-in Unique PoE Functions for Powered Devices Management As it is the managed PoE switch for surveillance, wireless and VoIP networks, the BSP-360 features the following special PoE management functions:
|
| Intelligent Powered Device Alive Check The BSP-360 can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the BSP-360 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. |
 |
| Scheduled Power Recycling The BSP-360 allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. |
 |
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection, the BSP-360 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours. |
 |
| PoE Usage Monitoring and Intelligent LED Indicator for Real-time PoE Usage Via the power usage chart in the web management interface, the BSP-360 enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the BSP-360 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the BSP-360 has three LED indicators of different power usages. |
 |
UPOE-800G
| PLANET Ultra PoE Managed Injector Hub series, a cost-effective and quick Ultra PoE solution, is designed to perfectly upgrade an existing network infrastructure to Ultra Power over Ethernet network system without replacing the existing Ethernet Switch. |
| Ready to Deploy Next Generation Power over Ethernet The UPOE-800G is a high-density, rack-mountable managed Ultra PoE injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 8 10/100/1000BASE-T Ethernet ports featuring Ultra PoE injector with a total PoE budget of 400 watts. Each PoE port can deliver up to 60-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 60W and 802.3at/af powered device (PD). The UPOE-800G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.Quick and Easy PoE Network Deployment The UPOE-800G is installed between a regular Ethernet Switch and the PDs. There are totally 16 RJ45 STP ports on the front panel of the UPOE-800G, of which the 8 ports are on the lower stack functioned as “Data input” while the other 8 ports are on the upper stack functioned as “PoE (Data and Power) output“. Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions. |
 |
| With data and Power over Ethernet from one unit, the UPOE-800G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
802.3bt Ready — 60 Watts of Power over 4-Pair UTP System |
 |
| Friendly Web Management Interface To efficiently manage the powered devices, the UPOE-800G provides simple Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home. |
 |
| Built-in Unique PoE Functions for Powered Device Management As it is the managed Ultra PoE Injector Hub for VoIP, wireless and surveillance networks, the UPOE-800G features the following special PoE management functions: ■ PoE schedule ■ PD alive check ■ Scheduled power recycling ■ UPOE, end-span or mid-span selectable in PoE Power Output Mode ■ PoE usage monitoring ■ Over temperature protectionIntelligent Powered Device Alive Check PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The UPOE-800G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the UPOE-800G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden. |
 |
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the UPOE-800G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours. |
 |
| Advanced PoE Power Output Mode Management To fill the demand of various powered devices consuming stable PoE power, the UPOE-800G provides three different PoE power output modes for selection. ■ 60W UPOE PoE Power Output Mode (Pin 1, 2, 3, 6 + Pin 4, 5, 7, 8) ■ 30W End-span PoE Power Output Mode (Pin 1, 2, 3, 6) ■ 30W Mid-span PoE Power Output Mode (Pin 4, 5, 7, 8) |
 |
| Advanced Power Management To facilitate power management, the UPOE-800G comes with powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocation to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold.Intelligent LED Indicator for Real-time PoE Usage The UPOE-800G helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the UPOE-800G has four green LEDs indicating 100W, 200W, 300W and 400W of PoE power usage. |
 |
| PoE Usage Monitoring Via the power usage chart in the web management interface, the UPOE-800G enables the administrator to monitor the status of the power usage of the connected PDs in real time.High Power Budget for 802.3at PoE Extension With IEEE 802.3af/802.3at PoE output capability, the UPOE-800G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.Smart Fan Design for Silent Operation The UPOE-800G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the Ultra PoE Managed Injector Hub for optimal power output capability. The UPOE-800G is able to operate reliably, stably and quietly in any environment without affecting its performance. |
UPOE-1600G
| PLANET Ultra PoE Managed Injector Hub series, a cost-effective and quick Ultra PoE solution, is designed to perfectly upgrade an existing network infrastructure to Ultra Power over Ethernet network system without replacing the existing Ethernet Switch. |
| Ready to Deploy Next Generation Power over Ethernet The UPOE-1600G is a high-density, rack-mountable managed Ultra PoE injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 16 10/100/1000BASE-T Ethernet ports featuring Ultra PoE injector with a total PoE budget of 600 watts. Each PoE port can deliver up to 60-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 60W and 802.3at/af powered device (PD). The UPOE-1600G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.Quick and Easy PoE Network Deployment The UPOE-1600G is installed between a regular Ethernet Switch and the PDs. There are totally 32 RJ45 STP ports on the front panel of the UPOE-1600G, of which the16 ports are on the lower stack functioned as “Data input” while the other 16 ports are on the upper stack functioned as “PoE (Data and Power) output“. Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions. |
 |
| With data and Power over Ethernet from one unit, the UPOE-1600G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
802.3bt Ready — 60 Watts of Power over 4-Pair UTP System |
 |
| Friendly Web Management Interface To efficiently manage the powered devices, the UPOE-1600G provides simple Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home. |
 |
| Built-in Unique PoE Functions for Powered Device Management As it is the managed Ultra PoE Injector Hub for VoIP, wireless and surveillance networks, the UPOE-1600G features the following special PoE management functions: ■ PoE schedule ■ PD alive check ■ Scheduled power recycling ■ UPOE, end-span or mid-span selectable in PoE Power Output Mode ■ PoE usage monitoring ■ Over temperature protectionIntelligent Powered Device Alive Check PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The UPOE-1600G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the UPOE-1600G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden. |
 |
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the UPOE-1600G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours. |
 |
| Advanced PoE Power Output Mode Management To fill the demand of various powered devices consuming stable PoE power, the UPOE-1600G provides three different PoE power output modes for selection. ■ 60W UPOE PoE Power Output Mode (Pin 1, 2, 3, 6 + Pin 4, 5, 7, 8) ■ 30W End-span PoE Power Output Mode (Pin 1, 2, 3, 6) ■ 30W Mid-span PoE Power Output Mode (Pin 4, 5, 7, 8) |
 |
| Advanced Power Management To facilitate power management, the UPOE-1600G comes with powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocation to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold.Intelligent LED Indicator for Real-time PoE Usage The UPOE-1600G helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the UPOE-1600G has four green LEDs indicating 150W, 300W, 450W and 600W of PoE power usage. |
 |
| PoE Usage Monitoring Via the power usage chart in the web management interface, the UPOE-1600G enables the administrator to monitor the status of the power usage of the connected PDs in real time.High Power Budget for 802.3at PoE Extension With IEEE 802.3af/802.3at PoE output capability, the UPOE-1600G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.Smart Fan Design for Silent Operation The UPOE-1600G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the Ultra PoE Managed Injector Hub for optimal power output capability. The UPOE-1600G is able to operate reliably, stably and quietly in any environment without affecting its performance. |
BSP-360
| Industry-leading Integration of PoE Technology and Renewable Power System PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Managed Ethernet Switch, BSP-360, is designed for deploying a surveillance or wireless network and remotely monitoring and managing the IP-based devices. Based on its green technology, the BSP-360 can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs, especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways. |
|
|
| Zero-Carbon and Stable Power Supply The BSP-360 utilizes the solar power sourcing and co-works with the common nickel-cadmium battery or lead-acid battery to form an independent solar power supply system for outdoor network system. The BSP-360 delivers zero-carbon and uninterruptible PoE power supply for continuous outdoor wireless and IP surveillance applications without the need of any cabling. It can power the client devices and can be charged at the same time during the day to enable to continue the operation at night. |
|
|
| Built-in Unique Power Functions for Battery Management As it is the power managed for battery and power consumption, the BSP-360 features the following special power management functions:
|
| Battery Current Usage status and Statistics The administrator can remotely access the BSP-360 to know the power status of the battery and renewable energy, and the estimated time of power consumption. |
|
|
| Low Voltage Cut-Off Protection If the power is too low to empower the system and IP devices, the system will automatically power off the device with low priority to make sure the system works normally, and an alert is then sent to the administrator at the same time. |
|
|
| Built-in Unique PoE Functions for Powered Devices Management As it is the managed PoE switch for surveillance, wireless and VoIP networks, the BSP-360 features the following special PoE management functions:
|
| Intelligent Powered Device Alive Check The BSP-360 can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the BSP-360 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. |
|
|
| Scheduled Power Recycling The BSP-360 allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. |
|
|
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection, the BSP-360 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours. |
|
|
| PoE Usage Monitoring and Intelligent LED Indicator for Real-time PoE Usage Via the power usage chart in the web management interface, the BSP-360 enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the BSP-360 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the BSP-360 has three LED indicators of different power usages. |
|
|
POE-1200G
|
||||||||||||||||||||||||||||
POE-2400G
| PLANET POE Managed PoE Injector Hub series, a cost-effective and quick PoE solution, is designed to perfectly upgrade an existing network infrastructure to IEEE 802.3at Power over Ethernet Plus network system without replacing the existing Ethernet Switch. |
 |
| A Perfect Managed PoE+ Injector Hub With PoE in great demand, the IEEE 802.3af standard is being replaced by IEEE 802.3at (also known as PoE Plus) Type 1. PLANET new POE-2400G is specifically designed to support 802.3at PoE+. The POE-2400G is a high-density, rack-mountable managed PoE+ injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. As its name implies, the unit can inject a total PoE budget of 440 watts into PDs. Its 24 10/100/1000BASE-T Ethernet ports can each deliver up to 36 watts of power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to remote 802.3at/af powered devices (PDs).Quick and Easy PoE Network Deployment The POE-2400G is installed between a regular Ethernet Switch and the PDs. There are totally 48 RJ45 STP ports on the front panel of the POE-2400G, of which the 24 ports are on the lower stack functioned as “Data input” while the other 24 ports are on the upper stack functioned as “PoE (Data and Power) output“. Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions. |
 |
| With data and Power over Ethernet from one unit, the POE-2400G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
IEEE 802.3at PoE+ Standard Compliance |
 |
| Friendly Web Management Interface To efficiently manage the powered devices, the POE-2400G provides simple Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home. |
 |
| Built-in Unique PoE Functions for Powered Device Management As it is the managed PoE Injector Hub for VoIP, wireless and surveillance networks, the POE-2400G features the following special PoE management functions: ■ PoE schedule ■ PD alive check ■ Scheduled power recycling ■ PoE usage monitoring ■ Over temperature protectionIntelligent Powered Device Alive Check PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The POE-2400G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the POE-2400G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden. |
 |
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the POE-2400G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. |
 |
| Advanced Power Management To facilitate power management, the POE-2400G comes with powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocation to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold.PoE Usage Monitoring Via the power usage chart in the web management interface, the POE-2400G enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.High Power Budget for PoE Extension With 36-watt PoE output capability, the POE-2400G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.Smart Fan Design for Silent Operation The POE-2400G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability. The POE-2400G is able to operate reliably, stably and quietly in any environment without affecting its performance. |
HPOE-2400G
| PLANET HPOE Managed PoE Injector Hub series, a cost-effective and quick PoE solution, is designed to perfectly upgrade an existing network infrastructure to IEEE 802.3at Power over Ethernet Plus network system without replacing the existing Ethernet Switch. |
 |
| A Perfect Managed PoE+ Injector Hub with Full Power Budget The HPOE-2400G is a high-density, rack-mountable managed PoE+ injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 24 10/100/1000BASE-T Ethernet ports featuring 802.3at PoE+ injector with a total PoE budget of 720 watts. Each PoE port can deliver up to 36-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3at/af powered device (PD). The HPOE-2400G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.Quick and Easy PoE Network Deployment The HPOE-2400G is installed between a regular Ethernet Switch and the PDs. There are totally 48 RJ45 STP ports on the front panel of the HPOE-2400G, of which the 24 ports are on the lower stack functioned as “Data input” while the other 24 ports are on the upper stack functioned as “PoE (Data and Power) output“. Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions. |
 |
| With data and Power over Ethernet from one unit, the HPOE-2400G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
IEEE 802.3at PoE+ Standard Compliance |
 |
| Friendly Web Management Interface To efficiently manage the powered devices, the HPOE-2400G provides simple Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home. |
| Built-in Unique PoE Functions for Powered Device Management As it is the managed PoE Injector Hub for VoIP, wireless and surveillance networks, the HPOE-2400G features the following special PoE management functions: ■ PoE schedule ■ PD alive check ■ Scheduled power recycling ■ PoE usage monitoring ■ Over temperature protectionIntelligent Powered Device Alive Check PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The HPOE-2400G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the HPOE-2400G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden. |
 |
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the HPOE-2400G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. |
 |
| Advanced Power Management To facilitate power management, the HPOE-2400G comes with powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocation to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold.PoE Usage Monitoring Via the power usage chart in the web management interface, the HPOE-2400G enables the administrator to monitor the status of the power usage of the connected PDs in real time.High Power Budget for PoE Extension With 36-watt PoE output capability, the HPOE-2400G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.Smart Fan Design for Silent Operation The HPOE-2400G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability. The HPOE-2400G is able to operate reliably, stably and quietly in any environment without affecting its performance. |
HPOE-1200G
| PLANET HPOE Managed PoE Injector Hub series, a cost-effective and quick PoE solution, is designed to perfectly upgrade an existing network infrastructure to IEEE 802.3at Power over Ethernet Plus network system without replacing the existing Ethernet Switch. |
 |
| A Perfect Managed PoE+ Injector Hub with Full Power Budget The HPOE-1200G is a high-density, rack-mountable managed PoE+ injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 12 10/100/1000BASE-T Ethernet ports featuring 802.3at PoE+ injector with a total PoE budget of 360 watts. Each PoE port can deliver up to 36-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3at/af powered device (PD). The HPOE-1200G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.Quick and Easy PoE Network Deployment The HPOE-1200G is installed between a regular Ethernet Switch and the PDs. There are totally 24 RJ45 STP ports on the front panel of the HPOE-1200G, of which the 12 ports are on the lower stack functioned as “Data input” while the other 12 ports are on the upper stack functioned as “PoE (Data and Power) output“. Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions. |
 |
| With data and Power over Ethernet from one unit, the HPOE-1200G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
IEEE 802.3at PoE+ Standard Compliance |
 |
| Friendly Web Management Interface To efficiently manage the powered devices, the HPOE-1200G provides simple Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home. |
 |
| Built-in Unique PoE Functions for Powered Device Management As it is the managed PoE Injector Hub for VoIP, wireless and surveillance networks, the HPOE-1200G features the following special PoE management functions: ■ PoE schedule ■ PD alive check ■ Scheduled power recycling ■ PoE usage monitoring ■ Over temperature protectionIntelligent Powered Device Alive Check PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The HPOE-1200G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the HPOE-1200G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden. |
 |
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the HPOE-1200G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. |
 |
| Advanced Power Management To facilitate power management, the HPOE-1200G comes with powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocation to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold.PoE Usage Monitoring Via the power usage chart in the web management interface, the HPOE-1200G enables the administrator to monitor the status of the power usage of the connected PDs in real time.High Power Budget for PoE Extension With 36-watt PoE output capability, the HPOE-1200G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.Smart Fan Design for Silent Operation The HPOE-1200G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability. The HPOE-1200G is able to operate reliably, stably and quietly in any environment without affecting its performance. |
