MC-1610MR/MC-1610MR48

Highly Flexible and Remote Manageable Fiber-Optic Networking for FTTx, ISP MAN / LAN, Enterprise and Campus
For powerfully, advanced fiber-optic function and cost-effective solution, PLANET has released a new Managed Media Converter Chassis series, MC-1610MR / MC-1610MR48, which provides 16 media converter slots and one management system in a 19-inch rack chassis. The MC-1610MR series is designed for FTTx applications by ISPs, telecoms, campuses and enterprises.The MC-1610MR series helps to easily build the FTTx installation and perfectly satisfy diverse demands. The 16 slots can be flexibly applied with PLANET Fast / Gigabit Ethernet Smart Media Converter (FST-8 / GST-8 series) to construct FTTH (Fiber to the Home), FTTB (Fiber to the Building) or FTTC (Fiber to the Curb) network solution for ISPs, enterprises and campuses. The MC-1610MR series is a reliable and efficient solution for network application where distance and installation budget are highly concerned.Diversified Central Management
The management function provided by the MC-1610MR series enables network administrators to monitor Media Converter connection status and configure the Converter remotely via Web browser or locally via an RS-232 console port. Through the management interface, the entire status of the converters such as link on/off or statistics of the port will be clearly demonstrated and monitored. The MC-1610MR series is ideal for telecom and corporate applications where a number of fiber links need to be managed and controlled from a central location.Extremely Reliable Design to ensure continuous operation
The MC-1610MR series supports the optional hot-swappable Redundant Power System (RPS) to ensure continuous operation. Both the MC-1610MR and MC-1610MR48 are equipped with one 100~240V AC power supply unit and one -48V DC power supply unit, which come in the package, respectively. To enhance the reliability, they each have one spare power supply slot for that optional purpose. The continuous power systems are specifically designed to meet the demands for high tech facilities requiring the highest power integrity available. Also, 48V DC power supply offered makes the MC-1610MR series as a telecom level device that can be located in the electronic room.

Fiber-Optic Redundant Link
The redundancy back-up and error tolerance capability of the link can be greatly improved to guarantee the network stability. The redundant link is designed for critical networks that require fibers or copper links to rapid recover automatically, such as ISPs, telecom, hospitals, banks and enterprises. If the master converter link is down, it forwards the packet to the slave converter’s port of the backup pair.

Temperature and FAN Status Monitoring
The Managed Media Converter Chassis is equipped with temperature sensor and cooling fans to ensure reliable operation. Whenever the abnormal temperature is detected or cooling fan stops service, the Managed Media Converter Chassis would display related information on the Web management interface. Therefore, it helps the administrator to efficiently manage the media conversion operation.

Flexibility and Extension
The MC-1610MR series allows the connection of up to 16 PLANET Smart Fast / Gigabit Ethernet Converters in one chassis. With an independent power supply on each slot of the MC-1610MR series, any converter is hot-swappable without causing an interruption to other converters. Each bay of the Media Converter Chassis can be populated with PLANET’s Smart Media Converters. PLANET FST and GST Smart Media Converter series provides media conversion between copper to FX, SX and LX optical model for distance from 220m and up to 120km kilometers. The flexibility allows the MC-1610MR series to provide space with an efficient and cost-effective scalable solution even when the network scale grows.

MC-1500R48

High Density Chassis for Multiple Converter Installation
PLANET MC-1500R48 provides 15 slots for a wide range of PLANET media converter series. It allows the connectivity of up to 15 PLANET Ethernet, Fast Ethernet, Gigabit Ethernet or VDSL2 Converters in one chassis. The 15 slots in the 19″ rack save more space for fiber-optic wiring, simplifies the structure and eases the maintenance of media conversion.Plug and Play / Flexible Installation
The MC-1500R48 offers flexibility in installation and cost-effective scalable solution. With an independent power supply on each slot of the MC-1500R48, any converter is hot-swappable without causing an interruption to other converters. The media converters and power modules can be plugged and played anytime. Each bay of the media converter chassis can be populated with any of PLANET’s media converter series, the FT, GT, VC-20x and ICS, to provide media conversion between fiber optic, phone wire and serial to copper lines.

MC-1500R

High Density Chassis for multiple converter installation
The MC-1500R provides 15 slots for a wide range of PLANET media converter series. It allows the connectivity of up to 15 PLANET Ethernet, Fast Ethernet, Gigabit Ethernet or VDSL2 Converters in one chassis. The 15 slots in the 19″ rack saves more spaces for fiber-optic wiring, simplifies the structure and eases the maintenance of media conversion.Extremely Reliable Design to ensure continuous operation
The MC-1500R series supports the optional hot-swappable Redundant Power System (RPS) to ensure continuous operation. Both the MC-1500R and MC-1500R48 are equipped with one 100~240V AC power supply unit and one -48V DC power supply unit, which come in the package, respectively. To enhance the reliability, they each have one spare power supply slot for that optional purpose. The continuous power systems are specifically designed to meet the demands for high tech facilities requiring the highest power integrity available.Plug and Play / Flexible Installation
The MC-1500R offers flexibility in installation and cost-effective scalable solution. With an independent power supply on each slot of the MC-1500R, any converter is hot-swappable without causing an interruption to other converters. The media converters and power modules can be plugged and played anytime. Each bay of the media converter chassis can be populated with any of PLANET’s media converter series, the FT, GT, VC-20x and ICS, to provide media conversion between fiber optic, phone wire and serial to copper lines.

ICS-2102/ICS-2102S15/ICS-2105A

CostCost-effective Solutions of RS-232 / RS-422 / RS-485 for Industrial Ethernet Applications
PLANET ICS-210x Serial over Ethernet Converter series is specially designed to convert serial RS-232, RS-422 or RS-485 communication into Industrial Fast Ethernet networking and help to extend the network distance efficiently and inexpensively. There are SC and LC connectors with single-mode or multi-mode media available in the ICS-210x series for your network needs. The ICS-210x is a time-saving and cost-effective solution for users and SIs to quickly transform its serial equipment to the Ethernet network with no need of replacing the existing serial equipment and software system.Efficiently Extending Network Distance
The ICS-210x series includes models ICS-2102, ICS-2102S15 and ICS-2105A. The ICS-2102 and ICS-2102S15 media converters can extend the deployment distance of serial equipment by 2km and 15km. The ICS-2105A, especially equipped with one SFP fiber slot (mini-GBIC 100Base-FX SFP, Small-Form Factor Pluggable), supports the deployed distance extension from 2km (via multi-mode fiber) up to 120 kilometers (via single-mode fiber) or longer. The ICS-210x series perfectly meets the diverse demands in various industrial network environments and provides reliable network solutions within your budget of installation.Remote Management
The ICS-210x series makes the connected serial equipment become IP-based facilities and able to connect to a TCP/IP network immediately. It also provides Web Management Interface for efficient remote network management. The powerful Web Smart Media Converter series supports application mode and serial operation mode for alarm or IP address connection, which saves the network administrator’s time by detecting and locating network problems without visual inspection of the cabling and equipment. Multiple connection options are available for large networking environment as well.Stable Performance under Difficult Environments
The ICS-210x series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The feature of operating temperature range from -10 to 60 degrees C allows the ICS-210x series to be placed in almost any difficult environment.The ICS-210x series is equipped with compact IP30 standard metal case that allows either DIN rail or wall mounting for efficient use of cabinet space. The ICS-210x series also provides an integrated power supply source with wide range of voltages (12 to 48V DC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.

ICS-2100

Cost-effective Solutions of RS-232 / RS-422 / RS-485 for Industrial Ethernet Applications
PLANET ICS-2100 Smart Media Converter / Device Server series offers conversion of serial RS-232 / RS-422 / RS-485 communication to Industrial Fast Ethernet networking. It allows serial and Ethernet communications to connect efficiently and inexpensively. The ICS-2100 is a time-saving and cost-effective solution for users and SIs to quickly transform its serial equipment to the Ethernet network with no need of replacing the existing serial equipment and software system.Remote Manageable
The ICS-2100 makes the connected serial equipment become the IP-based facilities and able to connect to a TCP/IP networking immediately. It also provides Web Management Interface for efficient network management. The powerful Web-Smart Media Converter supports application mode and serial operation mode for alarm or IP address connection, which helps reduce a network administrator’s time by detecting and locating network problems without requiring visual inspection of cabling and equipment. Multiple connection options are available for large networking environment as well.Stable Performance under Difficult Environments
The ICS-2100 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Its operating temperature range from -10 to 60 degrees C allows the ICS-2100 to be placed in almost any difficult environment.The ICS-2100 is equipped with the compact, IP30 standard metal case that allows either DIN rail or wall mounting for efficient use of cabinet space. The ICS-2100 also provides an integrated power supply source with wide range of voltages (12 to 48V DC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.

IVC-2002

Ideal integration of Industrial Ethernet Extender
To fulfill the market demand, PLANET has released one amazing product named IVC-2002. The IVC-2002 is positioned as an Industrial Ethernet Extender. It has a switching architecture with 4 RJ-45 10/100Mbps Ethernet ports and one asymmetric or symmetric Ethernet over VDSL port – the VDSL port can be RJ-11 or BNC connector. Customers can use either BNC or RJ-11 for their network deployment and it offers the absolutely fastest data transmission speed over existing coaxial cable and telephone wire without the need of rewiring. Furthermore, the IVC-2002 is also compatible with PLANET VC-201A and VC-202A. Without spending extra cost, users can easily re-deploy a new local Internet in the apartment, hotel, campus and hospitality environment by applying the IVC-2002 on the original network structure.Environmentally Hardened Design for Industrial Networks
The IVC-2002 provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curb side traffic control cabinets. The Industrial Ethernet Extender can operate in wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location. The IVC-2002 is packaged in a compact, IP-30 metal case that allows either DIN or panel mounting for efficient use of cabinet space. The Extender provides an integrated power supply with a wide range of voltages (12 ~ 48V DC) for worldwide operability or for dual-redundant, reversible polarity, 12 ~ 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.Efficient Usage, Cost Effectiveness and Great Performance
The Ethernet over VDSL2 combines the Ethernet and VDSL technology to transmit the Ethernet format data by using VDSL signaling over the existing coaxial cable and telephone wire. Therefore, it is ideal for deploying network by using the existing coaxial cable and telephone wire to transmit data to the Internet at a minimum cost. The IVC-2002 can be adjusted to Master or Slave mode via a DIP switch. When the IVC-2002 (RJ-11) is connected with the other IVC-2002 device, the performance will be up to 99/63Mbps for asymmetric data rate within 200m and up to 28/2Mbps for asymmetric data rate at 1.4km. The IVC-2002 (BNC) performance is up to 99/65Mbps for asymmetric data rate within 200m and up to 31/4Mbps for asymmetric data rate at 2.4km. This capability is ideal for use as an Ethernet extender for your existing Ethernet network.

IGTP-80xT Series

PLANET IGTP-80xT Industrial Gigabit Media Converter series combines Ethernet media conversion (from 1000Base-X to 10/100/1000Base-T) with 802.3at High Power over Ethernet (PoE) injector delivered in an IP30 rugged strong case. Particularly designed for network equipment requiring sufficient and reliable power input, the IGTP-80xT series supports up to 30 watts of power output and data transmission both delivered to remote powered devices over a single Ethernet cable. Its 1000Base-X fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network. The special and convenient power system of the IGTP-80xT series supports 24/48V DC power inputs for power redundancy and operational flexibility. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-80xT series can be placed in almost any difficult environment.

Fiber-Optic Link Capability Extends the Range of Network Deployment
The maximum distance between the PoE PSE (Power Sourcing Equipment) and PD (Powered Device) via Ethernet cable is 100 meters. To extend the PoE deployment range, the IGTP-80xT series is integrated with fiber interface for farther distance applications. The IGTP-80xT series and its respective fiber connecting type include:
■ IGTP-802T: SC type multi-mode Fiber Interface, transmission distance up to 220m and 550m
■ IGTP-802TS: SC type single mode fiber interface, transmission distance up to 10km
■ IGTP-805AT: SFP slot supporting 100Base-FX / 1000Base-X Multi / Single Mode SFP module, transmission distance up to 120km (Varying on SFP module)

With the long fiber distance support, the IGTP-80xT series still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control and the LFP (Link Fault Pass-through function) function in the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.

Plug and Play High Power Sourcing Solution
Complying with the brand-new IEEE 802.3at High Power over Ethernet technology, the IGTP-80xT series provides up to 30 watts of output power that doubles PoE power, more than the conventional 802.3af PoE currently. It is also backward compatible with 802.3af PoE standards to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With data and Power over Ethernet from one unit, the IGTP-80xT series can reduce cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Convenient and Reliable Power System
To facilitate the 802.3at High Power PoE usage with commonly used 24V DC or 48V DC power input for transportation and industrial-level applications, the IGTP-80xT series adapts 24/48V to 52V power boost technology to solving power source issue without the need for special power supplies. The IGTP-80xT series provides an integrated power supply with a wide range of voltages (24V / 48V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 24V / 48V DC power supply inputs for high availability applications.

Environmentally Hardened Design for Industrial PoE Networks
The IGTP-80xT series is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. The IGTP-80xT series is packaged in a compact, IP30 rugged strong case that allows either DIN-Rail or wall mounting to have the efficient use of cabinet space. With IP30 rugged strong case protection and PoE design, the IGTP-80xT series is ideal for service providers, campuses and public area to deploy the PoE wireless access points, IP cameras or IP phones in any places easily and efficiently with cost-effectiveness. It can also operate in wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location.

IGT-805AT

Flexible, Reliable and Industrial-grade Network Distance Extension Solution
PLANET IGT-805AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000BASE-T RJ45 copper and one 100/1000BASE-X SFP fiber optic interface delivered in an IP30 rugged strong case with redundant power system. The IGT-805AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C. With 9K jumbo frame feature support, the IGT-805AT can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

Fiber-Optic Link Capability Enables Extension of Network Deployment
The SFP slot of the IGT-805AT is compatible with 100BASE-FX and 1000BASE-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 550 meters (multi-mode fiber cable) to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber cable), and also the Fast Ethernet distance can be extended from 2km (multi-mode fiber cable) to 20/40/60 kilometers (single-mode fiber cable). It is the ideal product for applications within the factory data centers and distributions.

Enhanced Smart Management Features
The IGT-805AT provides auto MDI/MDI-X on its TP port and built-in Link Fault Pass-through function (LFP). The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR), both of which can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission. LLR means when a device connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission. Therefore, the IGT-805AT greatly supports the administrators to manage the network efficiently.

Environmentally Hardened Design
The IGT-805AT is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGT-805AT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGT-805AT can be placed in almost any difficult environment. The IGT-805AT also allows either DIN rail or wall mounting for efficient use of cabinet space.

Convenient and Reliable Power System
To enhance the operation reliability and flexibility, the IGT-805AT is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs.

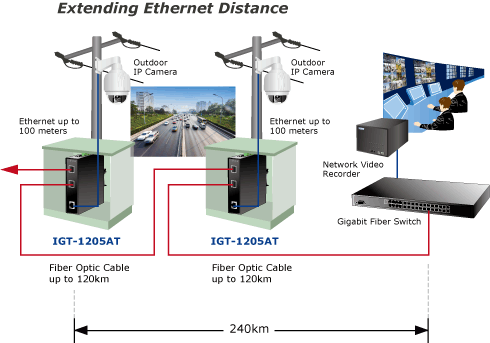

IGT-1205AT

Flexible, Reliable and Industrial-grade Network Distance Extension Solution
PLANET IGT-1205AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000Base-T RJ-45 copper and two 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGT-1205AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from –40 to 75 degrees C.Fiber-Optic Link Capability Enables Extension of Network Deployment
The two SFP slots are compatible with 100Base-FX or 1000Base-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 550 meters (Multi-mode fiber cable) up to 10/20/30/40/50/70/120 kilometers (Single-mode fiber cable), and also the Fast Ethernet distance can be extended from 2km (Multi-mode fiber cable) up to 20/40/60 kilometers (Single-mode fiber cable). They are well suited for applications within the factory data centers and distributions.

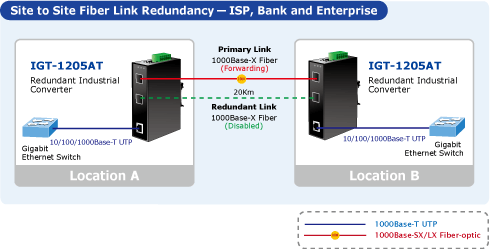

Adjustable 3-Port Switch Mode or 2 Fiber Redundant Mode
Via the built-in DIP switch, the two SFP fiber interfaces of the IGT-1205AT can be configured as Ethernet switch mode or Fiber Redundant mode. With the Ethernet switch mode, it can operate in Store-and-Forward mechanism with high performance; with the 2-port Fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

Environmentally Hardened Design
The IGT-1205AT is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGT-1205AT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGT-1205AT can be placed in almost any difficult environment. The IGT-1205AT also allows either DIN rail or wall mounting for efficient use of cabinet space.Convenient and Reliable Power System
To enhance the operation reliability and flexibility, the IGT-1205AT is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs.

ISW-804PT-M12

In the last few years, PLANET has launched various IP67 protected Industrial products which can be deployed and provide stable Ethernet performance under difficult industrial environments. To further meet some specific industrial environments, PLANET has released a new series of industrial solutions, the ISW-804PT-M12, to provide higher level protection ability with the following features:
• Industrial Protected IP67 Metal Case
• Robust M12 Ethernet Connector
• Waterproof / Dustproof
• IEEE 802.3af PoE
• Wide Temperature SupportIndustrial IP67 Metal Case and Robust M12 PoE Ethernet Connector Interface
The ISW-804PT-M12, the Industrial 8-Port 10/100Mbps M12 PoE Fast Ethernet Switch, is designed with the IP67 industrial case, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The compact, IP67 standard metal case of the ISW-804PT-M12 allows either DIN rail or wall mounting installation for efficient use of cabinet space.The ISW-804PT-M12 is equipped with 8-port 10/100Base-TX auto-negotiation M12 connector with 4-port IEEE 802.3af PoE (Port 5 to port 8); each PoE port provides 15.4-watt PoE output. The M12 connector provides tight and strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment.

Stable Operateing Performance under Difficult Environments
Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-804PT-M12 can be placed in almost any difficult environment. The ISW-804PT-M12 also possesses an integrated power supply source with wide range of voltages (48V DC) for worldwide high availability applications requiring dual or backup power inputs.Robust Switch Performance
The ISW-804PT-M12 has 2K MAC Address table and offers wire-speed packets transfer performance without risk of packet loss; the high data throughput of the device makes it ideal for most Fast Ethernet environments. With a 1.6Gbps internal switching fabric and featuring auto negotiation support in each of the eight Fast Ethernet port, the ISW-804PT-M12 can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.The flow control function enables the ISW-804PT-M12 to provide fast and reliable data transfer. All of the M12 RJ-45 copper interfaces in the ISW-804PT-M12 support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 category 3, 4, 5, 5e, 6 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
