Product Function: SFP

ENW-9701

High Performance Boosts Network Traffic Speed and Flexible Distance Extension
PLANET ENW-9701 1000Base-X Fiber PCI-Express Ethernet adapter is ideal for high end servers to extend long distance network reliably and flexibly with up to 2000Mbps full-duplex bandwidth capacity. It is an optimal solution for Ethernet applications by providing strictly low-power budgets and small form factor.Flexible Distance Option
With the 1000Base-SX / LX SFP (Small-Form Factor Pluggable) interface supported by the ENW-9701, the fiber network deployment distance can be extended from 550 meters (via multi-mode fiber) up to above 10/20/30/40/50/70/120 kilometers (via single-mode fiber, respectively). Users can choose the most suitable SFP transceiver module depending on their needs. The ENW-9701 connects your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.More Bandwidth and Advanced Functions
The ENW-9701 is designed to address high-performance system requirements. With the innovative PCI Express Bus Architecture, the ENW-9701 provides better bandwidth and performance than the network cards which are based on 32/64bit PCI architecture. Moreover, the ENW-9701 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it offers further optimal throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.Seamless Integration
The ENW-9701 is completely harmonious with most of the servers’ operating systems, enabling simple integration into network designs. There is no need of any modification to the server’s operating system or any special software required for the ENW-9701 to be integrated into the system. The ENW-9701 can take the place of the Ethernet MAC of any conventional TCP connection and have the existing TCP/IP stack of server’s CPU still kept intact. It requires only a simple, standard PCIe driver to connect the ENW-9701 to the software.

FRT-401/FRT-401S15/FRT-405

With growing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand for bandwidth rises quickly. The current broadband environment has not reached its requirements. Rather, the FTTH (fiber-to-the-home) would be the most promising NGN (Next Generation Networking) application to fulfill the demand.

PLANET Internet Fiber Router, FRT-40x series, provides office and residential users with the ideal solution for sharing a high-speed fiber Internet connection and four 10/100Mbps Fast Ethernet backbone. The FRT-40x series is a perfect FTTH Digital Home Router which can provide very high performance access to Internet, both downstream and upstream up to 100Mbps through the fiber interface. For the WAN connection, the FRT-40x series supports several common optical connectors including 100Base-BX, 100Base-LX, 100Base-FX and Small Form Factor Pluggable (SFP). The Fiber Router can be implemented easily for optical fiber deployment.

The FRT-40x series provides QoS functions to enable smooth network services. Traffic priority can be assigned by the router to guarantee some important and specific transmissions, especially for real-time streaming multimedia applications such as the on-line gaming, VoIP, and IPTV to keep the bandwidth usage smoothly. Furthermore, the FRT-40x Fiber Router series not only provides basic router functions like DHCP server, Virtual Server, DMZ, and UPnP, but also features full firewall functions including Network Address Translation (NAT), IP / Port / MAC Filtering and Content Filtering. It serves as an Internet firewall to protect your network from being accessed by unauthorized users.

ICS-102/ICS-102S15/ICS-105A

Cost-effective Solution for RS-232 / RS-422 / RS-485 to Ethernet Application
PLANET ICS-10x series Media Converter / Device Server can convert Serial RS-232 / RS-422 / RS-485 communication interface over Fast Ethernet networking. There are SC type and LC type connectors, and single-mode/multi-mode media for customers needs. Ethernet signal allows the two types of segments to connect easily, efficiently and inexpensively. The ICS-10x converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700 and MC-1500). It greatly saves time and expense for users and SIs without the need of replacing the existing serial equipment and software system.
Extending Distance
The ICS-10x extends the distance of deploying serial equipment and hosts. The selectable fiber-optic wires on the basis of distance are provided. Therefore, this product will perfectly satisfy the diverse demands while providing reliable and efficient network solutions based on the distance and budgets of installation.
Remote Manageable
The ICS-10x enables the serial equipment to be connected via IP-based transmission. It also makes them able to connect to a TCP / IP networking immediately. The ICS-10x Web Smart media converter provides management through Web Interface. It supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps the network administrators to reduce the amount of valuable time spending on detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. For large networking environment, multiple connection options are available with the ICS-10x as well.

ICS-102/ICS-102S15/ICS-105A

Cost-effective Solution for RS-232 / RS-422 / RS-485 to Ethernet Application
PLANET ICS-10x series Media Converter / Device Server can convert Serial RS-232 / RS-422 / RS-485 communication interface over Fast Ethernet networking. There are SC type and LC type connectors, and single-mode/multi-mode media for customers needs. Ethernet signal allows the two types of segments to connect easily, efficiently and inexpensively. The ICS-10x converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700 and MC-1500). It greatly saves time and expense for users and SIs without the need of replacing the existing serial equipment and software system.
Extending Distance
The ICS-10x extends the distance of deploying serial equipment and hosts. The selectable fiber-optic wires on the basis of distance are provided. Therefore, this product will perfectly satisfy the diverse demands while providing reliable and efficient network solutions based on the distance and budgets of installation.
Remote Manageable
The ICS-10x enables the serial equipment to be connected via IP-based transmission. It also makes them able to connect to a TCP / IP networking immediately. The ICS-10x Web Smart media converter provides management through Web Interface. It supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps the network administrators to reduce the amount of valuable time spending on detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. For large networking environment, multiple connection options are available with the ICS-10x as well.

GTP-80x Series

The Best Data Link and Power Sourcing Solution
As more and more PoE PD devices need higher power input and long-distance transmission, PLANET has released a new Power over Ethernet Media Converter, GTP-80x series. With the brand-new IEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following key features:
■ IEEE 802.3at / IEEE 802.3af PoE standard compliance
■ Supports a maximum of 30 watts output power
■ 10/100/1000Mbps duplex mode supports on 1000BASE-T port
■ 1000Mbps Fiber-Optic supportThe GTP-80x series is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The GTP-80x High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ45 Port interface without the need for installing extra power outlets and electrical cabling.
Fiber-Optic Link Capability Extends the Range of Network Deployment
The maximum distance between the PoE PSE and PD is 100 meters. To extend the network device deployment range, the GTP-80x is integrated with Fiber interface. The GTP-80x PoE+ Media Converter is used to convert optical Ethernet signal to electrical Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively. It can convert 10/100/1000BASE-T signal to 1000BASE-X one and provide the diverse options of fiber connecting types to meet different network applications.
The GTP-80x series and its fiber connecting type includes:
■ GTP-802:SC Fiber Interface with Multi-mode, Distance up to 220m and 550m
■ GTP-802S:SC Fiber Interface with Single-mode, Distance up to 10km
■ GTP-805A:LC Fiber Interface, supports Multi / Single Mode SFP module, Distance up to 120km max. (Varting on SFP module)
With the long Fiber distance support, it still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and the LFP (Link Fault Pass through function) (LLCF/LLR) with the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.Quick and Easy High Power PoE Network Deployment
The GTP-80x series provides 52V DC power over Ethernet cables — just insert DC voltage into Cat.5/5e/6 cable, allowing the cable between the PoE splitters (POE-151S / POE-152S / POE-162S) to transfer data and power simultaneously for up to 100 meters. Then it will spilt the digital data and the power into two kinds of selectable DC outputs (5V DC / 12V DC) or (12V DC / 24V DC).Thus, it reduces cables and the dedicated electrical outlets on the wall, ceiling or any unreachable place. Most of all, it also eliminates the time for installation. The high Power over Ethernet solution frees the security IP camera and wireless AP deployment from restrictions of power outlet locations.

IGS-10080MFT

Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Industry and Telecom
PLANET IGS-10080MFT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable, high speed data in heavy industrial demanding environments and also can forward data to remote network through fiber optic. It provides 8-Port 100/1000Base-X SFP fiber optic interface and 2 extra 10/100/1000Base-T copper interfaces delivered in an IP30 rugged strong case with redundant power system, being able to operate under the temperature range from -40 to 75 Degree C, the IGS-10080MFT can be placed in almost any difficult environment.
IPv6 / IPv4 Full-Functioned Managed Switch for Building Automation Networking
The IGS-10080MFT is the ideal solution to fulfill the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. The IGS-10080MFT provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer’s industrial and automation network connectivity.Fast Recovery to a Redundant Ethernet Network
The IGS-10080MFT features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (RSTP), Multiple Spanning Tree (MSTP) as well as the Loop protection function that will shutdown specific Ethernet interfaces when system detects a loop. The dynamic port Link Aggregation and Redundant Power System are provided into customers’ industrial automation network to enhance system reliability and uptime in the harsh factory environments. It greatly protects customer’s industrial network with switching recovery capability that is used for implementing fault tolerant ring architectures.Flexible and Extendable Solution
The 8 mini-GBIC slots built in the IGS-10080MFT support Dual-Speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, that means, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

GSW-1222VUP

Ready to Deploy Next Generation Power over Ethernet
PLANET has recently announced a complete 60W Ultra PoE Solution, such as 60W Ultra PoE Injector/Splitter, 60W Ultra PoE Extender and 60W Ultra PoE Injector Hub. One of them in the PLANET ultra PoE product series family is the GSW-1222VUP.A new family member of PLANET 60W Ultra PoE Solution, the GSW-1222VUP is an 8-port 10/100/1000T Ultra PoE + 2-port 10/100/1000T + 2-port 1000X SFP Gigabit Ethernet Switch with a total of 380 watts of PoE budget. One special feature that this unit has is the LCD display for PoE work status monitoring. Each PoE port can deliver up to 60-watt power over Cat.5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 60W or standard 802.3at compatible powered device (PD) for different kinds of PoE applications, respectively.The GSW-1222VUP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.

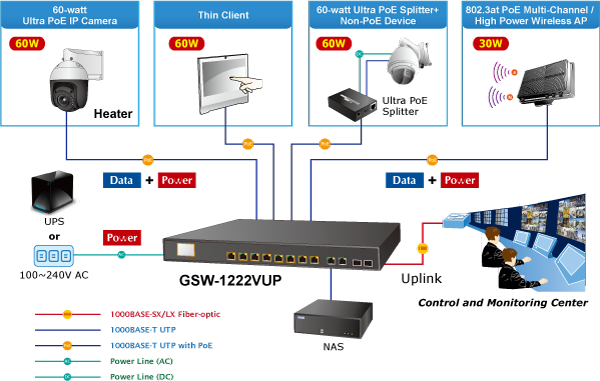

60 Watts of Power over 4-pair UTP System
The GSW-1222VUP Ultra PoE solution adopts the IEEE 802.3at PoE standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, the GSW-1222VUP is able to deliver per port 60watts of power to each remote PoE compliant powered device.

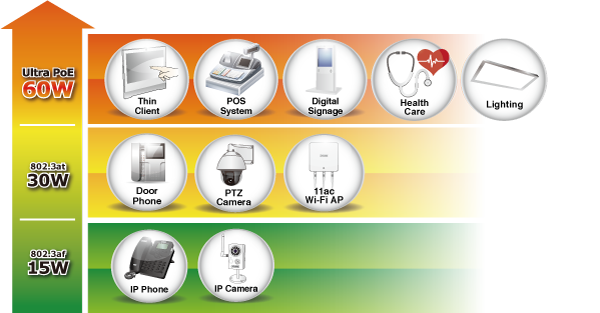

The amount of power capability that the GSW-1222VUP possesses doubles that of the conventional 802.3at PoE, thus making an ideal solution to meeting the growing demand for higher power consuming network PDs, such as:

■ PoE PTZ speed dome
■ Any network device that needs higher PoE power to work normally
■ Thin-client
■ AIO (all-in-one) touch PC, point of sale (POS) and information kiosks
■ Remote digital signage display

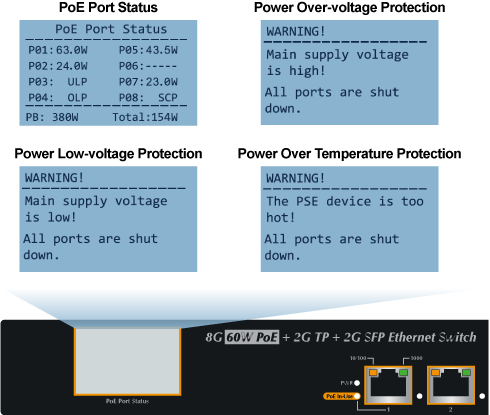

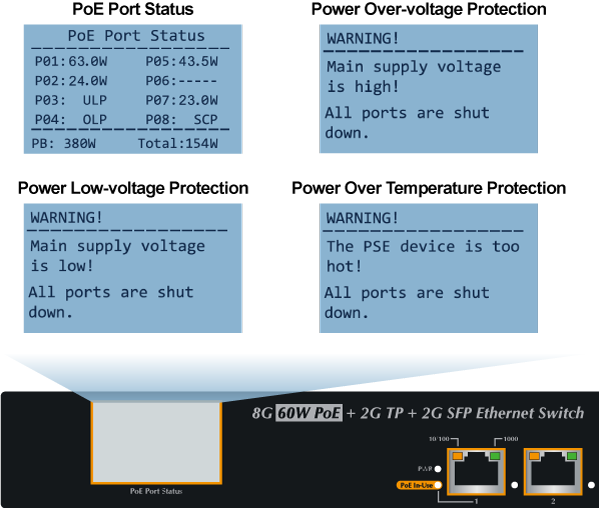

LCD Monitor for Real-time PoE Usage and System Status Display
The LCD monitor of the GSW-1222VUP clearly shows the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. With its brand-new LCD monitor, user is able to obtain detailed information about real-time PoE working condition of the GSW-1222VUP directly. Also the Power Budget Control function helps to prevent power budget overloading.
Flexible and Extendable Two Gigabit Uplink Solution
The GSW-1222VUP provides two extra Gigabit TP ports and two extra Gigabit SFP interfaces. The two Gigabit TP ports support 10/100/1000BASE-T RJ45 copper for surveillance network devices such as NVR, video streaming server and NAS to facilitate surveillance management. Or through two Gigabit speed fiber SFP slots, the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver is inserted to be uplinked to a backbone switch and monitoring center over a long distance. The distance can be extended from 550m to 2km (multi-mode fiber), or even going up to 10/20/30/40/50/60/70/120km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.Smart Fan Design for Silent Operation
The GSW-1222VUP features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically activates 3 fans once the PoE budget reaches 126 watts and maintains the temperature of the GSW-1222VUP for optimal power output capability. The GSW-1222VUP is able to operate reliably, stably and quietly in any environment without affecting its performance.Robust Protection
The GSW-1222VUP provides contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.Quick and Easy PoE Network Deployment
As data transfer and high power PoE are transmitted over a cable, the GSW-1222VUP is able to reduce the need of extended cables and electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort. All RJ45 copper interfaces of the GSW-1222VUP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

GTP-80x Series

The Best Data Link and Power Sourcing Solution
As more and more PoE PD devices need higher power input and long-distance transmission, PLANET has released a new Power over Ethernet Media Converter, GTP-80x series. With the brand-new IEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following key features:
■ IEEE 802.3at / IEEE 802.3af PoE standard compliance
■ Supports a maximum of 30 watts output power
■ 10/100/1000Mbps duplex mode supports on 1000BASE-T port
■ 1000Mbps Fiber-Optic supportThe GTP-80x series is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The GTP-80x High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ45 Port interface without the need for installing extra power outlets and electrical cabling.
Fiber-Optic Link Capability Extends the Range of Network Deployment
The maximum distance between the PoE PSE and PD is 100 meters. To extend the network device deployment range, the GTP-80x is integrated with Fiber interface. The GTP-80x PoE+ Media Converter is used to convert optical Ethernet signal to electrical Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively. It can convert 10/100/1000BASE-T signal to 1000BASE-X one and provide the diverse options of fiber connecting types to meet different network applications.
The GTP-80x series and its fiber connecting type includes:
■ GTP-802:SC Fiber Interface with Multi-mode, Distance up to 220m and 550m
■ GTP-802S:SC Fiber Interface with Single-mode, Distance up to 10km
■ GTP-805A:LC Fiber Interface, supports Multi / Single Mode SFP module, Distance up to 120km max. (Varting on SFP module)
With the long Fiber distance support, it still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and the LFP (Link Fault Pass through function) (LLCF/LLR) with the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.Quick and Easy High Power PoE Network Deployment
The GTP-80x series provides 52V DC power over Ethernet cables — just insert DC voltage into Cat.5/5e/6 cable, allowing the cable between the PoE splitters (POE-151S / POE-152S / POE-162S) to transfer data and power simultaneously for up to 100 meters. Then it will spilt the digital data and the power into two kinds of selectable DC outputs (5V DC / 12V DC) or (12V DC / 24V DC).Thus, it reduces cables and the dedicated electrical outlets on the wall, ceiling or any unreachable place. Most of all, it also eliminates the time for installation. The high Power over Ethernet solution frees the security IP camera and wireless AP deployment from restrictions of power outlet locations.

GSW-1222VUP

Ready to Deploy Next Generation Power over Ethernet
PLANET has recently announced a complete 60W Ultra PoE Solution, such as 60W Ultra PoE Injector/Splitter, 60W Ultra PoE Extender and 60W Ultra PoE Injector Hub. One of them in the PLANET ultra PoE product series family is the GSW-1222VUP.A new family member of PLANET 60W Ultra PoE Solution, the GSW-1222VUP is an 8-port 10/100/1000T Ultra PoE + 2-port 10/100/1000T + 2-port 1000X SFP Gigabit Ethernet Switch with a total of 380 watts of PoE budget. One special feature that this unit has is the LCD display for PoE work status monitoring. Each PoE port can deliver up to 60-watt power over Cat.5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 60W or standard 802.3at compatible powered device (PD) for different kinds of PoE applications, respectively.The GSW-1222VUP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.
60 Watts of Power over 4-pair UTP System
The GSW-1222VUP Ultra PoE solution adopts the IEEE 802.3at PoE standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, the GSW-1222VUP is able to deliver per port 60watts of power to each remote PoE compliant powered device.
The amount of power capability that the GSW-1222VUP possesses doubles that of the conventional 802.3at PoE, thus making an ideal solution to meeting the growing demand for higher power consuming network PDs, such as:

■ PoE PTZ speed dome
■ Any network device that needs higher PoE power to work normally
■ Thin-client
■ AIO (all-in-one) touch PC, point of sale (POS) and information kiosks
■ Remote digital signage display
LCD Monitor for Real-time PoE Usage and System Status Display
The LCD monitor of the GSW-1222VUP clearly shows the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. With its brand-new LCD monitor, user is able to obtain detailed information about real-time PoE working condition of the GSW-1222VUP directly. Also the Power Budget Control function helps to prevent power budget overloading.
Flexible and Extendable Two Gigabit Uplink Solution
The GSW-1222VUP provides two extra Gigabit TP ports and two extra Gigabit SFP interfaces. The two Gigabit TP ports support 10/100/1000BASE-T RJ45 copper for surveillance network devices such as NVR, video streaming server and NAS to facilitate surveillance management. Or through two Gigabit speed fiber SFP slots, the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver is inserted to be uplinked to a backbone switch and monitoring center over a long distance. The distance can be extended from 550m to 2km (multi-mode fiber), or even going up to 10/20/30/40/50/60/70/120km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.Smart Fan Design for Silent Operation
The GSW-1222VUP features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically activates 3 fans once the PoE budget reaches 126 watts and maintains the temperature of the GSW-1222VUP for optimal power output capability. The GSW-1222VUP is able to operate reliably, stably and quietly in any environment without affecting its performance.Robust Protection
The GSW-1222VUP provides contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.Quick and Easy PoE Network Deployment
As data transfer and high power PoE are transmitted over a cable, the GSW-1222VUP is able to reduce the need of extended cables and electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort. All RJ45 copper interfaces of the GSW-1222VUP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

FGSW-2622VHP

Cost-effective Integration Solution for Secure IP Surveillance Infrastructure
PLANET FGSW-2622VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.The FGSW-2622VHP is equipped with 24 10/100BASE-TX ports featuring 30-watt 802.3at Power over Ethernet Plus (PoE+) copper interfaces and 2 Gigabit TP/SFP combo interfaces with inner power system. With a total PoE power budget of up to 300 watts and non-blocking data switching performance, the FGSW-2622VHP fulfills the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small and medium-sized businesses and system integrators deploying Power over Ethernet networks.

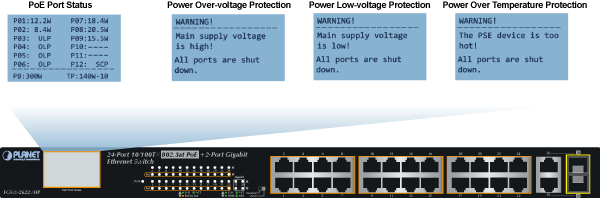

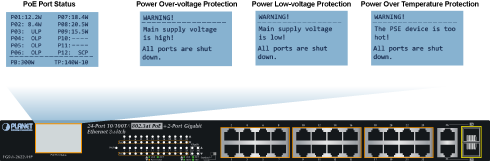

LCD Monitor for Real-time PoE Usage and System Status Display
The LCD monitor of the FGSW-2622VHP clearly shows the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. With its brand-new LCD monitor, user is able to obtain detailed information about real-time PoE working condition of the FGSW-2622VHP directly. Also the Power Budget Control function helps to prevent power budget overloading.

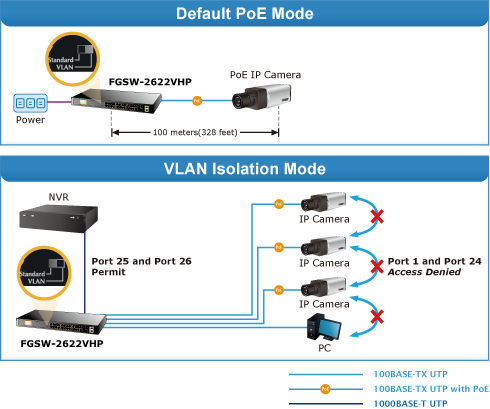

802.3at PoE+ Power and VLAN Isolation Operation Mode
The built-in solid DIP switch provides “Standard” and “VLAN” operation modes. The FGSW-2622VHP operates as a normal IEEE 802.at/af PoE Switch in the “Standard” operation mode. The “VLAN” operation mode features with port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.
Flexible and Extendable Two Gigabit Uplink Solution
The FGSW-2622VHP provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper for surveillance network devices such as NVR, video streaming server or NAS to facilitate surveillance management.Or through these Gigabit speed fiber SFP slots, the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver is inserted to be uplinked to a backbone switch and monitoring center over a long distance. The distance can be extended from 550m to 2km (multi-mode fiber), even going up to above 10/20/30/40/50/60/70/120km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Robust Protection
The FGSW-2622VHP provide contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection, also supports ±4KV Surge Immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Easy Installation and Cable Connection
As data transfer and high power PoE are transmitted over a cable, the FGSW-2622VHP is able to reduce the need of extended cables and electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort. All RJ45 copper interfaces of the FGSW-2622VHP support 10/100Mbps and 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
