Product Function: Stackable

IKVM-210-16M

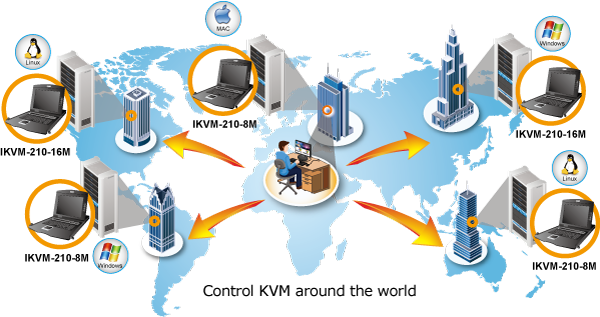

Control All Your PCs via IP-based KVM
PLANET IKVM-210-16M Combo VGA LCD IP KVM Switch comes with a rack-mountable keyboard, 17″ LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the IKVM-210-16M can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.
Easy to Install
With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.

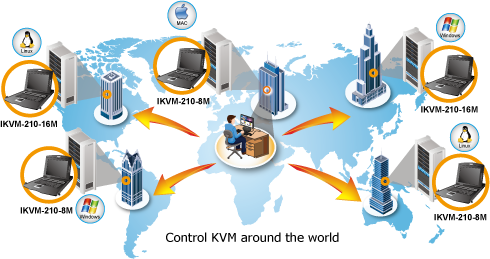

Multiple Operating Systems Supported
The IKVM-210-16M is the most cost-effective and simple solution for controlling a group of PCs in the network. Multiple computers can be managed via only one single set of monitor, keyboard and mouse directly. No software drivers or system configuration are required. iMac, Power Mac and Sun systems are also supported.

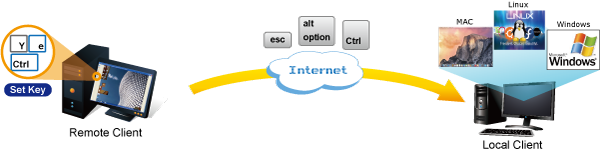

Remote Key Combination
You could set the multiple key combinations at IKVM Series. When you open IKVM software at remote client, you could use these key combinations to control these local PCs with a different OS via the internet.
Computer Switching
There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display) at local client and remote client

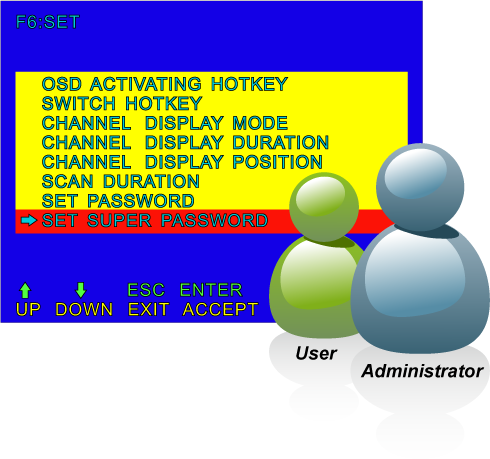

Security Protection
The two-level password security only authorizes up to one user and an administrator with a separate profile for each user. Data encryption options include AES, DES and 3DES, and they can be selected for keyboard, mouse and video signals.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The IKVM-210-16M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

IKVM-210-08M

Control All Your PCs via IP-based KVM
PLANET IKVM-210-08M Combo VGA LCD IP KVM Switch comes with a rack-mountable keyboard, 17″ LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the IKVM-210-08M can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.
Easy to Install
With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.
Multiple Operating Systems Supported
The IKVM-210-08M is the most cost-effective and simple solution for controlling a group of PCs in the network. Multiple computers can be managed via only one single set of monitor, keyboard and mouse directly. No software drivers or system configuration are required. iMac, Power Mac and Sun systems are also supported.
Remote Key Combination
You could set the multiple key combinations at IKVM Series. When you open IKVM software at remote client, you could use these key combinations to control these local PCs with a different OS via the internet.
Computer Switching
There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display) at local client and remote client
Security Protection
The two-level password security only authorizes up to one user and an administrator with a separate profile for each user. Data encryption options include AES, DES and 3DES, and they can be selected for keyboard, mouse and video signals.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The IKVM-210-08M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

IKVM-210-16

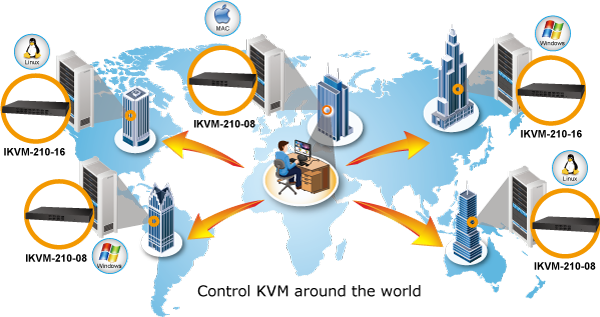

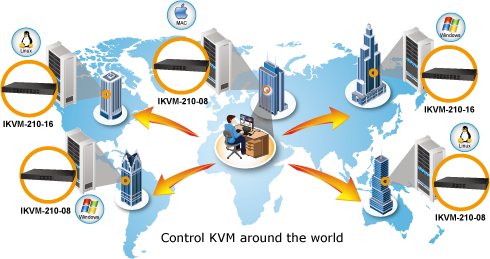

Remotely Access your Servers from Anywhere
PLANET offers an ideal enterprise 16-port KVM switch solution for company server room or testing facilities. With the innovative IP-based technology, PLANET has turned the traditional KVM switches into true networking devices. The IKVM-210-16 captures, digitizes and compresses video signal, and then transmits it with keyboard and mouse signals through IP network. Multiple remote sites can monitor the same PC server simultaneously.
Multiple Operating Systems Supported
The IKVM-210-16 is the most cost-effective and simple solution for controlling a group of PCs in the network. Multiple computers can be managed via only one single set of monitor, keyboard and mouse directly. No software drivers or system configuration are required. iMac, Power Mac and Sun systems are also supported.
Remote Key Combination
You could set the multiple key combinations at IKVM Series. When you open IKVM software at remote client, you could use these key combinations to control these local PCs with a different OS via the internet.
Computer Switching
There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display) at local client and remote client

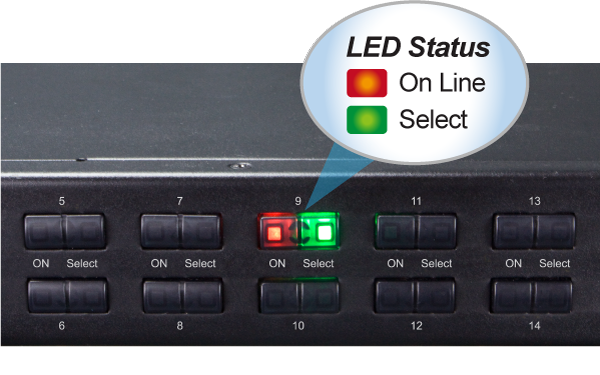

Perceptive LED Display
You could check the computer status on the front LED of the IKVM-210-16. “Red” indicates that a computer is connected to the corresponding port and “Green” indicates that the computer connected to the corresponding port has focus.
Security Protection
The two-level password security only authorizes up to one user and an administrator with a separate profile for each user. Data encryption options include AES, DES and 3DES, and they can be selected for keyboard, mouse and video signals.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The IKVM-210-16 fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

IKVM-210-08

Remotely Access your Servers from Anywhere
PLANET offers an ideal enterprise 8-port KVM switch solution for company server room or testing facilities. With the innovative IP-based technology, PLANET has turned the traditional KVM switches into true networking devices. The IKVM-210-08 captures, digitizes and compresses video signal, and then transmits it with keyboard and mouse signals through IP network. Multiple remote sites can monitor the same PC server simultaneously.
Multiple Operating Systems Supported
The IKVM-210-08 is the most cost-effective and simple solution for controlling a group of PCs in the network. Multiple computers can be managed via only one single set of monitor, keyboard and mouse directly. No software drivers or system configuration are required. iMac, Power Mac and Sun systems are also supported.
Remote Key Combination
You could set the multiple key combinations at IKVM Series. When you open IKVM software at remote client, you could use these key combinations to control these local PCs with a different OS via the internet.
Computer Switching
There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display) at local client and remote client
Perceptive LED Display
You could check the computer status on the front LED of the IKVM-210-08. “Red” indicates that a computer is connected to the corresponding port and “Green” indicates that the computer connected to the corresponding port has focus.
Security Protection
The two-level password security only authorizes up to one user and an administrator with a separate profile for each user. Data encryption options include AES, DES and 3DES, and they can be selected for keyboard, mouse and video signals.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The IKVM-210-08 fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

KVM-210-16M

Easy Switching, Efficient Management
PLANET KVM-210-16M Combo VGA LCD KVM Switch features an integrated 17″ LED-backlit LCD panel allowing access to and control up to 16 computers from a single console (keyboard, mouse and monitor). Simply use the supplied Combo VGA cable set to link the KVM-210-16M to the console ports of your KVM Switch, regardless of the connected port interface — USB or PS/2.
Easy to Install
With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.
Computer Switching

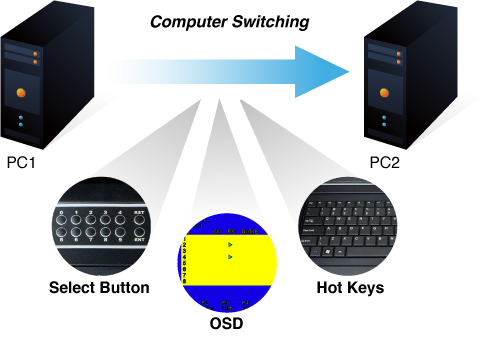

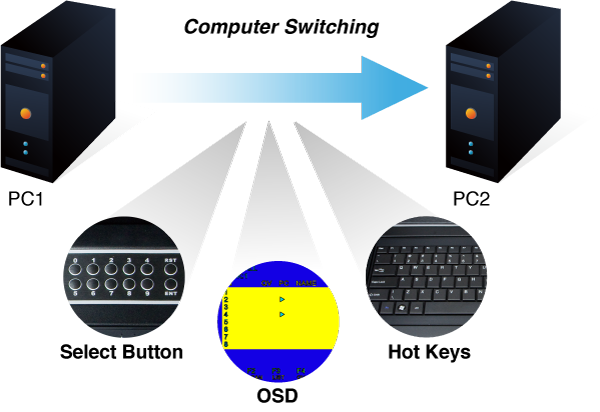

There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display)
Security
Two level password security only authorizes up to one user and an administrator with a separate profile for each user.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The KVM-210-16M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

KVM-210-08M

Easy Switching, Efficient Management
PLANET KVM-210-08M Combo VGA LCD KVM Switch features an integrated 17″ LED-backlit LCD panel allowing access to and control up to 8 computers from a single console (keyboard, mouse and monitor). Simply use the supplied Combo VGA cable set to link the KVM-210-08M to the console ports of your KVM Switch, regardless of the connected port interface — USB or PS/2.
Easy to Install
With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.
Computer Switching
There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display)
Security
Two level password security only authorizes up to one user and an administrator with a separate profile for each user.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The KVM-210-08M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

KVM-210-16

Easily Control Servers with Flexibility
PLANET offers an ideal enterprise 16-port KVM switch solution for company server room or testing facilities. The KVM-210-16 16-port Combo KVM Switch features the patented design of the availability of USB and PS/2 interface connection, user-friendly OSD utility and daisy-chain function. The KVM switch solution frees up more table and rack space for users in addition to saving the cost of multiple keyboards, mice and monitors.

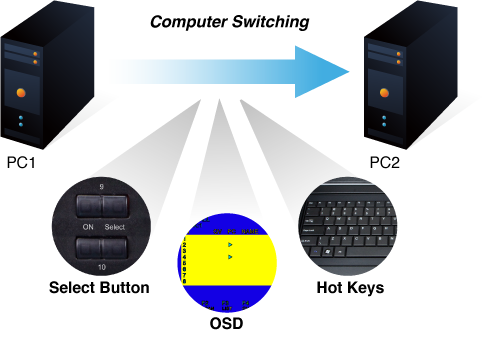

Computer Switching
There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display)
Flexible LED Display
You could check the computer status on the front LED of the KVM-210-16. “Red” indicates that a computer is connected to the corresponding port and “Green” indicates that the computer connected to the corresponding port has focus.
Two Level Password Security Protection
Two level password security only authorizes up to one user and an administrator with a separate profile for each user.
Easy to Install
Simply plug cables into their appropriate ports. There is no software to configure, and no incompatible problems. It works on multiple operating platforms like Windows, Linux, Mac, Sun, etc.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The KVM-210-16 fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

KVM-210-08

Easily Control Servers with Flexibility
PLANET offers an ideal enterprise 8-port KVM switch solution for company server room or testing facilities. The KVM-210-08 8-port Combo KVM Switch features the patented design of the availability of USB and PS/2 interface connection, user-friendly OSD utility and daisy-chain function. The KVM switch solution frees up more table and rack space for users in addition to saving the cost of multiple keyboards, mice and monitors.
Computer Switching
There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display)
Flexible LED Display
You could check the computer status on the front LED of the KVM-210-08. “Red” indicates that a computer is connected to the corresponding port and “Green” indicates that the computer connected to the corresponding port has focus.
Two Level Password Security Protection
Two level password security only authorizes up to one user and an administrator with a separate profile for each user.
Easy to Install
Simply plug cables into their appropriate ports. There is no software to configure, and no incompatible problems. It works on multiple operating platforms like Windows, Linux, Mac, Sun, etc.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The KVM-210-08 fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

IPM-1200x Series

Remotely reboot anything from anywhere
PLANET is glad to introduce the IPM-1200x 12-port IP Power Management device. The IPM-1200x series provides the useful function of managing power for any combination to connect with itself. With the innovative IP-based technology, PLANET has made the traditional power management equipment true networking devices.
Intelligent Power Management
With 12 power outlets, each of them can be controlled or monitored individually. You can control those power outlets via the console or web interfaces. You can also use the front panel to operate the power outlets. Providing 7-segment LED and port status indicators, users can know easily the status of the IPM-1200x series immediately, without logging in configure interface.
Easy Maintenance and Configuration
In addition to manual remote control, the IPM-1200x series provides event-triggered or schedule-based control to turn connected equipment on or off or to reboot systems. The IPM-1200x series is easily configured with its Plug-and-Play ability. The IPM-1200x series keeps a detailed log of all connected devices so that in case of severe errors from some devices, the status or failures can easily be solved.Cascade controls up to 6 IPM from single console
The IPM-1200x series can be daisy-chained to manage even more devices, so your server room management can expand in step with your company’s growth. For ease of management, this allows IT administrators to completely control an IT device from a single user interface.
EMD (Environmental Monitoring Device)
The IPM-1200x series has equipped with a console port for connecting an EMD (Environmental Monitoring Device) for sensing temperature and humidity along with two alarms that can be activated when the sensors show unusual values. The IPM-1200x series provides two digital outputs for connecting status indicators or digital switches. When users create a new server room or the environment has been monitoring, the IPM-1200x series is the best choice for the requirements.

SGSW-24040P/SGSW-24040P4

Centralized Power Management for Enterprise and SMB Power over Gigabit Ethernet Networking
To go for more popular Gigabit PoE network applications, PLANET SGSW-24040P/SGSW-24040P4 is the 24-port Gigabit PoE Managed Stackable Switch. Besides supporting the reliable stacking technology and advanced networking features, the SGSW-24040P/SGSW-24040P4 features high performance Gigabit Power over Ethernet (PoE), which optimizes the installation and power management of network devices such as wireless access points (APs), Voice over IP (VoIP) phones, and security video cameras. The SGSW-24040P series also provides high scalability for current and future network infrastructures as they can flexibly work with PLANET SGSW series Gigabit Switch to meet the various networking requirements and simplify the network deployment and management.The SGSW-24040P series Gigabit PoE Switch is ideally applicable for large scale of network deployment in enterprises, telecoms or campuses. A high performance with cost-effective solution is achieved by the SGSW-24040P series PoE Switch providing Gigabit throughput and power supply to PoE compliant devices including 802.11n AP with Gigabit PoE LAN port, mega-pixel PoE IP camera, PoE VoIP phones and more. Power and high speed data switching are integrated into one unit and delivered over a single cable, eliminating costs and time for additional AC wiring. The Gigabit PoE Switch also eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A maximum of 15.4W is available on the Gigabit ports for powering PDs (Powered Devices), with a maximum per device PoE delivery of 380W available for all ports to satisfy the increasing needs for power consumption of powered devices.Cost-effective IPv6 Managed Gigabit Switch Solution for SMBs
The SGSW-24040P series can work with the original network structure (IPv4) and also support the new network structure (IPv6) in the future. With easy and friendly management interfaces and plenty of management functions included, the SGSW-24040P series is the best choice for ISP to build the IPv6 FTTx edge service and for SMB to connect with the IPv6 network.High-Density, Resilient Deployment Switch Solution for Growing Gigabit Networking
The SGSW-24040P/SGSW-24040P4 provides 24 10/100/1000Mbps Gigabit Ethernet ports with IEEE 802.3af PoE injector, 4 shared Gigabit SFP slots, and 2 dedicated High-Speed HDMI-like interfaces for stacking with the series of switches. By applying the SGSW-24040 series, up to 16 units, 384 Gigabit Ethernet ports can be managed by a stacking group and you can add ports and functionality as needed. The 2 built-in stacking ports providing 5Gbps bandwidth and up to 20Gbps Bi-directional speed, it can handle an extremely large amount of data in a secure topology linking for backbone or high capacity network server with 68Gbps switching fabric per unit. The stacking technology also enables the chassis-based switches to be integrated into SGSW-24040 series Managed Switch at an inexpensive cost.Robust Layer 2 Features
The SGSW-24040 series can be programmed for advanced switch management functions such as dynamic Port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP Snooping. The SGSW-24040 series provides 802.1Q Tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the SGSW-24040 series allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of up to 12 groups of 16 ports for port link aggregation, and supports fail-over as well.Efficient and Secure Management
For efficient management, the SGSW-24040 series Managed Ethernet Switch is equipped with console, WEB and SNMP management interfaces. With the built-in Web-based management interface, the SGSW-24040 series offers an easy-to-use, platform-independent management and configuration facility. The SGSW-24040 series supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGSW-24040 series can be accessed via Telnet and the console port. Moreover, the SGSW-24040 series offers secure remote management by supporting SSH, SSL and SNMPv3 connection which encrypt the packet content at each session.

Enhanced Security
The SGSW-24040 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communications between edge ports can be protected to ensure user privacy. New SGSW-24040 series net Security also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Flexibility and Extension Solution
The four mini-GBIC slots built in the SGSW-24040 series support dual speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required. The distance can be extended from 550 meters (Multi-Mode fiber) up to above 10/50/70/120 kilometers (Single-Mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
