XDL-2420R

Perfectly Designed for FTTx Last Mile Applications

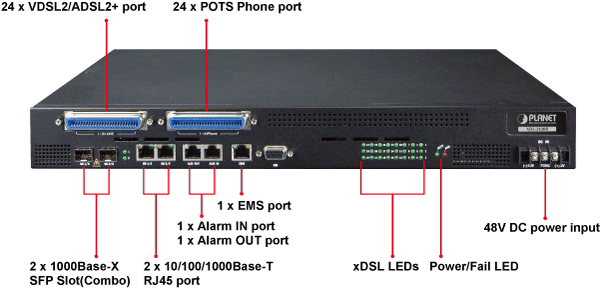

PLANET XDL-2420R is a telecom-level, high-performance IP-DSLAM (Digital Subscriber Line Access Multiplexer) with 24-port VDSL2 / ADSL2+ and 2-port Gigabit TP / SFP combo interfaces, and AC plus DC Redundant Power System. The XDL-2420R is fully compliant with ITU-T G.993.2 VDSL2 standard band plan up to profile 30a. It offers maximum download and upload line rate up to 100/100Mbps on the existing twisted pair lines. For ADSL connectivity, the XDL-2420R supports high interoperability and backward compatibility with ATU-R, and ADSL2 / ADSL2+ line mode. It is an ideal CO solution for FTTx last mile applications of broadband access by ISPs and Telecoms.

Delivering High-demand Service Connectivity for ISP/Triple Play Devices
The XDL-2420R provides excellent bandwidth to meet the requirement of the triple play devices for home entertainment and communications. With the capability of 100/100Mbps symmetric data transmission, the XDL-2420R enables many multi-media services to work on the Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.ADSL2+ Fallback
For those ISPs that still provide ADSL broadband service, the XDL-2420R supports transmission rates up to 24Mbps downstream and 3.5Mbps upstream with ADSL 2+ technology. The XDL-2420R supports PPPoE relay to establish connection with ISP, and it is switched over to VDSL2 after the network upgrade.Comprehensive and Advanced VDSL2/ADSL2+ Configuration
For the bandwidth and distance of broadband access, the XDL-2420R IP-DSLAM supports multiple selective VDSL2 profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a), 997/998 band plan and ADSL/ADSL2/ADSL2+ ITU-T G.993.1, ITU-T G.992.3, ITU-T G.992.5, Annex A/B/L/M transmit modes to each subscriber line. Furthermore, it can be configured on a per-link basis for transmission mode, rate limitation, INP (impulse noise protection) and SNR (signal-to-noise) margin. These advanced xDSL functionalities help service providers to adjust the line performance and build a stable and reliable IP-DSLAM solution.Extremely-reliable Design to Ensure Continuous Operation
The XDL-2420R supports the SELT (Single-end Loop Testing) and dual power inputs system for continuous network operation. SELT simplifies the testing of a DSL loop from one end to the line to be completed easily from the central office (CO) without having to require a technician or any equipment to be employed at the subscriber site. SELT makes line maintenance easily and reduces device shutdown time. The XDL-2420R is also equipped with one 90~240V AC unit and one DC -48V power supply unit for power redundancy. The Redundant Power System offers more reliability and reduces the possibility of device shutdown. The -48V DC power supply implemented makes the XDL-2420R IP-DSLAM as a telecom level device that can be located at the electronic room.

VIP-5060PT

Cost-effective, High-performance PoE VoIP Phone
To build high-performance VoIP communications at a low cost, PLANET has launched a new member of its IP Phone family, the VIP-5060PT enterprise-class 6-Line PoE IP Phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-5060PT makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps the company to save money on long distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long distance call charge would occur. The VIP-5060PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

High Quality HD Voice over IP
The VIP-5060PT delivers HD voice (High-Definition Voice) which is the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony and even close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50 Hz to 7 kHz or higher over telephone lines, resulting in higher quality voice and clearer communication.

Standard Compliance
The VIP-5060PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-5060PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Enhanced, Full-Featured Business IP Phone
The VIP-5060PT is a full-featured enhanced business IP Phone that addresses the communication needs of the enterprises. It provides 6 voice lines and dual 10/100/1000Mbps Ethernet. Furthermore, the VIP-5060PT delivers user-friendly design containing a 128 X 64 LCD with white backlight, 4 Line keys and 4 soft keys. It supports 5 extension consoles with each consisting of 26 keys.The VIP-5060PT supports all kinds of SIP based phone features including Call Waiting, Auto Answer, Music on Hold, Caller ID and Call Waiting ID, 3-way Conferencing, Call Hold, Call Forwarding, Black List, DTMF Relay, In-Band, Out-of-Band (RFC 2833) and SIP INFO, among others. Besides office use, the VIP-5060PT is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).

Secure, High-Quality VoIP Communication
The VIP-5060PT can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality.

Professional Application
The VIP-5060PT supports Busy Lamp Field (BLF) function that, via the lights on the phone, enables users to easily identify the status of other phones which are connected to the same IP PBX, such as busy, idle, ringing, etc. The connected IP PBX must also support BLF feature. The BLF function is helpful for a receptionist on the front desk to route all incoming calls smoothly.

VIP-5060PT

FSD-804PS

Cost-effective Centralized Power Distribution with Remote Management
For cost saving and the flexibility of using PoE power provision, half of the 10/100Mbps TP ports of the FSD-804PS provide PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices.For SOHO or department network, the switch also provides a simple, cost-effective, and highly reliable network connection for data as well as power. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks.

Easy Cabling installation
With data and power over Ethernet, the FSD-804PS is able to reduce cable installation and eliminate the need for electrical outlets on the wall, ceiling or any unreachable place. Energy saving is the key feature of the use of PoE in the deployment. With more efficient switching power supply, the efficiency of the FSD-804PS would be much better than four linear power adapters in the long run.Providing 4 PoE interfaces, the FSD-804PS is ideal for small businesses and workgroups requiring to utilize PoE for the deployment of wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost-effectively.Friendly / Simple Web Management Interface
The Web smart functions make it easy to survey and control the PoE power provision to the devices by the Web interface. Basic switching functions such as VLAN, Bandwidth Control, Storm Control and QoS are available for network management.

FNSW-1608PS

For cost saving purpose and providing advanced management functions, PLANET has released the new version of the FNSW-1608PS, the layer 2 web smart switch with PoE injector function built in. The FNSW-1608PS features 16 10/100Mbps Fast Ethernet ports with 8 IEEE 802.3af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on Port 1 to Port 8 which is able to drive 8 IEEE 802.3af compliant powered devices. The PoE power feeding can be set disable / enable and the PoE power consumption can be monitored for effective power usage.

With its auto-negotiation capability, all the RJ-45 / STP ports of the FNSW-1608PS can be configured to speeds of 10/20Mbps / 100/200Mbps (Fast Ethernet) automatically. In addition, the FNSW-1608PS is equipped with the MDI/MDI-X auto detection for easy plug and play connection, regardless of cabling types in straight through or crossover. The FNSW-1608PS also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kinds of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.

The FNSW-1608PS features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increasing bandwidth demands. For efficient management, the FNSW-1608PS switch is equipped with remote Web interface and can be programmed for advanced switch management functions such as SNMP Alert Trap, port configuration, port-based / IEEE 802.1Q / MTU VLAN, port mirroring, port trunk, QoS, bandwidth control, broadcast storm control, MAC address / TCP & UDP filter and IGMP Snooping.

FNSW-2400PS

Cost-effective Edge Network Connection Solution
To provide enhanced network management with cost saving benefit to customers, PLANET has released a new version of the FNSW-2400PS, the Layer 2 Web Smart Switch with PoE injector function. The FNSW-2400PS is equipped with 24 Fast Ethernet ports integrated with PoE injector function. With 125-watt PoE power budget, it provides a compact, affordable, safe and reliable power solution for small to medium enterprises.IEEE 802.3af Power over Ethernet Support
The PoE in-line power following the IEEE 802.3af standard makes the FNSW-2400PS able to deliver power to 24 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire. It optimizes the installation and safe power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones and IP surveillance cameras. With more efficient switching power supply, the efficiency of the FNSW-2400PS would be much better than four linear power adapters in the long run and offer customers the key benefit – energy saving.Easy Cabling Installation
The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the FNSW-2400PS reduces the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. In all, it lowers the installation costs and simplifies the deployment effort.Friendly Web-based Management
For efficient management, the FNSW-2400PS is equipped with remote Web interface. It can be programmed for advanced switch management functions such as port configuration, VLAN, Rapid Spanning Tree Protocol (RSTP), IGMP Snooping, port trunk, QoS, bandwidth control, and MAC address / TCP & UDP filter. The FNSW-2400PS provides port-based / IEEE 802.1Q / MTU VLAN (port based / IEEE 802.1Q VLAN including overlapping). The VLAN groups allow the FNSW-2400PS to have a maximum of up to 24 port-based VLAN groups or up to 32 IEEE 802.1Q VLAN groups. On the other hand, the MTU VLAN divides port 1 to port 24 as separate LAN group. Via supporting port trunking, the FNSW-2400PS allows the operation of a high-speed trunk to combine multiple ports. The FNSW-2400PS also provides two groups of up to 4-Port 10/ 100Base-TX trunk support with up to 800Mbps bandwidth per trunk group.
