SG-4800

As Internet becomes essential for business, the crucial solution to prevent your Internet connection from failure is to have more than one connection. PLANET SG-4800 is a Gigabit SSL VPN Security Router ideal to help the SMBs increase the broadband network performance and reduce the risks of potential shutdown if one of the Internet connections fails. The SG-4800 can monitor each WAN link status and automatically activate backup links when a failure is detected. The detection is based on the configurable target Internet addresses.

Network Efficiency Improvement with Load-Balancing
The SG-4800 allows you to perform load-balancing by distributing the traffic through three or four WAN connections. In Outbound Load Balancing, the network sessions are assigned based on the user configurable load balancing mode, including “Auto Load Balance”, “Unbinding WAN Balance” and “Strategy Routing”. Users can also configure which IP or TCP / UDP type of traffic use for WAN port to connect. The Inbound Load Balancing is for enterprise’s internal server to reduce the server loading and the risks of system crash so that the SG-4800 helps to improve the server working efficiency.

Strong Protection for Network Security
In addition to providing Multi-Homing functions, the SG-4800 Gigabit SSL VPN Security Router integrates a complete security solution in one box. It provides the policy-based firewall, content filtering function and VPN connectivity including SSL, IPSec, and PPTP VPN. The SSL VPN function supports up to 60 SSL VPN connection tunnels. The IPSec VPN feature provides 3DES and AES encryptions to make it a perfect product for your network security. By applying the SG-4800, there is no need of integrating different security products on the network and worrying about complicated connections and settings.

QoS Bandwidth Management
Besides offering easy yet powerful bandwidth management functions, the SG-4800 features Smart QoS with dynamic bandwidth management to automatically control P2P, video downloading and other bandwidth hogging in order to avoid bandwidth insufficiency. It helps the network administrators better allocate network resources based on business priorities, as well as to shape and control bandwidth usage by prioritizing different persons/groups or applications.

Easy Remote Management
The SG-4800 provides embedded Mirror Port to connect with the monitoring devices for online behavior monitoring. It also supports secure remote management via web browser with protection of user authentication.

CS-2001

The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing; however, it also brings network security issues. The request of information security becomes the primary concern for the enterprises. To fulfill the demand, PLANET has come out with the CS-2001 UTM Content Security Gateway, the next generation of the CS-2000, to support the enterprises to build up the secure network protection. For further IP compatibility, it supports IPv6 as well.

The CS-2001 adopts heuristic analysis to filter spam emails and viruses, and its auto-training system can increase the spam emails identification. The CS-2001 has a built-in 500GB hard disk to store the spam email in quarantine. The anti-virus application has dual virus scan engines – Clam and Sophos to effectively detect viruses, worms and other threats from emails and Internet. Moreover, it helps the administrators to monitor the email status easily via email reports daily, weekly, monthly and yearly.

Besides filtering spam and virus emails, the CS-2001 presents the IDP (Intrusion Detection and Prevention) and firewall functions to defense hackers and blaster attacks from Internet or Intranet. The comprehensive functions in one device provide enterprises with security solutions for better secure environment than ever.

The CS-2001 supports most of the popular security features including Content Blocking to block specific URL, Scripts, IM/P2P program, Authentication, IPSec, PPTP VPN server/Client, SSL VPN, QoS, High Availability, Inbound Load-Balancing and more. Furthermore, it provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user defined interfaces flexibly fulfill the network requirement nowadays, and the multiple WAN interfaces enable the CS-2001 to support Outbound/Inbound load balance and WAN fail-over features. As the result, the VPN not only can configure Trunk mode but also provide VPN fail-over and load balance features which is a VPN redundant mechanism to keep the VPN always alive.

MH-2300

Appropriate Network Security Solutions
The innovation of the Internet has created a tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses, thus bringing network security issues into focus. The request for information security has become the primary concern for the enterprises. To fulfill the demand, PLANET has launched the MH-2300 Gigabit Multi-Homing VPN Security Gateway to help the SMBs increase the broadband network performance and reduce the risks of potential shutdown if one of the Internet connections fails. It also supports the enterprises by building a secure network protection. For further IP compatibility, it supports IPv6 as well.

Cost-effective VPN Security Gateway Solution for SMBs
The MH-2300 supports most of the popular security features including content blocking to block specific URL, authentication, IPSec, PPTP VPN server/client, outbound load-balancing, QoS, time schedule, support group by IP, MAC and port; and more. Furthermore, it provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirement nowadays, and the multiple WAN interfaces enable the MH-2300 to support outbound load balancing and WAN fail-over features. Built-in 25 IPSec VPN tunnels and 25 PPTP VPN tunnels are enough for about 50 companies. As a result, the VPN not only can configure trunk mode but also provide VPN fail-over, bandwidth multi-line consolidation and load balancing features which are a VPN redundant mechanism to always keep the VPN alive.

Improving Network Efficiency
Moreover, the MH-2300 has firewall, link redundancy, application control and other functions, so that the entire network system can be even better. PLANET MH-2300, the latest model of its kind, is closer to the application of the small-scale sector, using a 9-inch desktop silent fanless design, with five Gigabit user-defined ports (WAN / LAN / DMZ). The MH-2300’s economical price with complete cable management features make it an inevitable choice for the next-generation office network load balancer.The MH-2300’s built-in fully-qualified domain name (FQDN) can automatically resolve the IP address corresponding to all; you just type the URL that is able to manage the secure websites (HTTPS) like Facebook, YouTube and Yahoo.

The MH-2300 can connect multiple WANs with up to four different ISPs. It can create a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.

VIP-157S

Based on years of VoIP manufacturing experience, PLANET VoIP total solutions are known for advanced implementation of standard based telephony with mass deployment capability.

Cost-effective, easy-to-install and simple-to-use, the VIP-157S converts standard telephones into IP-based network communication. It supports the service providers and enterprises by enhancing the traditional telephony communication services via the existing broadband connection to the Internet or corporation network.

With the VIP-157S, home users and companies are able to save the installation cost of voice-over-IP deployment and extend their past investments in telephones, conferences and speakerphones. The VIP-157S is equipped with two telephony interfaces, which enable users to register different SIP proxy servers and establish up to 2 concurrent VoIP calls for more flexibilities in the voice communications. The VIP-157S can be the bridge between the traditional analog telephones and IP network with an extremely affordable investment.

The VIP-157S integrated with IP PBX system is the ideal combination for your office daily communications. The VIP-157S includes two alternative Ethernet interfaces for Internet (PPPoE, DHCP or Fixed IP) or office LAN connection. For the new generation of networking communication, the VIP-157S supports IPv6 and VPN connection to provide users with more flexible and advantaged communication service.

VIP-156PE

Based on years of VoIP manufacturing experience, PLANET VoIP total solutions are known for advanced implementation of standard based telephony with mass deployment capability.

Cost-effective, easy-to-install and simple-to-use, the VIP-156PE converts standard telephones into IP-based network communication. With the 802.3af PoE integration, the VIP-156PE supports the service providers and enterprises by enhancing the traditional telephony communication services via the existing broadband connection to the Internet or corporation network.

With the VIP-156PE, home users and companies are able to save the installation cost of voice-over-IP deployment and extend their past investments in telephones, conferences and speakerphones. The VIP-156PE can be the bridge between the traditional analog systems and IP network with an extremely affordable investment.

The VIP-156PE integrated with PLANET IP PBX system is the ideal application to your office daily communications. The VIP-156PE includes two alternative Ethernet interfaces for Internet (PPPoE, DHCP or Fixed IP) or office LAN connection. For the new generation of networking communication, the VIP-156PE supports IPv6 and VPN connection to provide the users with more flexible and advantaged communication service.

VIP-156

Based on years of VoIP manufacturing experience, PLANET VoIP total solutions are known for advanced implementation of standard based telephony with mass deployment capability.

Cost-effective, easy-to-install and simple-to-use, the VIP-156 converts standard telephones into IP-based network communication. It supports the service providers and enterprises by enhancing the traditional telephony communication services via the existing broadband connection to the Internet or corporation network.

With the VIP-156, home users and companies are able to save the installation cost of voice-over-IP deployment and extend their past investments in telephones, conferences and speakerphones. The VIP-156 can be the bridge between the traditional analog systems and IP network with an extremely affordable investment.

The VIP-156 and PLANET IP PBX system integration is the ideal application to your office daily communications. The VIP-156 includes two alternative Ethernet interfaces for Internet (PPPoE, DHCP or Fixed IP) or office LAN connection. For the new generation of networking communication, the VIP-156 also supports IPv6 and VPN connection to provide users with more flexible and advantaged communication service.

IPX-2500

Intuitive, Ease-of-Use IP PBX Machine Management

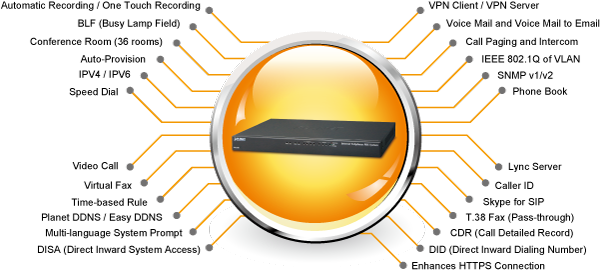

PLANET IPX-2500 IP PBX telephony system is SIP-based for optimizing communications among the small and medium businesses. The IPX-2500 is able to accept 500 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages.

Model	IPX-330	IPX-2100	IPX-2200	IPX-2500
Extension User	30	100	200	500
Concurrent Call	15	30	60	100
Conference Room	3	12	36	36
Room Concurrent Call	10	20	40	80
Recording/Voicemail	600 hrs (.gsm) 66 hrs (.wav)	600 hrs (.gsm) 66 hrs (.wav)	1,500 hrs (.gsm) 150 hrs (.wav)	75,000 hrs (.gsm) 7,500 hrs (.wav)

Off-net Calling Capability, Call Restriction, Call Access Control
The IPX-2500 integrates up to 8 calls via the IPX-21FO (4 FXO) and IPX-21GS (4 GSM) modules to form a feature-rich PBX system that supports seamless communications between the existing PSTN calls, analog, IP phones and SIP-based endpoints.

Replacing Old PBX Easily without New Wiring
Cost-effective, easy-to-install and simple-to-use, the IPX-2500 converts standard telephones to IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.With the IPX-2500, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-2500 can be the bridge between traditional analog systems and IP network with an extremely affordable investment.

Distributed VoIP Network Infrastructure

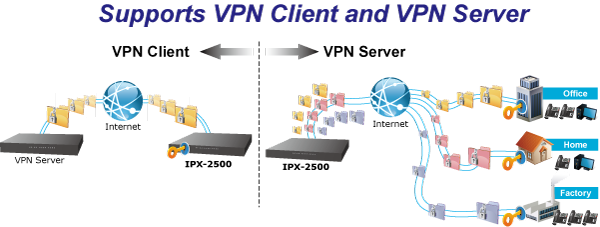

For the new-generation communication age, the IPX-2500 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-2500 also helps users to apply and remember the login information easier. Moreover, its multiple language feature helps user to quickly and friendly manage the system. The IPX-2500 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

Standard Compliance

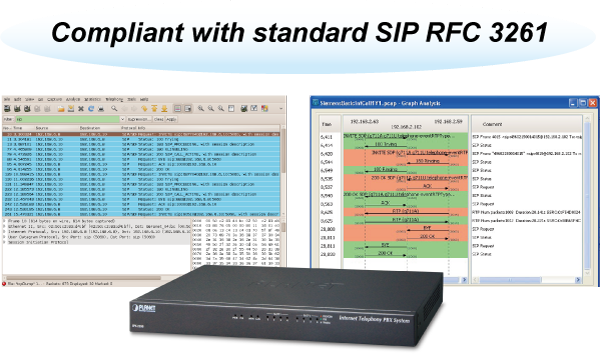

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-2500 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Green IP Office

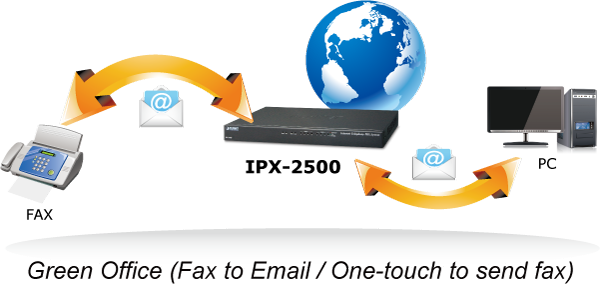

Virtual fax functionality on IPX-2500 system allows faxes to be sent and received without requiring a fax machine. This useful feature will allow businesses to demonstrate their green credentials while at the same time reduce fax related costs across the enterprise. Inbound faxes can be automatically received and converted to TIF files and saved in the IPX-2500 system. It is also possible to configure the IPX-2500 system to send the TIF files to a user’s email box. Sending outbound faxes is as easy as uploading a file from the extension user web portal, thus creating a paperless or green office.

Full Security with VPN Support
The IPX-2500 VPN securely and cost-effectively connects geographically disparate offices of an organization, creating one cohesive virtual network. The IPX-2500 VPN technology is also used by ordinary Internet users to connect to proxy servers for the purpose of protecting one’s identity. It includes VPN server and client function that can support users’ full security login.

IPX-2200

Intuitive, Ease-of-Use IP PBX Machine Management

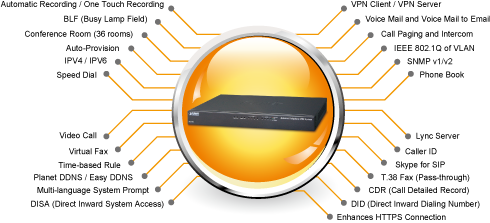

PLANET IPX-2200 IP PBX telephony system is SIP-based for optimizing communications among the small and medium businesses. The IPX-2200 is able to accept 200 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages.

Model	IPX-330	IPX-2100	IPX-2200	IPX-2500
Extension User	30	100	200	500
Concurrent Call	15	30	60	100
Conference Room	3	12	36	36
Room Concurrent Call	10	20	40	80
Recording/Voicemail	600 hrs (.gsm) 66 hrs (.wav)	600 hrs (.gsm) 66 hrs (.wav)	1,500 hrs (.gsm) 150 hrs (.wav)	75,000 hrs (.gsm) 7,500 hrs (.wav)

Off-net Calling Capability, Call Restriction, Call Access Control
The IPX-2200 integrates up to 8 calls via the IPX-21FO (4 FXO) and IPX-21GS (4 GSM) modules to form a feature-rich PBX system that supports seamless communications between the existing PSTN calls, analog, IP phones and SIP-based endpoints.

Replacing Old PBX Easily without New Wiring
Cost-effective, easy-to-install and simple-to-use, the IPX-2200 converts standard telephones to IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.
With the IPX-2200, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-2200 can be the bridge between traditional analog systems and IP network with an extremely affordable investment.

Distributed VoIP Network Infrastructure

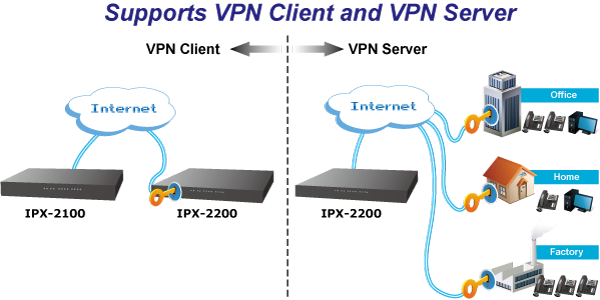

For the new-generation communication age, the IPX-2200 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-2200 also helps users to apply and remember the login information easier. The cost savings and communications benefits of IP stack are substantial. The IP stack SIP trunking eliminates the physical connection to a phone company. There are no hardware, wiring, or circuit boxes to maintain for connection to the PSTN. Reducing multiple phone lines into a single point of entry drastically reduces charges for incoming lines and the IT cost associated with the maintenance of those lines. Moreover, its multiple language feature helps user to quickly and friendly manage the system. The IPX-2200 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

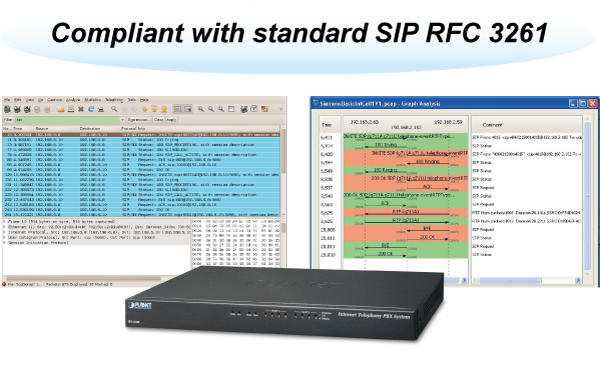

Standard Compliance
Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-2200 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Green IP Office
Virtual fax functionality on IPX-2200 system allows faxes to be sent and received without requiring a fax machine. This useful feature will allow businesses to demonstrate their green credentials while at the same time reduce fax related costs across the enterprise. Inbound faxes can be automatically received and converted to TIF files and saved in the IPX-2200 system. It is also possible to configure the IPX-2200 system to send the TIF files to a user’s email box. Sending outbound faxes is as easy as uploading a file from the extension user web portal, thus creating a paperless or green office.

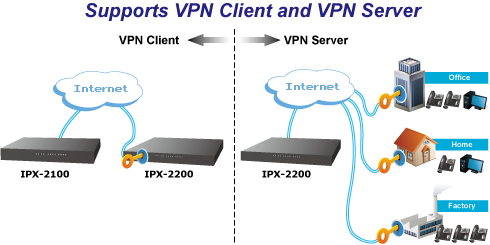

Full Security with VPN Support
The IPX-2200 VPN securely and cost-effectively connects geographically disparate offices of an organization, creating one cohesive virtual network. The IPX-2200 VPN technology is also used by ordinary Internet users to connect to proxy servers for the purpose of protecting one’s identity. It includes VPN server and client function that can support users’ full security login.

IPX-2100

Intuitive, Ease-of-Use IP PBX Machine Management
PLANET IPX-2100 IP PBX telephony system is SIP-based for optimizing communications among the small and medium businesses. The IPX-2100 is able to accept 100 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages.

Model	IPX-330	IPX-2100	IPX-2200	IPX-2500
Extension User	30	100	200	500
Concurrent Call	15	30	60	100
Conference Room	3	12	36	36
Room Concurrent Call	10	20	40	80
Recording/Voicemail	600 hrs (.gsm) 66 hrs (.wav)	600 hrs (.gsm) 66 hrs (.wav)	1,500 hrs (.gsm) 150 hrs (.wav)	75,000 hrs (.gsm) 7,500 hrs (.wav)

Off-net Calling Capability, Call Restriction, Call Access Control
The IPX-2100 integrates up to 8 calls via the IPX-21FO (4 FXO), IPX-21SL (2 FXO + 2 FXS) and IPX-21GS (4 GSM) modules to form a feature-rich PBX system that supports seamless communications between the existing PSTN calls, analog, IP phones and SIP-based endpoints.

Replacing Old PBX Easily without New Wiring
Cost-effective, easy-to-install and simple-to-use, the IPX-2100 converts standard telephones to IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.

With the IPX-2100, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-2100 can be the bridge between traditional analog systems and IP network with an extremely affordable investment.

Distributed VoIP Network Infrastructure

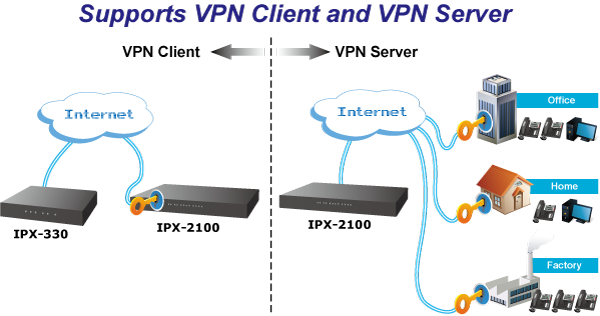

For the new-generation communication age, the IPX-2100 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-2100 also helps users to apply and remember the login information easier. Its multiple-language feature helps user to quickly and friendly manage the system. Moreover, the IPX-2100 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

Standard Compliance

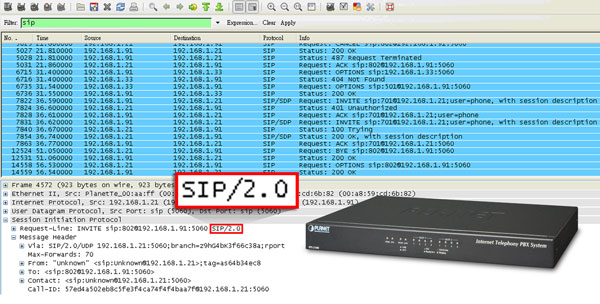

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-2100 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

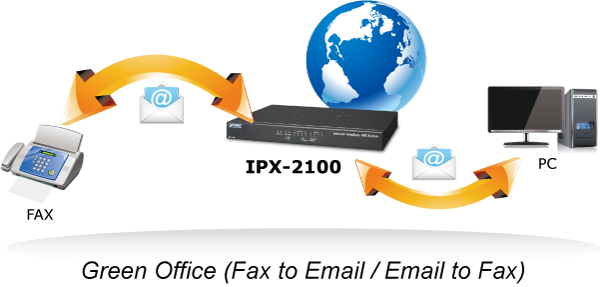

Green IP Office
The Fax to Email/Email to Fax service provided by the IPX-2100 allows users to transfer and receive faxes directly to or from your email inbox as file attachments. It is an easy and confidential way of receiving, storing and forwarding important fax documents, thus creating a paperless green office.

Full Security with VPN Support
The IPX-2100 VPN securely and cost-effectively connects geographically disparate offices of an organization, creating one cohesive virtual network. The IPX-2100 VPN technology is also used by ordinary Internet users to connect to proxy servers for the purpose of protecting one’s identity. It includes VPN server and client function that can support users’ full security login.

IPX-330

Intuitive, Ease-of-Use IP PBX Machine Management

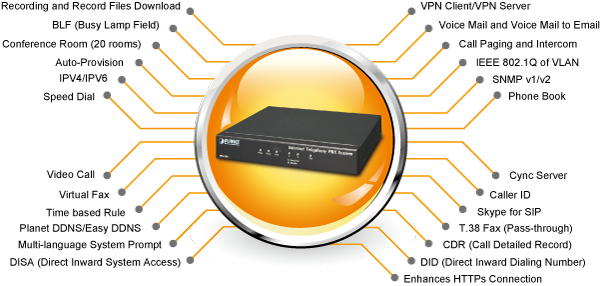

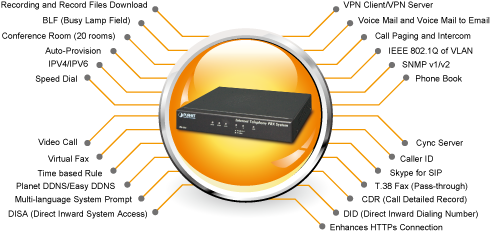

PLANET IPX-330 IP PBX telephony system is SIP-based for optimizing communications among small and medium businesses in daily communications. The IPX-330 is able to accept 30 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages.

Model	IPX-330	IPX-2100	IPX-2200	IPX-2500
Extension User	30	100	200	500
Concurrent Call	15	30	60	100
Conference Room	3	12	36	36
Room Concurrent Call	10	20	40	80
Recording/Voicemail	600 hrs (.gsm) 66 hrs (.wav)	600 hrs (.gsm) 66 hrs (.wav)	1,500 hrs (.gsm) 150 hrs (.wav)	75,000 hrs (.gsm) 7,500 hrs (.wav)

Off-net Calling Capability, Call Restriction, Call Access Control
The IPX-330, integrated with 2 FXO ports, is a feature-rich PBX system that supports seamless communications between existing PSTN calls, analog, IP phones and SIP-based endpoints.

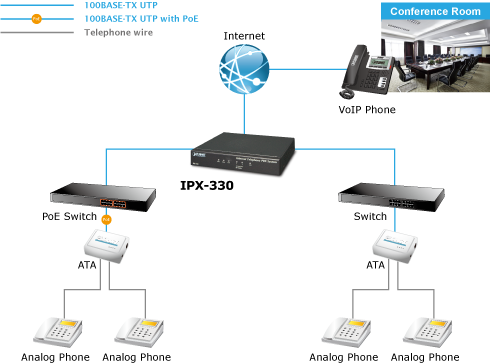

Replacing Old PBX Easily without New Wiring
Cost-effective, easy-to-install and simple-to-use, the IPX-330 converts standard telephones into IP based networks.
The service providers and enterprises offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.

With the IPX-330, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-330 can be the bridge between traditional analog systems and IP network with an extremely affordable investment.

Distributed VoIP Network Infrastructure
For the new-generation communication age, the IPX-330 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantage communication products. With PLANET DDNS function, the IPX-330 also helps users to apply and remember the login information easier. Its multiple-language feature helps user to quickly and friendly manage the system. Moreover, the IPX-330 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

Standard Compliance

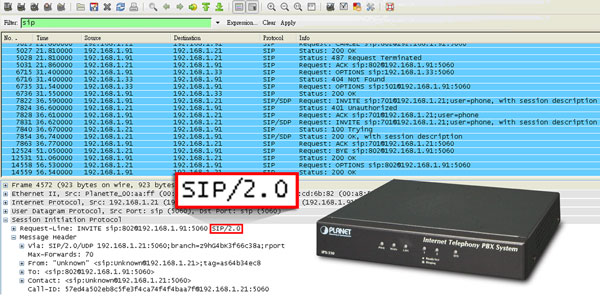

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-330 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

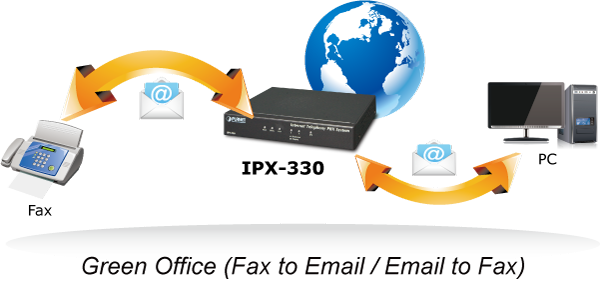

Green IP Office

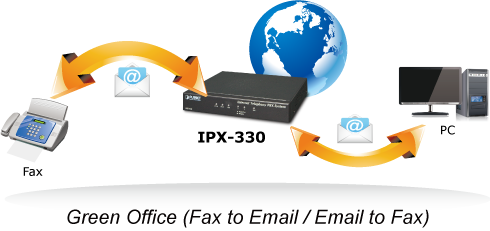

The Fax to Email/Email to Fax service by the IPX-330 allows users to transfer and receive faxes directly to or from your email inbox as file attachments. It is an easy and confidential way of receiving, storing and forwarding important fax documents, thus creating a paperless green office.

Full Security with VPN Support
The IPX-330 provides VPN to securely and cost-effectively connect geographically disparate offices of an organization, creating one cohesive virtual network. The VPN technology of the IPX-330 is also used by ordinary Internet users to connect to proxy servers for the purpose of protecting one’s identity. It includes VPN server and client function that can support users’ full security login.
