WNAP-C3220A

PLANET WNAP-C3220A, a 300Mbps 802.11n Wireless Range Extender, offers multiple operation modes and complies with 802.3af Power over Ethernet standard. Particularly, it supports AP Controller features that can increase wireless coverage and can easily be centrally managed within a network. Sleek styling housing and ceiling-mountable design makes the WNAP-C3220A blend unobtrusively into any ceiling or wall for various environments. This unique product also creates a secure, cost-effective and highly scalable wireless LAN infrastructure. It is ideal for enterprises, hotels, hospitals and home users to extend wireless network coverage.

Ease of Deployment with PLANET AP Controller
To simplify the wireless deployment, the WNAP-C3220A supports AP controller, which can be switched to the “managed AP” mode and thus can be centrally managed by PLANET Wireless AP Controller. It will certainly benefit the system integrators when the scale of the wireless network gets bigger. With visible LED lighting, the administrator can quickly pinpoint the localization of each ceiling-mount AP. Furthermore, the user-friendly, graphical configuration setup wizard and PLANET Smart Discovery tool can make the WNAP-C3220A convenient to be managed and configured remotely in a small business wireless network.

Comprehensive Wireless Operation Mode
The WNAP-C3220A supports multiple types of wireless connectivity such as AP (Multi-SSIDs), Client, Repeater/Universal Repeater, WDS Point-to-Point (PtP) and WDS Point-to-Multipoint (PtMP), allowing users to comprehensively experience various applications. It also helps users to easily build wireless network and extend the wireless range of the existing wireless network.

Universal Wireless Range Extender
To extend the coverage and eliminate the dead spot of wireless network in every place, the WNAP-C3220A supports not only WDS bridging, but also Universal Repeater mode which can solve the incompatibility between brands and provides a high-speed, wide coverage. The built-in intelligent antennas offer 360 degrees of coverage with excellent performance.

Advanced, Secure Wireless Connection
In aspect of security, besides 64-/128-bit WEP encryption, the WNAP-C3220A integrates WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. To simplify security settings for home and SOHO network, the WNAP-C3220A supports Wi-Fi Protected Setup (WPS). By just pressing the WPS button or keying in the PIN code, the secure connection between the WNAP-C3220A and wireless clients will be built immediately even the user has never experienced to create a secure wireless network. In addition, the WNAP-C3220A provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection.Elegant, Unique & Ceiling-mountable Design
Featuring an attractive flying saucer appearance and ceiling-mountable design, the WNAP-C3220A can be firmly absorbed on the ceiling or the wall, which makes the client-side installation easy and convenient. Its streamlined body without protruding antennas gives effects of embellishment on the surroundings and also provides greater wireless coverage.

Flexible Deployment with PoE Feature
Compliant with IEEE 802.3af Power over Ethernet standard, the WNAP-C3220A can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place which is difficult to reach. The wireless AP deployment becomes more flexible and worry-free from the power outlet locations.

WNAP-C3220A

WNAP-1260

Ideal High Speed Wireless Range Extender with Flexible Wall-Plug Design

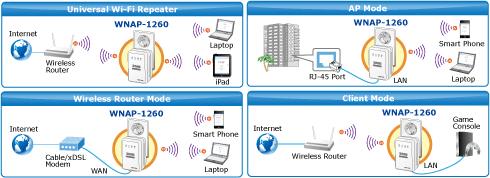

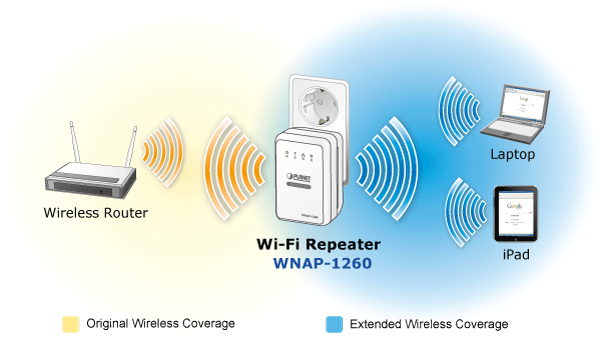

To minimize the effort of wireless network deployment, PLANET provides an ideal Wireless Range Extension solution – the WNAP-1260 Wall Plug Universal Wi-Fi Repeater. With the compact-sized and wall plug design, the WNAP-1260 is easy to plug into any electrical outlets of any place for 300Mbps high speed wireless network sharing. It can operate in various environments by the hardware switch modes including AP, Repeater and Client, which help users to immediately set up a wireless network without software configuration. The wall plug design and operation flexibility make the WNAP-1260 suitable for wireless LAN range extension.

Multiple Wireless Network Technologies for Greater Access
The WNAP-1260 features 802.11n radio with 2T2R antenna technology compliant with 802.11b/g/n standards. With the 300Mbps high speed transmission rates, the WNAP-1260 is easy to integrate the wireless devices with existing wired network. Compared with general wireless routers, the WNAP-1260 offers more powerful and flexible capability for home and business demands to access Internet and range extension of wireless network.One-touch Secure Wi-Fi Extension

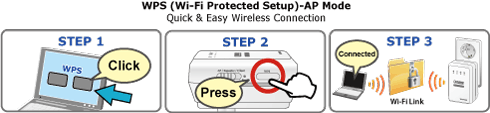

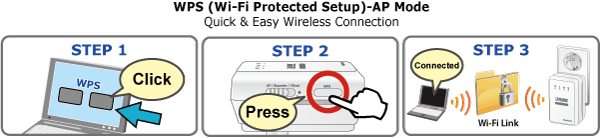

In order to simplify security settings for home and SOHO network, the WNAP-1260 supports Wi-Fi Protected Setup (WPS) with configuration in PBC and PIN type. Just push the WPS button or key in the PIN code and the secure connection between the WNAP-1260 and the access point can be built immediately, which offers users a convenient and fast method to extend a secure wireless network.

More Flexibility and Mobility

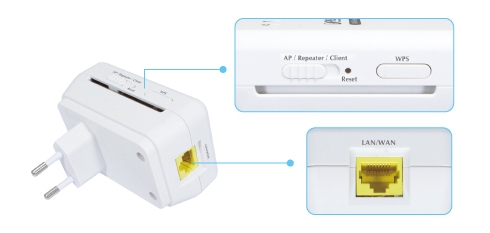

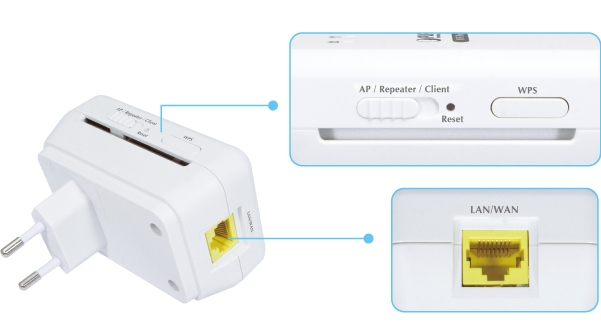

With the tiny-sized and wall plug design, the WNAP-1260 is easy to plug into wall outlet for wireless access in any place. It can operate in various environments with the hardware switch modes including AP, Repeater and Client, which help to immediately set up a wireless network without software configuration. The wall plug design and operation flexibility make the WNAP-1260 suitable for range extension.

Wide Range of Wireless Security Support
To secure the wireless communication, the WNAP-1260 supports most up-to-date encryptions including WPA / WPA2-PSK with TKIP/AES. Made to fulfill enterprise and various applications demand, the WNAP-1260 enhances security and management features such as multiple SSID support. It can create up to 5 virtual standalone AP with 5 different SSID according to individual security levels and encryption scheme of various wireless devices.Internet Broadband Sharing
The WNAP-1260 provides home and SOHO users a reliable and cost effective wireless solution by featuring WAN Internet access and high speed IEEE 802.11n wireless transmission. The WNAP-1260 is equipped with one LAN/WAN port for connection to local network or for wired cable / xDSL service connection. It provides a more flexible and easier way for users to share an instant wireless network service via range extension wherever at home, hotspot, or in public places like transportation, outdoor events, and more.Advanced Firewall Security
In the router mode, the WNAP-1260 supports NAT functions allowing multiple users to access Internet via only one single legal IP. It provides Port Forwarding and DMZ for LAN PC to act as an application server. Furthermore, the advanced firewall by the WNAP-1260 can protect your Intranet clients from unauthorized accesses and various DoS attacks from the Internet. In aspect of the firewall, the WNAP-1260 provides IP / MAC / Port / URL filtering to prevent possible hackers attack.Easy Setup Anywhere with Wall-Plug Design
With built-in small power-supply brick with integral male plug, the WNAP-1260 can be plugged directly into a wall outlet. Thus it can plug into any electrical outlets to repeat the existing poor Wi-Fi signal by just pressing its WPS button. Besides, uses also can easily apply any operating modes by switching the Hardware Mode Switch. With the universal design and compatible with any brands of router or access point, the WNAP-1260 provides the easiest way to eliminate wireless dead spots in office or home wireless network .
