| Powerful 10Gbps and Layer 3 Routing Solution for Enterprise Backbone and Data Center Networking PLANET SGS-6341-24T4X is a Layer 3 Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 128Gbps switching fabric and 4 10Gbps uplink ports, the SGS-6341-24T4X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6341-24T4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. |
 |
| High Performance 10Gbps Ethernet Capacity The four SFP+ slots built in the SGS-6341-24T4X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. |
| IP Stacking Management The SGS-6341-24T4X supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP Stacking technology groups PLANET SGS-6341 switch series together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network. |
 |
| Layer 3 Routing Support The SGS-6341-24T4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database. |
| Full IPv6 Support The SGS-6341-24T4X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built. |
| Robust Layer 2 Features The SGS-6341-24T4X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the SGS-6341-24T4X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 16 groups for trunking with a maximum of 8 ports for each group. |
| Excellent Layer 2 to Layer 4 Traffic Control The SGS-6341-24T4X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission. |
| Powerful Security The SGS-6341-24T4X supports ACL policies comprehensively. The traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic.The SGS-6341-24T4X also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. |
| Efficient and Secure Management For efficient management, the SGS-6341-24T4X Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6341-24T4X offers an easy-to-use, platform-independent management and configuration facility. The SGS-6341-24T4X supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software.For reducing product learning time, the SGS-6341-24T4X offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the SGS-6341-24T4X offers secure remote management by supporting SSH connection which encrypts the packet content at each session. |
 |
Product Category: Layer 3 Managed Ethernet Switch
SGS-6341-24P4X
| Powerful Layer 3 Gigabit Routing and Power over Ethernet Solution PLANET SGS-6341-24P4X is a Layer 3 PoE Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 128Gbps switching fabric, the SGS-6341-24P4X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6341-24P4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. The SGS-6341-24P4X has 24 IEEE 802.3at PoE+ ports and PoE budget up to 370 watts for catering to medium to large scale of VoIP or IP surveillance networks at a lower total cost. |
 |
| Centralized Power Management for Gigabit Ethernet PoE Networking To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the SGS-6341-24P4X features high-performance Gigabit IEEE 802.3af PoE (up to 15.4 watts) and IEEE 802.3at PoE+ (up to 30 watts) on all ports. It perfectly meets the power requirements of PoE VoIP phone and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras or even box type IP cameras with built-in fan and heater.The SGS-6341-24P4X’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from the restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates the cost for additional AC wiring and reduces installation time.PoE Schedule for Energy Saving Besides being used for IP surveillance, the SGS-6341-24P4X is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the SGS-6341-24P4X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save energy and budget. |
 |
| High Performance 10Gbps Ethernet Capacity The four SFP+ slots built in the SGS-6341-24P4X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.IP Stacking Management The SGS-6341-24P4X supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP Stacking technology groups SGS-6341 switch series together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network. |
 |
| Layer 3 Routing Support The SGS-6341-24P4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.Full IPv6 Support The Stackable Managed Switch provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. The SGS-6341-24P4X thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.Robust Layer 2 Features The SGS-6341-24P4X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. The SGS-6341-24P4X provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. By supporting port aggregation, the SGS-6341-24P4X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 16 groups for trunking with a maximum of 8 ports for each group. |
| Excellent Layer 2 to Layer 4 Traffic Control The SGS-6341-24P4X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.Powerful Security The SGS-6341-24P4X supports ACL policies comprehensively. The traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic.The SGS-6341-24P4X also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users.Efficient and Secure Management For efficient management, the SGS-6341-24P4X Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6341-24P4X offers an easy-to-use, platform-independent management and configuration facility. The SGS-6341-24P4X supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software.For reducing product learning time, the SGS-6341-24P4X offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the SGS-6341-24P4X offers secure remote management by supporting SSH connection which encrypts the packet content at each session. |
 |
SGS-6340-48T4S
| Powerful Layer 3 Gigabit Routing Solution for Enterprise Backbone and Data Center Networking PLANET SGS-6340-48T4S is a Layer 3 Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 104Gbps switching fabric, the SGS-6340-48T4S can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6340-48T4S perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. |
 |
| Layer 3 Routing Support The SGS-6340-48T4S enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for the RIP is 15. The OSPF is an interior dynamic routing protocol for autonomous system based on link-state. The protocol creates a link-state database by exchanging link-states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.Abundant IPv6 Support The SGS-6340-48T4S provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. The SGS-6340-48T4S thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.High Performance The SGS-6340-48T4S provides 48 10/100/1000Mbps Gigabit Ethernet ports with 4 additional Gigabit SFP slots. It boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 104Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.Robust Layer 2 Features The SGS-6340-48T4S can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. The SGS-6340-48T4S provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. The VLAN groups allowed to be on the SGS-6340-48T4S will be maximally up to 256. By supporting port aggregation, the SGS-6340-48T4S allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group. |
| Excellent Traffic Control The SGS-6340-48T4S is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.Powerful Security The SGS-6340-48T4S supports ACL policies comprehensively. The traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The SGS-6340-48T4S also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users.Efficient Management The SGS-6340-48T4S supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. For efficient management, the SGS-6340-48T4S Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6340-48T4S offers an easy-to-use, platform-independent management and configuration facility. The SGS-6340-48T4S supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGS-6340-48T4S can be accessed via Telnet and the console port. Moreover, the SGS-6340-48T4S offers secure remote management by supporting SSH connection which encrypts the packet content at each session.Flexibility and Extension Solution The four mini-GBIC slots built in the SGS-6340-48T4S are compatible with 1000BASE-X and WDM SFP (Small Form-factor Pluggable) fiber-optic modules. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. |
SGS-6340-24T4S
| Powerful Layer 3 Gigabit Routing Solution for Enterprise Backbone and Data Center Networking PLANET SGS-6340-24T4S is a Layer 3 Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 56Gbps switching fabric, the SGS-6340-24T4S can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6340-24T4S perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. |
 |
| Layer 3 Routing Support The SGS-6340-24T4S enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for the RIP is 15. The OSPF is an interior dynamic routing protocol for autonomous system based on link-state. The protocol creates a link-state database by exchanging link-states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.Abundant IPv6 Support The SGS-6340-24T4S provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. The SGS-6340-24T4S thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.High Performance The SGS-6340-24T4S boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 56Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.Robust Layer 2 Features The SGS-6340-24T4S can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. The SGS-6340-24T4S provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. The VLAN groups allowed to be on the SGS-6340-24T4S will be maximally up to 256. By supporting port aggregation, the SGS-6340-24T4S allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group. |
| Excellent Traffic Control The SGS-6340-24T4S is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.Powerful Security The SGS-6340-24T4S supports ACL policies comprehensively. The traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The SGS-6340-24T4S also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users.Efficient Management The SGS-6340-24T4S supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. For efficient management, the SGS-6340-24T4S Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6340-24T4S offers an easy-to-use, platform-independent management and configuration facility. The SGS-6340-24T4S supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGS-6340-24T4S can be accessed via Telnet and the console port. Moreover, the SGS-6340-24T4S offers secure remote management by supporting SSH connection which encrypts the packet content at each session.Flexibility and Extension Solution The four mini-GBIC slots built in the SGS-6340-24T4S are compatible with 1000BASE-X and WDM SFP (Small Form-factor Pluggable) fiber-optic modules. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. |
SGS-6340-24P4S
| Powerful Layer 3 Gigabit Routing and Power over Ethernet Solution PLANET SGS-6340-24P4S is a Layer 3 PoE Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 56Gbps switching fabric, the SGS-6340-24P4S can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6340-24P4S perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. The SGS-6340-24P4S has 24 IEEE 802.3at PoE+ ports and PoE budget up to 370 watts for catering to medium to large scale of VoIP or IP Surveillance networks at a lower total cost. |
 |
| Centralized Power Management for Gigabit Ethernet PoE Networking To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the SGS-6340-24P4S features high-performance Gigabit IEEE 802.3af PoE (up to 15.4 watts) and IEEE 802.3at PoE+ (up to 30 watts) on all ports. It perfectly meets the power requirement of PoE VoIP phone and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras or even box type IP cameras with built-in fan and heater.The SGS-6340-24P4S’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates cost for additional AC wiring and reduces installation time.PoE Schedule for Energy Saving Besides being used for IP surveillance, the SGS-6340-24P4S is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the SGS-6340-24P4S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save energy and budget |
 |
| Layer 3 Routing Support The SGS-6340-24P4S enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for the RIP is 15. The OSPF is an interior dynamic routing protocol for autonomous system based on link-state. The protocol creates a link-state database by exchanging link-states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.Abundant IPv6 Support The SGS-6340-24P4S provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. The SGS-6340-24P4S thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.High Performance The SGS-6340-24P4S boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 56Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. |
| Robust Layer 2 Features The SGS-6340-24P4S can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. The SGS-6340-24P4S provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. The VLAN groups allowed to be on the SGS-6340-24P4S will be maximally up to 256. By supporting port aggregation, the SGS-6340-24P4S allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group.Excellent Traffic Control The SGS-6340-24P4S is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.Powerful Security The SGS-6340-24P4S supports ACL policies comprehensively. The traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The SGS-6340-24P4S also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users.Efficient Management The SGS-6340-24P4S supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. For efficient management, the SGS-6340-24P4S Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6340-24P4S offers an easy-to-use, platform-independent management and configuration facility. The SGS-6340-24P4S supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGS-6340-24P4S can be accessed via Telnet and the console port. Moreover, the SGS-6340-24P4S offers secure remote management by supporting SSH connection which encrypts the packet content at each session.Flexibility and Extension Solution The four mini-GBIC slots built in the SGS-6340-24P4S are compatible with 1000BASE-X and WDM SFP (Small Form-factor Pluggable) fiber-optic modules. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. |
SGS-6340-20S4C4X
| Powerful Solution for All Long-Reach Networks PLANET SGS-6340-20S4C4X is a Layer 3 Stackable Managed Gigabit Switch that provides high-density performance by its Layer 3 Gigabit static routing with 10Gbps uplink and multiple SFP fiber interfaces delivered in a rugged strong case. The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 128Gbps switching fabric, the SGS-6340-20S4C4X can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for ISP and enterprise VoIP, video streaming, and multicast applications. |
 |
| AC and DC Redundant Power to Ensure Continuous Operation The SGS-6340-20S4C4X is equipped with one 100~240V AC power supply unit and one additional -48 ~ -60V DC power supply unit for redundant power supply installation. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. Furthermore, with the -48 ~ -60V DC power supply implemented, the SGS-6340-20S4C4X can be applied as the telecom level device.Layer 3 Routing Support The SGS-6340-20S4C4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for the RIP is 15. The OSPF is an interior dynamic routing protocol for autonomous system based on link-state. The protocol creates a link-state database by exchanging link-states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database. |
| High Performance The SGS-6340-20S4C4X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.Abundant IPv6 Support The SGS-6340-20S4C4X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR (Weighted Round Robin) and RADIUS authentication. The SGS-6340-20S4C4X thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.Excellent and Secure Traffic Control The SGS-6340-20S4C4X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms and enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The SGS-6340-20S4C4X also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the SGS-6340-20S4C4X empowers ISP and enterprises to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission. |
| Robust Layer 2 Features The SGS-6340-20S4C4X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. The VLAN groups allowed to be on the SGS-6340-20S4C4X will be maximally up to 256. By supporting port aggregation, the SGS-6340-20S4C4X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group.Efficient Management The SGS-6340-20S4C4X supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. For efficient management, the SGS-6340-20S4C4X Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6340-20S4C4X offers an easy-to-use, platform-independent management and configuration facility. The SGS-6340-20S4C4X supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGS-6340-20S4C4X can be accessed via Telnet and the console port. Moreover, the SGS-6340-20S4C4X offers secure remote management by supporting SSH connection which encrypts the packet content at each session.Flexibility and Extension Solution The SGS-6340-20S4C4X provides twenty-four 100/1000Mbps dual speed SFP Fiber ports, four 1/10Gbps SFP+ Fiber ports, and four 10/100/1000Mbps TP/SFP combo ports. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX. Therefore, the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) or up to 10/20/30/40/50/70/120 km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. |
SGS-6340-16XR
| Powerful All-port 10Gbps Solution for Enterprise Core Networks PLANET SGS-6340-16XR is a Layer 3 Stackable Managed Gigabit Switch that provides high-density performance via its Layer 3 10Gigabit static routing with 16 SFP+ fiber interfaces delivered in a rugged case. The administrator can flexibly choose a suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with the 320Gbps switching fabric, the SGS-6340-16XR can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for enterprises, data centers, campuses and so on where VoIP, video streaming, and multicast applications are utilized. |
 |
| AC and DC Redundant Power to Ensure Continuous Operation The SGS-6340-16XR is equipped with one 100~240V AC power supply unit and one additional -48 ~ -60V DC power supply unit for redundant power supply installation. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. Furthermore, with the -48 ~ -60V DC power supply implemented, the SGS-6340-16XR can act as a telecom level device. |
 |
| Layer 3 Routing Support The Switch enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for the RIP is 15. The OSPF is an interior dynamic routing protocol for autonomous system based on link-state. The protocol creates a link-state database by exchanging link-states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.High Performance With a high-performance architecture, the SGS-6340-16XR is capable of providing non-blocking switch fabric and wire-speed throughput as high as 320Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. |
 |
| Abundant IPv6 Support The SGS-6340-16XR provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR (Weighted Round Robin) and RADIUS authentication. The SGS-6340-16XR thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.Excellent and Secure Traffic Control The SGS-6340-16XR is loaded with powerful traffic management and WRR features to enhance services offered by enterprises and campuses. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications.Powerful Security The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic.The SGS-6340-16XR also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the SGS-6340-16XR empowers enterprises and campuses to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission. |
| Robust Layer 2 Features The Switch can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. The VLAN groups allowed to be on the SGS-6340-16XR will be maximally up to 256. By supporting port aggregation, the SGS-6340-16XR allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group.IP Stacking Management The SGS-6340-16XR supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP Stacking technology groups SGS-6340 switch series together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network. |
 |
| Efficient and Secure Management For efficient management, the SGS-6340-16XR Managed 10Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6340-16XR offers an easy-to-use, platform-independent management and configuration facility. The SGS-6340-16XR supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software.For reducing product learning time, the SGS-6340-16XR offers Cisco-like command via Telnet or console port. Moreover, the SGS-6340-16XR offers secure remote management by supporting SSH connection which encrypts the packet content at each session.Flexibility and Extension Solution The SGS-6340-16XR provides 16 1G/10Gbps dual speed SFP+ Fiber ports. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX. Therefore, the administrator can flexibly choose the suitable SFP/SFP+ transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 10km (multi-mode fiber) or up to 10/20/30/40/50/70/120 km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. |
XGS3-24242
- Applications
- Key Features
- Specifications
- Download
- Related Products
| IPv6 Routing and 10G Ethernet Switch Solutions for the Next Generation Internet Protocol PLANET XGS3-24242 Layer 3 Stackable Managed Gigabit Switch supports multi-layer IPv6/IPv4 Gigabit Ethernet Routing, and provides 24 100/1000Mbps SFP slots, 16 shared 10/100/1000Mbps Ethernet ports, 4 extra 1/10G SFP+ uplink slots and 2 20G QSFP+ slots for Hardware stacking to meet the bandwidth requirements and protect network investment for enterprises. The XGS3-24242 is implemented with the following advanced technologies:■ IPv6/IPv4 Routing and Management ■ 10G Ethernet Switching ■ Single IP Address Management ■ Redundant Power System ■ QSFP+ slots for Hardware StackingPositioned as the distribution or aggregation layer switch for large networks, the XGS3-24242 supports IP Stacking technology that helps to manage and configure up to 24 units via one single IP address easily. It is suitable for campus networks, metropolitan IP networks and other large infrastructures as it offers intelligent security features, high performance and flexibility. The XGS3-24242 can also be an excellent choice as a core layer switch for enterprises, data centers or small- and medium-sized networks. |
 |
| High Reliability Hardware Stacking Using QSFP+ port to connect several servers and build a virtually logical facility. The XGS3-24242 gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The stack redundancy of the XGS3-24242 ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands |
 |
| Supporting 10Gb Ethernet With 10Gbps uplink, the XGS3-24242 can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.High Performance The XGS3-24242 boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 208Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.Rich Multi-layer and Multicast Networking Protocols The XGS3-24242 supports various Layer 2 and management networking protocols to meet the requirements of complex network constructions. It is compatible with 802.1D/w/s, 802.1Q, 802.1p, 802.3ad, 802.3x, GVRP, DHCP, SNTP, etc. The XGS3-24242 also supports IPv6/IPv4 routing protocols including Layer 3 IP static routing, RIPv1/v2, RIPng, OSPFv2/v3, and VRRP protocols.Built in with abundant multicast features, the XGS3-24242 supports rich L2 multicast features such as IGMPv1/v2/v3 and MLDv1/v2 snooping, and L3 multicast protocols — DVMRP, PIM-DM, PIM-SM and PIM-SSM. Offering the rich application experience, the product supports multicast VLAN registration, multicast receive control and illegal multicast source detect functions. The XGS3-24242 solution performs a cost-effective solution for today with the ability to expand as network demands grow. |
| Full IPv6 Support The XGS3-24242 provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR (Weighted Round Robin) and RADIUS authentication. The XGS3-24242 thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.Excellent and Secure Traffic Control The XGS3-24242 is loaded with powerful traffic management and WRR features to enhance services offered by telecoms and enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications.Powerful Security The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic.The XGS3-24242 also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the XGS3-24242 empowers ISP and enterprises to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission. |
| Robust Layer 2 Features The XGS3-24242 can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. By supporting port aggregation, the XGS3-24242 allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group.Efficient Management For efficient management, the XGS3-24242 Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the XGS3-24242 offers an easy-to-use, platform-independent management and configuration facility. The XGS3-24242 supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the XGS3-24242 can be accessed via Telnet and the console port. Moreover, the XGS3-24242 offers secure remote management by supporting SSH connection which encrypts the packet content at each session.Flexibility and Extension Solution The XGS3-24242 provides 24 100/1000Mbps dual speed SFP Fiber ports and four 1/10Gbps SFP+ Fiber ports. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX. Therefore, the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) or up to 10/20/30/40/50/70/120 km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. |

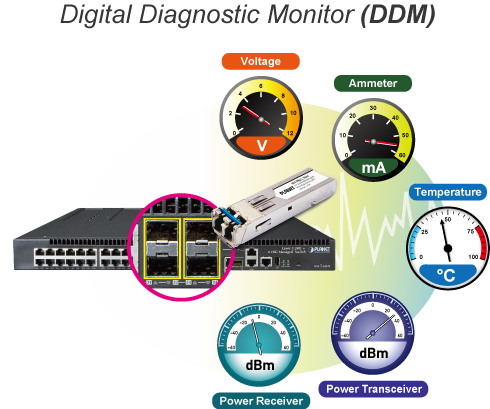

| Intelligent SFP/SFP+ Diagnosis Mechanism The XGS3-24242 supports SFP/SFP+DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP/SFP+, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. |
 |
| AC and DC Redundant Power to Ensure Continuous Operation The XGS3-24242 is equipped with one 100~240V AC power supply unit and one empty power supply slot for redundant DC power supply – XGS3-PWR150-48 installation, which supports -40 ~ -60V DC power input. With XGS3-PWR150-48 DC power supply implemented, the XGS3-24242 can be applied as the telecom level device. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. |
 |
XGS3-24042
| IPv6 Routing and 10G Ethernet Switch Solutions for the Next Generation Internet Protocol PLANET XGS3-24042 Layer 3 Stackable Managed Gigabit Switch supports multi-layer IPv6/IPv4 Gigabit Ethernet Routing, and provides 24 10/100/1000Mbps Gigabit Ethernet ports, 4 shared Gigabit SFP slots and 4 extra 10G SFP+ uplink slots to meet the bandwidth requirements and protect network investment for enterprises. The XGS3-24042 is implemented with the following advanced technologies:■ IPv6/IPv4 Routing and Management ■ 10G Ethernet Switching ■ Single IP Address Management ■ Redundant Power SystemPositioned as the distribution or aggregation layer switch for large networks, the XGS3-24042 supports IP Stacking technology that helps to manage and configure up to 24 units via one single IP address easily. It is suitable for campus networks, metropolitan IP networks and other large infrastructures as it offers intelligent security features, high performance and flexibility. The XGS3-24042 can also be an excellent choice as a core layer switch for enterprises, data centers or small- and medium-sized networks. |
 |
| Supporting 10Gb Ethernet With 10Gbps uplink, the XGS3-24042 can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.High Performance The XGS3-24042 boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.Rich Multi-Layer and Multicast Networking Protocols The XGS3-24042 supports various Layer 2 and management networking protocols to meet the requirements of complex network constructions. It is compatible with 802.1D/w/s, 802.1Q, 802.1p, 802.3ad, 802.3x, GVRP, DHCP, SNTP, etc.The XGS3-24042 also supports IPv6/IPv4 routing protocols including Layer 3 IP static routing, RIPv1/v2, RIPng, OSPFv2/v3, and VRRP protocols. Built in with abundant multicast features, the XGS3-24042 supports rich L2 multicast features such as IGMPv1/v2/v3 and MLDv1/v2 snooping, and L3 multicast protocols — DVMRP, PIM-DM, PIM-SM and PIM-SSM. Offering the rich application experience, the product supports multicast VLAN registration, multicast receive control and illegal multicast source detect functions. The XGS3-24042 solution performs a cost-effective solution for today with the ability to expand as network demands grow. |
| Abundant IPv6 Support The XGS3-24042 provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR (Weighted Round Robin) and RADIUS authentication. The XGS3-24042 thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.Excellent and Secure Traffic Control The XGS3-24042 is loaded with powerful traffic management and WRR features to enhance services offered by telecoms and enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The XGS3-24042 also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the XGS3-24042 empowers ISP and enterprises to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.Robust Layer 2 Features The XGS3-24042 can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. The VLAN groups allowed to be on the XGS3-24042 will be maximally up to 256. By supporting port aggregation, the XGS3-24042 allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group. |
| Efficient Management For efficient management, the XGS3-24042 Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the XGS3-24042 offers an easy-to-use, platform-independent management and configuration facility. The XGS3-24042 supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the XGS3-24042 can be accessed via Telnet and the console port. Moreover, the XGS3-24042 offers secure remote management by supporting SSH connection which encrypts the packet content at each session.Flexibility and Extension Solution The XGS3-24042 provides four 100/1000Mbps dual speed SFP Fiber combo ports and four 1/10Gbps SFP+ Fiber ports. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX. Therefore, the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) or up to 10/20/30/40/50/70/120 km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.Intelligent SFP/SFP+ Diagnosis Mechanism The XGS3-24042 supports SFP/SFP+-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP/SFP+, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. |
 |
| AC and DC Redundant Power to Ensure Continuous Operation The XGS3-24042 is equipped with one 100~240V AC power supply unit and one empty power supply slot for redundant DC power supply – XGS3-PWR150-48 installation, which supports -40 ~ -60V DC power input. With XGS3-PWR150-48 DC power supply implemented, the XGS3-24042 can be applied as the telecom level device. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. |
 |
XGS3-42000R
| PLANET XGS3-42000R Core-Layer Routing Switch is specially designed for large network applications such as enterprises, campuses, communities, ISPs and data center networks where flexible configuration, large capacity, high density, high reliability and advanced traffic management are required. The XGS3-42000R is a High-Density Chassis Ethernet Switch built with 4 module slots and redundant power supply. It provides great porting flexibility for network deployment by offering various combinable management modules and standard interfaces. For instance, one management module can be collaborated with three standard modules, or two management modules work with two standard modules to perform mutually system backup. Within the 6U height, single chassis, the maximum configuration can be: – 160 10/100/1000BASE-T Copper Slots – 96 100/1000BASE-SX/LX SFP Fiber Slots – 12 10G SFP+ Fiber SlotsPositioned as the core layer switch, the XGS3-42000R serves ideally for large- and medium-sized networks and IP metropolitan networks by supplying advanced intelligent and secure features and giving high performance and flexibility. |
| Supporting 10-Gigabit Ethernet 10-Gigabit Ethernet, which adopts full-duplex technology instead of low-speed, half-duplex CSMA/CD protocol, is a big leap in the evolution of Ethernet. 10-Gigabit Ethernet can be deployed in star or ring topology. With 10-Gigabit Ethernet technology applied, the XGS3-42000R provides broad bandwidth and powerful processing capacity. It is suitable for metropolitan networks and wide area networks. Using the XGS3-42000R, users can simplify network structures and reduce cost of network construction.Full IPv6 Support The XGS3-42000R Chassis Switch supports IPv6 routing in hardware for maximum performance. As more network devices are growing and the need for larger addressing and higher security becomes critical, the XGS3-42000R Chassis Switch is the right product to meet the requirements.Scalable Performance The XGS3-42000R delivers wire-speed Gigabit and 10-Gigabit Ethernet connectivity in a highly-flexible and resilient modular platform. With high switching capacity, the XGS3-42000R Chassis Switch supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. The scalable and flexible modular architecture supports up to 432Gbps forwarding performance in a single system. The XGS3-42000R is ideal for the core layer of campuses, enterprise networks and the aggregation layer of IP metropolitan networks. |
| Rich Multi-Layer and Multicast Networking Protocols The XGS3-42000R supports various Layer 2 and management networking protocols to meet the requirements of complex network constructions. It is compatible with 802.1d/w/s, 802.1Q, 802.1p, 802.3ad, 802.3x, GVRP, DHCP, SNTP, etc.The Chassis Switch also supports IPv6/IPv4 routing protocols including Layer 3 IP Static Routing, RIPv1/v2, OSPF, and VRRP protocols. Built in with abundant multicast features, the XGS3-42000R supports rich L2 multicast features such as IGMP snooping v1/v2/v3 and L3 multicast protocols — DVMRP, PIM-DM, PIM-SM and PIM-SSM. Offering the rich application experience, the product supports multicast VLAN registration, multicast receive control and illegal multicast source detect functions. The XGS3-42000R Chassis Switch solution is cost-effective yet has the ability to expand to meet today’s demand for network expansion.Enhanced Security PLANET XGS3-42000R offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The XGS3-42000R Net Security also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent from IP snooping attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before. |
| Enhanced Quality of Service The XGS3-42000R Switch fully supports DiffServ module, so users can specify a queue bandwidth on each port. WRR/SP/SWRR scheduling is also provided. The XGS3-42000R supports the port security to enable trusted CoS, DSCP, IP precedence and port priority. Users can modify packets’ DSCP and COS values so that the traffic can be classified by port, VLAN, DSCP, IP precedence and ACL table. User can also modify packets’ DSCP and IP precedence values to specify different bandwidths for voice, data and video to customize different qualities of service.Efficient and Secure Management For efficient management, the XGS3-42000R Chassis Switch is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the XGS3-42000R offers an easy-to-use, platform-independent management and configuration facility. The XGS3-42000R supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the XGS3-42000R can be accessed via Telnet and the console port. Moreover, the XGS3-42000R offers secure remote management by supporting SSH, SSL and SNMPv3 connection which encrypt the packet content at each session. |
