| Ideal integration of Industrial Ethernet Extender To fulfill the market demand, PLANET has released one amazing product named IVC-2002. The IVC-2002 is positioned as an Industrial Ethernet Extender. It has a switching architecture with 4 RJ-45 10/100Mbps Ethernet ports and one asymmetric or symmetric Ethernet over VDSL port – the VDSL port can be RJ-11 or BNC connector. Customers can use either BNC or RJ-11 for their network deployment and it offers the absolutely fastest data transmission speed over existing coaxial cable and telephone wire without the need of rewiring. Furthermore, the IVC-2002 is also compatible with PLANET VC-201A and VC-202A. Without spending extra cost, users can easily re-deploy a new local Internet in the apartment, hotel, campus and hospitality environment by applying the IVC-2002 on the original network structure.Environmentally Hardened Design for Industrial Networks The IVC-2002 provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curb side traffic control cabinets. The Industrial Ethernet Extender can operate in wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location. The IVC-2002 is packaged in a compact, IP-30 metal case that allows either DIN or panel mounting for efficient use of cabinet space. The Extender provides an integrated power supply with a wide range of voltages (12 ~ 48V DC) for worldwide operability or for dual-redundant, reversible polarity, 12 ~ 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.Efficient Usage, Cost Effectiveness and Great Performance The Ethernet over VDSL2 combines the Ethernet and VDSL technology to transmit the Ethernet format data by using VDSL signaling over the existing coaxial cable and telephone wire. Therefore, it is ideal for deploying network by using the existing coaxial cable and telephone wire to transmit data to the Internet at a minimum cost. The IVC-2002 can be adjusted to Master or Slave mode via a DIP switch. When the IVC-2002 (RJ-11) is connected with the other IVC-2002 device, the performance will be up to 99/63Mbps for asymmetric data rate within 200m and up to 28/2Mbps for asymmetric data rate at 1.4km. The IVC-2002 (BNC) performance is up to 99/65Mbps for asymmetric data rate within 200m and up to 31/4Mbps for asymmetric data rate at 2.4km. This capability is ideal for use as an Ethernet extender for your existing Ethernet network. |
 |
Product Function: 75°C/-40°C
IGTP-80xT Series
| PLANET IGTP-80xT Industrial Gigabit Media Converter series combines Ethernet media conversion (from 1000Base-X to 10/100/1000Base-T) with 802.3at High Power over Ethernet (PoE) injector delivered in an IP30 rugged strong case. Particularly designed for network equipment requiring sufficient and reliable power input, the IGTP-80xT series supports up to 30 watts of power output and data transmission both delivered to remote powered devices over a single Ethernet cable. Its 1000Base-X fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network. The special and convenient power system of the IGTP-80xT series supports 24/48V DC power inputs for power redundancy and operational flexibility. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-80xT series can be placed in almost any difficult environment. |
 |
| Fiber-Optic Link Capability Extends the Range of Network Deployment The maximum distance between the PoE PSE (Power Sourcing Equipment) and PD (Powered Device) via Ethernet cable is 100 meters. To extend the PoE deployment range, the IGTP-80xT series is integrated with fiber interface for farther distance applications. The IGTP-80xT series and its respective fiber connecting type include: ■ IGTP-802T: SC type multi-mode Fiber Interface, transmission distance up to 220m and 550m ■ IGTP-802TS: SC type single mode fiber interface, transmission distance up to 10km ■ IGTP-805AT: SFP slot supporting 100Base-FX / 1000Base-X Multi / Single Mode SFP module, transmission distance up to 120km (Varying on SFP module) |
 |
| With the long fiber distance support, the IGTP-80xT series still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control and the LFP (Link Fault Pass-through function) function in the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.
Plug and Play High Power Sourcing Solution Convenient and Reliable Power System Environmentally Hardened Design for Industrial PoE Networks |
IGT-805AT
|
||||||||||||||||
IGT-1205AT
| Flexible, Reliable and Industrial-grade Network Distance Extension Solution PLANET IGT-1205AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000Base-T RJ-45 copper and two 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGT-1205AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from –40 to 75 degrees C.Fiber-Optic Link Capability Enables Extension of Network Deployment The two SFP slots are compatible with 100Base-FX or 1000Base-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 550 meters (Multi-mode fiber cable) up to 10/20/30/40/50/70/120 kilometers (Single-mode fiber cable), and also the Fast Ethernet distance can be extended from 2km (Multi-mode fiber cable) up to 20/40/60 kilometers (Single-mode fiber cable). They are well suited for applications within the factory data centers and distributions. |
 |
| Adjustable 3-Port Switch Mode or 2 Fiber Redundant Mode Via the built-in DIP switch, the two SFP fiber interfaces of the IGT-1205AT can be configured as Ethernet switch mode or Fiber Redundant mode. With the Ethernet switch mode, it can operate in Store-and-Forward mechanism with high performance; with the 2-port Fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair. |
 |
| Environmentally Hardened Design The IGT-1205AT is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGT-1205AT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGT-1205AT can be placed in almost any difficult environment. The IGT-1205AT also allows either DIN rail or wall mounting for efficient use of cabinet space.Convenient and Reliable Power System To enhance the operation reliability and flexibility, the IGT-1205AT is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. |
IPOE-171S
| Highly Convenient and Robust Industrial PoE Splitter PLANET IPOE-171S is an Industrial-grade Ultra Power over Ethernet Splitter which delivers both the Ethernet data and a 60-watt to 110-watt PoE power from Ultra PoE PSE (Power Source Equipment) over an UTP cable. It comes with a selectable 12V or 24V DC DIP switch, enabling to deliver a maximum of 95-watt power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters. To fulfill the growing industrial applications, the IPOE-171S is designed to work under the operating temperature range from -40 to 75 degrees C. The IPOE-171S is an ideal solution to transferring power to a traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment. |
 |

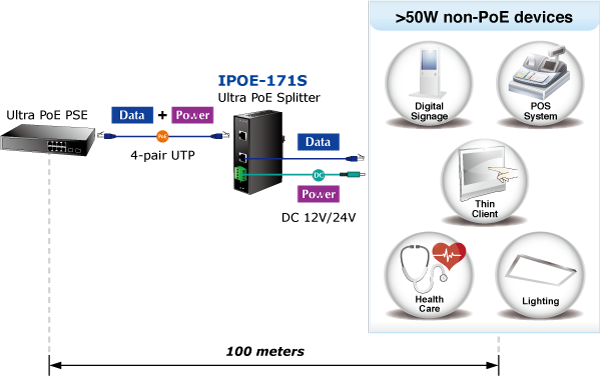

| Quick and Easy Ultra Power PoE Network Deployment Many high-power required traditional Ethernet devices are not designed with PoE PD (Powered Device) capability to accept power over UTP cable. They can only get power through their DC jack while their RJ45 interfaces accept only Ethernet data. The IPOE-171S, functioned as an Ultra PoE PD (Powered Device), splits the combined data and power stream into two separate cords to offer more non-PoE applications, such as: ■ POS ■ AIO (All-in-One) touch PC and thin-client ■ Digital signage and display tablet ■ PTZ speed dome ■ Other network devices that need higher power to work normally |
 |

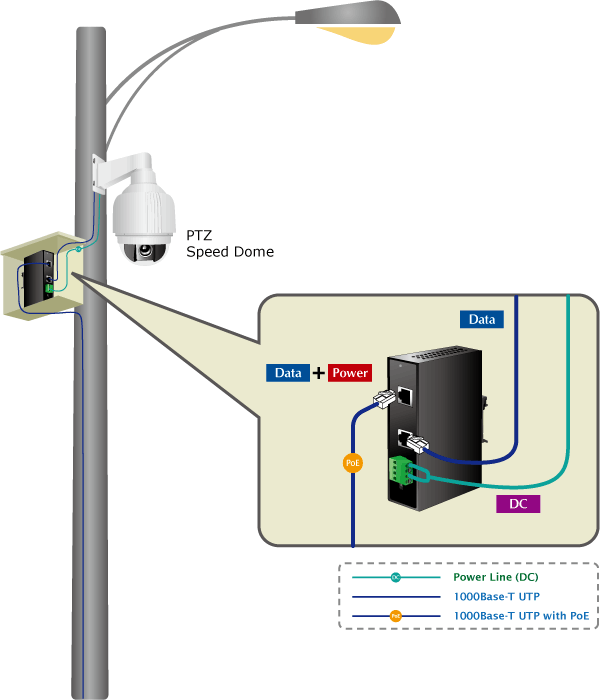

| When functioned with the IPOE-171S, these non-PoE Ethernet devices can immediately become PoE-ready without any modification required on their side. The IPOE-171S frees the device deployment from restrictions due to power outlet locations, which eliminate the costs for additional AC wiring and reduce the installation time.
Innovative, Selectable DC Power Output Voltage |

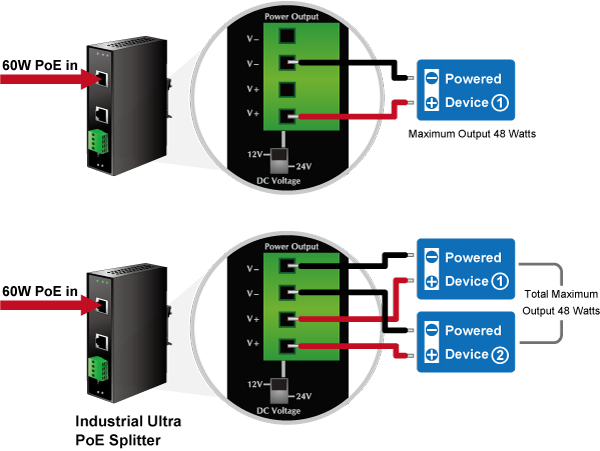

| Dual Power Output Capability The IPOE-171S shares its 55-watt output power with not only a single power-hungry equipment but also two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source: ■ IP camera (Power 1) + Outdoor housing with fan and heater (Power 2) ■ IP camera (Power 1) + Pan & Tilt motor (Power 2) ■ Analog camera (Power 1) + IP video server (Power 2) |
 |
| Environmentally Hardened Design With compact, slim type IP30 industrial case protection, the space-saving Industrial Ultra PoE Splitter IPOE-171S can be placed in almost any difficult environment. It allows either DIN rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-171S is the ideal product for co-working with Industrial High Power Injector which can feed the power to non-PoE devices up to 100 meters (328 feet) away in those harsh environments. |
 |
IGS-5225-24P4S
| Environmentally Hardened Design PLANET IGS-5225-24P4S, a new industrial Layer 2+ managed Gigabit Switch, features 24 10/100/1000Mbps IEEE 802.3af/at PoE injector ports and 4 shared SFP ports, and supports static Layer 3 routing in a 1U case. With a total switch fabric of 48Gbps, the IGS-5225-24P4S can handle large amounts of data in a secure topology linking to an industrial backbone or high-capacity servers. The IGS-5225-24P4S is capable of providing non-blocking switch fabric and wire-speed throughput in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGS-5225-24P4S when placed in the cabinet. |
 |
| Redundant Ring, Fast Recovery for Critical Network Applications The IGS-5225-24P4S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple ring network, the recovery time of data link can be as fast as 20ms. |
 |
| High Power PoE for Security and Public Service Applications To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature, the IGS-5225-24P4S provides 24 10/100/1000Mbps ports featuring IEEE 802.3at Power over Ethernet Plus (PoE+) that combines up to 400-watt power output and data per port over one Cat.5E/6 Ethernet cable. With a total 400-watt PoE budget on the whole system, the IGS-5225-24P4S is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as PTZ (Pan, Tilt & Zoom)/Speed Dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other PoE network devices by providing PoE power, doubling that of the current conventional 802.3af PoE. |
 |
| Intelligent Alive Check for Powered Device The IGS-5225-24P4S PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-24P4S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden. |
 |
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-5225-24P4S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. |
 |
| Digital Input and Digital Output for External Alarm The IGS-5225-24P4S supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-24P4S port shows link down, link up or power failure. |
 |
| Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management To help customers stay on top of their businesses, the IGS-5225-24P4S not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and simpler networking application.Robust Layer 2 Features The IGS-5225-24P4S can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-24P4S provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-5225-24P4S allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 12 trunk groups with 4 ports per trunk group, and supports fail-over as well.Efficient Management For efficient management, the IGS-5225-24P4S is equipped with console, Web and SNMP management interfaces. With the built-in Web-based interface, the IGS-5225-24P4S offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-5225-24P4S can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMP v3 connection which encrypts the packet content at each session. |
 |
| Powerful Security The IGS-5225-24P4S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.Flexibility and Extension Solution The four mini-GBIC slots built in the IGS-5225-24P4S support dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. |
IGS-5225-4UP1T2S
| Environmentally Hardened Design PLANET Industrial 4-port Gigabit Ultra PoE Switch, IGS-5225-4UP1T2S, is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus, the IGS-5225-4UP1T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-4UP1T2S can be placed in almost any difficult environment. The IGS-5225-4UP1T2S also allows either DIN rail or wall mounting for efficient use of cabinet space. |
 |
| 802.3bt Ready — 60 Watts of Power over 4-pair UTP System The IGS-5225-4UP1T2S Ultra PoE solution adopts the IEEE 802.3at/af PoE standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling. In the new 4-pair system, the IGS-5225-4UP1T2S is able to deliver per port up to 60 watts of power to each remote PoE compliant powered device (PD). It possesses double amount of power capability than the conventional 802.3at PoE and is an ideal solution to satisfying the growing demand for higher power consuming network PDs, such as: ■ PoE PTZ speed dome ■ Any network device that needs higher PoE power to work normally ■ Thin-client ■ AIO (all-in-one) touch PC, point of sale (POS) and information kiosks ■ Remote digital signage display |
 |
| Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power, the IGS-5225-4UP1T2S provides three different PoE power output modes for selection. ■ 60W UPOE PoE Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8) ■ 30W End-span PoE Power Output Mode (Pins 1, 2, 3, 6) ■ 30W Mid-span PoE Power Output Mode (Pins 4, 5, 7, 8) |
 |
| Intelligent Alive Check for Powered Device The IGS-5225-4UP1T2S PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-4UP1T2S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden. |
 |
| PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-5225-4UP1T2S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.Scheduled Power Recycling The IGS-5225-4UP1T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. |
 |
| Redundant Ring, Fast Recovery for Critical Network Applications The IGS-5225-4UP1T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms. |
 |
| SMTP/SNMP Trap Event Alert The IGS-5225-4UP1T2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.Effective Alarm Alert for Better Protection The IGS-5225 series supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.Digital Input and Digital Output for External Alarm The IGS-5225-4UP1T2S supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-4UP1T2S port shows link down, link up or power failure. |
 |
| Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management To help customers stay on top of their businesses, the IGS-5225 series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.Robust Layer 2 Features The IGS-5225 series can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225 series provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-5225-4UP1T2S allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 3 trunk groups with 3 ports per trunk group, and supports fail-over as well.Efficient Management For efficient management, the IGS-5225 Managed Ethernet Switch series is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-5225 series offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-5225 series can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session. |
 |
| Powerful Security The IGS-5225 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.Flexibility and Extension Solution The additional two mini-GBIC slots built in the IGS-5225-4UP1T2S support dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.Intelligent SFP Diagnosis Mechanism The IGS-5225 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. |
 |
| 1588 Time Protocol for Industrial Computing Networks The IGS-5225 series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. |
 |
ISW-804PT-M12
| In the last few years, PLANET has launched various IP67 protected Industrial products which can be deployed and provide stable Ethernet performance under difficult industrial environments. To further meet some specific industrial environments, PLANET has released a new series of industrial solutions, the ISW-804PT-M12, to provide higher level protection ability with the following features: • Industrial Protected IP67 Metal Case • Robust M12 Ethernet Connector • Waterproof / Dustproof • IEEE 802.3af PoE • Wide Temperature SupportIndustrial IP67 Metal Case and Robust M12 PoE Ethernet Connector Interface The ISW-804PT-M12, the Industrial 8-Port 10/100Mbps M12 PoE Fast Ethernet Switch, is designed with the IP67 industrial case, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The compact, IP67 standard metal case of the ISW-804PT-M12 allows either DIN rail or wall mounting installation for efficient use of cabinet space.The ISW-804PT-M12 is equipped with 8-port 10/100Base-TX auto-negotiation M12 connector with 4-port IEEE 802.3af PoE (Port 5 to port 8); each PoE port provides 15.4-watt PoE output. The M12 connector provides tight and strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment. |
 |
| Stable Operateing Performance under Difficult Environments Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-804PT-M12 can be placed in almost any difficult environment. The ISW-804PT-M12 also possesses an integrated power supply source with wide range of voltages (48V DC) for worldwide high availability applications requiring dual or backup power inputs.Robust Switch Performance The ISW-804PT-M12 has 2K MAC Address table and offers wire-speed packets transfer performance without risk of packet loss; the high data throughput of the device makes it ideal for most Fast Ethernet environments. With a 1.6Gbps internal switching fabric and featuring auto negotiation support in each of the eight Fast Ethernet port, the ISW-804PT-M12 can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.The flow control function enables the ISW-804PT-M12 to provide fast and reliable data transfer. All of the M12 RJ-45 copper interfaces in the ISW-804PT-M12 support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 category 3, 4, 5, 5e, 6 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. |
IVC-2004PT
| PLANET IVC-2004PT, an Industrial grade Ethernet Extender with PoE supported, is integrated with three advanced technologies: • Extends Ethernet over coaxial cable or phone wire • IEEE 802.3af Power over Ethernet • Industrial wide-ranging operating temperature The IVC-2004PT is designed to utilize the commonly existed coaxial cables or phone wires to extend the UTP Ethernet over 100m distance limitation and transmits both power and data over single Ethernet cable to remote PoE capable devices in heavy industrial demanding environments.IEEE 802.3af Power over Ethernet Integrated The IVC-2004PT provides 4 10/100Mbps copper ports with 4 IEEE 802.3af Power over Ethernet inject interfaces delivered in an IP-30 rugged strong case. Supporting up to 15.4-watt power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the IVC-2004PT is an ideal solution to deploying surveillance system, and securing control and wireless service in climatically demanding wide temperature range (-40 to 75 degrees C) environments.Long-reach Ethernet To extend the network distance and provide reliable Ethernet networking in hardened environments, the IVC-2004PT is equipped with one asymmetric / symmetric Ethernet extender port. The extender port can be RJ-11 or BNC connector. Customers can use either BNC or RJ-11 for their network deployment and the IVC-2004PT offers the absolutely fastest data transmission speed up to 99/65Mbps over existing coaxial cable and telephone wire without the need of rewiring.Flexible Combination of Applications The IVC-2004PT helps users to flexibly re-deploy a new local Intranet in the apartment, intelligent transportation systems, building automation, campus and hospitality environment by applying the original network structure without spending extra cost. The IVC-2004PT can be adjusted to Master or Slave mode via a DIP switch. It also can be set up to connect with the other IVC-2004PT or with other PLANET Ethernet extenders — the IVC-2002, VC-201A and VC-202A. Therefore, users can easily expand the current network structure easily and more flexibly.
Environmentally Hardened Design for Industrial PoE Networks |
ISW-514PT/ISW-514PT15/ISW-514PTF
| PLANET ISW-514PT PoE Industrial Ethernet Switch is designed to transmit power and data over single Ethernet cable to remote PoE capable devices and operates reliably in heavy industrial demanding environments. The ISW-514PT series provides four 10/100Mbps copper ports supporting IEEE 802.3af Power over Ethernet injector and one 100Base-FX fiber optic interface delivered in an IP-30 rugged strong case. Supporting up to 15.4-watt power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the ISW-514PT series is an ideal solution to deploying surveillance system and wireless service in climatically demanding wide temperature range (-40 to 75 Degree C) environments. The 100Base-FX fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network.
IEEE 802.3af Power over Ethernet PSE Industrial Switch PoE feature is more often supported in the industrial Ethernet devices for efficient operation in harsh environments. The ISW-514PT series in-line power follows standard IEEE 802.3af and allows to supply power to 4 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5 / 5e UTP wire. With Data and Power over Ethernet from one unit, the ISW-514PT series can reduce cables deployment and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power results in lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords.Furthermore,there is only 24V DC input in some industrial environments, the ISW-514PT series supports 24V DC or 48V DC dual voltages input and able to provide more wide range of industrial IEEE 802.3af PoE applications. Fiber Optic Link Capability for Flexible Distance Extension The ISW-514PT series is equipped with one 100Base-FX port that provides more flexibility for Transportation, Manufacturing, Security and Surveillance on distance extension without any limitation. The ISW-514PT series offers high performance switch architecture as shown below: Wide Temperature Makes Installation Suitable for Harsh Environments The ISW-514PT series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under wide temperature range from -40 to 75 Degree C, the ISW-514PT series can be placed in almost any difficult environment. It also offers dual-redundant, reversible polarity 24V DC or 48V DC power inputs for high availability applications requiring or backup power inputs. Robust Switch performance The ISW-514PT series provides non-blocking switch fabric, wire-speed throughput as high as 1Gbps and the 2K MAC Address table. It also performs wire-speed packets transfer without risk of packet loss and the Flow Control function is default enabled to provide fast and reliable data transfer. All of the RJ-45 copper interfaces support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 Category 3, 4, 5, 5e or 6 cable. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. |
