|Ideal, High-performance Integration Solution for Secure IP Surveillance Infrastructure
PLANET GSD-1002VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.The GSD-1002VHP is equipped with 8 10/100/1000BASE-T ports featuring 30-watt 802.3at Power over Ethernet Plus (PoE+) copper interfaces and 2 extra 10/100/1000BASE-T uplink ports with inner power system. With a total PoE power budget of up to 120 watts and non-blocking data switching performance, the GSD-1002VHP fulfills the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.

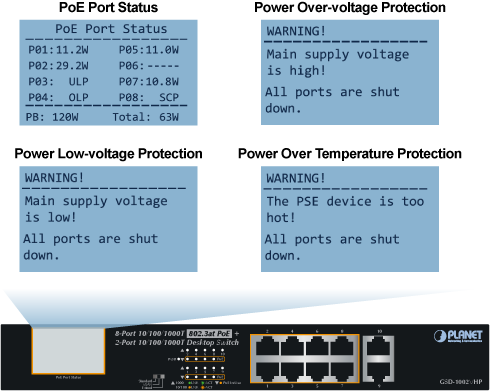

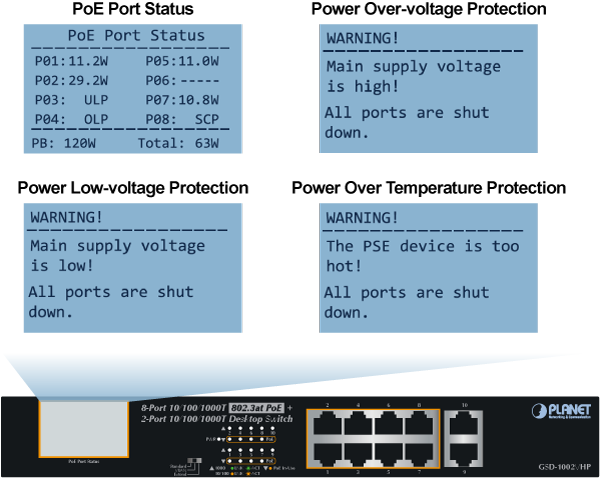

|LCD Monitor for Real-time PoE Usage and System Status Display
The LCD monitor of the GSD-1002VHP clearly shows the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. With its brand-new LCD monitor, user is able to obtain detailed information about real-time PoE working condition of the GSD-1002VHP directly. Also the Power Budget Control function helps to prevent power budget overloading.
|VLAN and Ethernet Data Transmit Distance Extension
The built-in solid DIP switch provides “Standard”, “VLAN” and “Extend” operation modes. The GSD-1002VHP operates as a normal IEEE 802.at/af PoE Switch in the “Standard” operation mode.

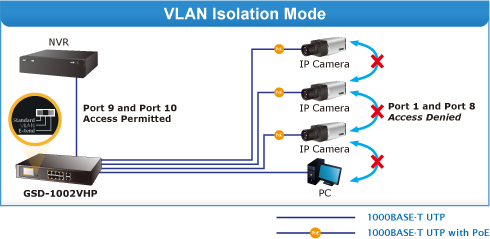

The “VLAN” operation mode features with port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.
|In the “Extend” operation mode, the GSD-1002VHP operates on a per-port basis at 10Mbps duplex operation but can support 30-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GSD-1002VHP provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the “Extend” operation mode.|
|Two Gigabit Uplink Ports
The GSD-1002VHP provides 2 extra Gigabit ports supporting 10/100/1000BASE-T RJ45 copper for IP surveillance network devices such as NVR, video streaming server or NAS to facilitate surveillance management. With up to 1000Mbps transfer rate, it ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the eight PoE+ ports can be used to their full potential.Robust Protection
The GSD-1002VHP protects against the ESD 4KV surge to improve product stability and also protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.Easy Installation and Cable Connection
As data transfer and High Power PoE are transmitted over a cable, the GSD-1002VHP is able to reduce the need of extended cables and electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort. All RJ45 copper interfaces of the GSD-1002VHP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
