IPOE-E174

PoE Solution for Long-reach Distance
PLANET IPOE-E174 is an industrial 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The IPOE-E174 can obtain a maximum of 60-watt PoE power from ultra PoE input port and supplies a maximum of 50-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at / 802.3af Power over Ethernet over the standard 100m (328 ft.) CAT. 5/5e/6 UTP cable to 200m up to 4 powered devices at the same time. The IPOE-E174 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Environmentally Hardened Design
With industrial-level IP30 metal case, the IPOE-E174 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-E174 can be placed in almost any difficult environment.

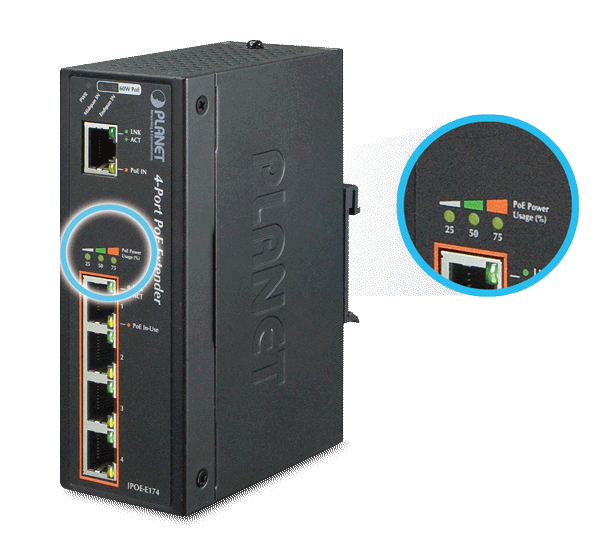

Intelligent LED Indicator for Real-time PoE Usage
The IPOE-E174 helps users to monitor the current status of PoE power usage easily by its advanced LED indication. Called “PoE Power Usage” shown in percentage, the front panel of the IPOE-E174 has three LEDs indicating 25, 50 and 75 percent of PoE power usage. With these LED indications, you can monitor the PoE power status of the IPOE-E174 efficiently.
Plug and Play, Easy Cabling Installation
The IPOE-E174 is quite easy to be installed by simple plug and play. It is used between a Power Source Equipment (PSE) and the Powered Device (PD). The IPOE-E174 injects power to the PD without affecting the data transmission performance. The IPOE-E174 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The IPOE-E174 is designed in a compact mini box containing 5 RJ45 ports, of which the 1 “PoE IN” port functions as PoE (Data and Power) input and the 4 “PoE OUT” ports on the other side functions as PoE (Data and Power) output. The “PoE OUT” port is also the power injector to transmit DC voltage over the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and PD.
